Quick Time Bellhousing - Ford 5.0/5.8L

Bellhousing - Ford 5.0/5.8L

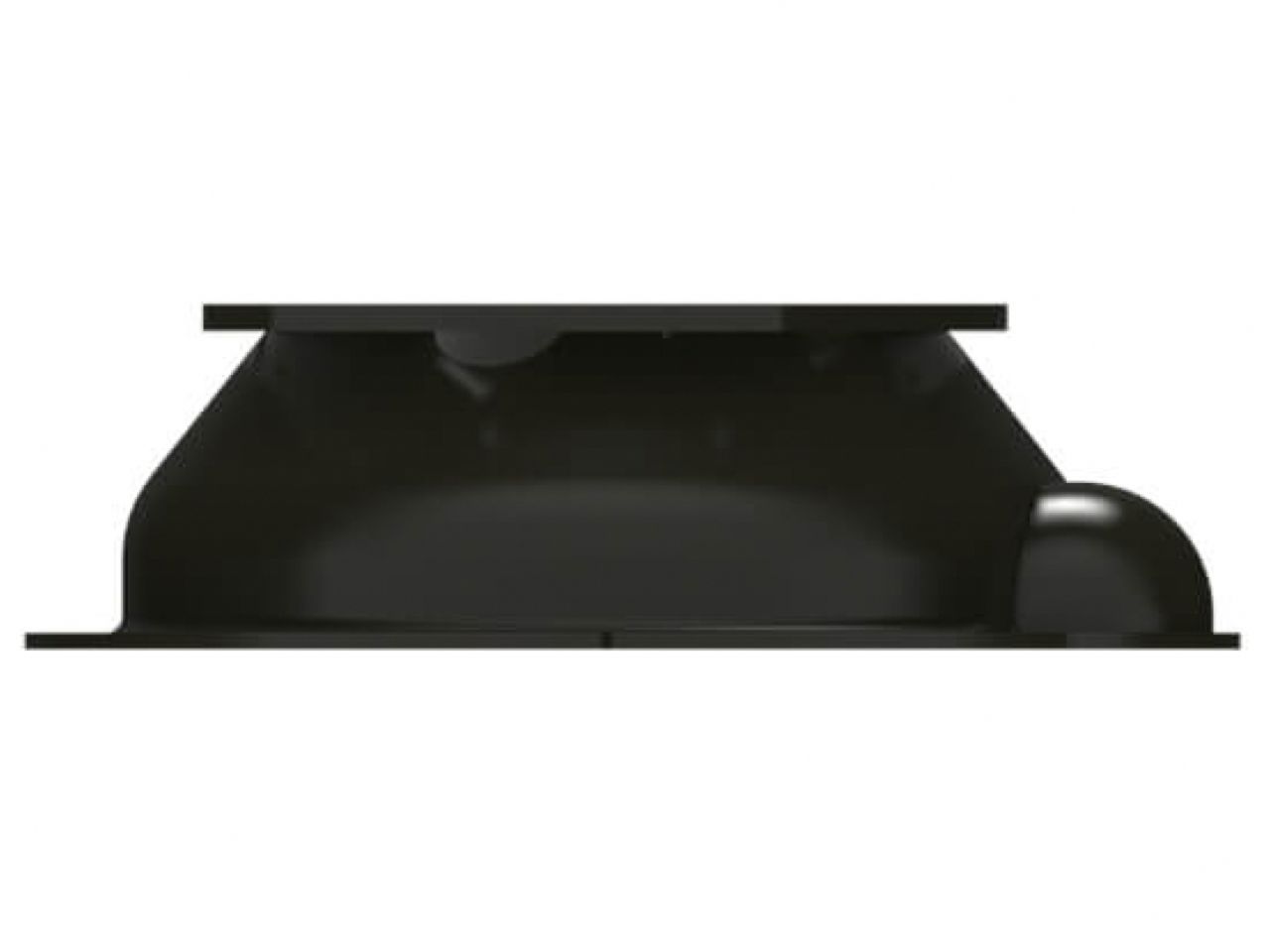

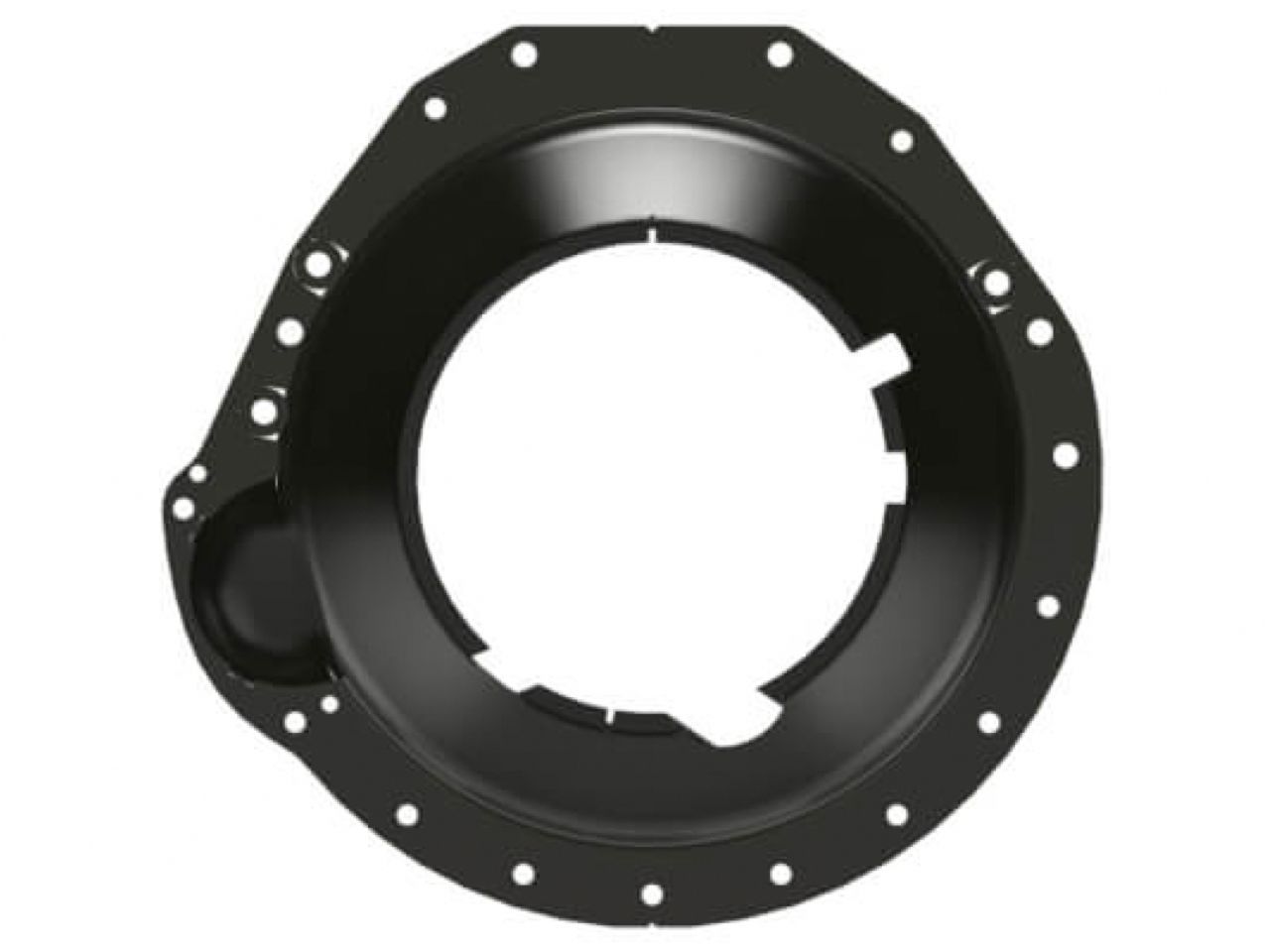

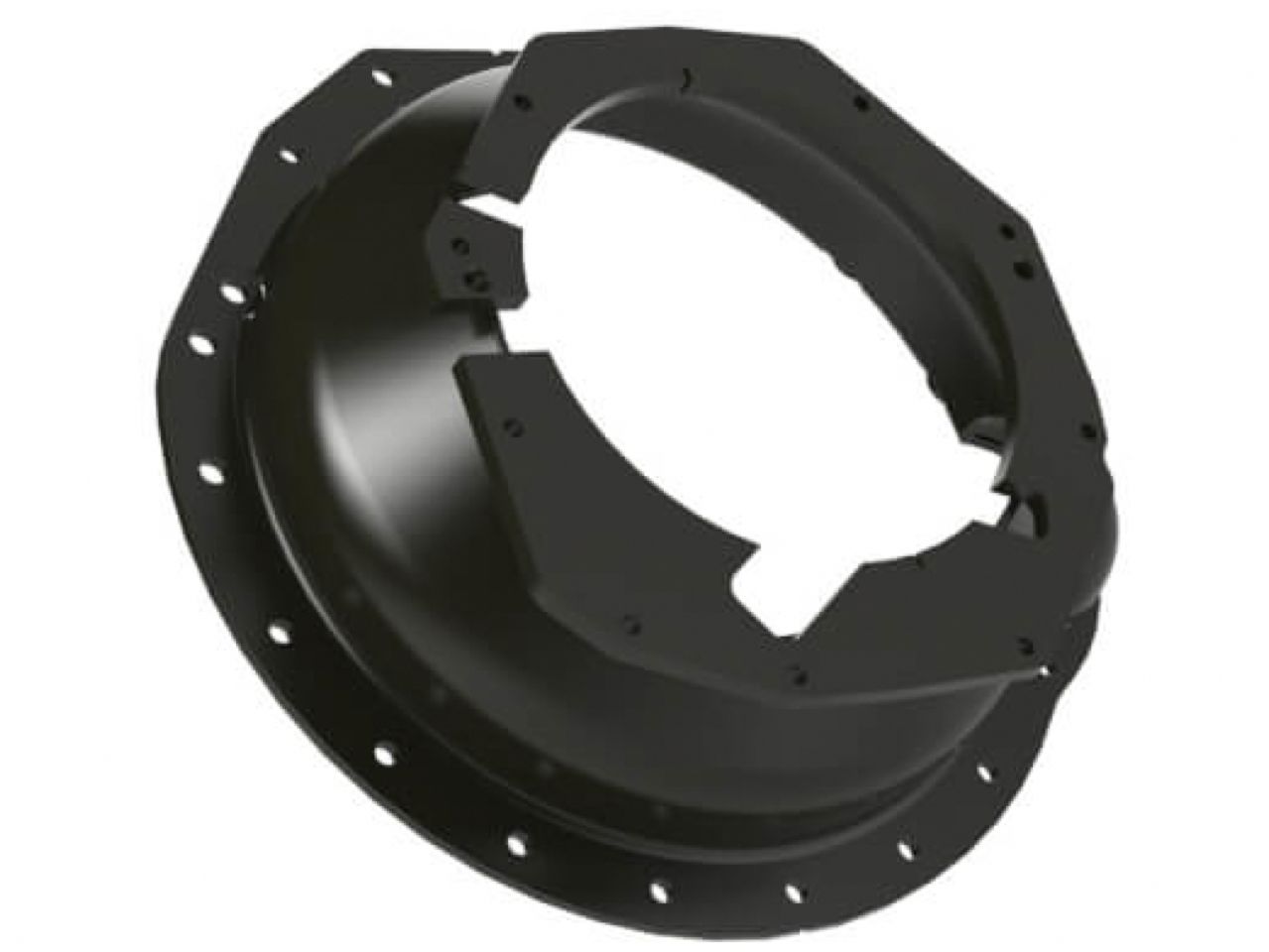

The Quick Time RM-8031-164 bellhousing connects 289/302/351W/351c Engines to Ford T56 or Ford T56 Magnum (fork at 7:00) Transmissions. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire.

Features:

• Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes

• QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available

• Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings

• 100% built in the USA

• Patent on 16 points of Bellhousing Design & Process

Specifications

Certification: 6.1 SFI

Clutch: 11"

Clutch Operation: Hydraulic or Pre 1993 Pull Cable

Emission Code: 5

Engine: Ford 289,Ford 302,Ford 351C,Ford 351W

Engine Make: Ford

Flexplate: 164 Tooth

Included Hardware: Engine plate and grade 8 bolts

Make: Ford

Material: Steel

Product Type: Bellhousing

Trans Bore: N/A

Transmission: T56 Ford,T56 Magnum

Weight: 22lbs
