Quick Time SB Mopar To TKO/T5

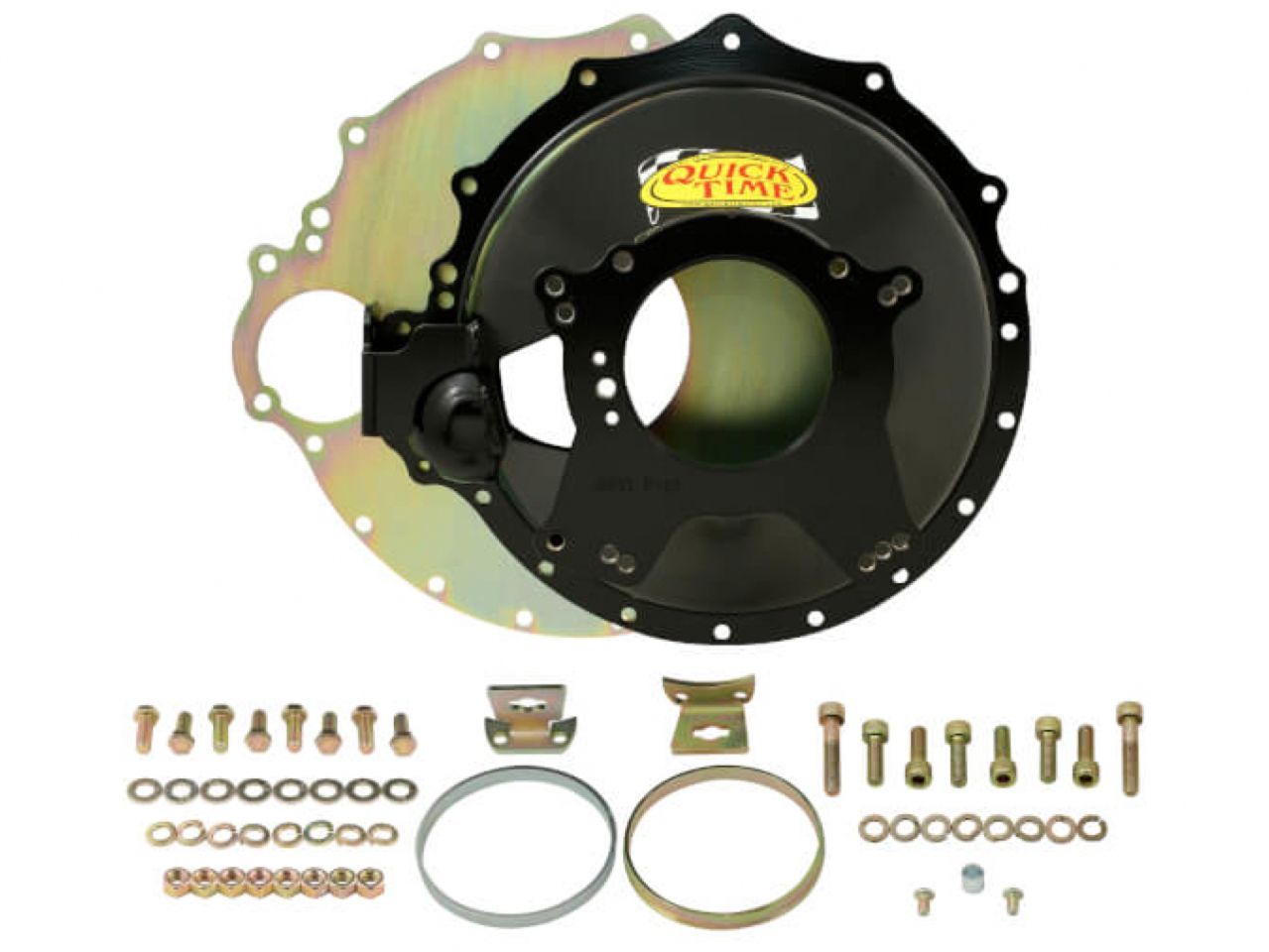

Do you want to put a Tremec Transmission behind your small block Mopar? This Bellhousing will let you bolt a Ford TKO, T5 or TR3550 transmission to a 318 or 360 Mopar. Can be used for street, strip or circle track applications. 7.3 in deep bellhousing will clear the 130 tooth flywheel with 11 in clutch. Universal transmission bore will fit 4.85 in, 4.91 in, 4.685 in bores. Built from high grade steel, the cone is spun not stamped or rolled making this bellhousing dimensionally stable and accurate. Weighs 22 pounds. Fork bracket, block plate and Grade 8 hardware included. S.F.I. 6.1 approved.

Features:

• Patent on 16 points of Bellhousing Design & Process

• Black Steel

• Bolt To Ford TKO T5 Or TR 3550 Transmission

• 7.3 In Deep

• Fits 130 Tooth Flywheel With 11 In Clutch

• Transmission Bore 4.85 4.91 4.685

• Weighs 22 Pounds

• S.F.I. 6.1 Approved

Specifications

Certification: 6.1 SFI

Clutch Operation: Hydraulic

Color: Black

Emission Code: 5

Engine: Mopar 318;Mopar 360;Mopar Small Block

Engine Make: Mopar

Engine Plate: RM-6070-C

Flywheel: 130 Tooth

Height: 7.300 inch

Make: Mopar

Material: Steel

Product Type: Bellhousing

Trans Bore: 4.85 / 4.91 / 5.12

Transmission: T5 Mustang;TKO 500/600 Ford;TR3550

Transmission Type: Manual
