Quick Time Bellhousing-SBF 5.0/5.8 to Ford TKO/3550/T5

Bellhousing-Small Block Ford

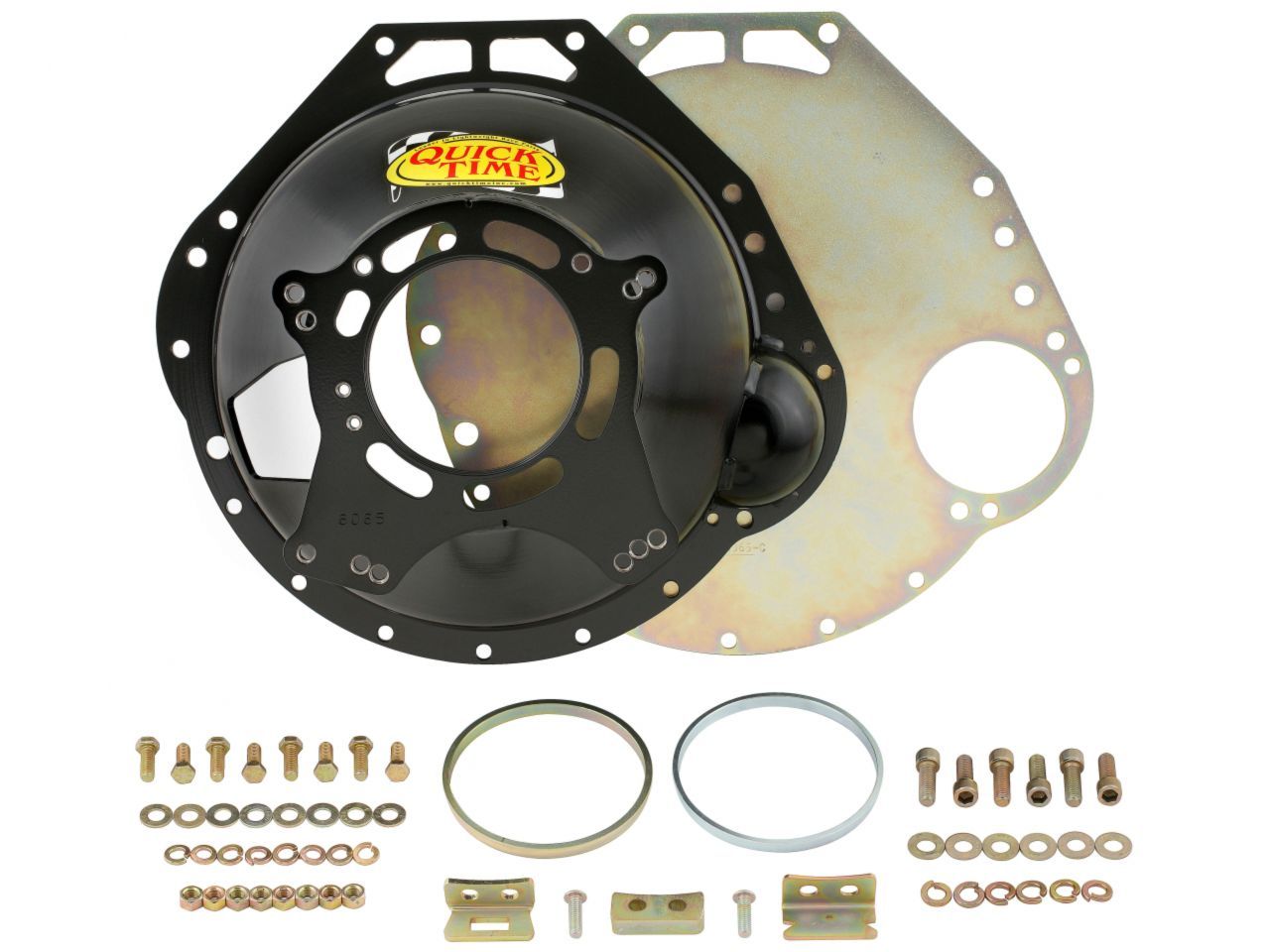

The Quick Time RM-6065 bellhousing connects a small block Ford engine to a Ford TKO 500-600, TR3550, or T5 Mustang (standard length input shaft) transmission. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)

Perfect fit for Small Block Fords with TKO, TR3550, or T5 transmissions

Features:

Patent on 16 points of Bellhousing Design & Process Designed For Ford OE Fork Or Cable Style Bearing Fits Up To 157 Tooth Flywheel And 10.5 in Clutch Utilizes OEM Style Starter Attachment / Placement Transmission Bore Diameter 4.85 In / 4.91 In Bellhousing Depth 6.925 In Weight 22 Lbs Include Grade 8 Hardware Made In The USA

Specs:

Brand: Quick Time

Certification: 6.1 SFI

Clutch Operation: Hydraulic

Color: Black

Engine: Ford 289

Ford 302

Ford 351C

Ford 351W

Ford Small Block

Engine Plate: RM-6065-C

Finish: Semi-gloss

Flywheel: 157 Tooth

Height: 6.925 inch

Material: Steel

Product Type: Bellhousing

Trans Bore: 4.85 / 4.91 / 5.12

Transmission: T5 Mustang

TKO 500/600 Ford

TR3550

Transmission Type: Manual

Weight: 22#
