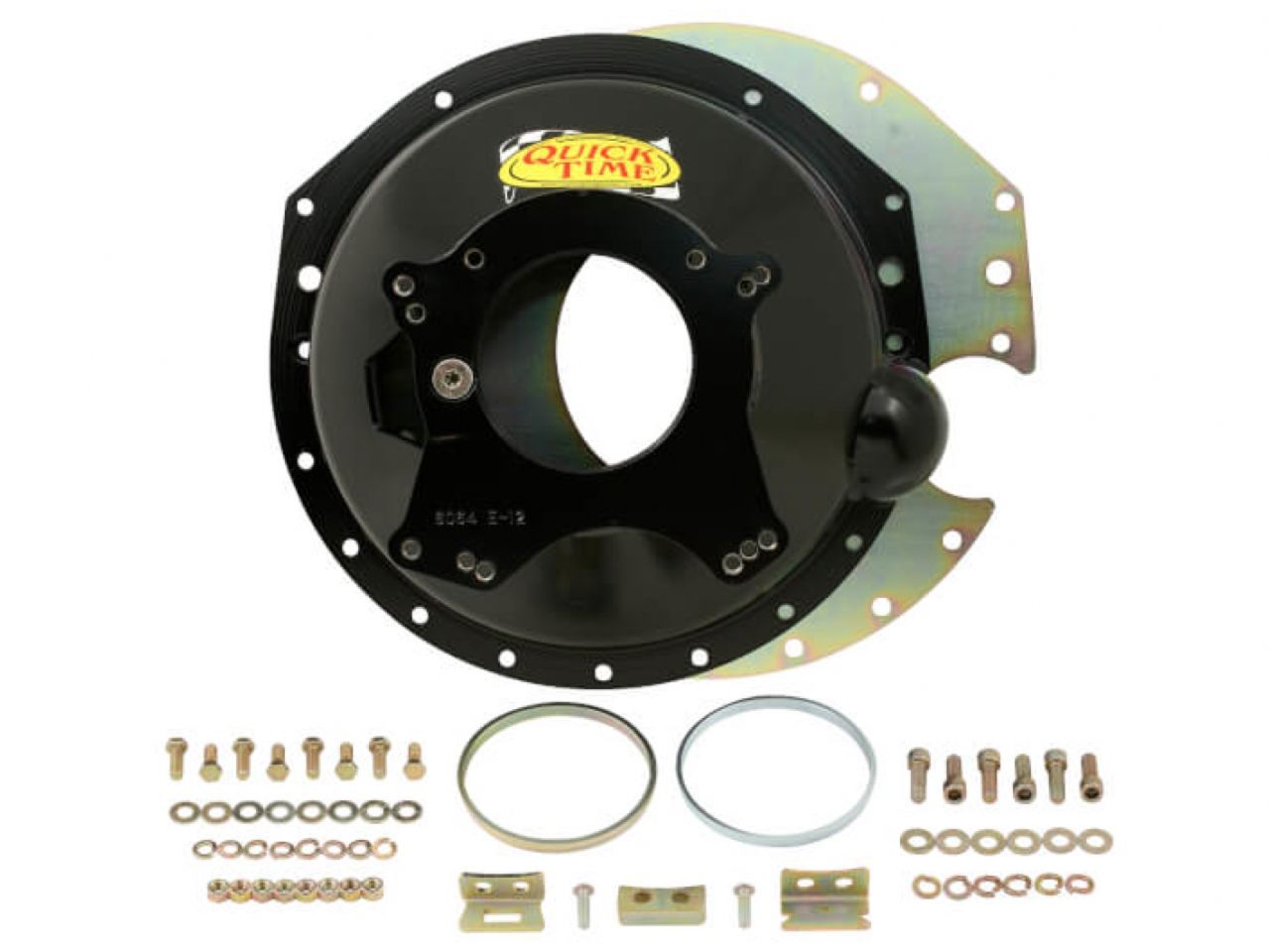

Quick Time Bellhousing - Chevy GM SB to Universal Tremec/T5

Bellhousing-Chevy

Built from high grade steel - Work hardens to over 80,000 PSI strength. Over 2 times the strength of any other steel bellhousing.Uses GM shifter fork (not included).

Perfect fit for Big Block and Small Block Chevys with TKO, TR3550, or T5 transmissions

Features:

Patent on 16 points of Bellhousing Design & Process

Designed to be used with a 1994+ Mustang shifter fork and/or standard GM clutch forks such as Lakewood #15500

Pivot ball, full engine plate and grade 8 bolts included

SFI 6.1 Certified

Specs:

Brand: Quick Time

Certification: 6.1 SFI

Clutch Diameter: 10.5 inch

Clutch Operation: Mechanical or Hydraulic

Engine: Chevy Big Block

Chevy LT1

Chevy Small Block

Engine Plate: RM-6023-C

Flexplate: 153 Tooth

Flywheel: 153 Tooth

Height: 7.145 inch

Product Type: Bellhousing

SFI: 6.1

Trans Bore: 4.85 / 4.91 / 5.12

Trans. Bore Diameter: Universal 4.850 inch / 4.910 inch

Transmission: T5 Mustang

TKO 500/600 Ford

TR3550

Transmission Type: Manual

Weight: 22#
