Quick Time Bellhousing-SBF 5.0/5.8 to Toploader

Bellhousing-Small Block Ford

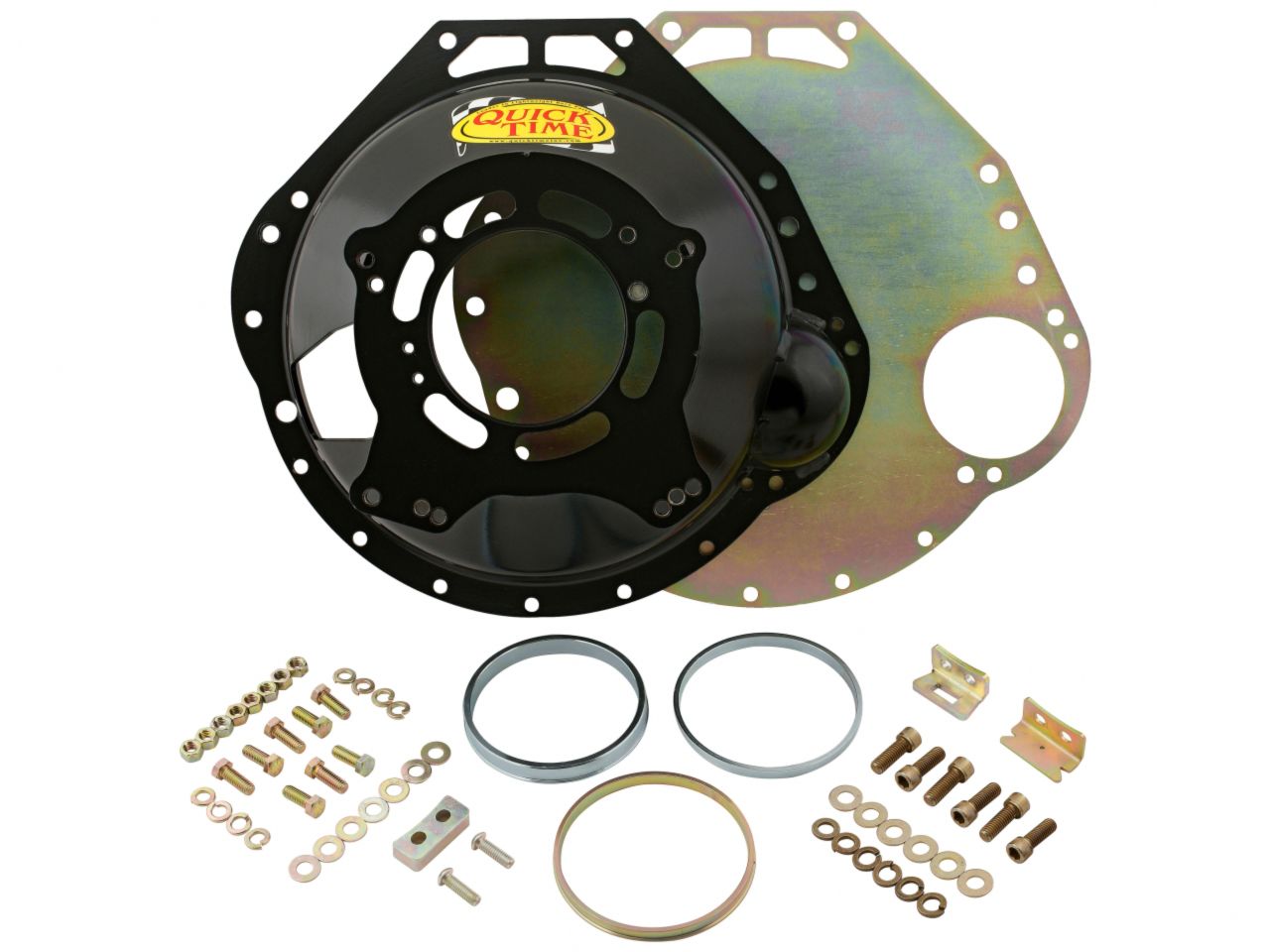

The Quick Time RM-6063 bellhousing connects Small Block Ford 289/302/351C/351W Engines to Ford toploader, Borg Warner T10, and Tremec TKO 500/600 transmissions. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)

Perfect fit for Small Block Fords with old-style Top-Loaders or BorgWarner T-10 transmissions

Features:

Patent on 16 points of Bellhousing Design & Process Designed For Ford OE Fork Or Cable Style Bearing Fits A 157 Tooth Flywheel With A 10.5 in Clutch Utilizes OEM Style Starter Attachment / Placement Transmission Bore Diameter 4.85 In / 4.91 In Bellhousing Depth 6.300 In Weight 22 Lbs Includes Grade 8 Hardware Made In The USA

Specs:

Brand: Quick Time

Certification: 6.1 SFI

Clutch Operation: Hydraulic

Color: Black

Engine: Ford 289

Ford 302

Ford 351C

Ford 351W

Ford Small Block

Engine Plate: RM-6065-C

Finish: Semi-gloss

Flywheel: 157 Tooth

Height: 6.300 inch

Material: Steel

Product Type: Bellhousing

Trans Bore: 4.685 / 4.85 / 4.91 / 5.12

Transmission: Ford Toploader

T10

TKO 500/600 Ford - Short Shaft

Transmission Type: Manual

Weight: 22#
