Quick Time Ford BB to T5/TKO/3550
Bellhousing – Fe Big Block Ford
Perfect fit for FE Big Block Fords with TKO, TR3550, or T5 transmissions

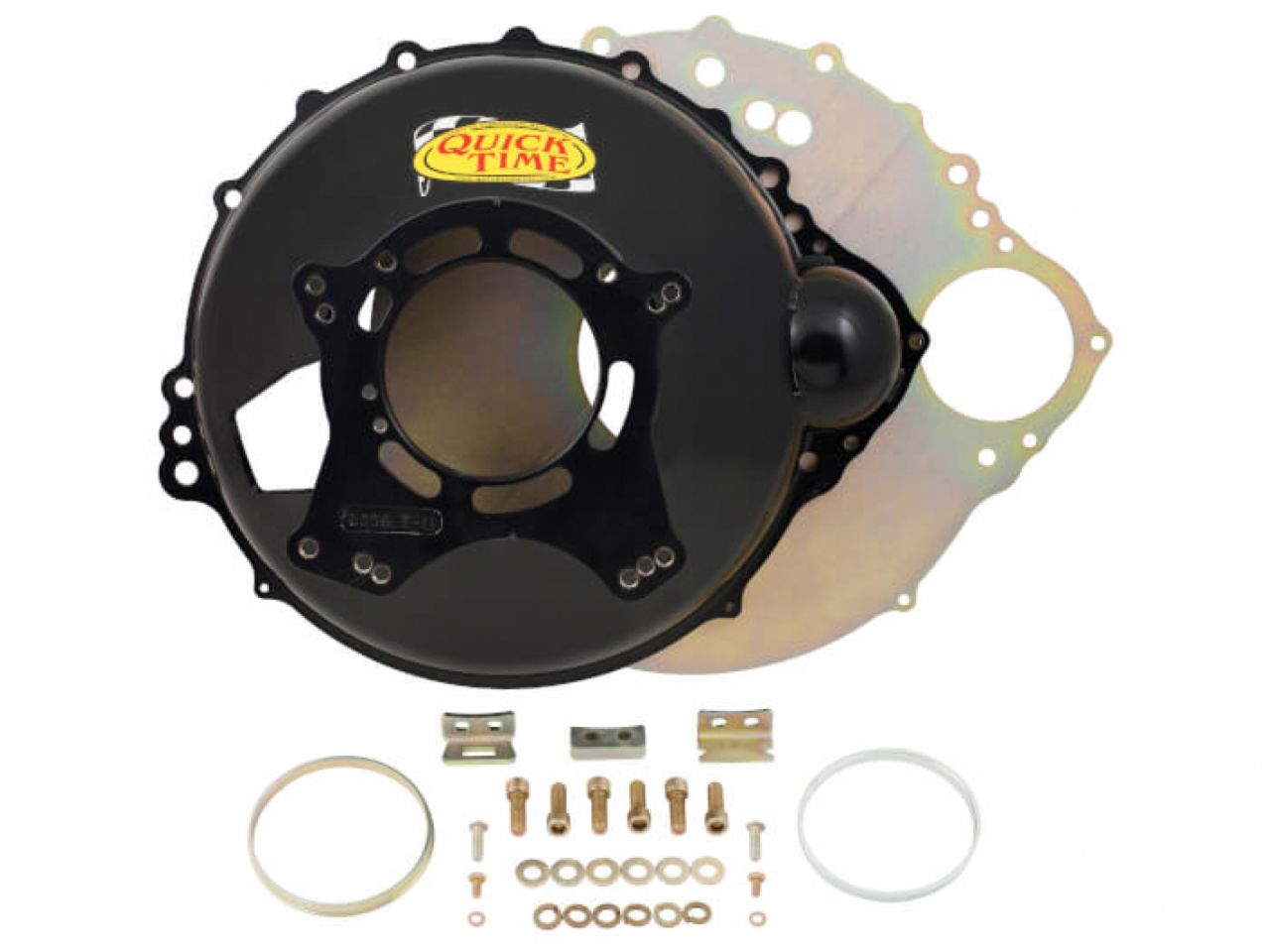

The Quick Time RM-6056 bellhousing connects Ford FE big block engines to Ford TKO500/600, T5 Mustang, or TR3550 transmissions. This bellhousing is not S.F.I. certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire.
Features:
- Patent on 16 points of Bellhousing Design & Process
- Designed For Ford OE Fork Or Cable Style Bearing
- Fits Up To A 184 Tooth Flywheel With 12 in Clutch
- Utilizes OEM Style Starter Attachment / Placement
- Transmission Bore 4.850 In / 4.910 In
- Bellhousing Depth 7.050 In
- Weight 22 Lbs
- Include Grade 8 Hardware
- Made In The USA
Specifications:
Clutch Diameter: 12"
Clutch Operation: Hydraulic
Color: Black
Engine: Ford 352; Ford 390; Ford 427; Ford 428; Ford Big Block FE
Engine Plate: RM-6008
Finish: Semi-gloss
Flywheel: 184 Tooth
Height: 7.150 inch
Material: Steel
Product Type: Bellhousing
Trans Bore: 4.85 / 4.91 / 5.12
Transmission: T5 Mustang; TKO 500/600 Ford; TR3550
Transmission Type: Manual
