Quick Time Bellhousing - Chevy Ls

Bellhousing – Chevy Ls

Perfect fit for Chevy LS engines with Ford TKO 500/600 , Ford TR3550, or Ford T5 transmissions, can also be used with late model LT1 and LT4 engines.

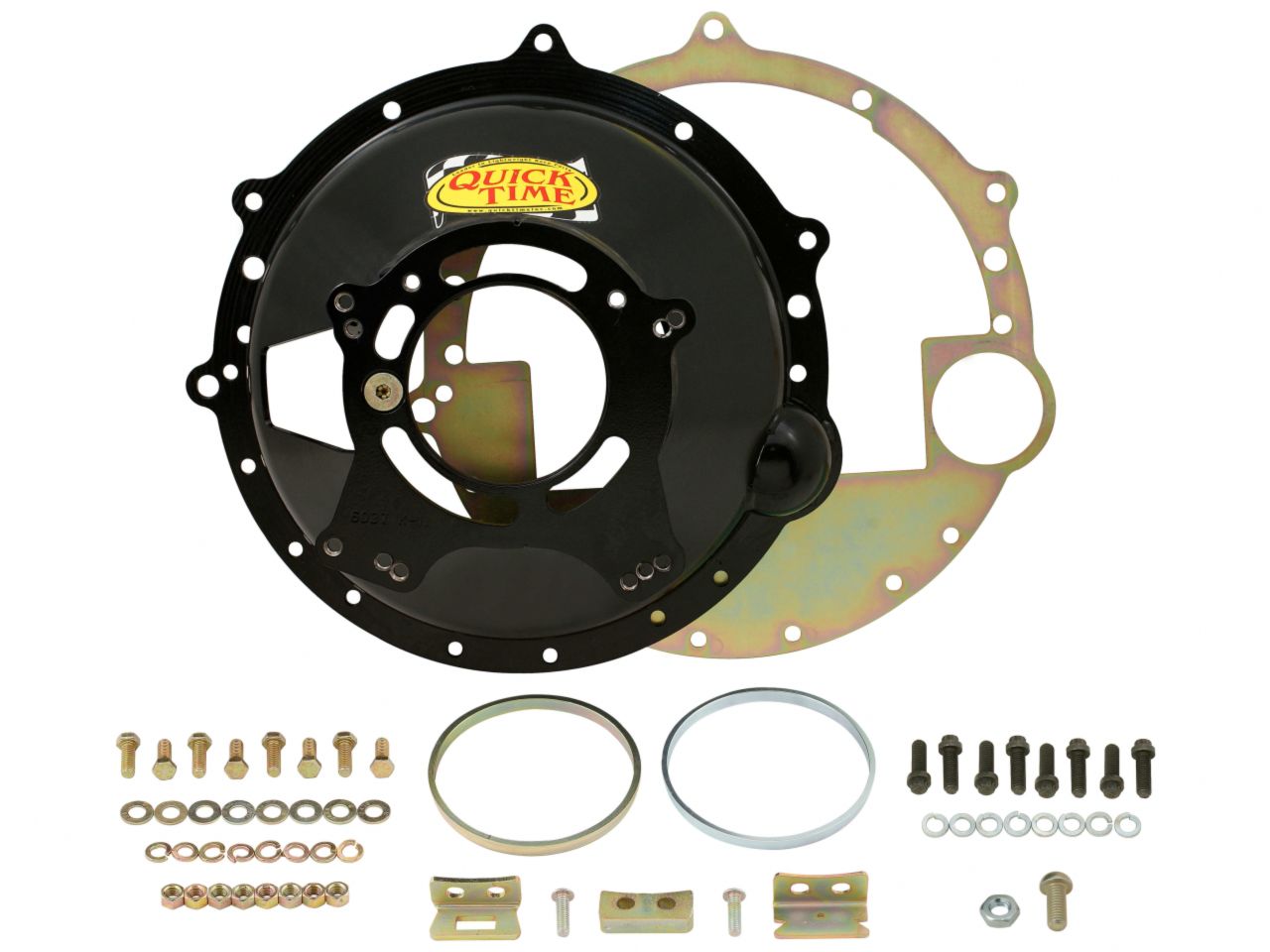

This Quick Time's bellhousing is designed for street, strip and circle track applications. Built from high quality grade steel, the cone is spun not stamped, and rolled making this bellhousing dimensionally stable and accurate. This bellhousing will fit all Chevy LS series engines to Ford TKO 500-600, T5 Mustang, TR3550, and Jerico 4/5 speed transmissions. 6.925 in deep this bellhousing will clear 168 tooth flywheel with 11 in clutch. Universal transbore is 4.685/4.910 in. Weighs 22 pounds. S.F.I. 6.1 certified. Pivot ball, block plate and Grade 8 hardware included. Other applications available.

Features:

• Patent on 16 points of Bellhousing Design & Process
• Fits Chevy LS Series Engines
• Ford TKO 500-600 T5 Mustang TR3550 Jerico
• 6.95 In Deep
• 168 Tooth Flywheel With 11 In Clutch
• Transbore 4.685/4.910
• Weighs 22 Pounds
• Pivot Ball Block Plate And Grade 8 Hardware

Specifications:

Certification: 6.1 SFI

Clutch Diameter: 11 inch

Clutch Operation: Mechanical or Hydraulic

Color: Black

Engine: Chevy LS; Chevy LT1; Chevy LT4

Engine Plate: RM-6037-C

Flywheel: 153/168 Tooth

Height: 6.925 inch

Material: Steel

Product Type: Bellhousing

SFI Certification: 6.1

Starter: OE

Trans Bore: 4.85 / 4.91 / 5.12

Trans. Bore Diameter: universal trans bore 4.685/4.910 in.

Transmission: T5 Mustang; TKO 500/600 Ford; TR3550

Transmission Type: Manual
