Quick Time LS1 to Richmond/Saginaw
Bellhousing - Chevy LS
Perfect fit for Chevy LS engines with Muncie, Jerico, T5 or TKO 500/600 Chevy transmissions can also be used with late model LT1 and LT4 engines.

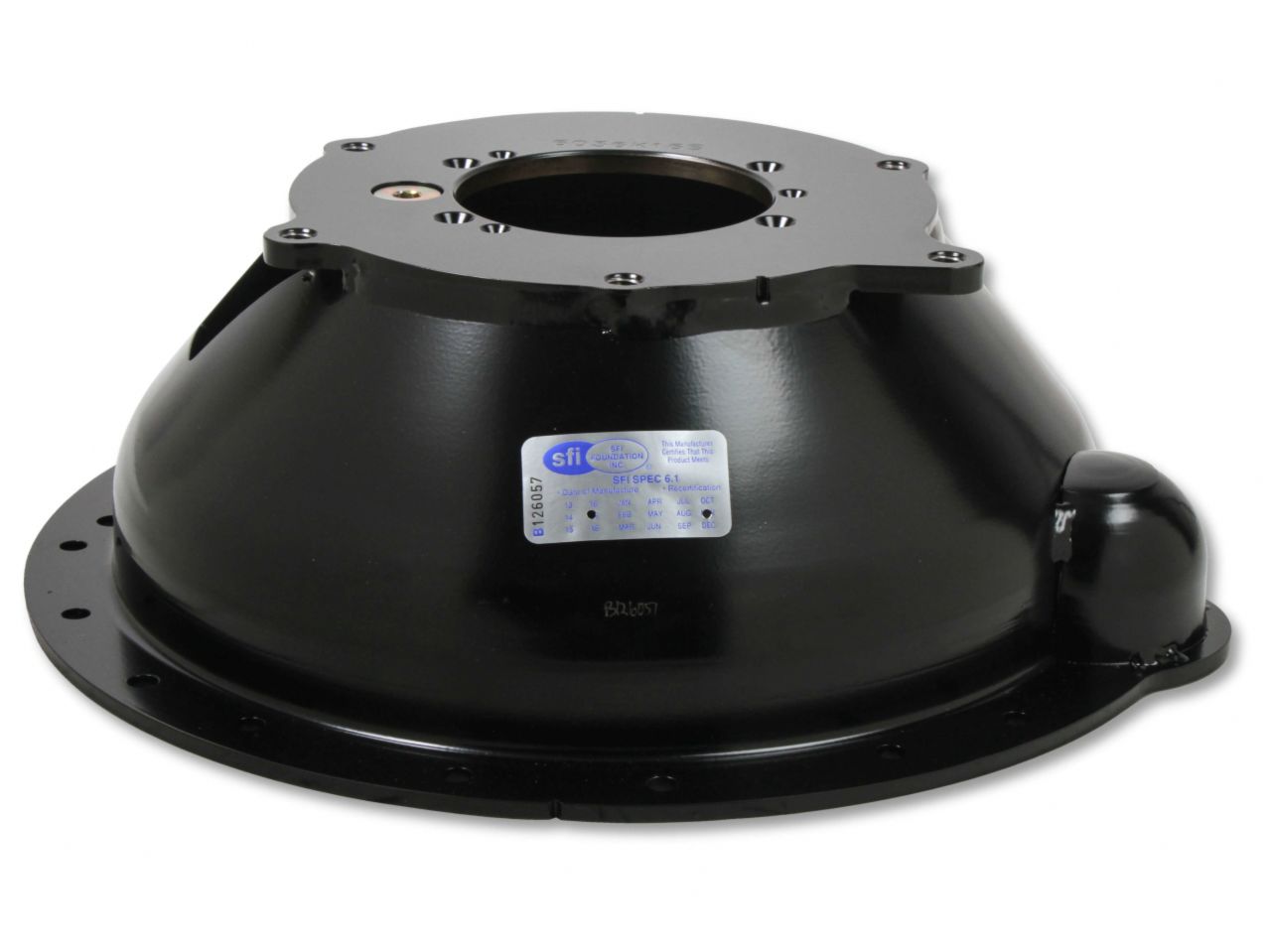

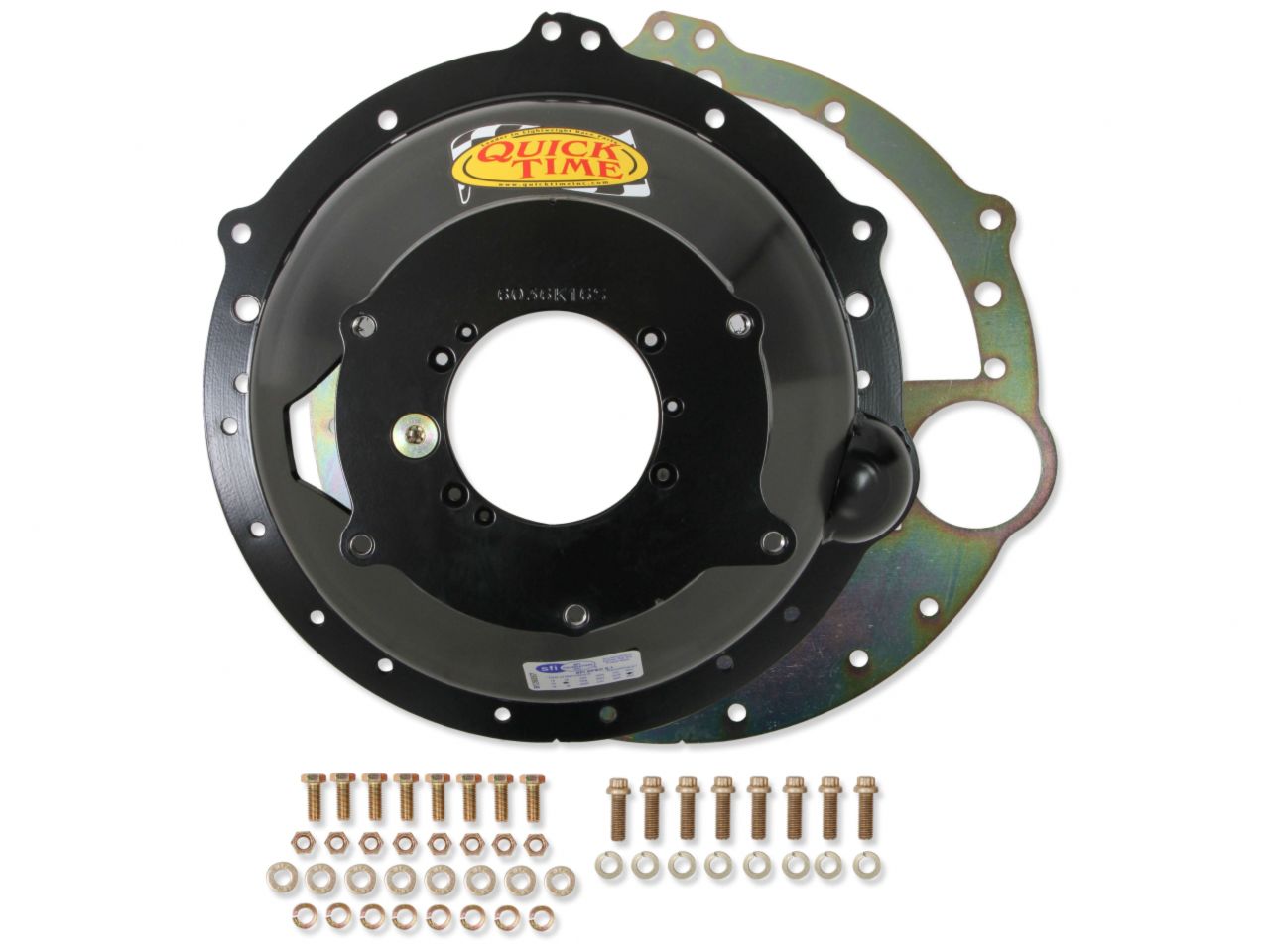

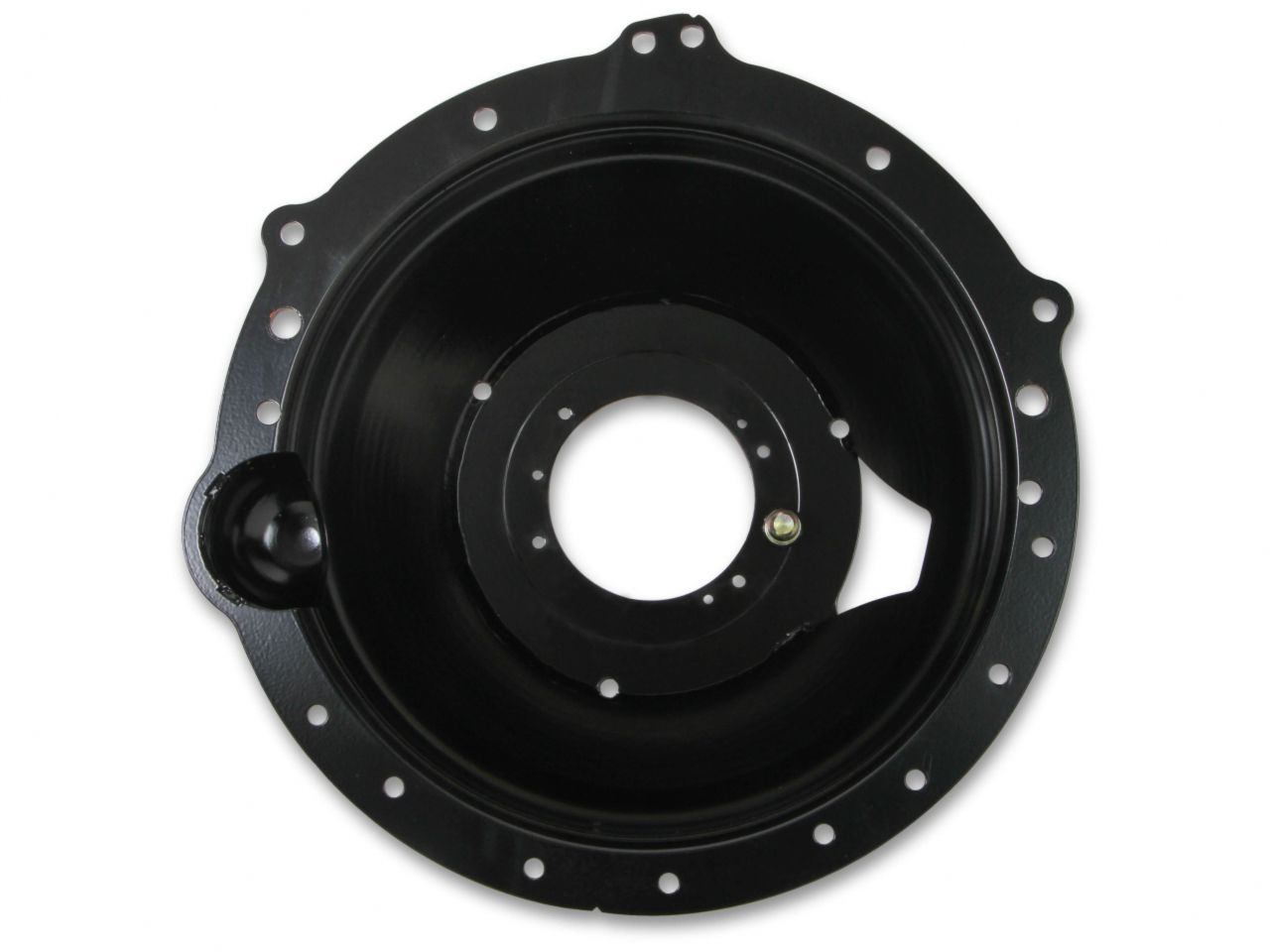

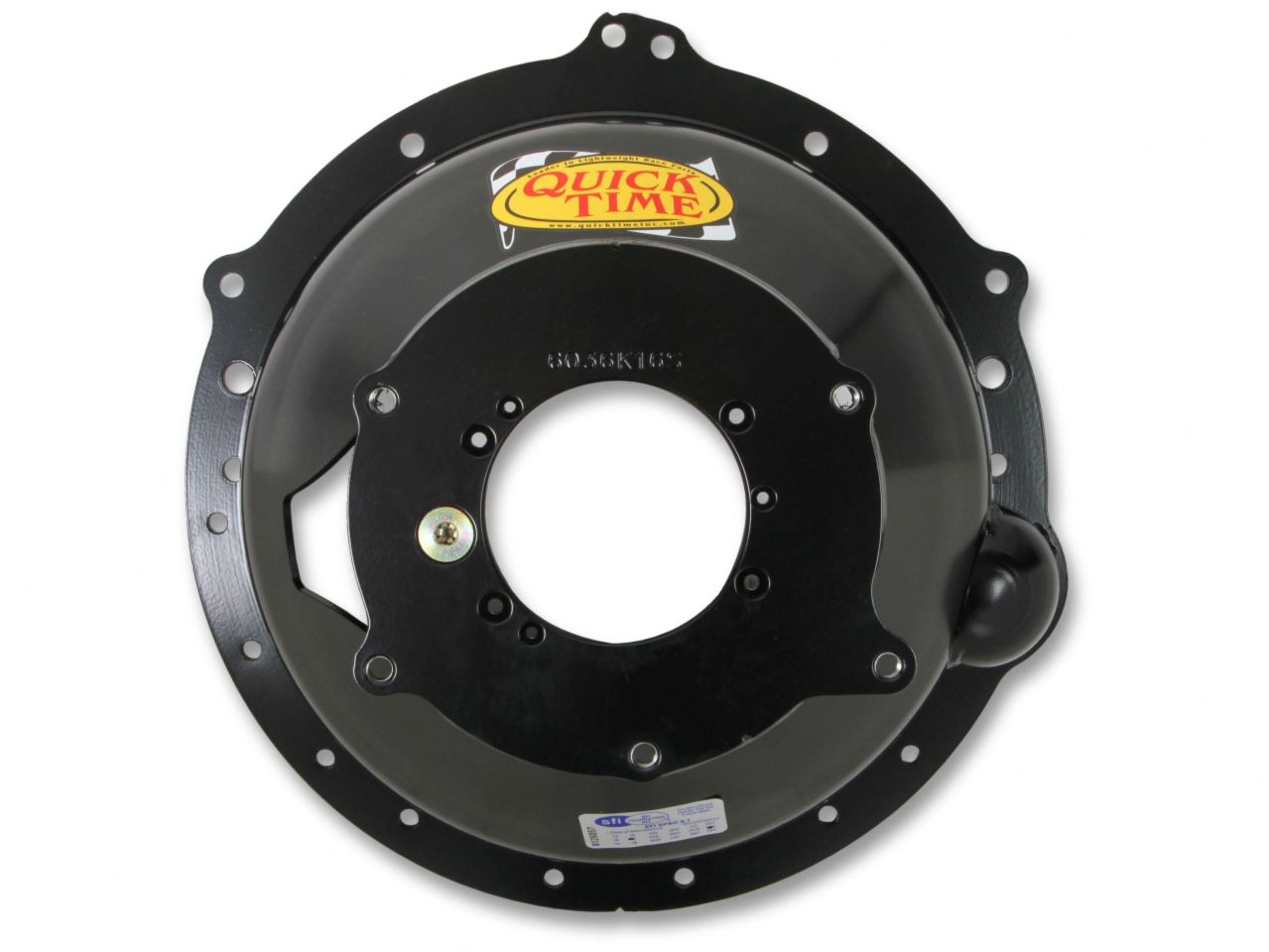

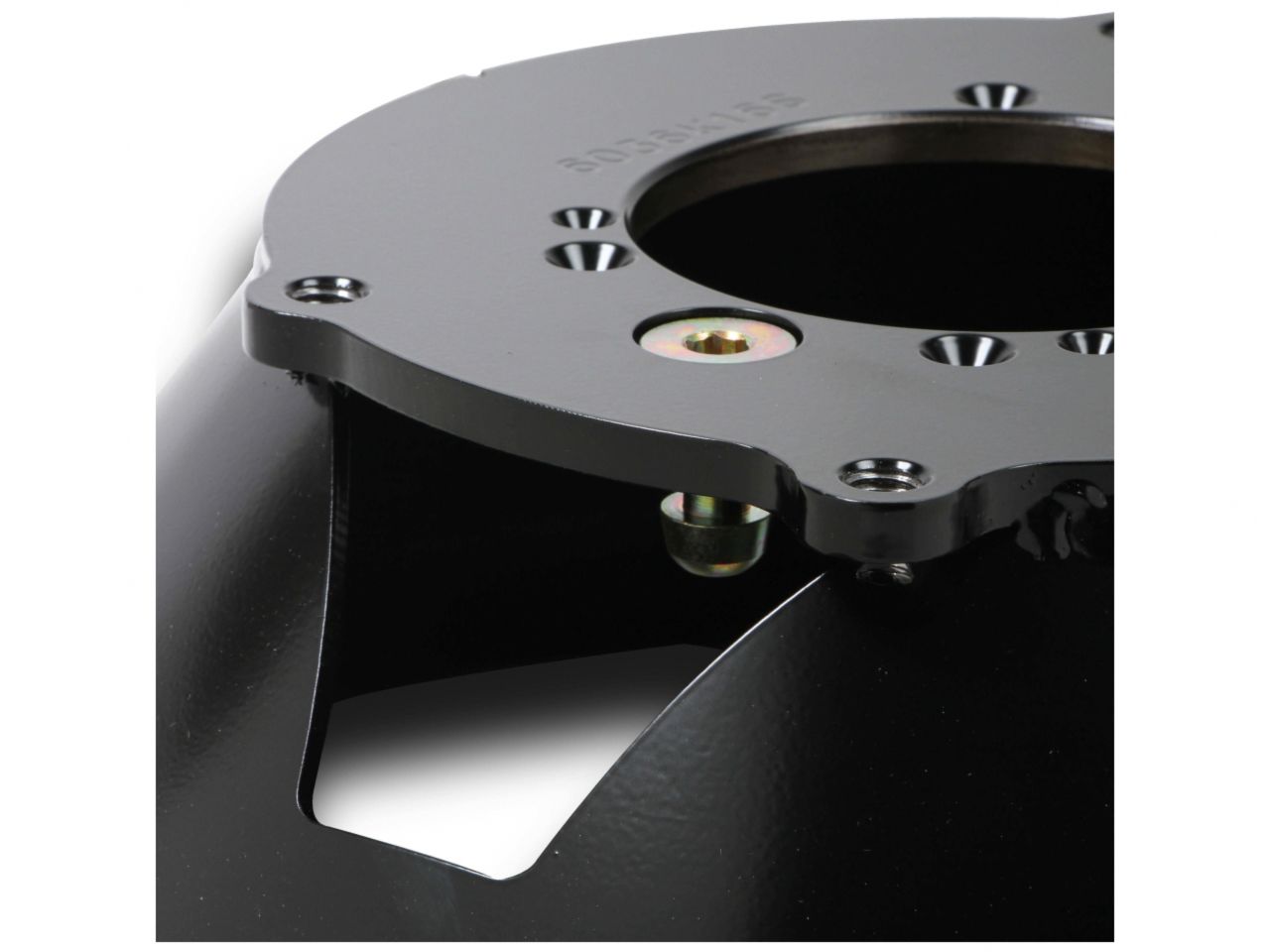

The Quick Time RM-6036 bellhousing connects GM LS engines to transmissions utilizing the GM standard pattern such as the Muncie, Saginaw, Borg Warner T10 and Tremec TKO transmissions. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)
Features:
- Patent on 16 points of Bellhousing Design & Process
- Standard Left Hand Fork Or Hydraulic Bearing
- Fits Up To A 168 Tooth Flywheel With 11 in Clutch
- Utilizes OEM Style Starter Attachment / Placement

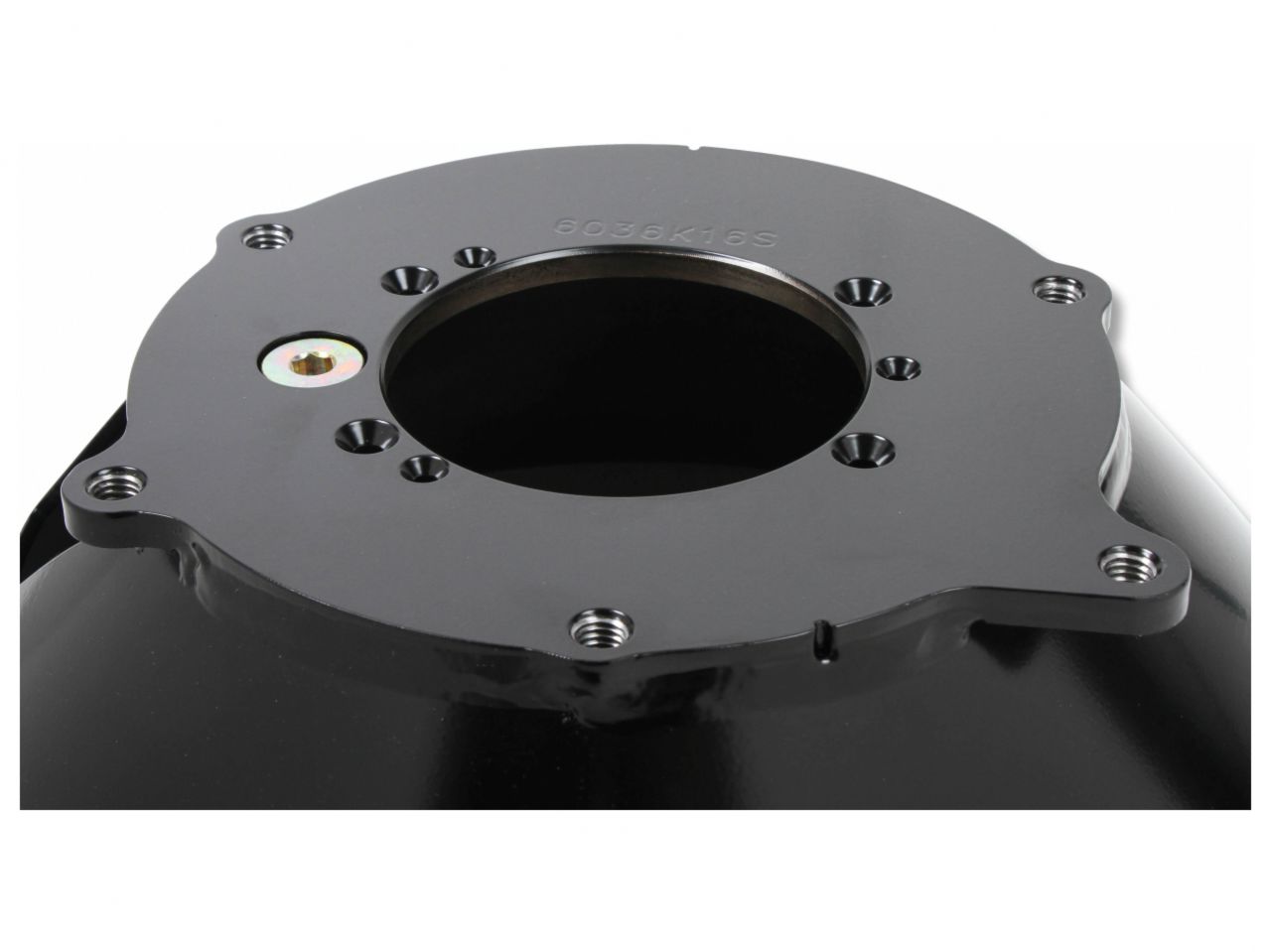

- Transmission Bore 4.685 In
- Bellhousing Depth 6.100 In
- Weight 22 Lbs

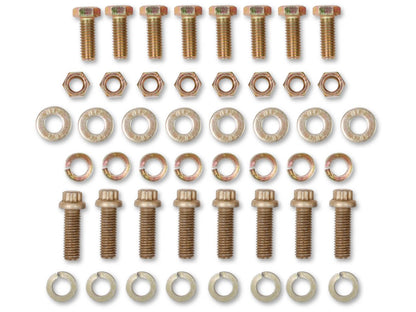

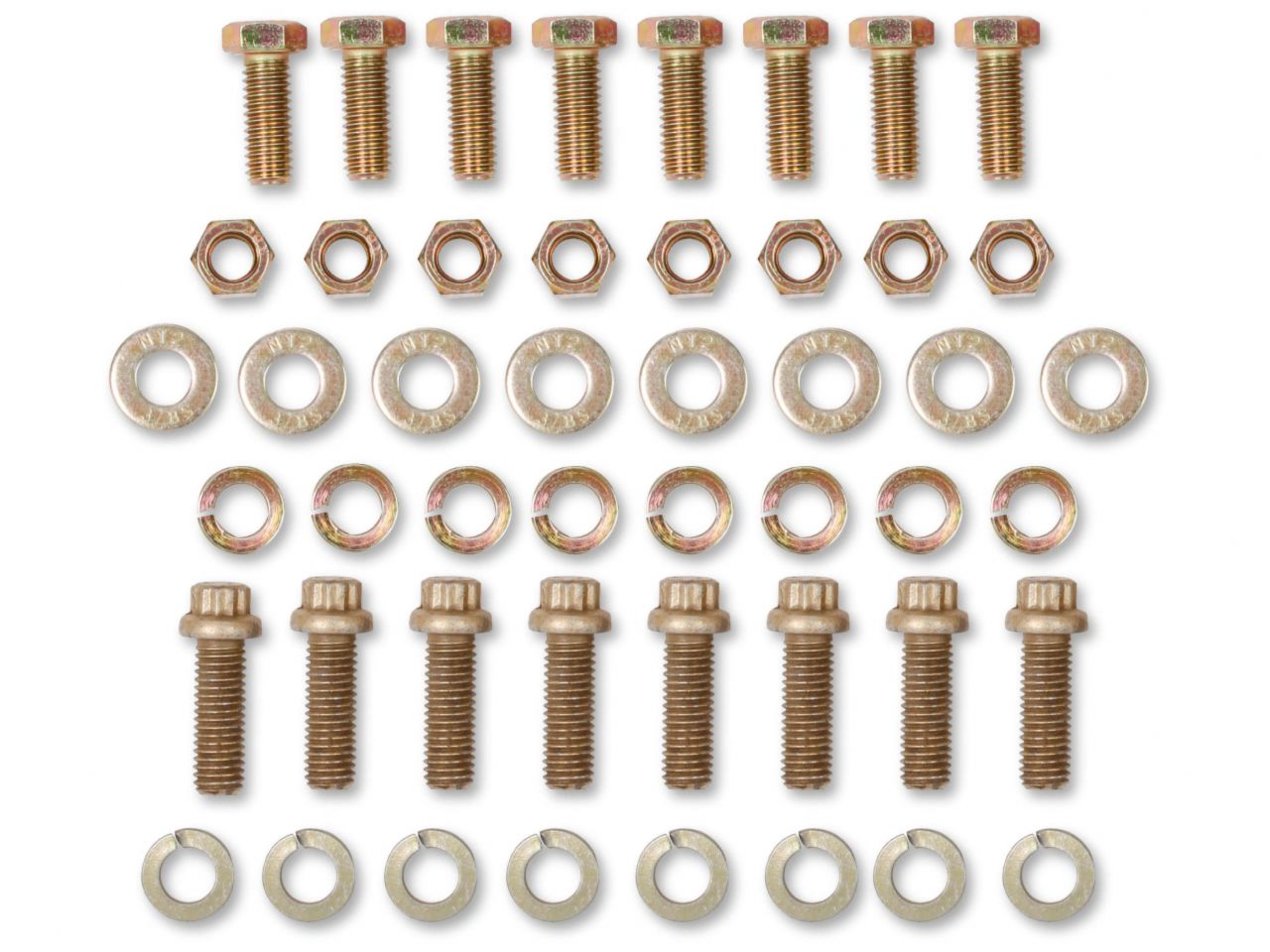

- Include Grade 8 Hardware
- Made In The USA
- SFI Certified @ 6.1
