Quick Time Bellhousing- Chevy

Bellhousing – Chevy

Perfect fit for Big Block and Small Block Chevys with T56 LS-1 transmissions

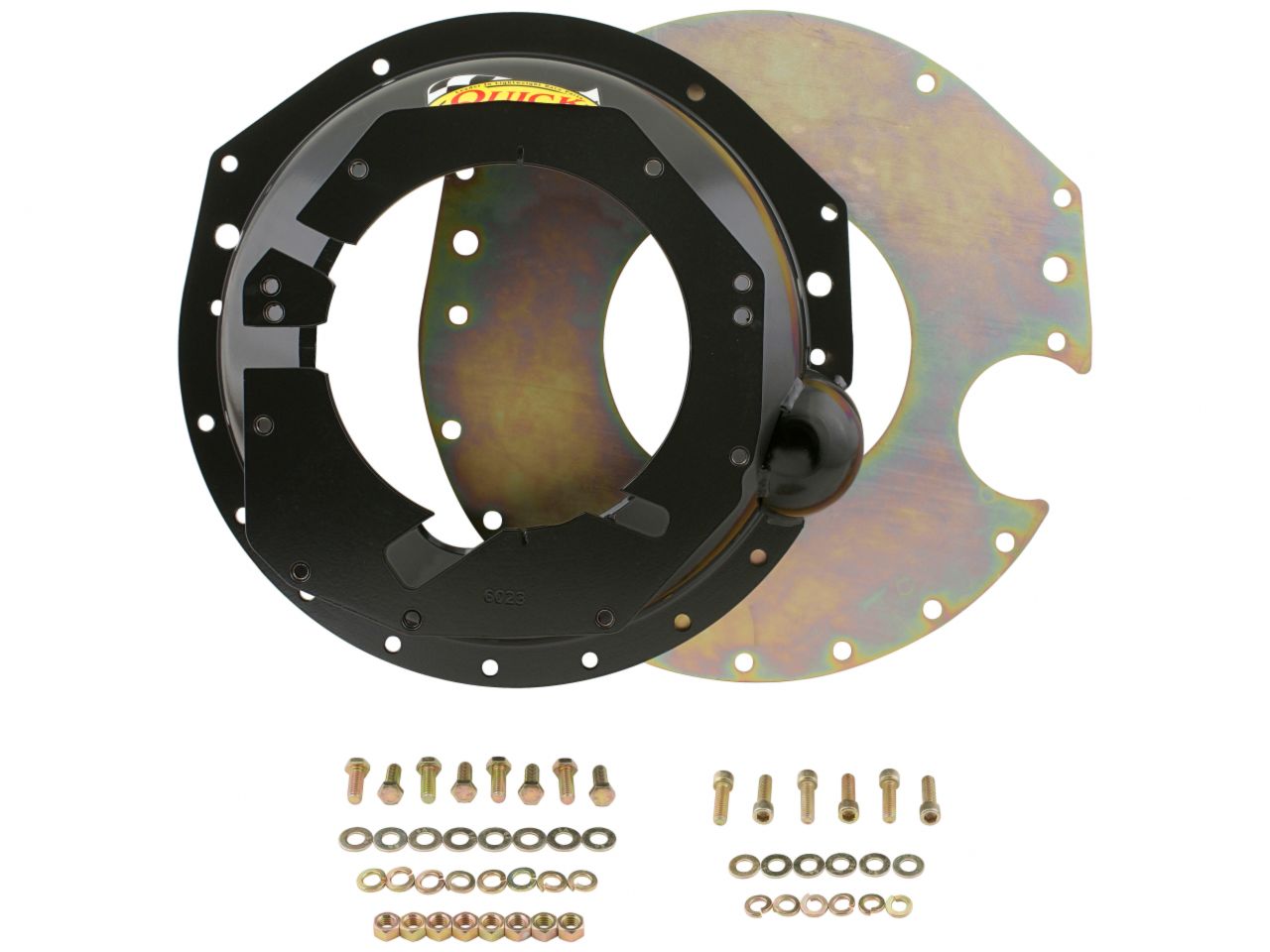

The Quick Time RM-6023 bellhousing connects a small block and big block Chevy engines to a T56 LS-1 Chevy, T-56 Magnum or T-56 Magnum XL transmission. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)

Features:

• Patent on 16 points of Bellhousing Design & Process
• Designed For Use With Hydraulic Throw Out Bearing
• Fits Up To A 168 Tooth Flywheel With 11 in Clutch
• Utilizes OEM Style Starter Attachment / Placement
• Bellhousing Depth 5.950 In
• Weight 22lbs
• S.F.I. 6.1 Certified
• Made In The USA
• Include Grade 8 Hardware

Specifications:

Certification: 6.1 SFI

Clutch Diameter: 11"

Clutch Operation: Hydraulic

Color: Black

Engine: Chevy Big Block; Chevy LT1; Chevy Small Block

Finish: Semi-gloss

Flywheel: 153/168 Tooth

Height: 5.950 inch

Product Type: Bellhousing

Material: Steel

SFI Certification: 6.1

Transmission T56 Chevy LS; T56 Magnum

Transmission Type: Manual
