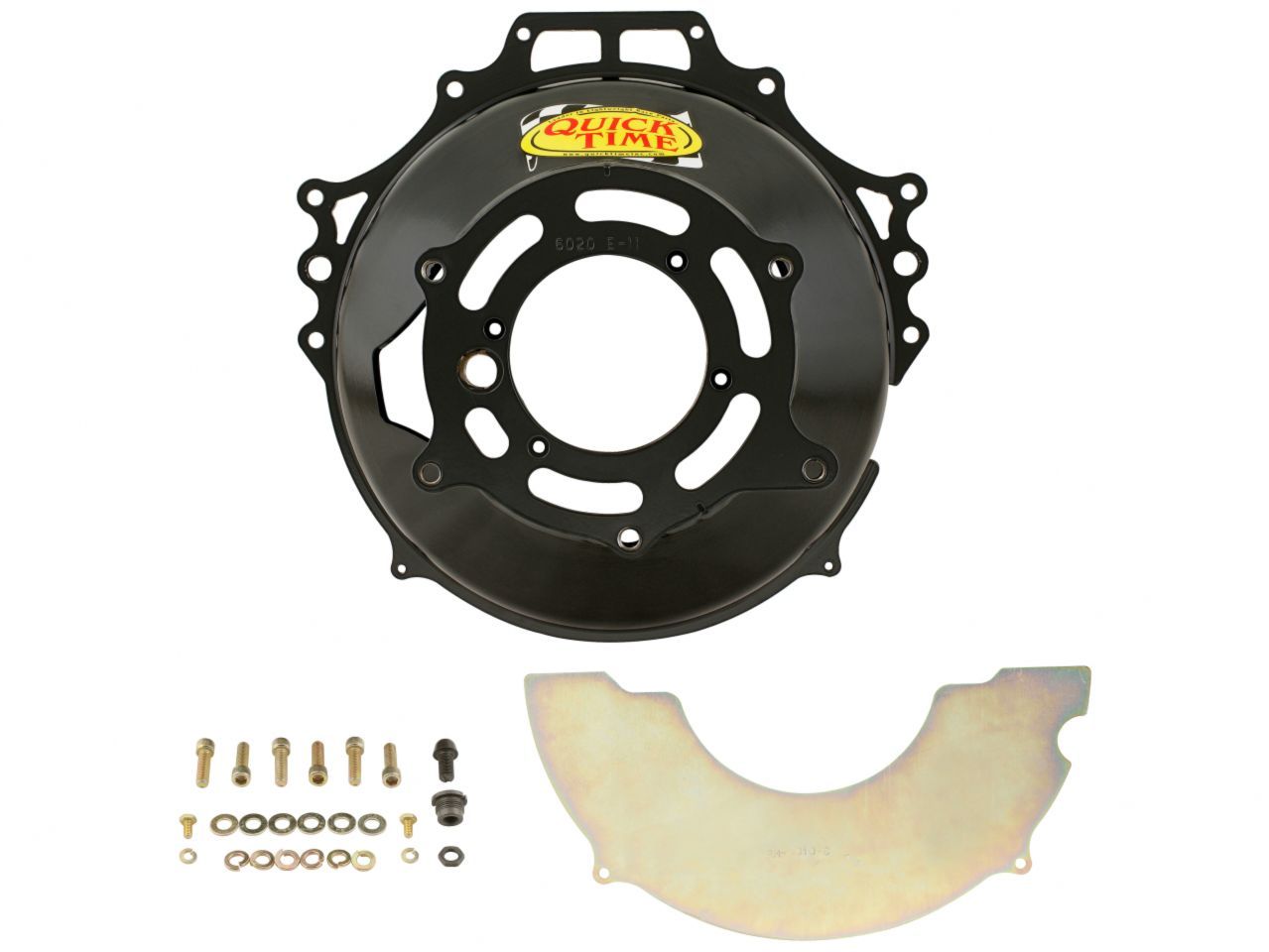

Quick Time Bellhousing - Chevy GM OE Replacement

Bellhousing-Chey

This bellhousing is designed for circle track, strip or street application. This bellhousing fits Small Block Chevy 265-400 CID & Big Block Chevy 396-454 CID engines to Muncie, Richmond, Chevy TKO, BW-T10. Fits 153 tooth flywheel and 10.5 in clutch. Is 6.29 in deep. Built from high grade steel, the cone is spun not stamped or rolled making this bellhousing dimensionally stable and accurate. Transmission bore is 4.685 in. This bellhousing weighs 18 pounds. Pivot ball, block plate and Grade 8 hardware included. Note: Must use mini starter. Non S.F.I. approved.

Perfect fit for Big Block and Small Block Chevys with Muncie, Richmond, Saginaw, Falcon, Bert, Jericho, Brinn, TKO, or BW-T10,

Features:

Patent on 16 points of Bellhousing Design & Process

For applications with stock shifter fork and throwout bearings

Muncie Richmond Chevy TKO BW-T10 Transmissions

Pivot ball, engine plate and grade 8 bolts included

Shifter fork not included

Cone Spun Not Stamped Or Rolled

Must use mini starter

Specs:

Brand: Quick Time

Certification: None

Clutch Diameter: 10.5

Clutch Operation: Hydraulic

Color: Black

Engine: Chevy Big Block

Chevy Small Block

Engine Plate: RM-6010-C

Finish: Semi-gloss

Flywheel: 153 Tooth

Height: 6.290 inch

Material: Steel

Product Type: Bellhousing

SFI Certification: Not SFI Certified

Trans Bore: 4.687

Trans. Bore Diameter: 4.687

Transmission: Bert Racing

Brinn Racing

Falcon

Jerico

Muncie

Richmond

Saginaw

T10

T5 Chevy

TKO 500/600 Chevy

Transmission Type: Manual

Weight: 18#
