Quick Time Bellhousing - Chevy GM

Bellhousing - Chevy

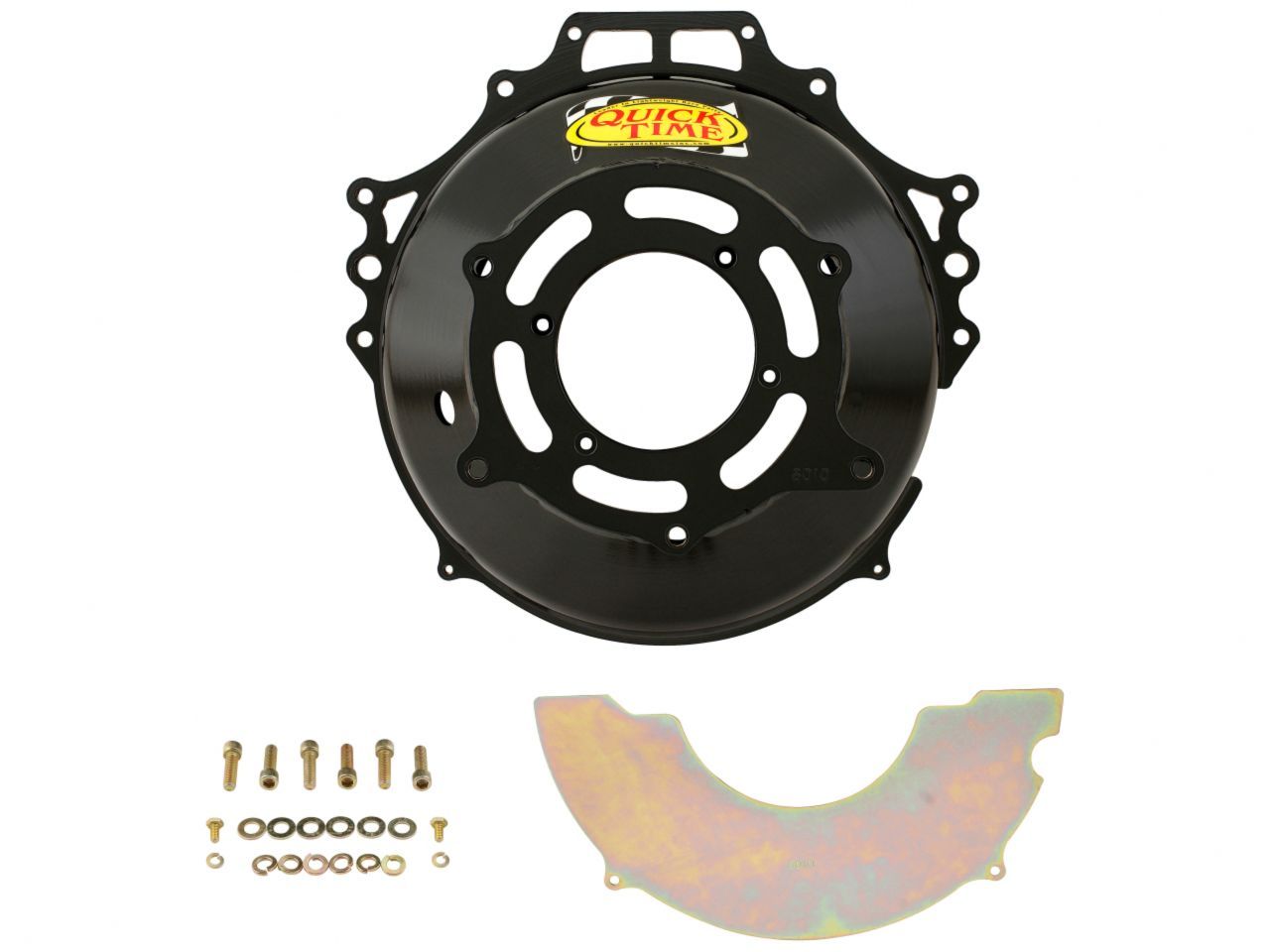

The Quick Time RM-6010 bellhousing connects small block and big block Chevy engines to transmissions utilizing the GM standard pattern such as the Muncie, Saginaw, Borg Warner T10 and Tremec TKO transmissions. This bellhousing is not S.F.I. certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire.

Perfect fit for Big Block and Small Block Chevys with Muncie or Jerico transmissions

Features:

Patent on 16 points of Bellhousing Design & Process

Designed For Use With Hydraulic Throw Out Bearing

Fits Up To A 153 Tooth Flywheel And 10.5 in Clutch

Requires Use Of Compact / Mini Starter

Transmission Bore Diameter 4.685 In

Bellhousing Depth 6.290 In

Weight: 18lbs

Include Grade 8 Hardware

Made In The USA

Specs:

Brand: Quick Time

Certification: None

Clutch: 10.5" Clutch Disc

Clutch Diameter: 10.5 inch

Clutch Operation: Hydraulic

Color: Black

Engine: Chevy Big Block

Chevy LT1

Chevy Small Block

Engine Plate: RM-6010-C

Finish: Semi-gloss

Flywheel: 153 Tooth

Height: 6.290 inch

Material: Steel

Product Type: Bellhousing

Trans Bore: 4.687

Trans. Bore Diameter: 4.685

Transmission: Bert Racing

Brinn Racing

Falcon

Jerico

Muncie

Richmond

Saginaw

T10

T5 Chevy

TKO 500/600 Chevy
