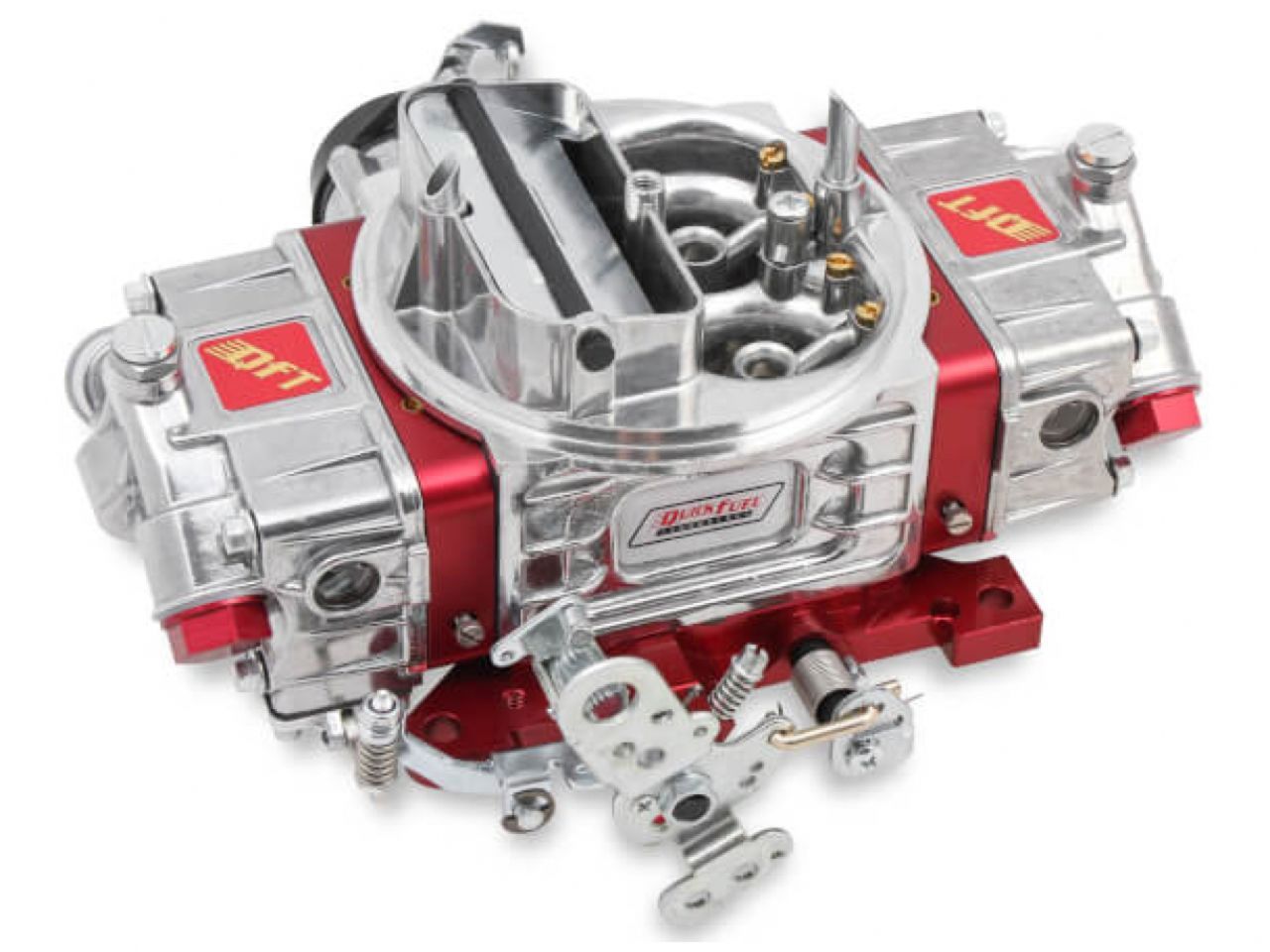

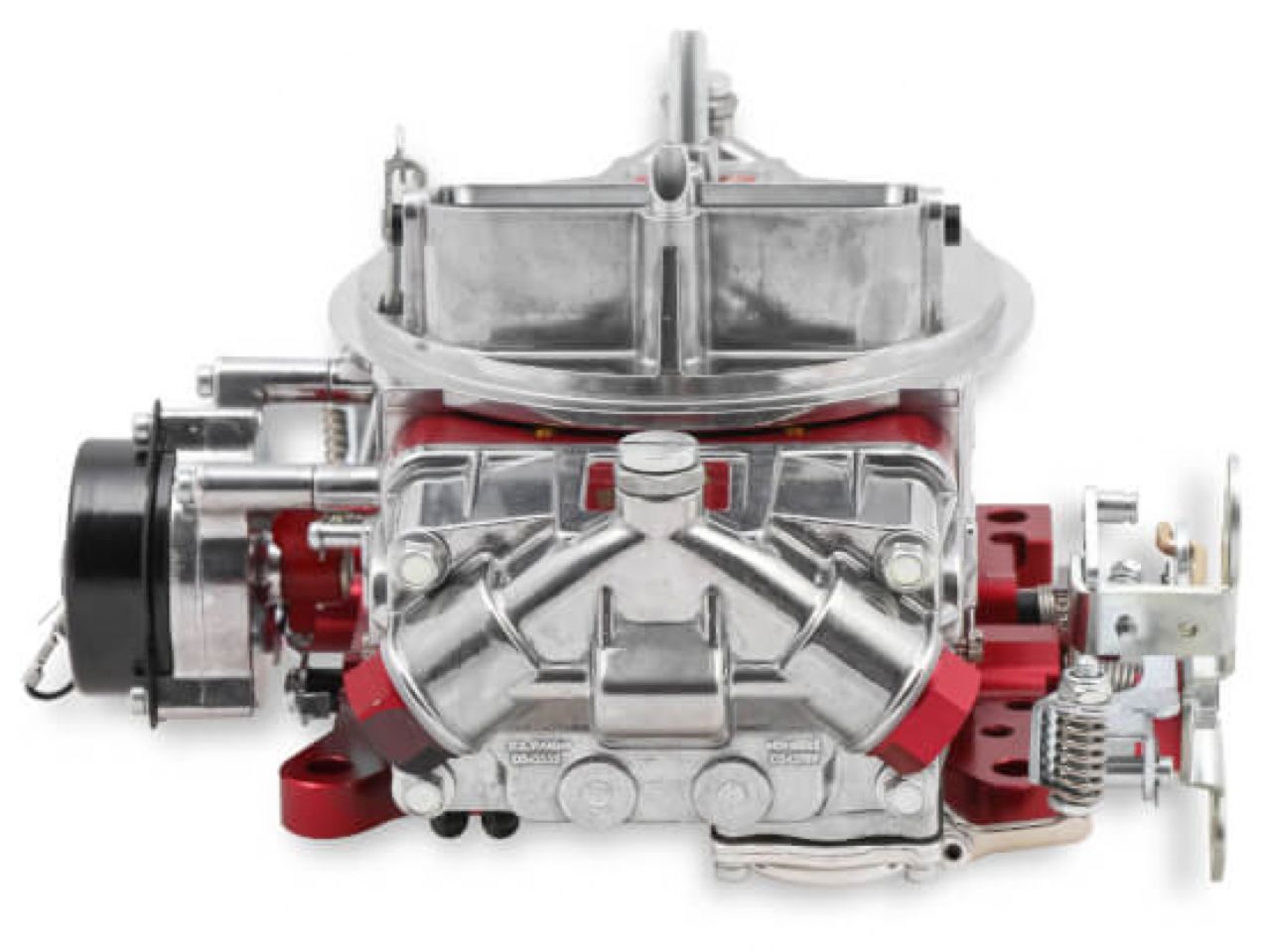

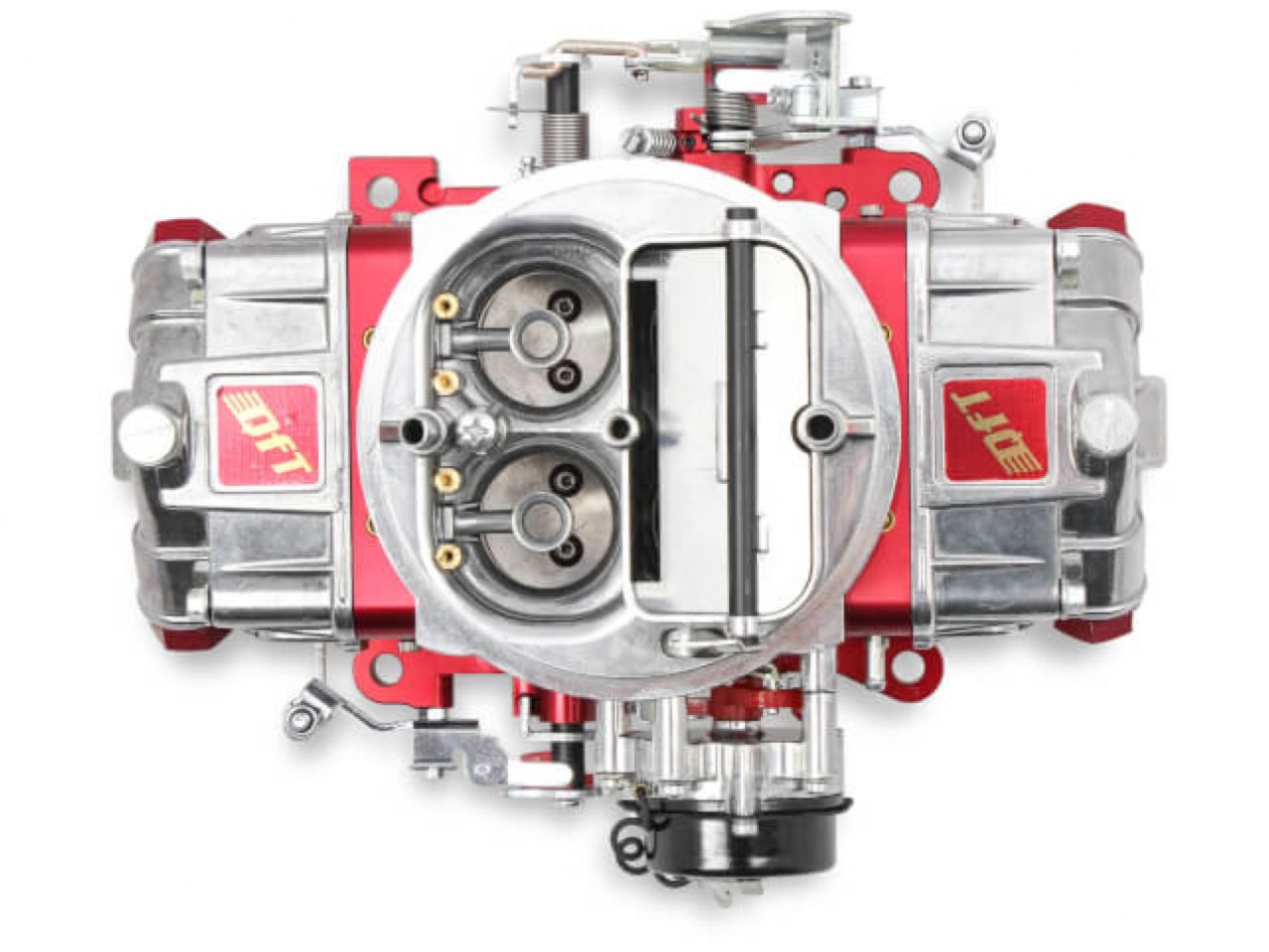

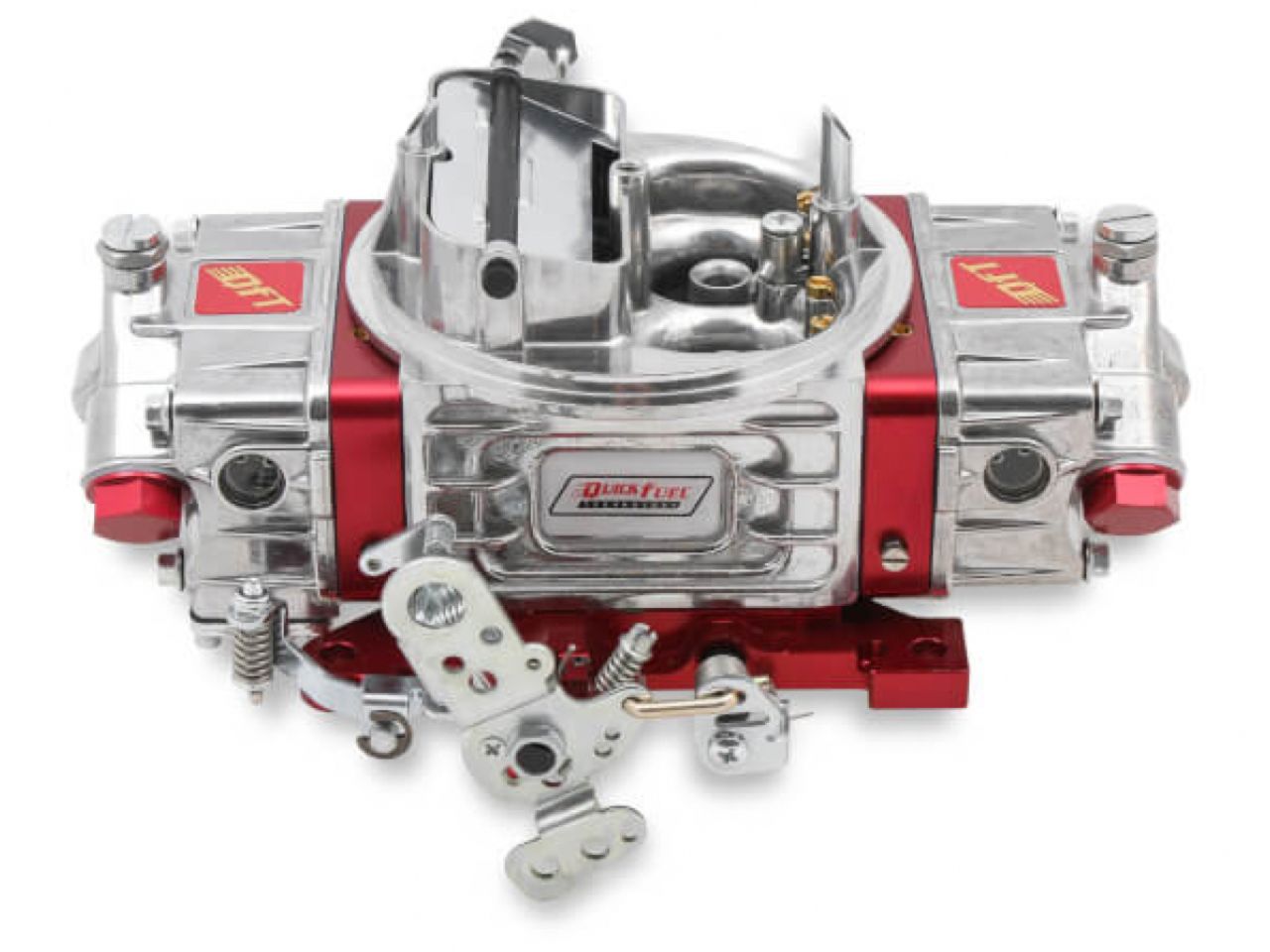

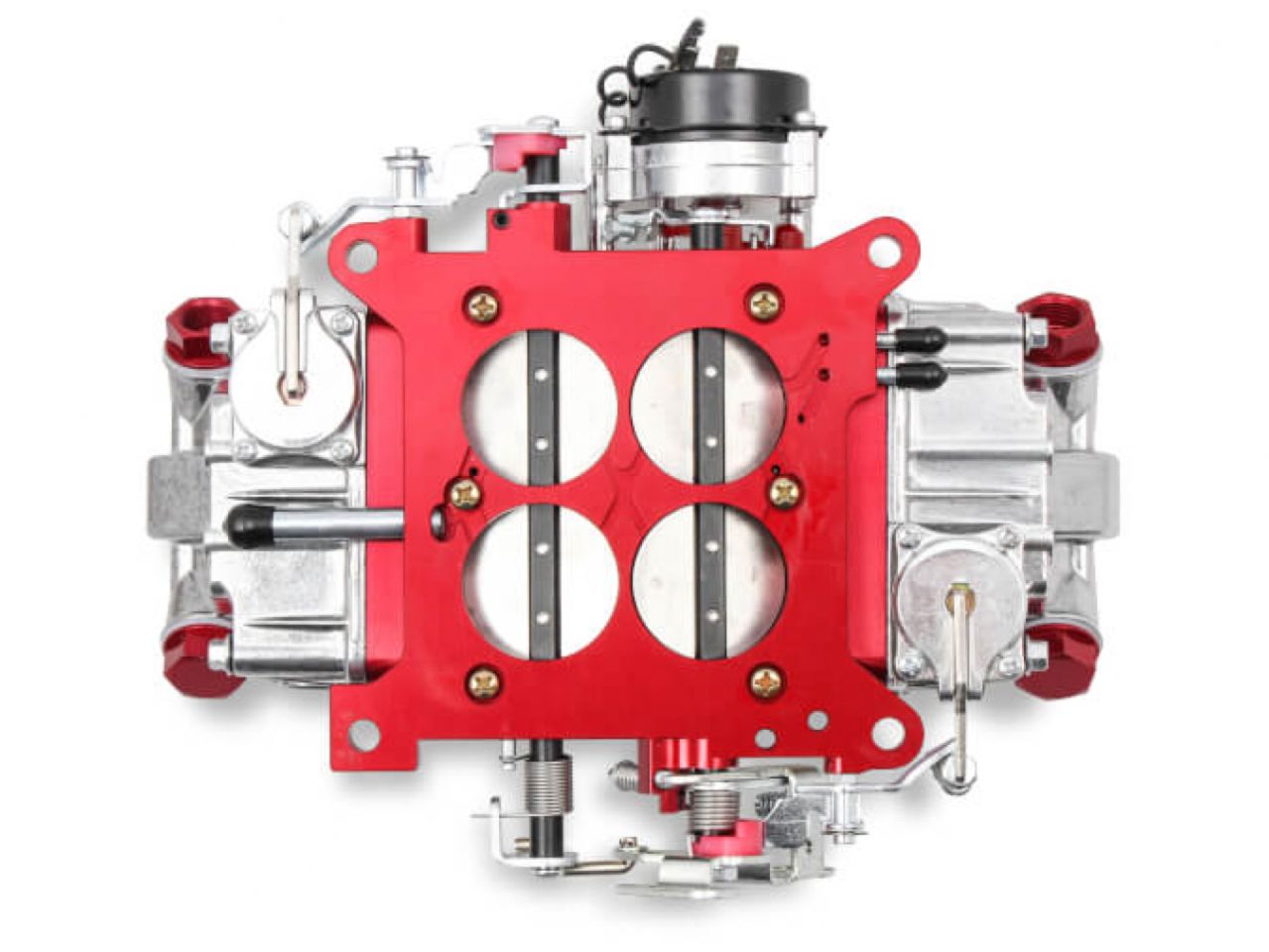

Quick Fuel SS-Series Street Carburetor 750 CFM MS
SS-Series Carburetor 750CFM-4150

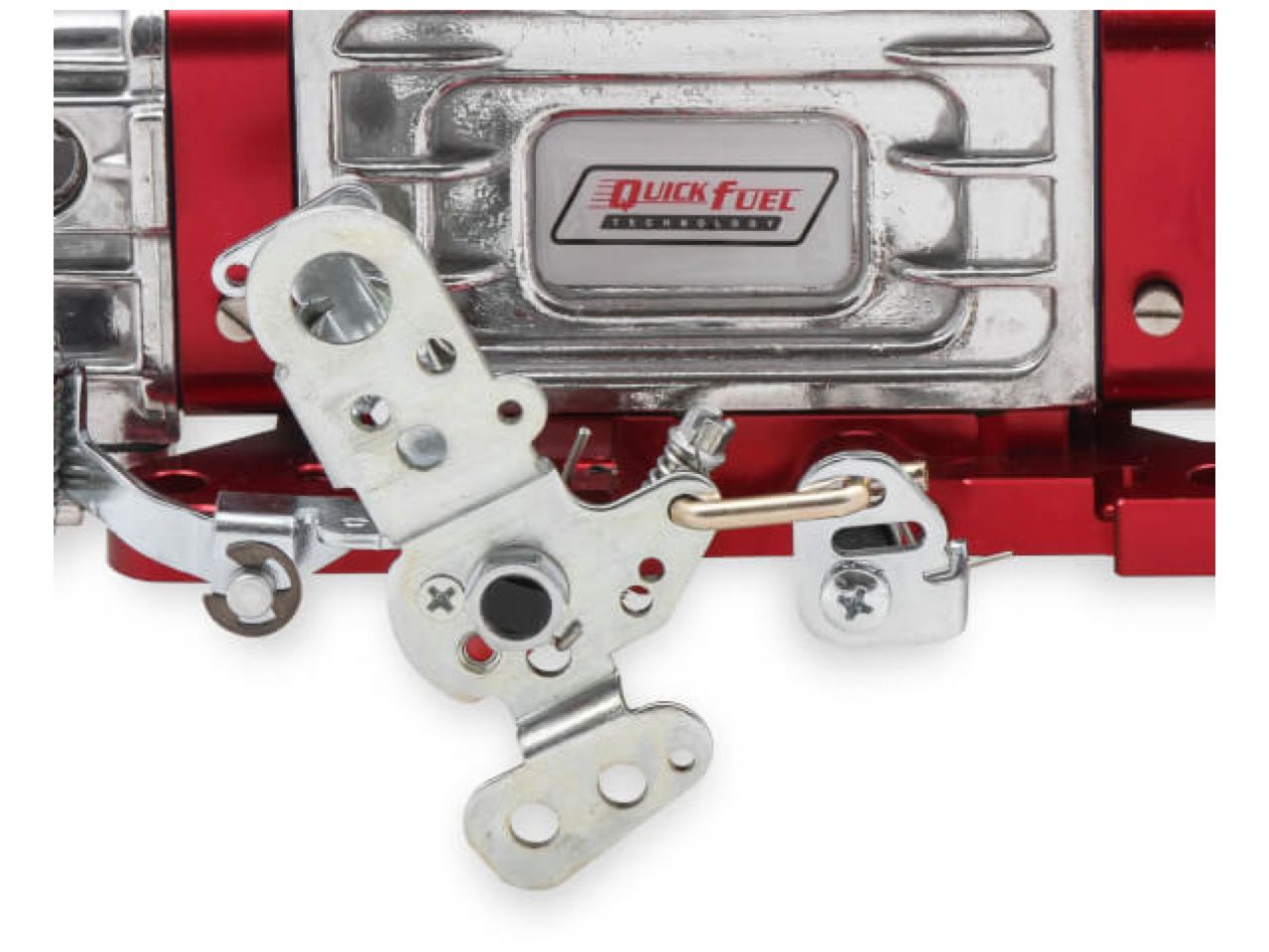

Super Street Series carburetors combine street-friendly drivability and track-capable performance in a single value-oriented package. Setting them apart from ordinary street carbs, they feature billet dual metering blocks and throttle-bodies that offer tighter tolerances and eliminate porosity. Not only are Super Street Series carbs available with both vacuum or mechanical secondaries, QFTT also offers models designed and calibrated specifically for E85 fuel and blow-through forced induction applications. Running alternative fuel or boost no longer requires an expensive custom carburetor. All SS-Series carburetors are equipped with universal throttle levers to accommodate Ford A/T kickdown, GM 700 R4 mounting holes, and ability to mount brackets for Chrysler vehicles. Available in 8 different sizes, bolting on the ultimate street/strip carburetor has never been easier.
- Billet dual metering blocks & throttle bodies for improved durability
- Changeable idle, high-speed air bleeds & power valve restrictions
- Dual inlet fuel bowls with dual sight glass windows for easy float adjustment
- 4-Corner idle for precise idle and smooth transition
- Fully-adjustable electric choke with easy one wire hookup
- Race-ready with notched secondary floats and jet extensions
- Polished or Black DiamondT finish available (some models)
Specs:
| Barrels | 4 |
|---|---|
| Billet Color | Red |
| Booster | Down Leg |
| Brand | Quick Fuel |
| CFM | 750 |
| Choke | Electric |
| Circuit | 2 |
| Emission Code | 3 |
| Finish | Shiny |
| Fuel | Gasoline |
| Fuel System | Carbureted |
| High Speed Air Bleed | 31 |
| Idle Air Bleed Size | 70 |
| Material | Aluminum |
| Model | Super Street Series |
| Primary Main Jet | 74 |
| Primary Power Valve | 65 |
| Primary Pump Nozzle Size | 31 |
| Product Type | Carburetor |
| Secondaries | Mechanical |
| Secondary Main Jet | 80 |
| Supercharged Application | No |
| Throttle Bore | 1-11/16 inch |
Emissions:
3
This part is legal for use on Uncontrolled (Non-Emissions Controlled) Vehicles or Racing Vehicles.
The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:
- 1965 and older U.S. manufactured California Certified vehicles
- 1967 and older U.S. manufactured Federally Certified vehicles
- 1967 and older Foreign manufactured vehicle
Racing Vehicles are vehicles that are used exclusively for racing or other forms of competition that are not registered and that may never be used on the street.
