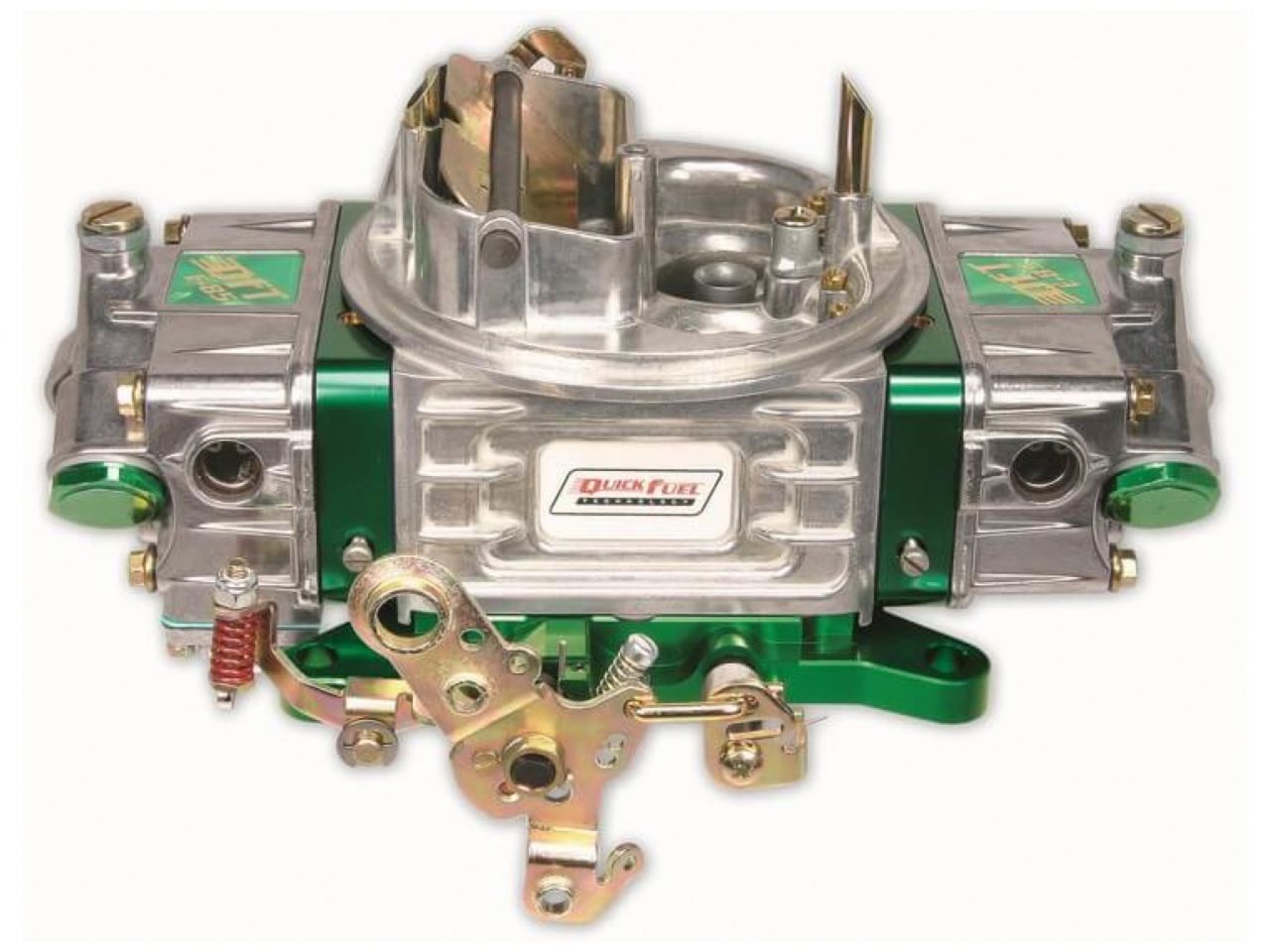

Quick Fuel Street Carburetor 650 CFM

SKU: 1D8EL | MPN:  SS-650-E85
Sale price$866.60 USD
Sold out

Super Street Series carburetors combine street-friendly drivability and track-capable performance in a single value-oriented package. Setting them apart from ordinary street carbs, they feature billet dual metering blocks and throttle-bodies that offer tighter tolerances and eliminate porosity. Not only are Super Street Series carbs available with both vacuum or mechanical secondaries, QFT also offers models designed and calibrated specifically for E85 fuel and blow-through forced induction applications. Running alternative fuel or boost no longer requires an expensive custom carburetor. All SS-Series carburetors are equipped with universal throttle levers to accommodate Ford A/T kickdown, GM 700 R4 mounting holes, and ability to mount brackets for Chrysler vehicles.

Billet dual metering blocks & throttle bodies for improved durability
Changeable idle, high-speed air bleeds & power valve restrictions
Dual inlet fuel bowls with dual sight glass windows for easy float adjustment
4-Corner idle for precise idle and smooth transition
Fully-adjustable electric choke with easy one wire hookup
Race-ready with notched secondary floats and jet extensions

Specification

Barrels: 4
Billet Color: Green
Booster: Down Leg
CFM: 650
Choke: Electric
Circuit: 2
Emission Code: 3
Finish: Shiny
Fuel: E85
Fuel System: Carbureted
High Speed Air Bleed: 28
Idle Air Bleed Size: 67
Material: Aluminum
Model: Super Street Series
Primary Main Jet: 74
Primary Power Valve: 65
Primary Pump Nozzle Size: 35
Product Type: Carburetor
Secondaries: Mechanical
Secondary Main Jet: 80
Supercharged Application: No
Throttle Bore: 1-11/16 inch
