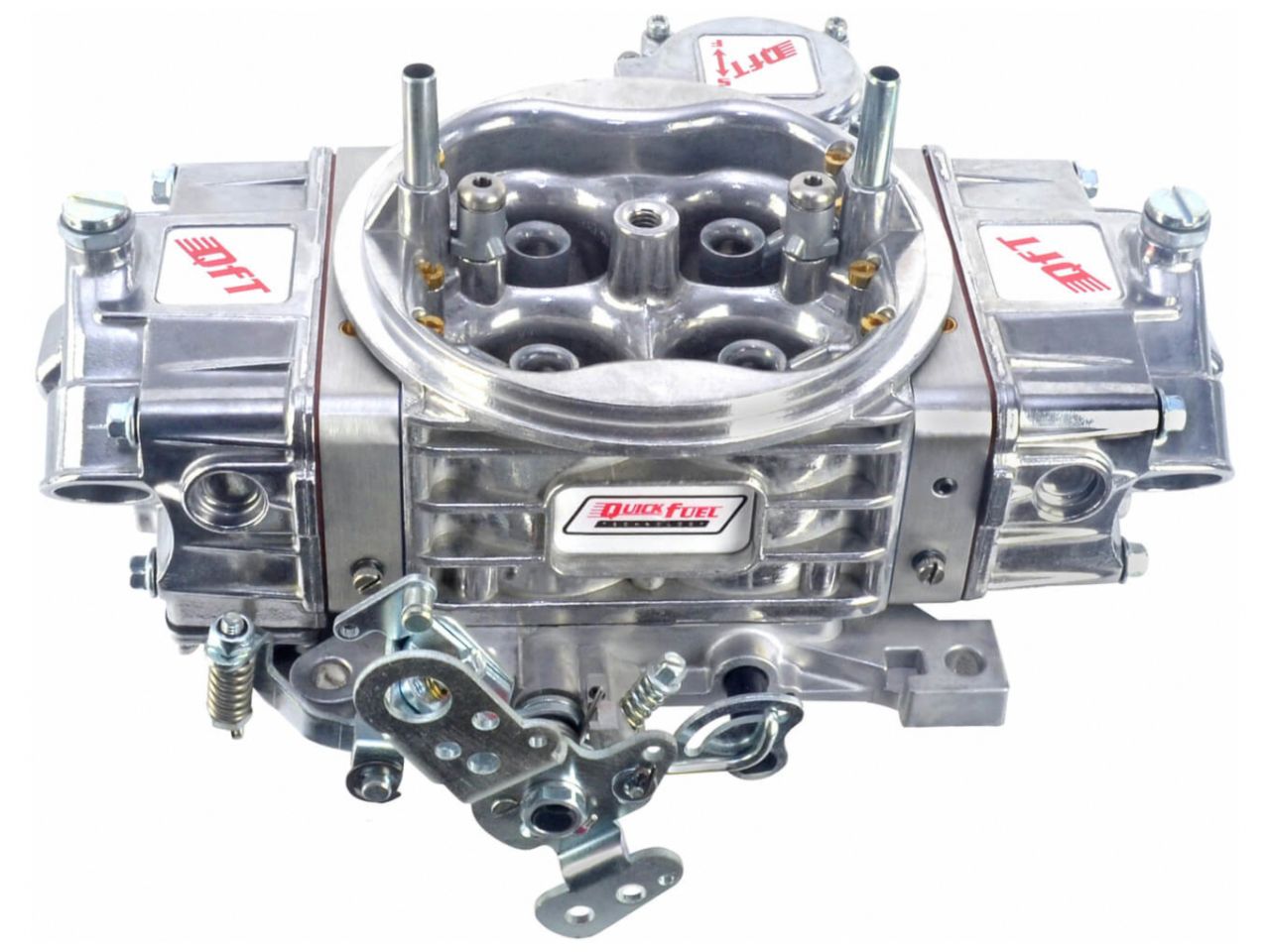

Quick Fuel SQ-SERIES CARBURETOR 750C
Quick Fuel Technology's new Street-Q carburetor is intended to deliver legendary Q-Series performance to hardcore street enthusiasts at a reduced price. The major differences between the Street-Q and the race-bred Q-Series is the substitution of cast metering blocks and a cast throttle body in place of fully-machined billet components. All of the critical functionality is retained - 2-circuit metering, downleg boosters, changeable idle and high-speed air bleeds and 4-corner idle. A universal throttle lever design accommodates Ford A/T kickdowns, 700-R4 bracket mounting holes and the ability to mount brackets for Chrysler vehicles. Available sizes include 650, 750, 850, and 950cfm for mechanical secondary models and a 750 vacuum secondary is also offered.
Lightweight die-cast aluminum components
Changeable idle and high-speed air bleeds
Vacuum & mechanical secondary models
2-circuit metering - 4-Corner idle system
Downleg boosters
Universal throttle lever design fits Ford A/T Kickdown, 700-R4 mounting holes - accepts brackets for Chrysler vehicles
Specifications
Barrels: 4
Billet Color: Diecast-No Billet
Booster: Down Leg
CFM: 750
Choke: None
Circuit: 2
Emission Code: 3
Finish: Shiny
Fuel: Gasoline
Fuel System: Carbureted
High Speed Air Bleed: 33
Idle Air Bleed Size: 73
Material: Aluminum
Model: Street-Q Series
Primary Main Jet: 74
Primary Power Valve: 45
Primary Pump Nozzle Size: 33
Product Type: Carburetor
Secondaries: Vacuum
Secondary Main Jet: 84
Supercharged Application: No
Throttle Bore: 1-11/16 inch
