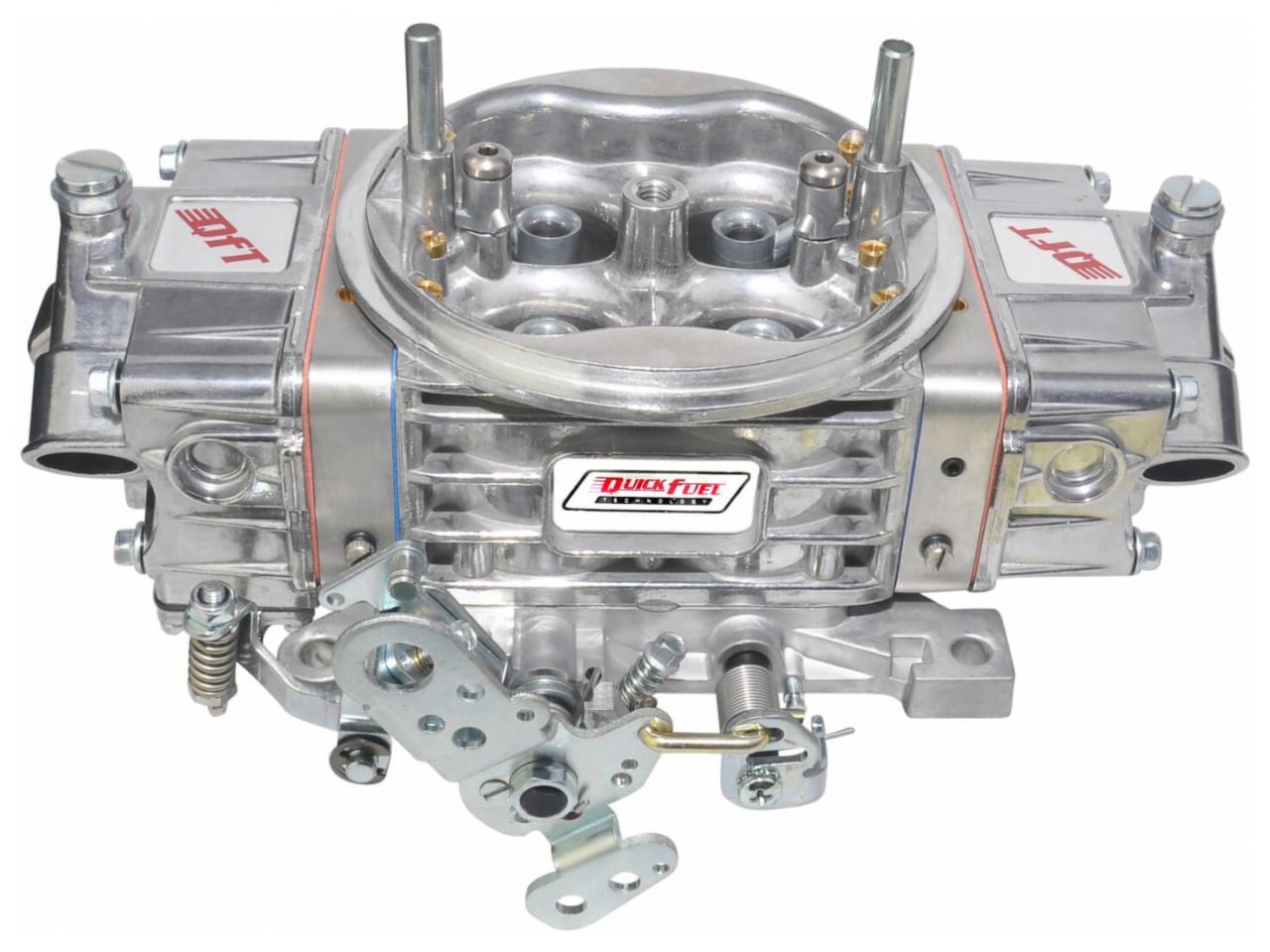

Quick Fuel SQ-SERIES CARBURETOR 650C

Quick Fuel Technology's new Street-Q carburetor is intended to deliver legendary Q-Series performance to hardcore street enthusiasts at a reduced price. The major differences between the Street-Q and the race-bred Q-Series is the substitution of cast metering blocks and a cast throttle body in place of fully-machined billet components. All of the critical functionality is retained - 2-circuit metering, downleg boosters, changeable idle and high-speed air bleeds and 4-corner idle. A universal throttle lever design accommodates Ford A/T kickdowns, 700-R4 bracket mounting holes and the ability to mount brackets for Chrysler vehicles. Available sizes include 650, 750, 850, and 950cfm for mechanical secondary models and a 750 vacuum secondary is also offered.

Lightweight die-cast aluminum components

Changeable idle and high-speed air bleeds

Vacuum & mechanical secondary models

2-circuit metering - 4-Corner idle system

Downleg boosters

Universal throttle lever design fits Ford A/T Kickdown, 700-R4 mounting holes - accepts brackets for Chrysler vehicles

Specifications

Barrels: 4

Billet Color: Diecast-No Billet

Booster: Down Leg

CFM: 650

Choke: None

Circuit: 2

Emission Code: 3

Finish: Shiny

Fuel: Gasoline

Fuel System: Carbureted

High Speed Air Bleed: 31

Idle Air Bleed Size: 73

Material: Aluminum

Model: Street-Q Series

Primary Main Jet: 68

Primary Power Valve: 45

Primary Pump Nozzle Size: 31

Product Type: Carburetor

Secondaries: Mechanical

Secondary Main Jet: 76

Supercharged Application: No

Throttle Bore: 1-11/16 inch
