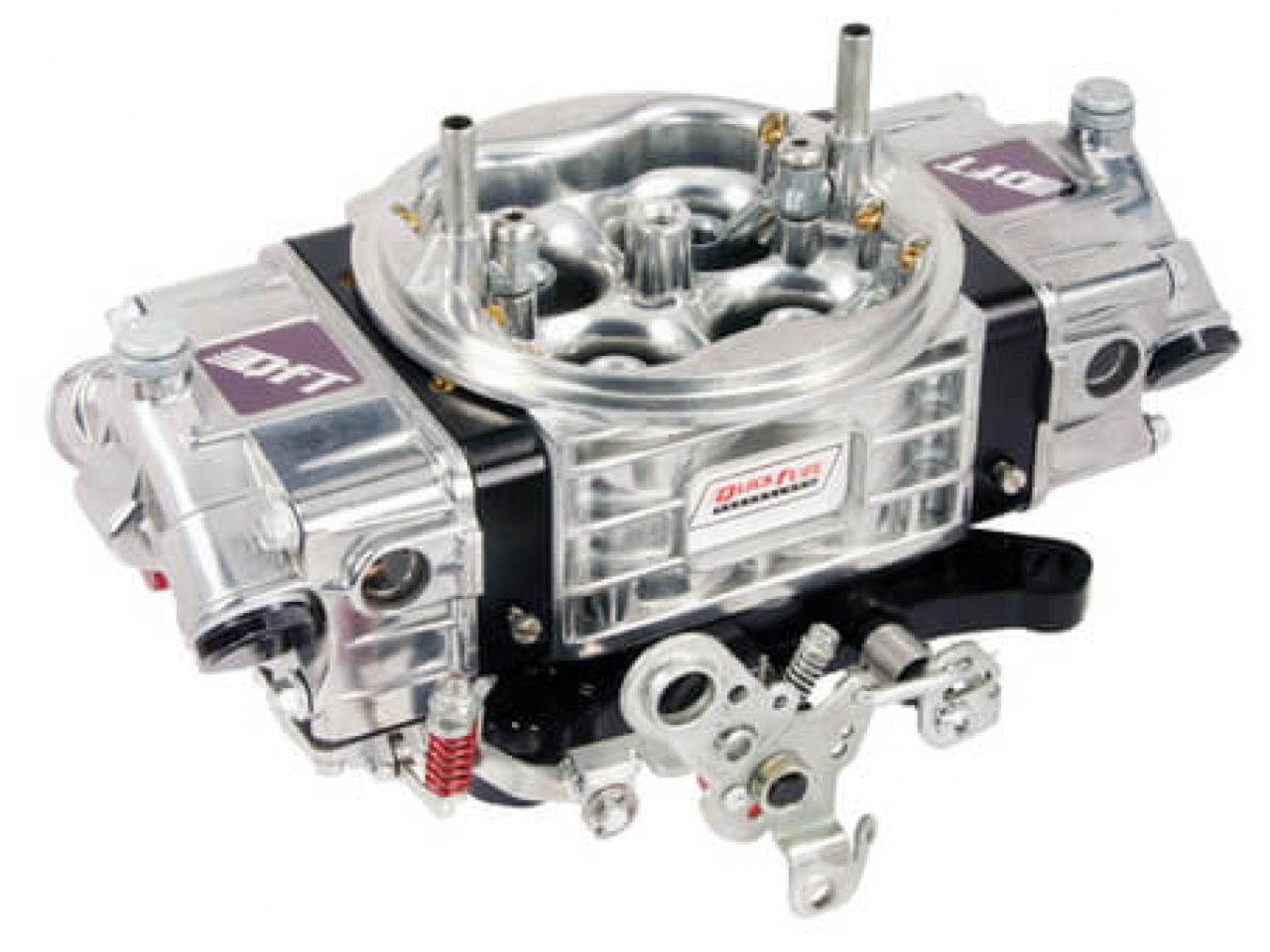

Quick Fuel Race Q Series 950 CFM AN

For competitive classes where every last hundredth of a second counts, Race Q-Series carburetors offer excellent performance, consistency, and tunability. Vacuum-drawn die-cast aluminum main bodies eliminate porosity and yield extremely precise tolerances. Scalloped, symmetrical throttle bore openings work in concert with recessed air bleed cavities to minimize flow restrictions, and specially contoured venturi provide a broad operating range. For added versatility, Race Q carbs utilize a dual-pattern billet throttle-body, making them compatible with both 4150- and 4500-style flanges. All Race Q carburetors feature billet metering blocks with five-stage changeable emulsions, as well as, throttle bodies with roller bearing seals to provide smoother operation, less wear on shaft, and longer life.

Race style aluminum main body with upgraded downleg race boosters

Screw-In airbleeds that have been recessed and moved out of the air way for less restriction

5-Emulsion billet metering blocks with screw-in bleeds for every circuit - fully adjustable

Lightweight aluminum fuel bowls with internal baffles, raised roof, re-designed fuel entry orifice and built-in sight windows

4-corner idle

Billet throttle body with roller-bearing sealed shafts that have been slabbed for added air flow, stainless steel throttle plates, and secondary adjustable cam bracket. Each throttle body is machined for both 4150 or 4500 style manifolds.

Specifications

Barrels: 4

Billet Color: Black

Booster: Annular

CFM: 950

Choke: None

Circuit: 2

Emission Code: 3

Finish: Shiny

Fuel: Gasoline

Fuel System: Carbureted

High Speed Air Bleed: 32

Idle Air Bleed Size: 73

Material: Aluminum

Model: Race-Q Series

Primary Main Jet: 78

Primary Power Valve: 45

Primary Pump Nozzle Size: 33;35

Product Type: Carburetor

Secondaries: Mechanical

Secondary Main Jet: 86

Supercharged Application: No

Throttle Bore: 1-3/4 inch
