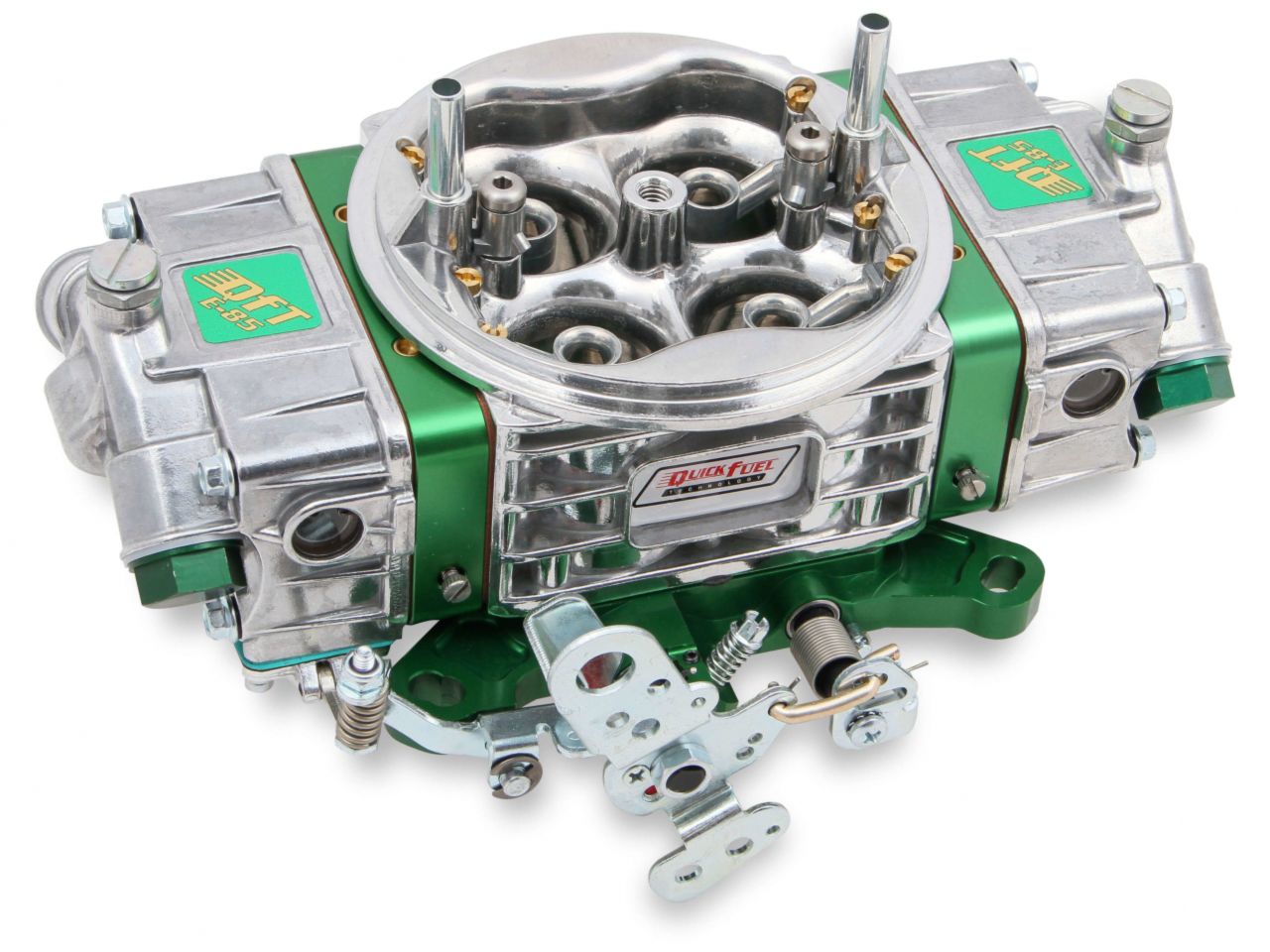

Quick Fuel Q-Series Carburetor 850CFME85

Ideally suited for bracket racers and weekend warriors alike, Q-Series carburetors are purpose-built for the dragstrip. To combat the g's experienced during hard launches, Q-Series carbs are equipped with notched floats and secondary jet extensions. The high-flow aluminum main body isn't just lightweight, but it also features recessed air bleed cavities for improved air flow. Die-cast venturi are machined to exacting tolerances for outstanding throttle response. Billet metering blocks ensure a uniform fuel curve, while throttle-bodies enhance durability. For those days when track conditions vary from one pass to the next, QFT's QuickLink system makes adjusting the secondaries easy on models equipped with mechanical secondaries. The Q-Series is our most comprehensive line of carburetors, with applications available for use with gasoline, methanol, and E85 fuels, forced induction, drag race, circle track, and comes in both vacuum and mechanical secondary models.

Lightweight aluminum main body

Vacuum and mechanical secondary models available

Aluminum fuel bowls with dual sight glass windows

Billet metering blocks with 4-corner idle system

Changeable idle feed and power valve channel restrictions

Billet aluminum throttle body provides exceptional precision and strength

PTFE coated and sealed shafts that have been slabbed for added air flow

Specifications:

Barrels: 4

Billet Color: Green

Booster: Down Leg

CFM: 850

Choke: None

Circuit: 2

Emission Code: 3

Finish: Shiny

Fuel: E85

Fuel System: Carbureted

High Speed Air Bleed: 31

Idle Air Bleed Size: 65

Material: Aluminum

Model: Q Series

Primary Main Jet: 86

Primary Power Valve: 45

Primary Pump Nozzle Size: 37

Product Type: Carburetor

Secondaries: Mechanical

Secondary Main Jet: 94

Supercharged Application: No

Throttle Bore: 1-3/4 inch
