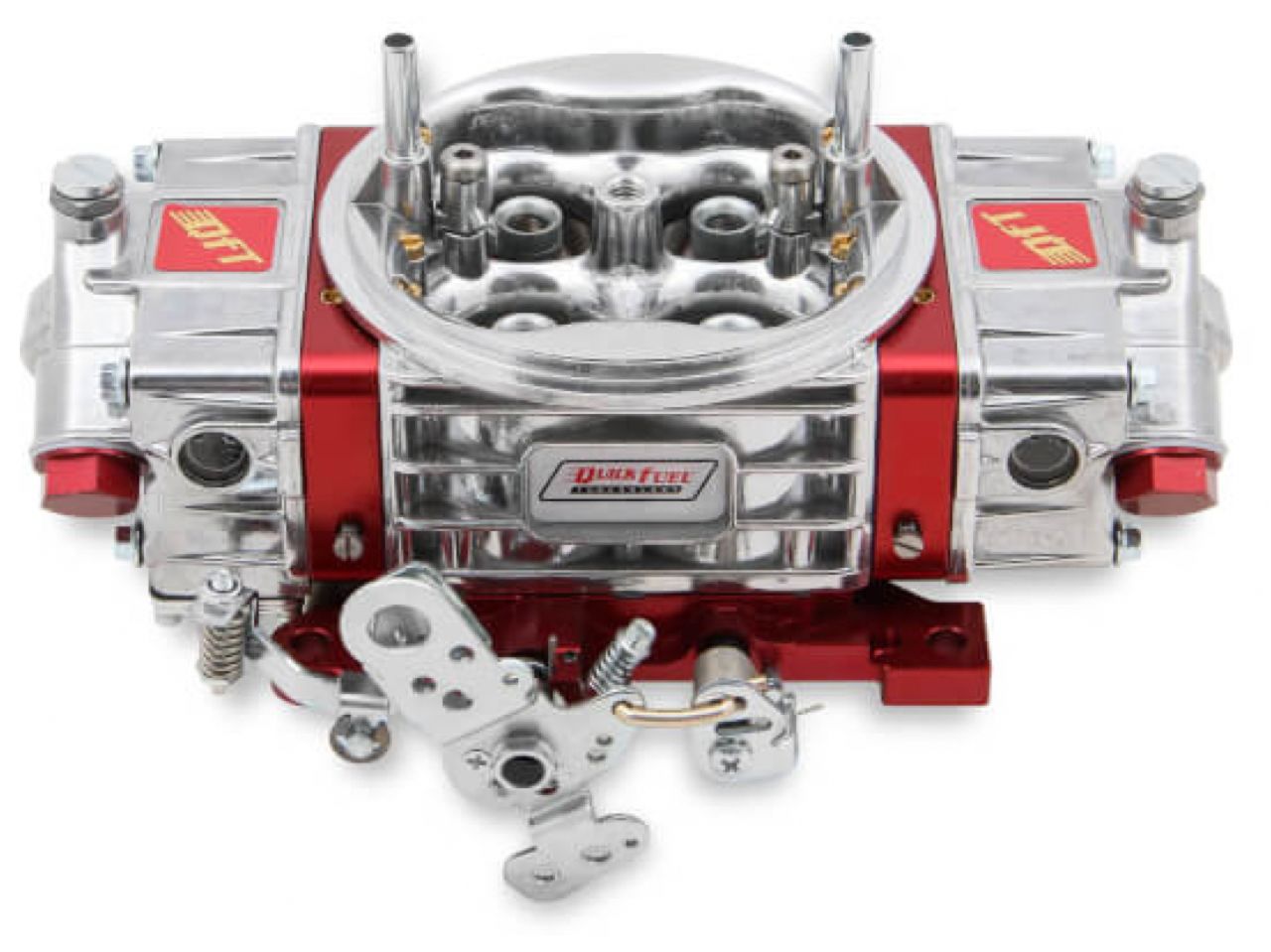

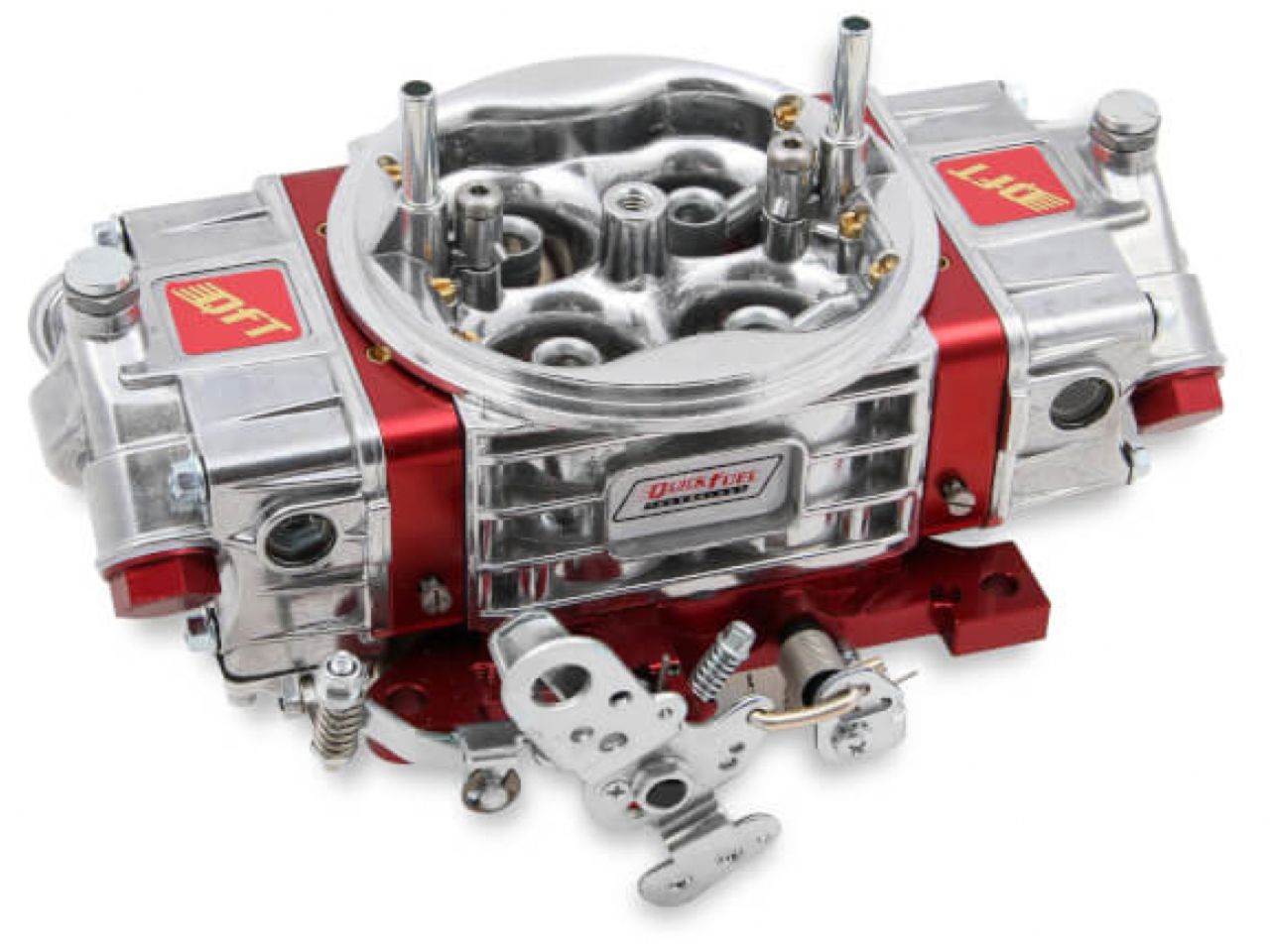

Q-Series Carburetor 750CFM Drag Race
Ideally suited for bracket racers and weekend warriors alike, Q-Series carburetors are purpose-built for the dragstrip. To combat the g's experienced during hard launches, Q-Series carbs are equipped with notched floats and secondary jet extensions. The high-flow aluminum main body isn't just lightweight, but it also features recessed air bleed cavities for improved air flow. Die-cast venturi are machined to exacting tolerances for outstanding throttle response. Billet metering blocks ensure a uniform fuel curve, while throttle-bodies enhance durability. For those days when track conditions vary from one pass to the next, QFT's QuickLink system makes adjusting the secondaries easy on models equipped with mechanical secondaries. The Q-Series is our most comprehensive line of carburetors, with applications available for use with gasoline, methanol, and E85 fuels, forced induction, drag race, circle track, and comes in both vacuum and mechanical secondary models.
- Lightweight aluminum main body
- Vacuum and mechanical secondary models available
- Aluminum fuel bowls with dual sight glass windows
- Billet metering blocks with 4-corner idle system
- Changeable idle feed and power valve channel restrictions
- Billet aluminum throttle body provides exceptional precision and strength
- Teflon® coated and sealed shafts that have been slabbed for added air flow
Specs:
| Barrels | 4 |
|---|---|
| Billet Color | Red |
| Booster | Down Leg |
| Brand | Quick Fuel |
| CFM | 750 |
| Choke | None |
| Circuit | 2 |
| Emission Code | 3 |
| Finish | Shiny |
| Fuel | Gasoline |
| Fuel System | Carbureted |
| High Speed Air Bleed | 33 |
| Idle Air Bleed Size | 73 |
| Material | Aluminum |
| Model | Q-Series |
| Primary Main Jet | 74 |
| Primary Power Valve | 45 |
| Primary Pump Nozzle Size | 31 |
| Product Type | Carburetor |
| Secondaries | Mechanical |
| Secondary Main Jet | 84 |
| Supercharged Application | No |
| Throttle Bore | 1-11/16 inch |
Emissions:
3
This part is legal for use on Uncontrolled (Non-Emissions Controlled) Vehicles or Racing Vehicles.
The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:
- 1965 and older U.S. manufactured California Certified vehicles
- 1967 and older U.S. manufactured Federally Certified vehicles
- 1967 and older Foreign manufactured vehicle
Racing Vehicles are vehicles that are used exclusively for racing or other forms of competition that are not registered and that may never be used on the street.
