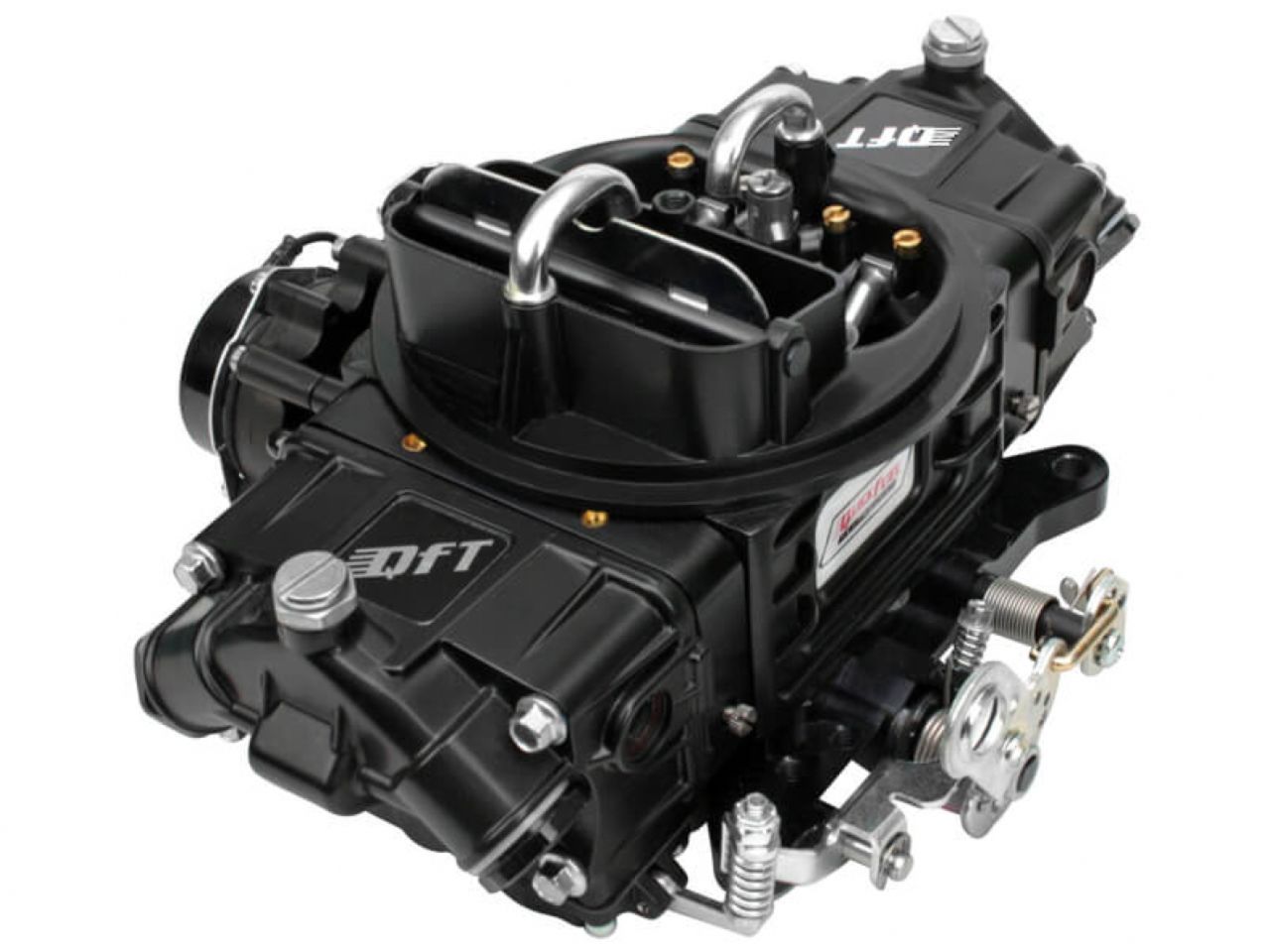

Quick Fuel Marine Carburetor 750 CFM MS
QFT brings its engineering expertise to the marine market. The M-Series feature billet-style metering blocks and throttle bodies for more precise performance and exceptional strength.
Exclusive Black Diamond coating for enhanced corrosion protection and appearance, coating provides a 6% reduction in fuel temperature
Electric choke - Fully adjustable, one wire hookup
J tubes to prevent spillage
PTFE-coated throttle shafts with PTFE bearing ribbons and stainless steel plates
Built-in sight glass windows for easy float adjustment
Changeable primary idle feed and power valve channel restrictions, plus changeable idle air and high speed bleeds
QuickLinkT secondary adjustment for fast and easy changing of opening rates
Available in eight different sizes from 350-1,050 cfm
Specifications
Barrels: 4
Billet Color: Diecast-No Billet
Booster: Down Leg
CFM: 750
Choke: Electric
Circuit: 2
Emission Code: 3
Finish: Black
Fuel: Gasoline
Fuel System: Carbureted
High Speed Air Bleed: 31
Idle Air Bleed Size: 70
Marine Engine Size: Universal
Material: Aluminum
Model: Marine
Primary Main Jet: 75
Primary Power Valve: 65
Primary Pump Nozzle Size: 33
Product Type: Carburetor
Secondaries: Mechanical
Secondary Main Jet: 83
Supercharged Application: No
Throttle Bore: 1-11/16 inch
