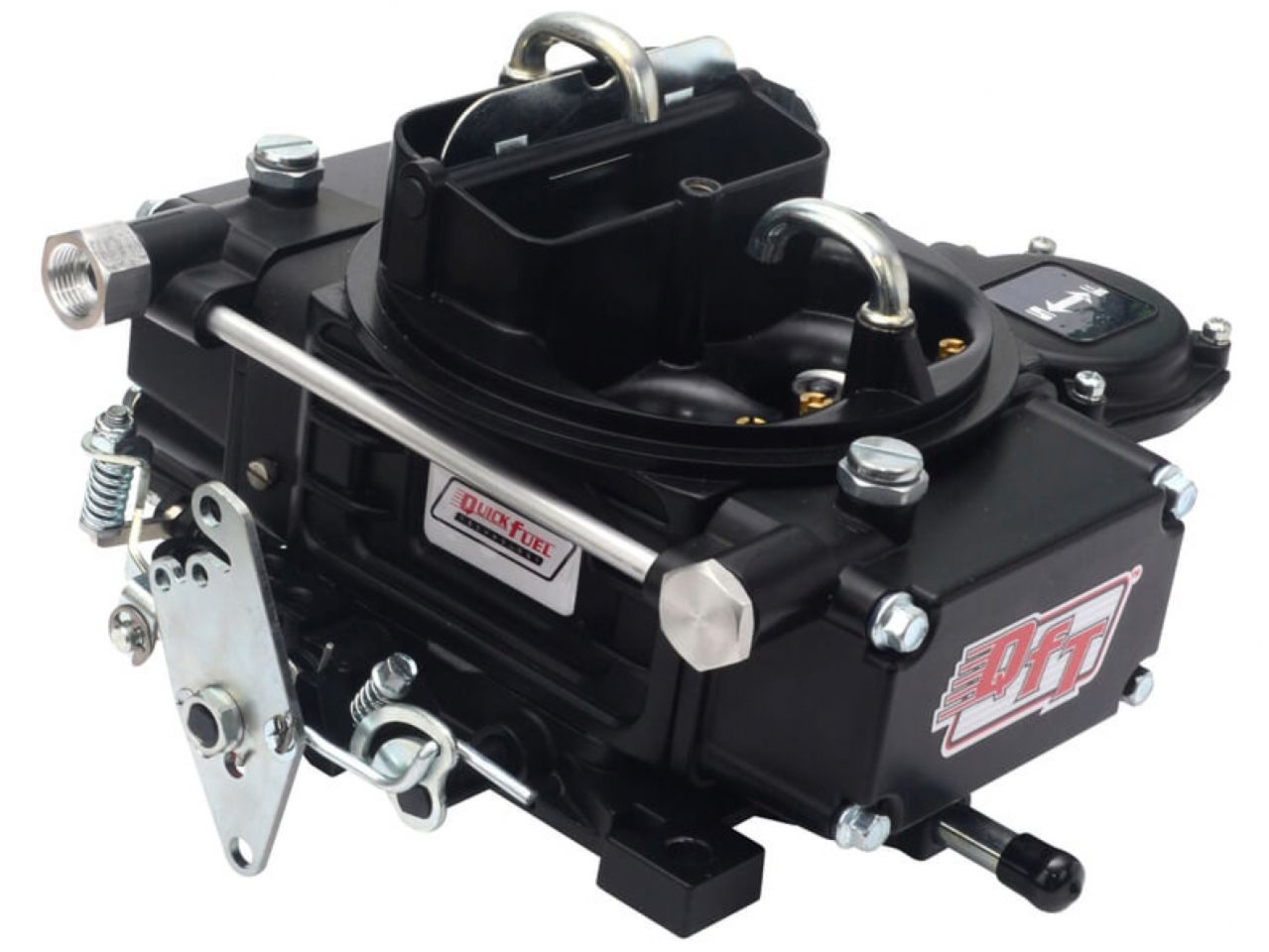

Quick Fuel Marine Carburetor 600 CFM

QFT brings its engineering expertise to the marine market. The M-Series feature billet-style metering blocks and throttle bodies for more precise performance and exceptional strength.

Exclusive Black Diamond coating for enhanced corrosion protection and appearance, coating provides a 6% reduction in fuel temperature

Electric choke - Fully adjustable, one wire hookup

J tubes to prevent spillage

PTFE-coated throttle shafts with PTFE bearing ribbons and stainless steel plates

Built-in sight glass windows for easy float adjustment

Changeable primary idle feed and power valve channel restrictions, plus changeable idle air and high speed bleeds

QuickLinkT secondary adjustment for fast and easy changing of opening rates

Available in eight different sizes from 350-1,050 cfm

Specifications

Barrels: 4

Billet Color: Diecast-No Billet

Booster: Down Leg

CFM: 600

Choke: Electric

Circuit: 2

Emission Code: 3

Finish: Black

Fuel: Gasoline

Fuel System: Carbureted

High Speed Air Bleed: 28

Idle Air Bleed Size: 73;39

Marine Engine Size: Universal

Material: Aluminum

Model: Marine

Primary Main Jet: 67

Primary Power Valve: 65

Primary Pump Nozzle Size: 35

Product Type: Carburetor

Secondaries: Vacuum

Secondary Main Jet: 76

Supercharged Application: No

Throttle Bore: 1-9/16 inch
