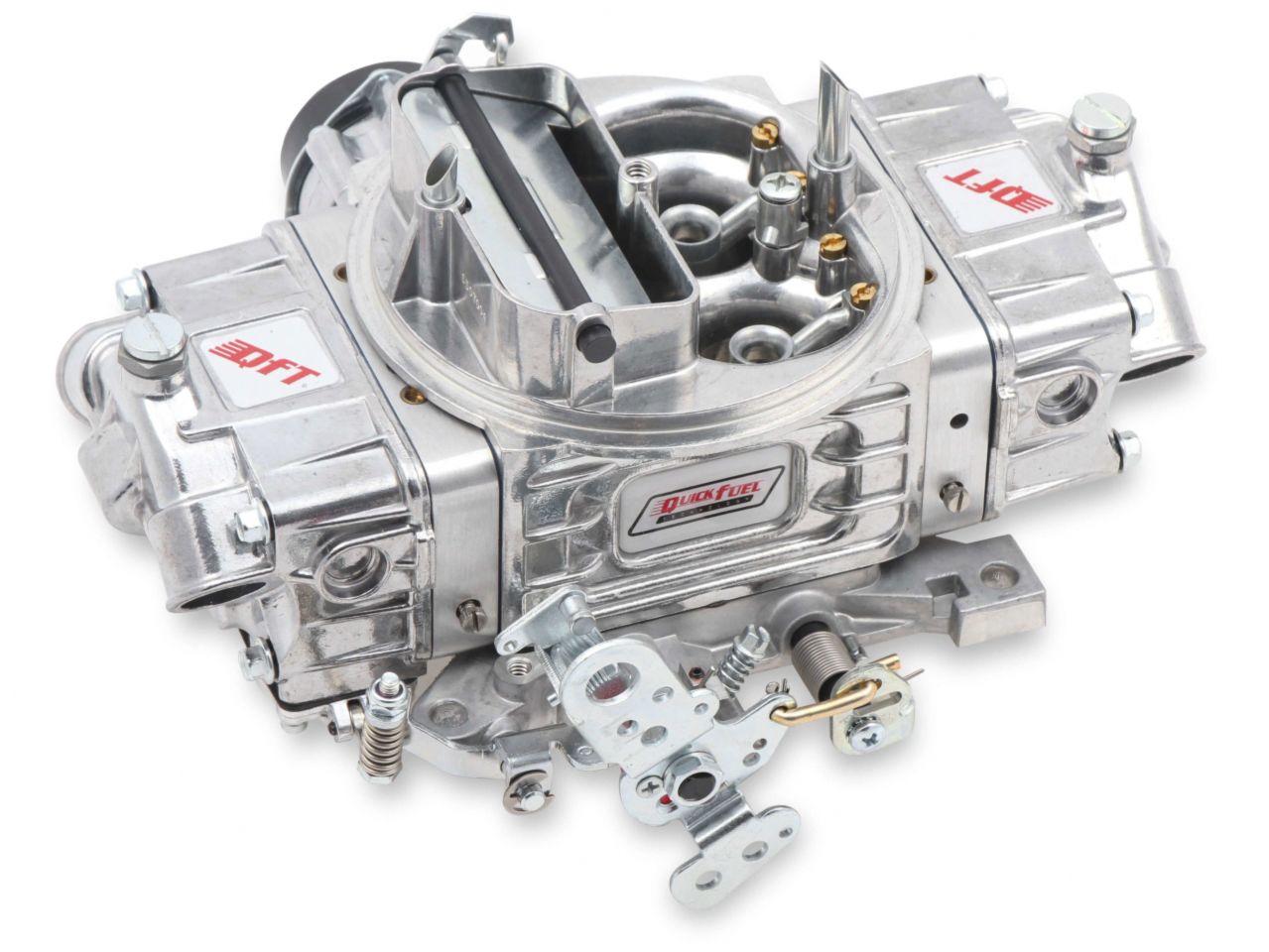

Quick Fuel Hot Rod Carburetor 850 CFM MS

The Hot Rod Series is a versatile performer designed for the most discerning street enthusiast. Featuring lightweight die-cast aluminum components, the HR-Series offer all the tunability you would expect from more expensive racing carburetors, including changeable bleeds, idle feed, power valve channel restrictions, and four-corner idle. Offered in either vacuum or mechanical secondary models, all Hot Rod Series carburetors feature electric chokes and dual metering blocks for added performance. Now available in a 450 cfm model for applications with small displacement engines.

All models feature a fully adjustable electric choke for easy starting

Dual metering blocks w/4-corner idle for smooth and efficient idle quality

Screw-in air bleeds and idle feed restrictions for quick and unsurpassed tuning capability

Dual inlet fuel bowls with sight glass windows on both fuel bowls for safe and easy float adjustment

Universal throttle lever with sealed throttle shafts for years of smooth operation

Tuneable secondary opening rate

Tumble polished for long lasting shine

Specifications

Barrels: 4

Billet Color: Diecast-No Billet

Booster: Down Leg

CFM: 850

Choke: Electric

Circuit: 2

Emission Code: 3

Finish: Shiny

Fuel: Gasoline

Fuel System: Carbureted

High Speed Air Bleed: 28

Idle Air Bleed Size: 70

Material: Aluminum

Model: HR Series

Primary Main Jet: 80

Primary Power Valve: 65

Primary Pump Nozzle Size: 35

Product Type: Carburetor

Secondaries: Mechanical

Secondary Main Jet: 86

Supercharged Application: No

Throttle Bore: 1-3/4 inch
