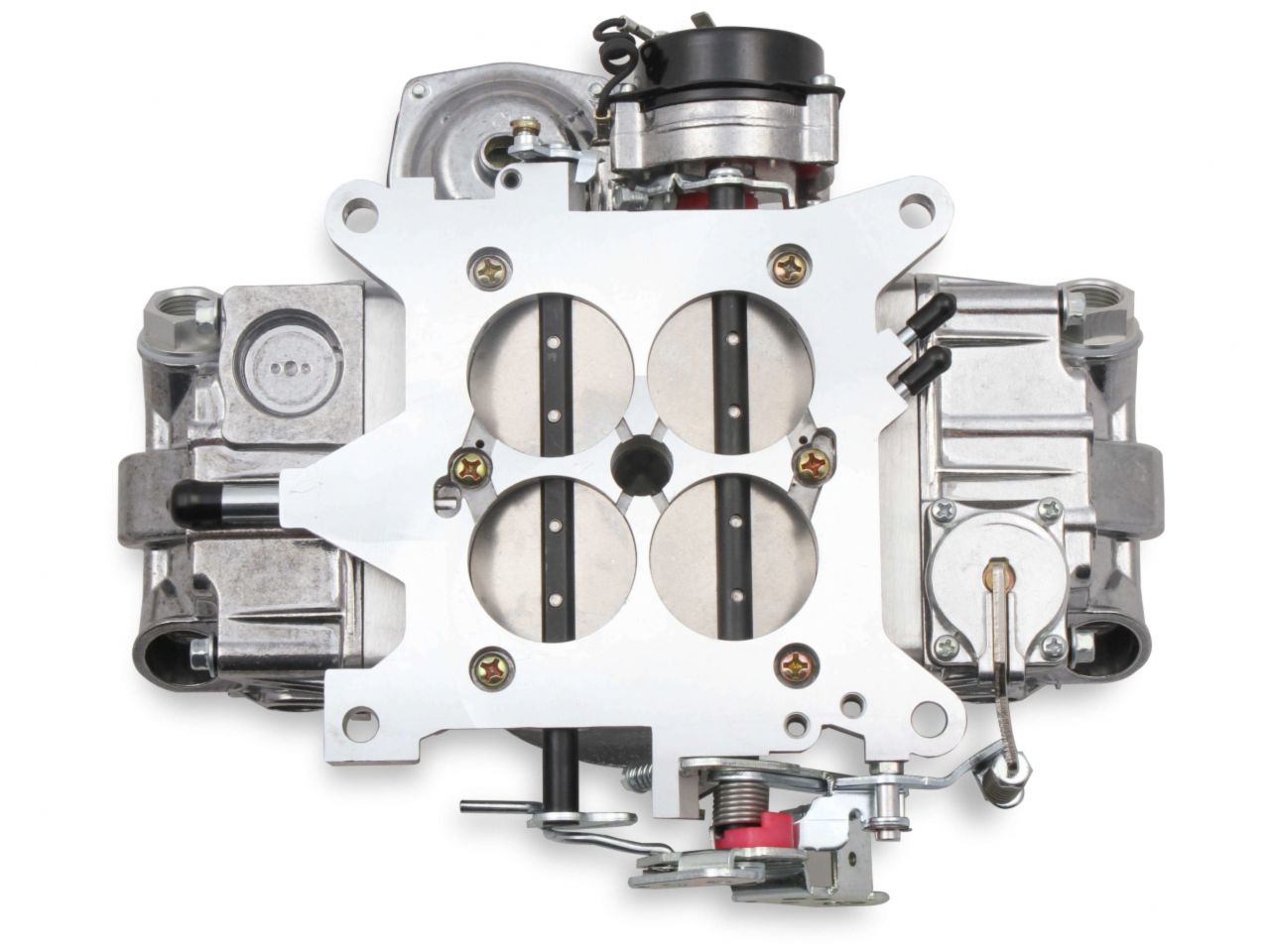

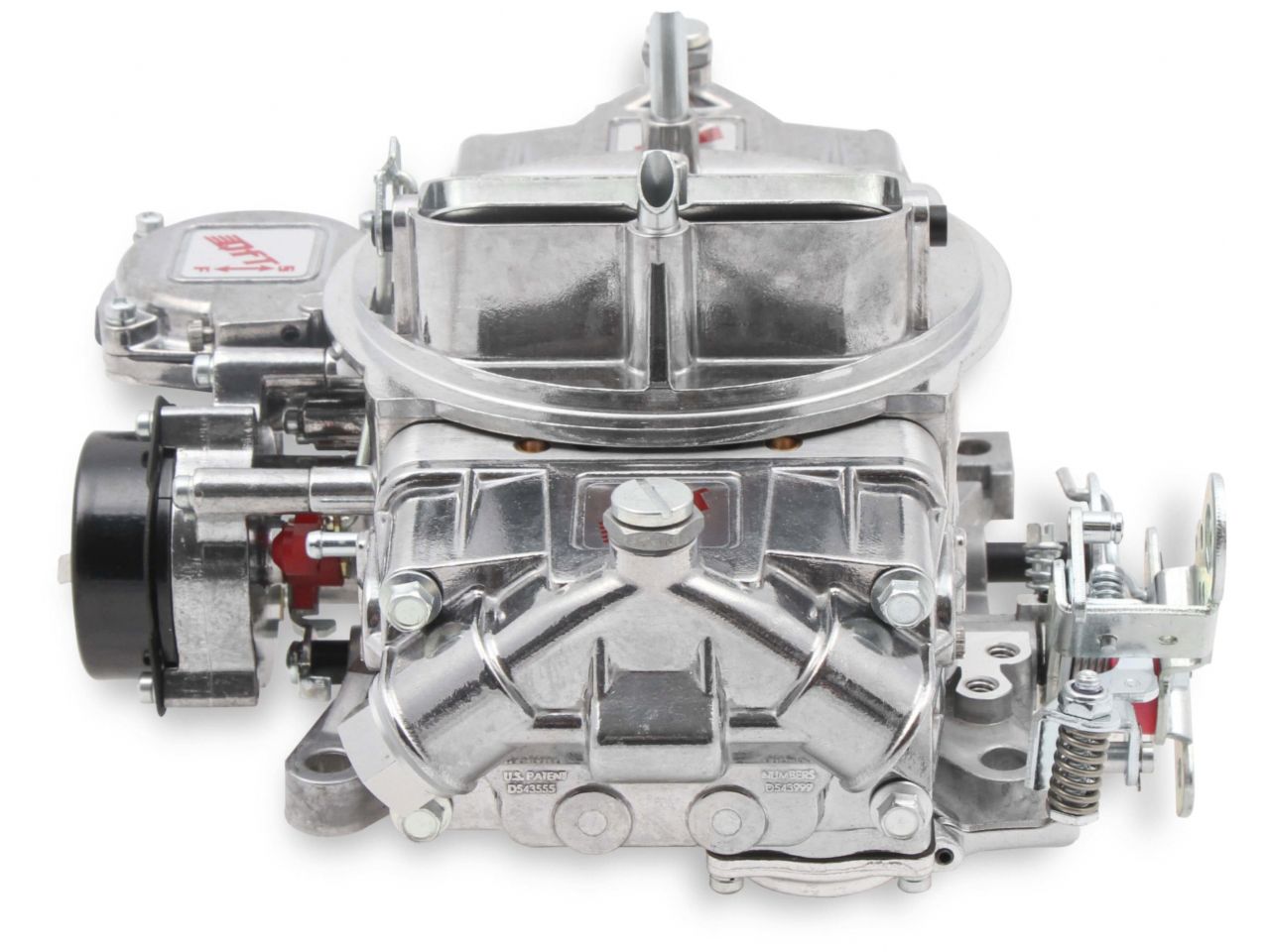

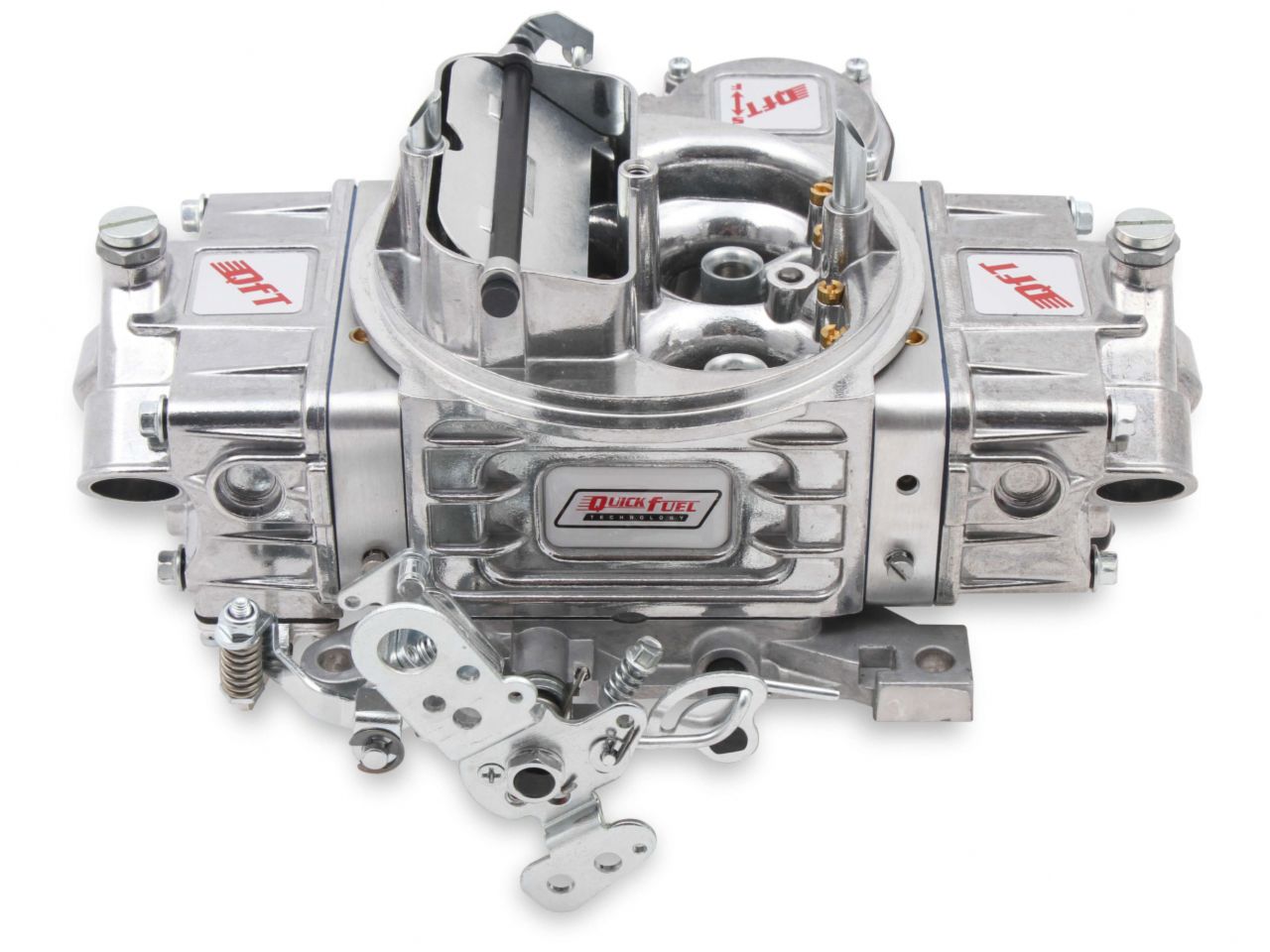

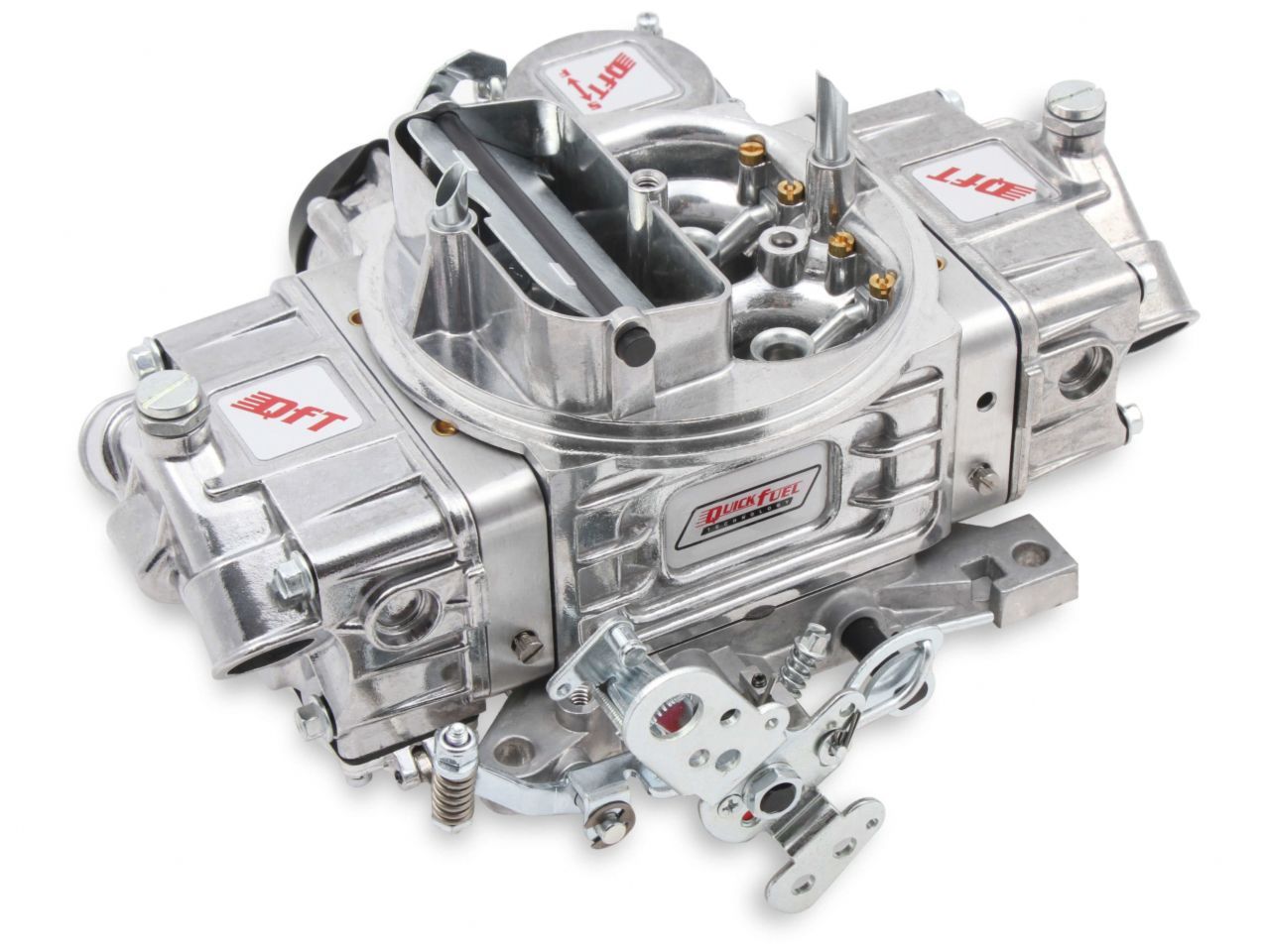

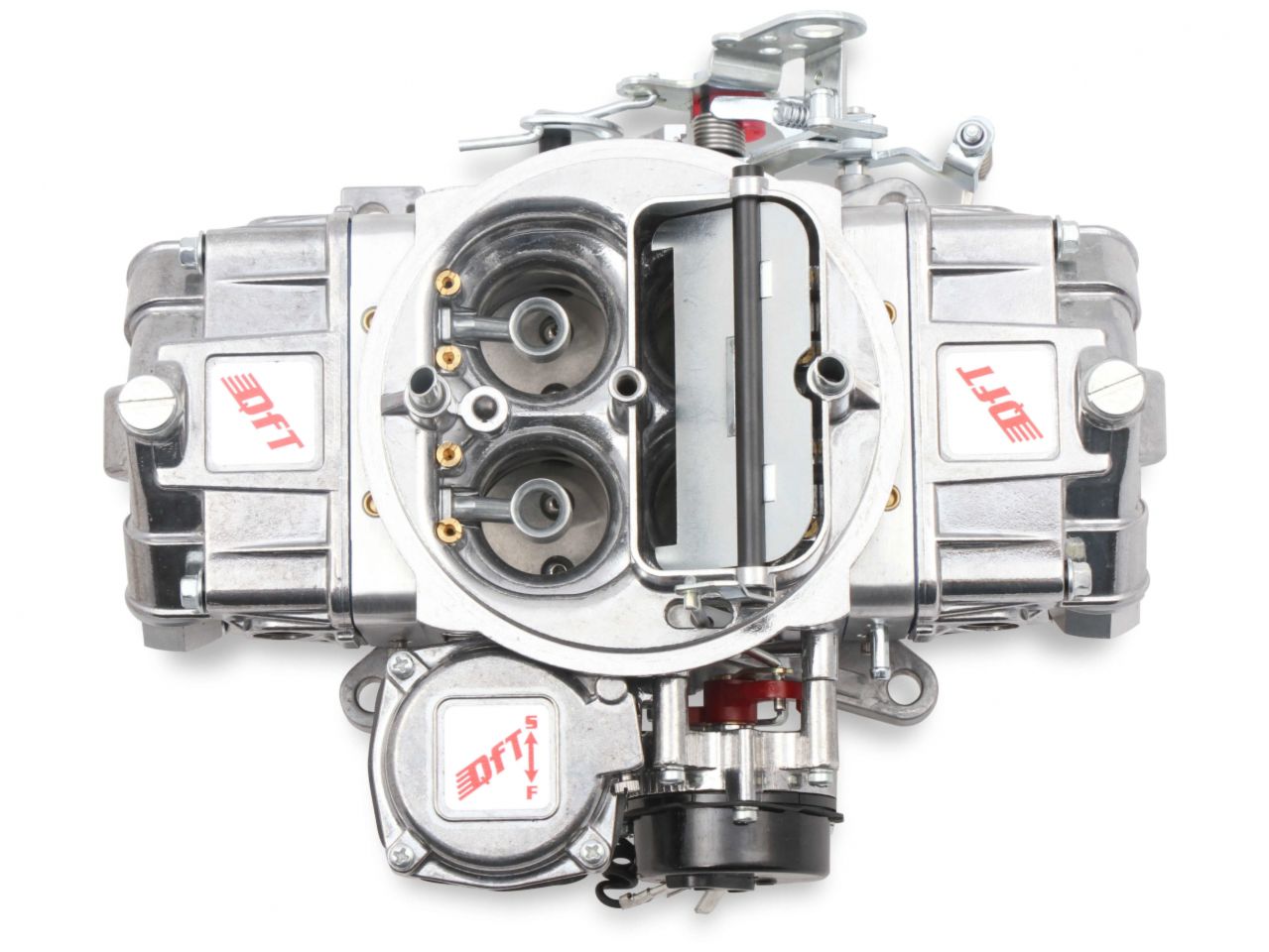

Quick Fuel Hot Rod Carburetor

The Hot Rod Series is a versatile performer designed for the most discerning street enthusiast. Featuring lightweight die-cast aluminum components, the HR-Series offer all the tunability you would expect from more expensive racing carburetors, including changeable bleeds, idle feed, power valve channel restrictions, and four-corner idle. Offered in either vacuum or mechanical secondary models, all Hot Rod Series carburetors feature electric chokes and dual metering blocks for added performance. Now available in a 450 cfm model for applications with small displacement engines.
Features:

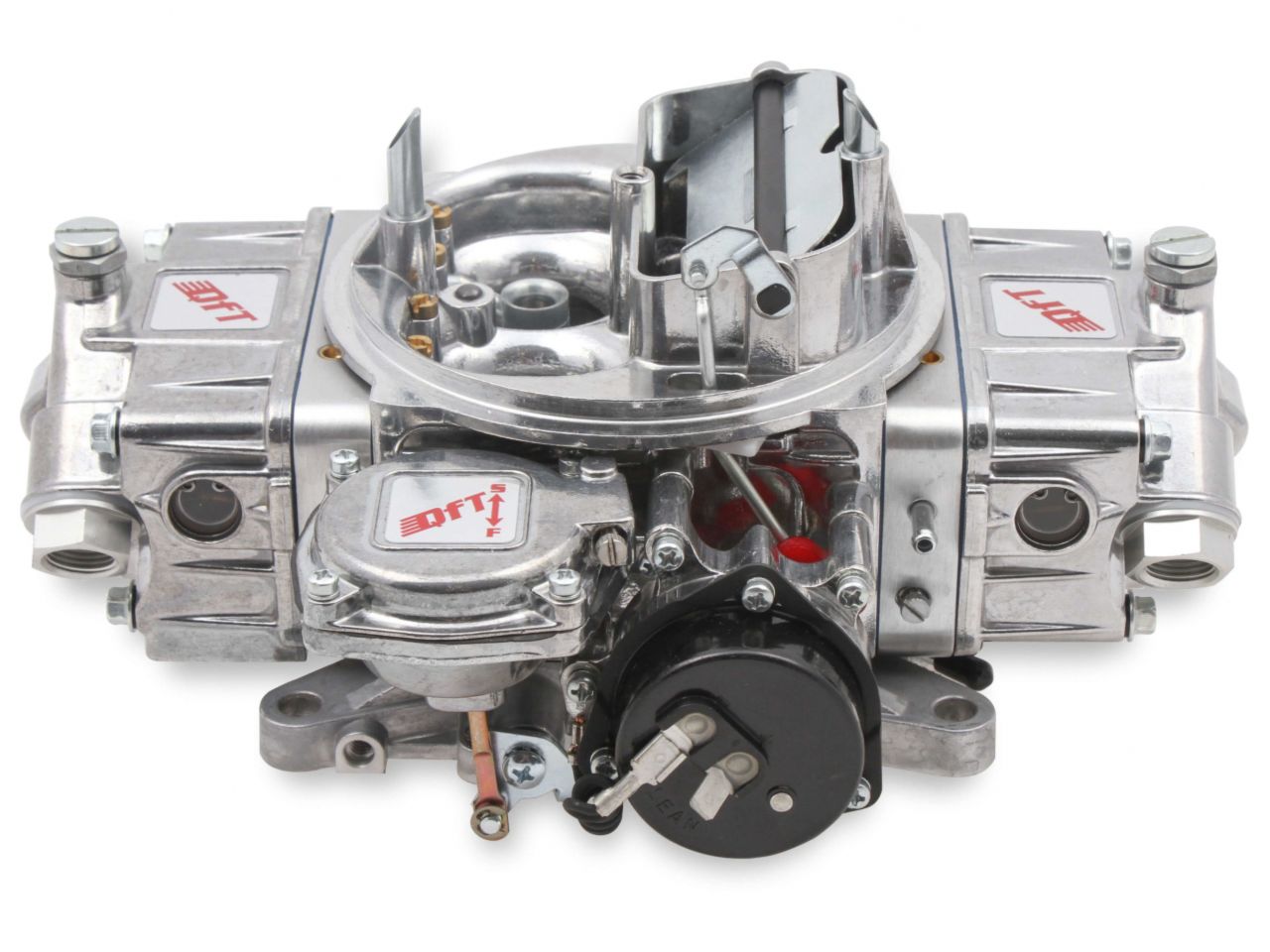

- All models feature a fully adjustable electric choke for easy starting
- Dual metering blocks w/4-corner idle for smooth and efficient idle quality
- Screw-in air bleeds and idle feed restrictions for quick and unsurpassed tuning capability
- Dual inlet fuel bowls with sight glass windows on both fuel bowls for safe and easy float adjustment

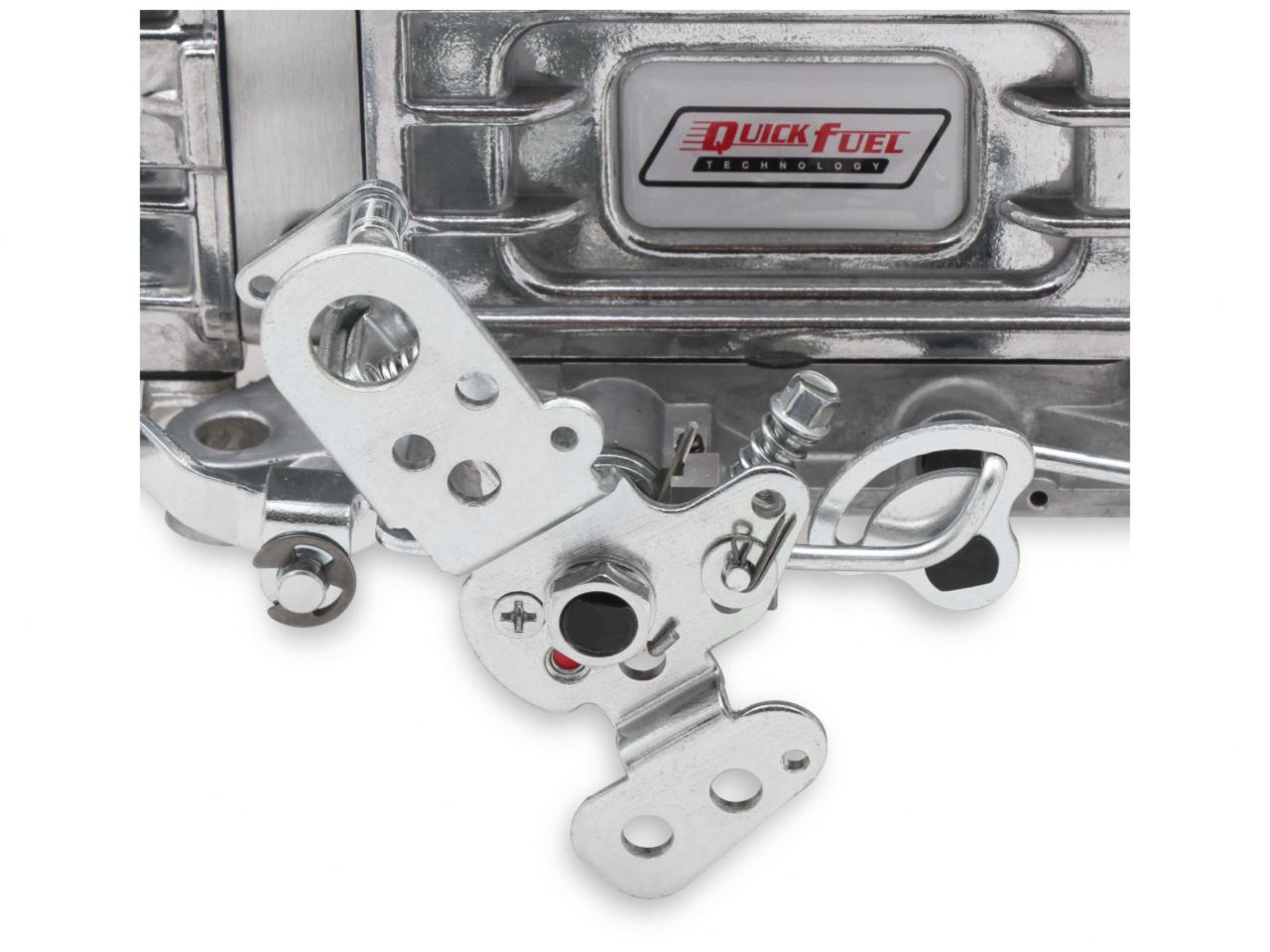

- Universal throttle lever with sealed throttle shafts for years of smooth operation
- Tuneable secondary opening rate
- Tumble polished for long lasting shine
Specifications
Barrels: 4
Billet Color: Diecast-No Billet
Booster: Down Leg
Brand: Quick Fuel
CFM: 735
Choke: Electric
Circuit: 2
Emission Code: 3
Finish: Shiny
Fuel: Gasoline
Fuel System: Carbureted
High Speed Air Bleed: 33
Idle Air Bleed Size: 70
Material: Aluminum
Model: HR-Series
Primary Main Jet: 68
Primary Power Valve: 65
Primary Pump Nozzle Size: 31
Product Type: Carburetor
Secondaries: Vacuum
Secondary Main Jet: 80
Supercharged Application: No
Throttle Bore: 1-11/16 inch
