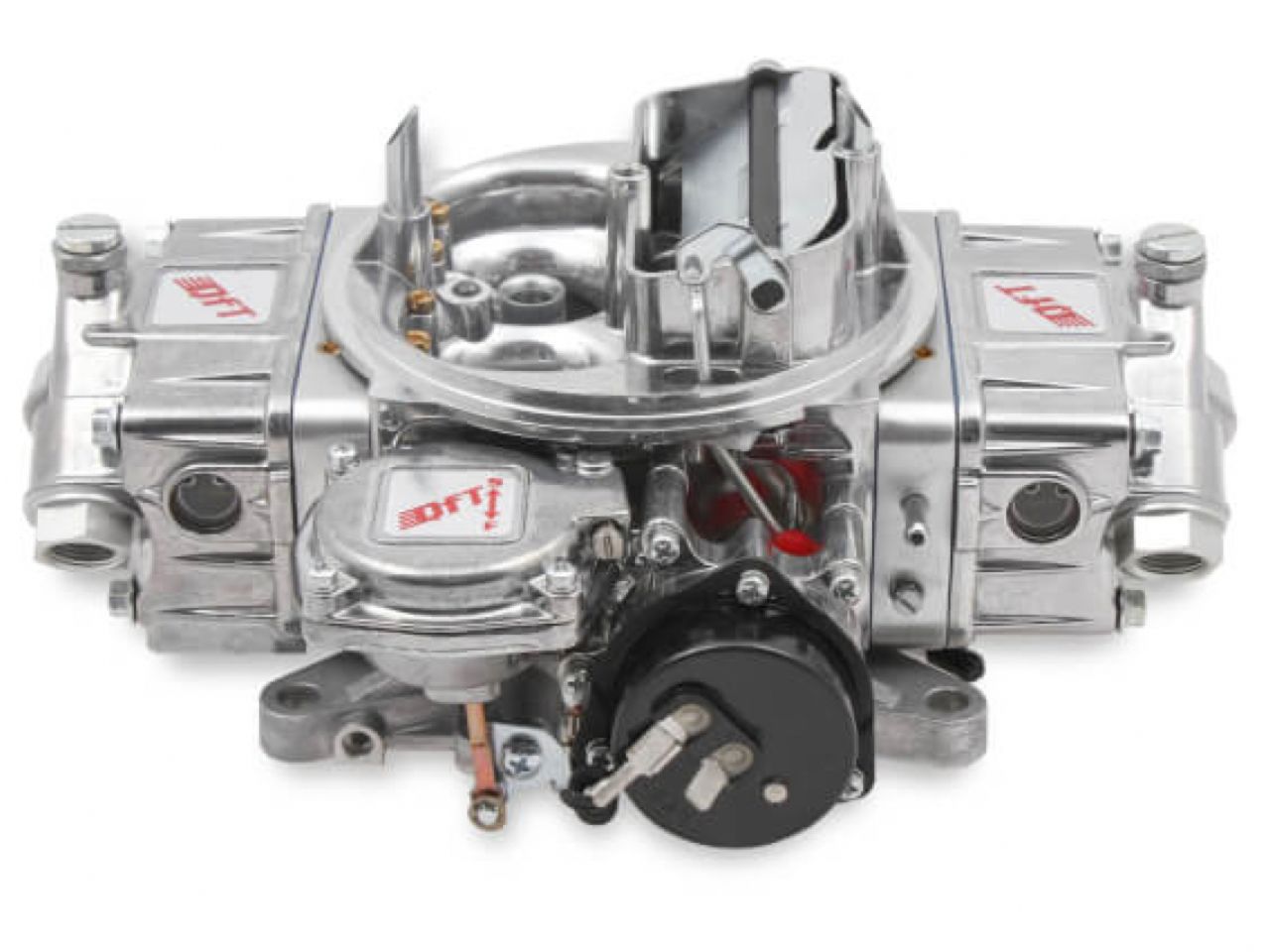

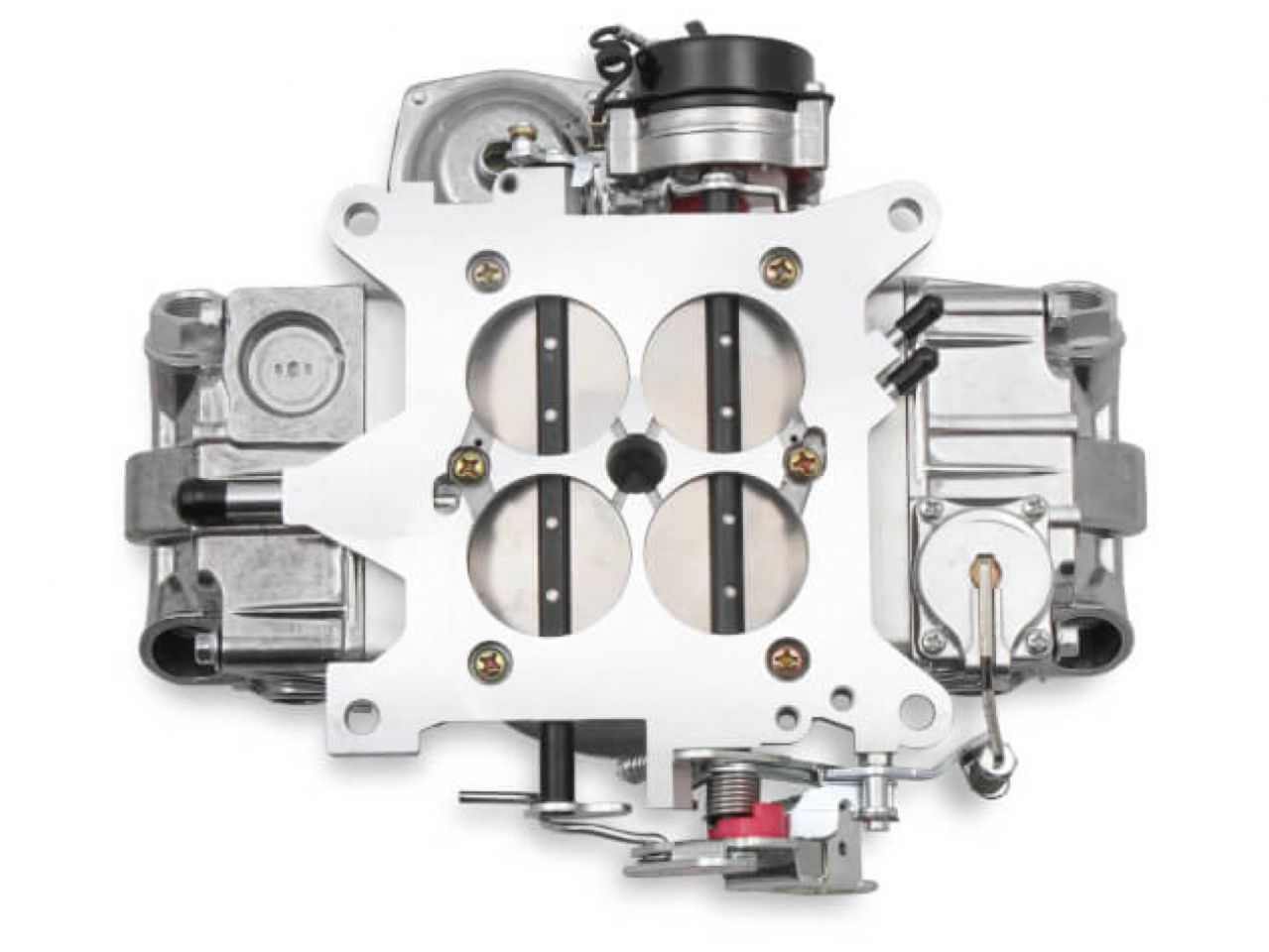

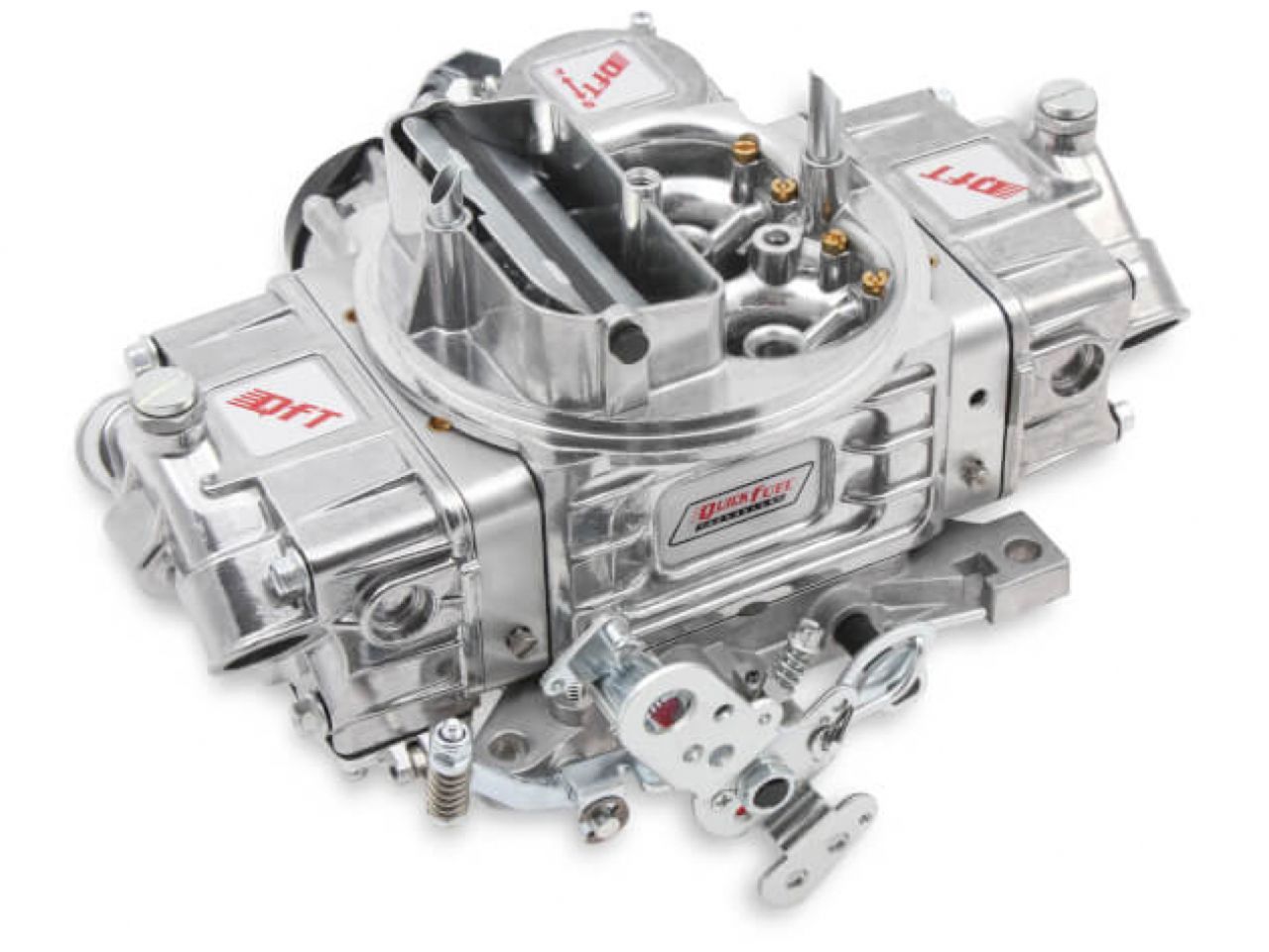

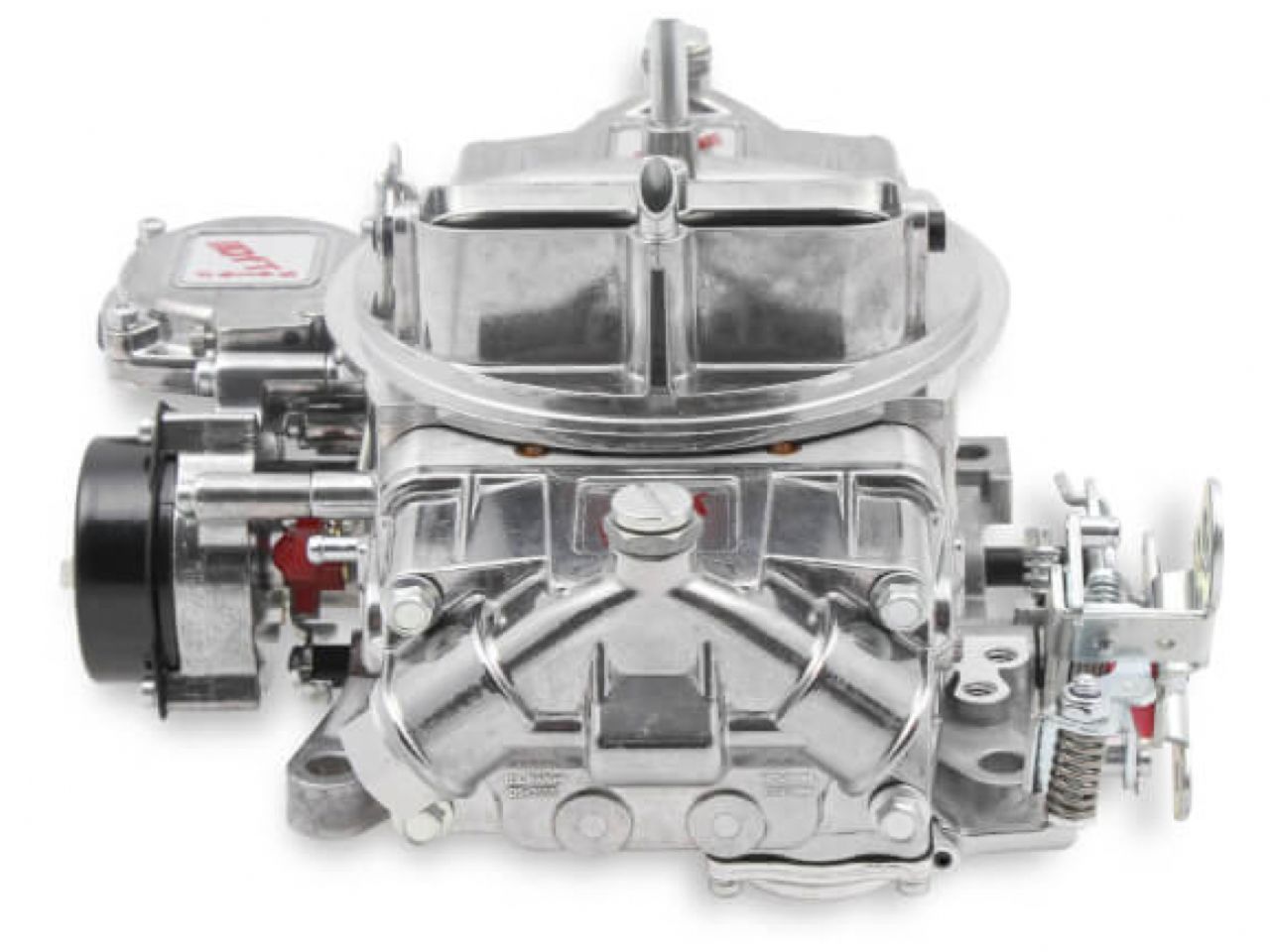

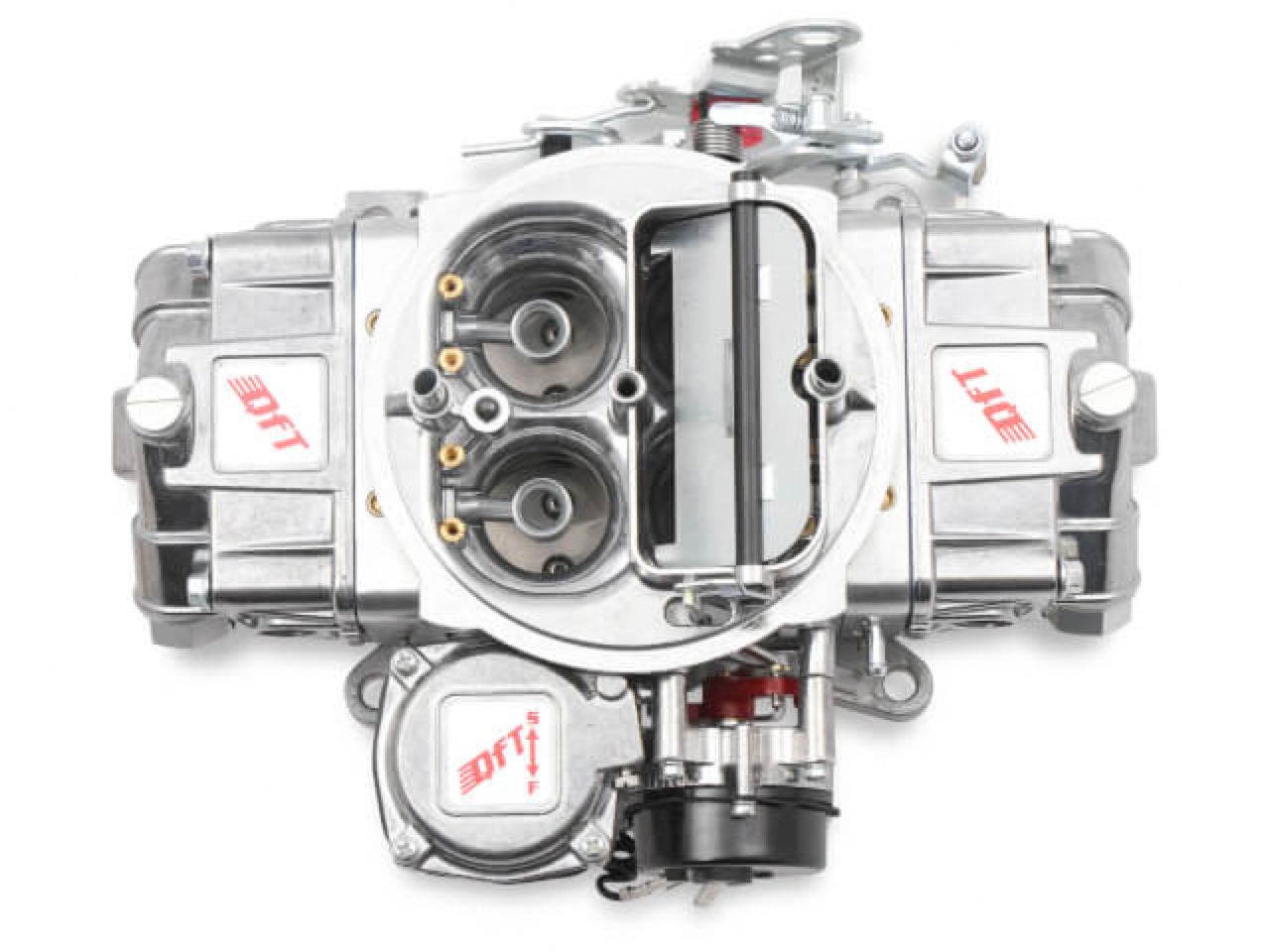

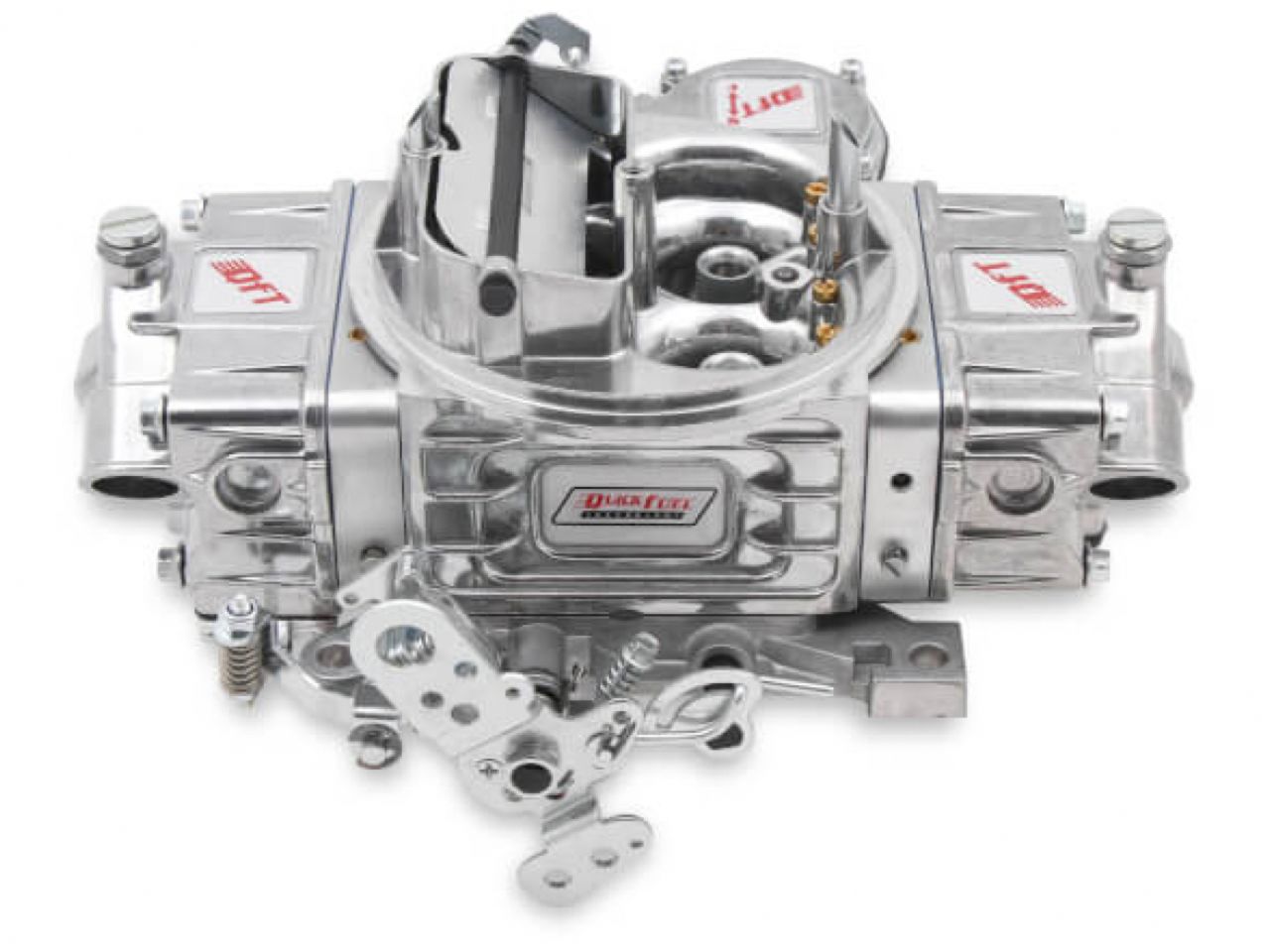

Quick Fuel Hot Rod Series Carburetor 580 CFM V.S
Hot Rod Series Carburetor 580 CFM V.S-4150
The Hot Rod Series is a versatile performer designed for the most discerning street enthusiast. Featuring lightweight die-cast aluminum components, the HR-Series offer all the tunability you would expect from more expensive racing carburetors, including changeable bleeds, idle feed, power valve channel restrictions, and four-corner idle. Offered in either vacuum or mechanical secondary models, all Hot Rod Series carburetors feature electric chokes and dual metering blocks for added performance. Now available in a 450 cfm model for applications with small displacement engines.
- All models feature a fully adjustable electric choke for easy starting
- Dual metering blocks w/4-corner idle for smooth and efficient idle quality
- Screw-in air bleeds and idle feed restrictions for quick and unsurpassed tuning capability
- Dual inlet fuel bowls with sight glass windows on both fuel bowls for safe and easy float adjustment

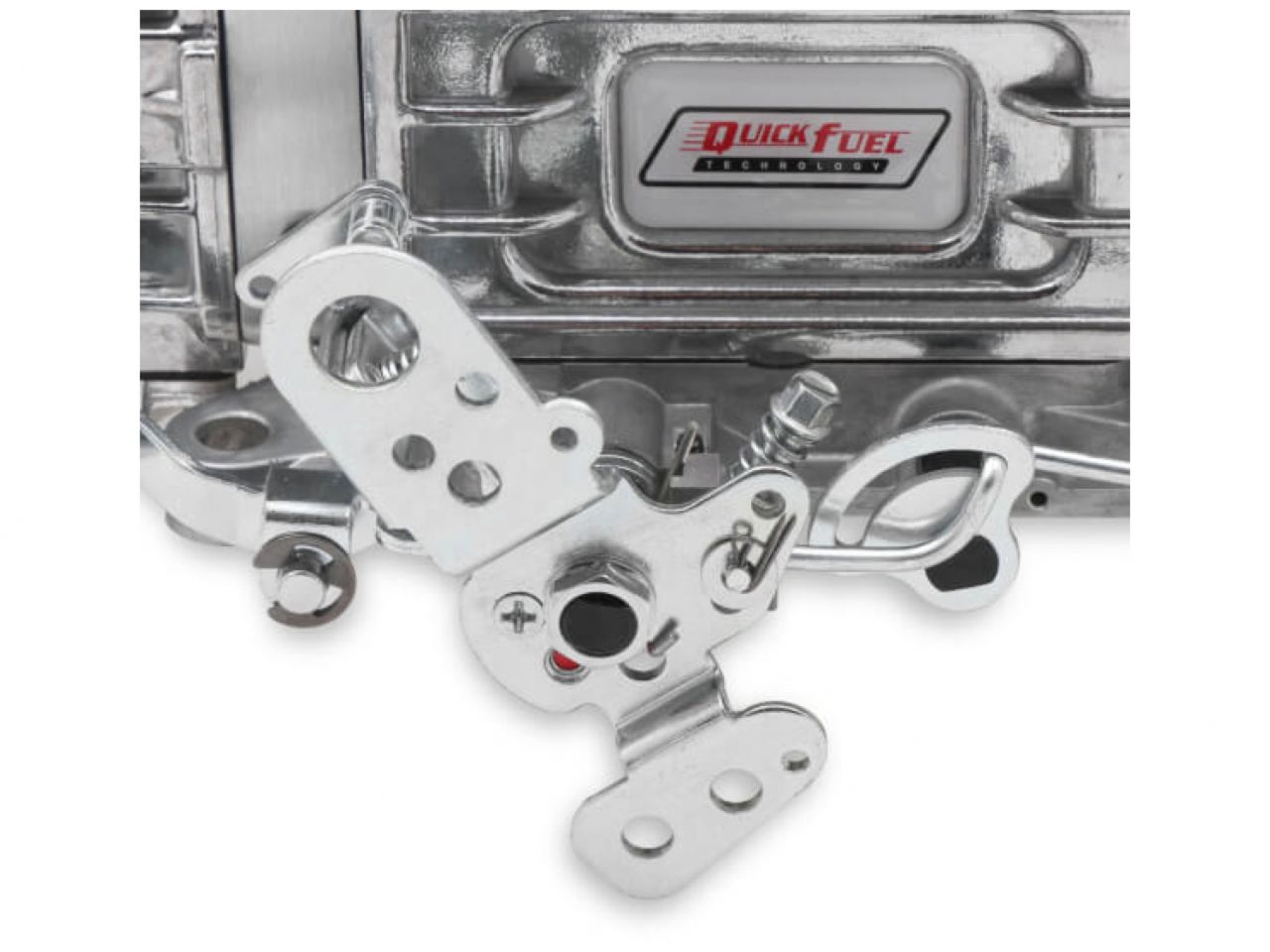

- Universal throttle lever with sealed throttle shafts for years of smooth operation Tuneable secondary opening rate
- Tumble polished for long lasting shine
Specs:
| Barrels | 4 |
|---|---|
| Billet Color | Diecast-No Billet |
| Booster | Down Leg |
| Brand | Quick Fuel |
| CFM | 580 |
| Choke | Electric |
| Circuit | 2 |
| Emission Code | 3 |
| Finish | Shiny |
| Fuel | Gasoline |
| Fuel System | Carbureted |
| High Speed Air Bleed | 31 |
| Idle Air Bleed Size | 70;73 |
| Material | Aluminum |
| Model | HR-Series |
| Primary Main Jet | 66 |
| Primary Power Valve | 65 |
| Primary Pump Nozzle Size | 28 |
| Product Type | Carburetor |
| Secondaries | Vacuum |
| Secondary Main Jet | 70 |
| Supercharged Application | No |
| Throttle Bore | 1-9/16 inch |
Emissions:
3
This part is legal for use on Uncontrolled (Non-Emissions Controlled) Vehicles or Racing Vehicles.
The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:
- 1965 and older U.S. manufactured California Certified vehicles
- 1967 and older U.S. manufactured Federally Certified vehicles
- 1967 and older Foreign manufactured vehicle
Racing Vehicles are vehicles that are used exclusively for racing or other forms of competition that are not registered and that may never be used on the street.
