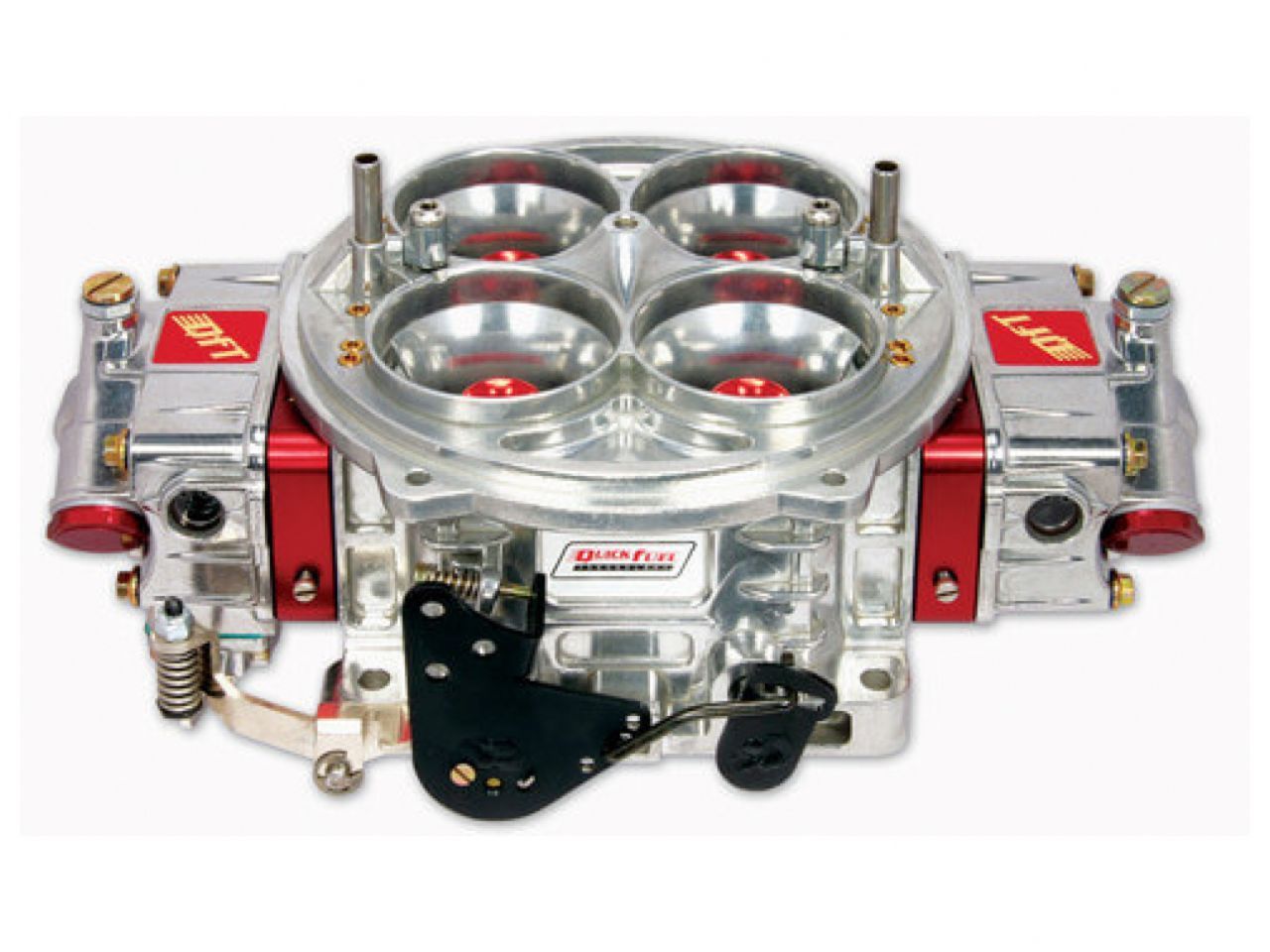

Quick Fuel QFX 4700 Carburetor 1.900V
Quick Fuel QFX 4700 Carburetor 1.900V
Out of stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policySerious drag racing demand a serious drag racing carburetor, and the QFX-Series stands as the flagship model in QFT's lineup. Raised air horns improve entry angle into the venturi while ensuring undisrupted flow over the air bleeds. Annular boosters with CNC-machined billet aluminum inserts provide increased air flow, a stronger signal, and less turbulence. QFX carbs offer unparalleled fuel atomization with annular boosters specific for either gas, methanol, or E85 fuels. Five-emulsion billet metering blocks and four-corner idle circuits offer flexible tunability that today's high-horsepower engines demand. To cover a broad range of applications, methanol- and E85-compatible models, as well as two- and three-circuit fuel systems, are available. Ready to run out of the box, the QFX-Series carburetor will help you get to the winner's circle.
QFX aluminum main body w/raised venturi
Billet aluminum metering blocks with screw in restrictions
Aluminum fuel bowls with dual sight windows and fuel inlets
Nitrophyl® Floats (notched rear) and jet extensions
Viton .130" Needles and Seats
Billet Aluminum annular booster inserts
QuickLinkT adjustable secondary opening adjustment
Hand assembled and engine tested
Specifications
Barrels: 4
Billet Color: Red
Booster: Annular
CFM: 1250
Choke: None
Circuit: 3
Emission Code: 3
Finish: Shiny
Fuel: Gasoline
Fuel System: Carbureted
High Speed Air Bleed: 33
Idle Air Bleed Size: 42
Intermediate Air Bleed: 80
Material: Aluminum
Model: FX Series
Primary Main Jet: 94
Primary Power Valve: N/A
Primary Pump Nozzle Size: 42
Product Type: Carburetor
Secondaries: Mechanical
Secondary Main Jet: 94
Supercharged Application: No
Throttle Bore: 2.125 inch
