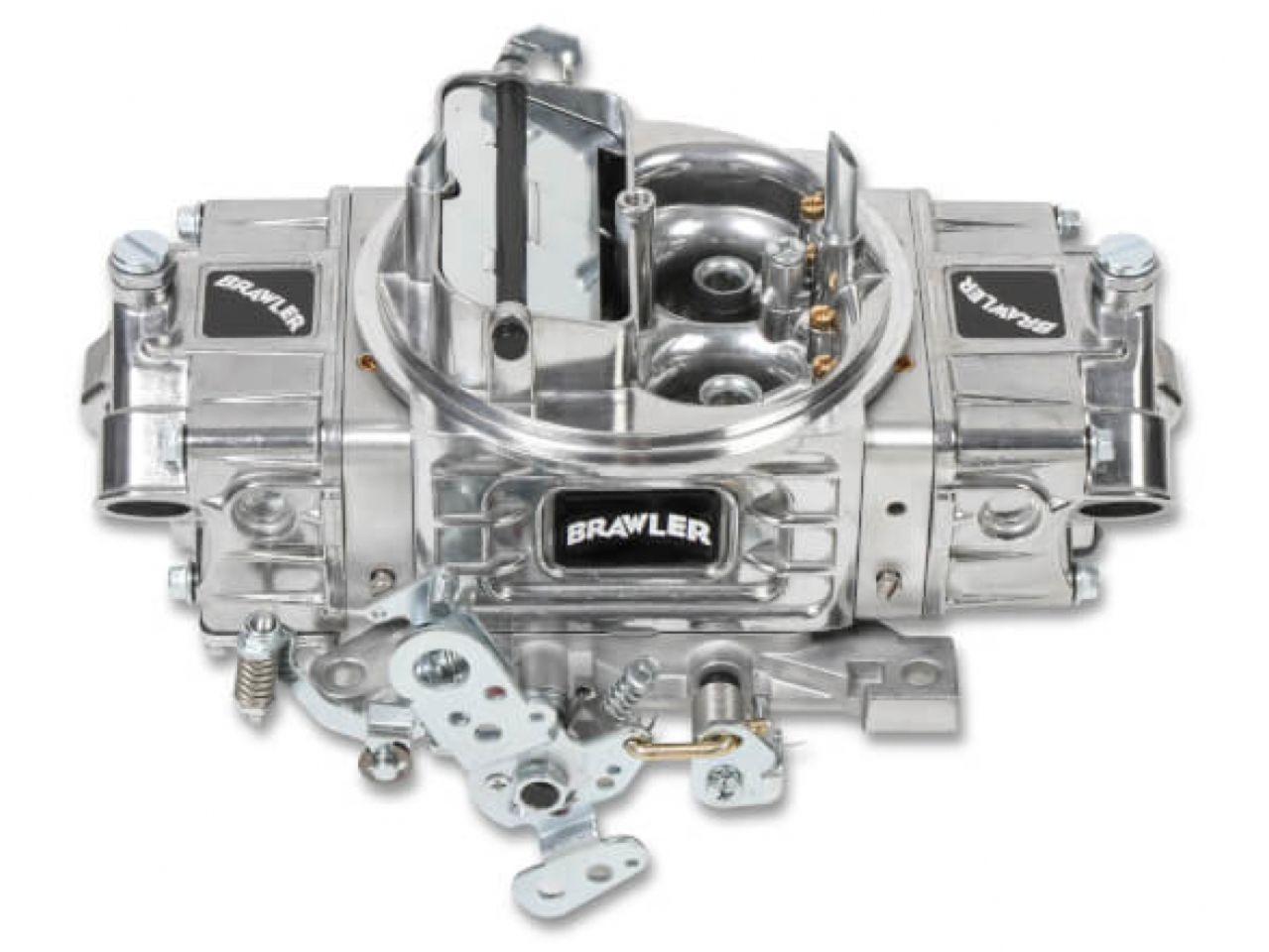

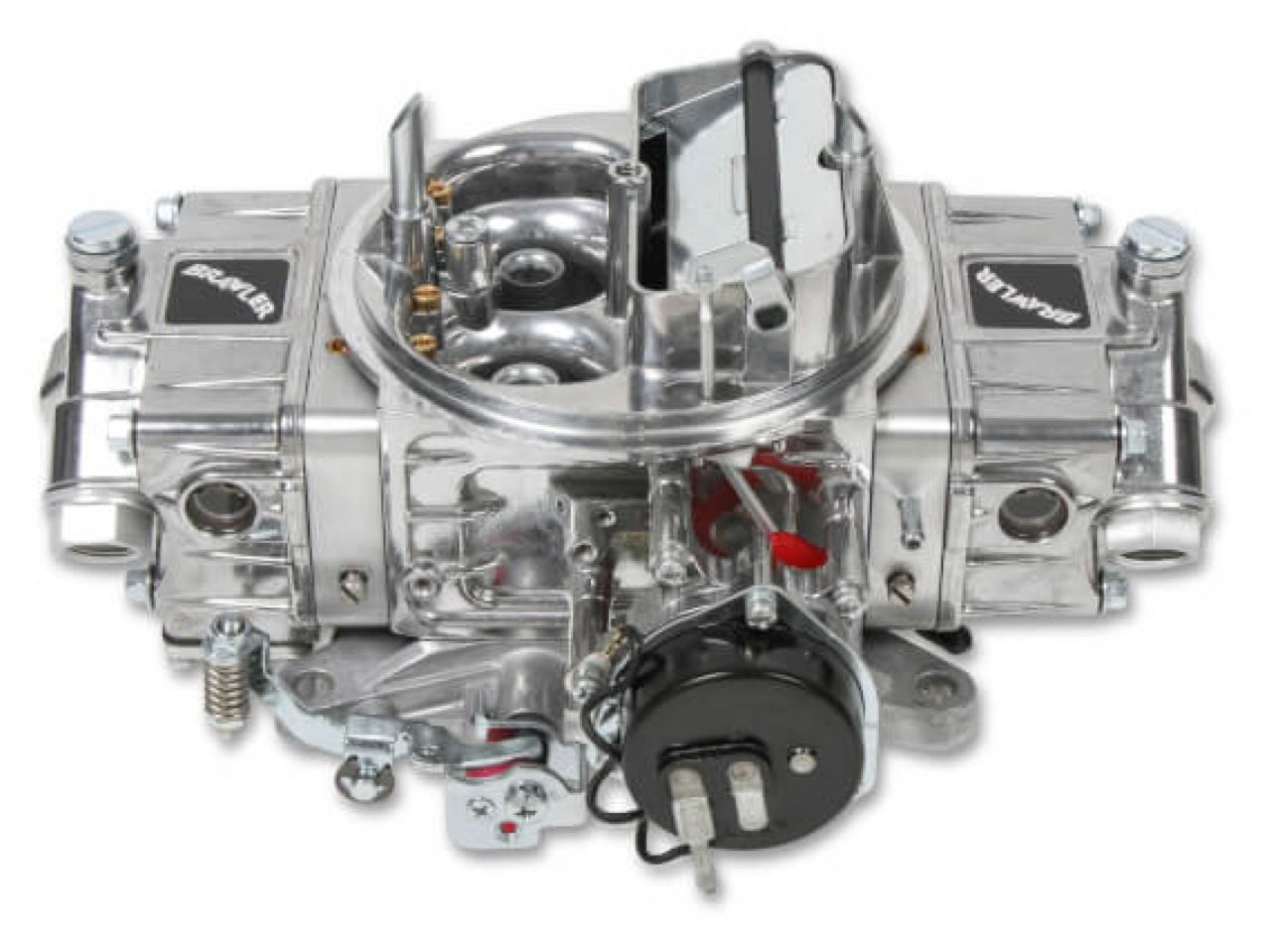

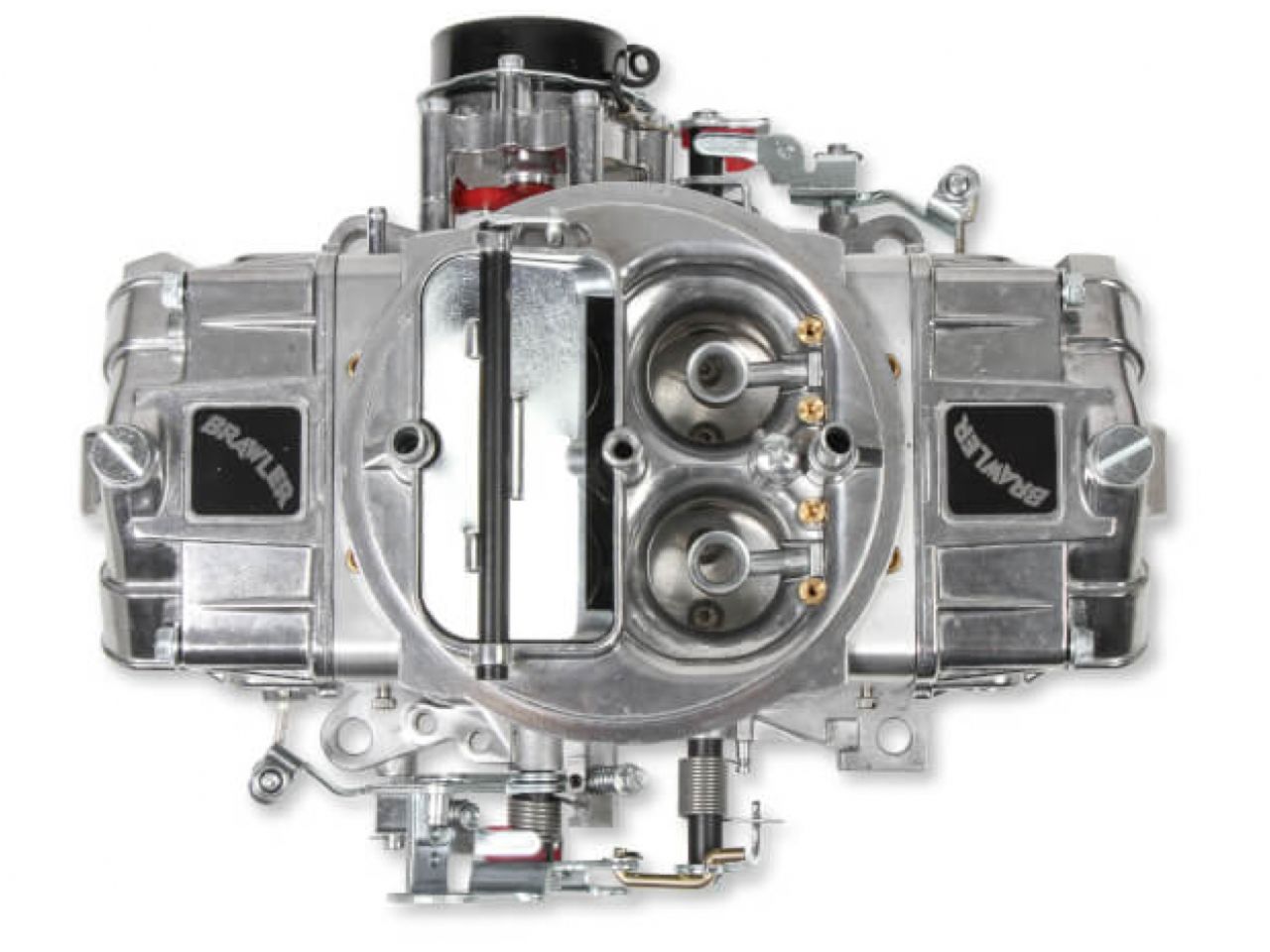

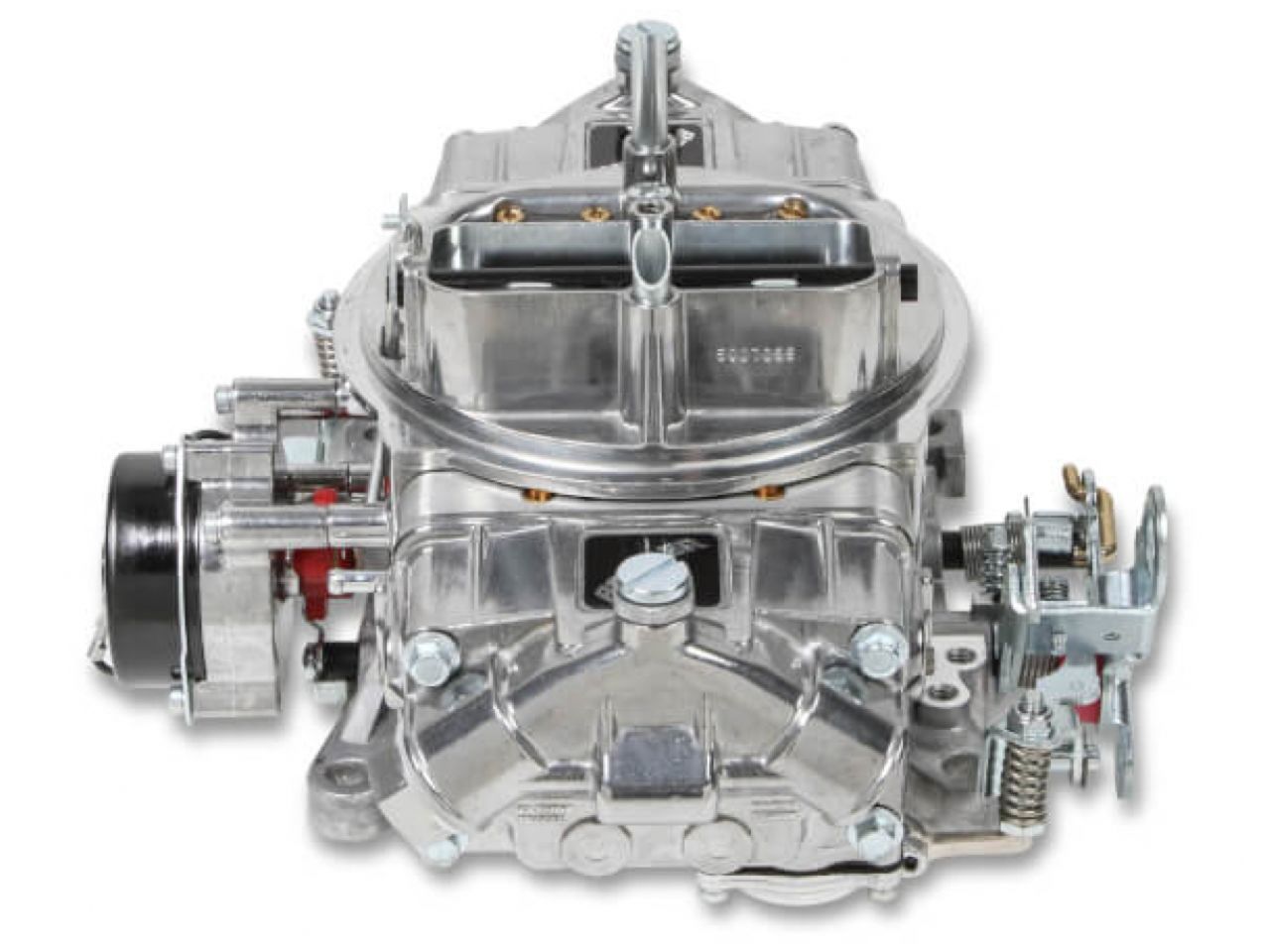

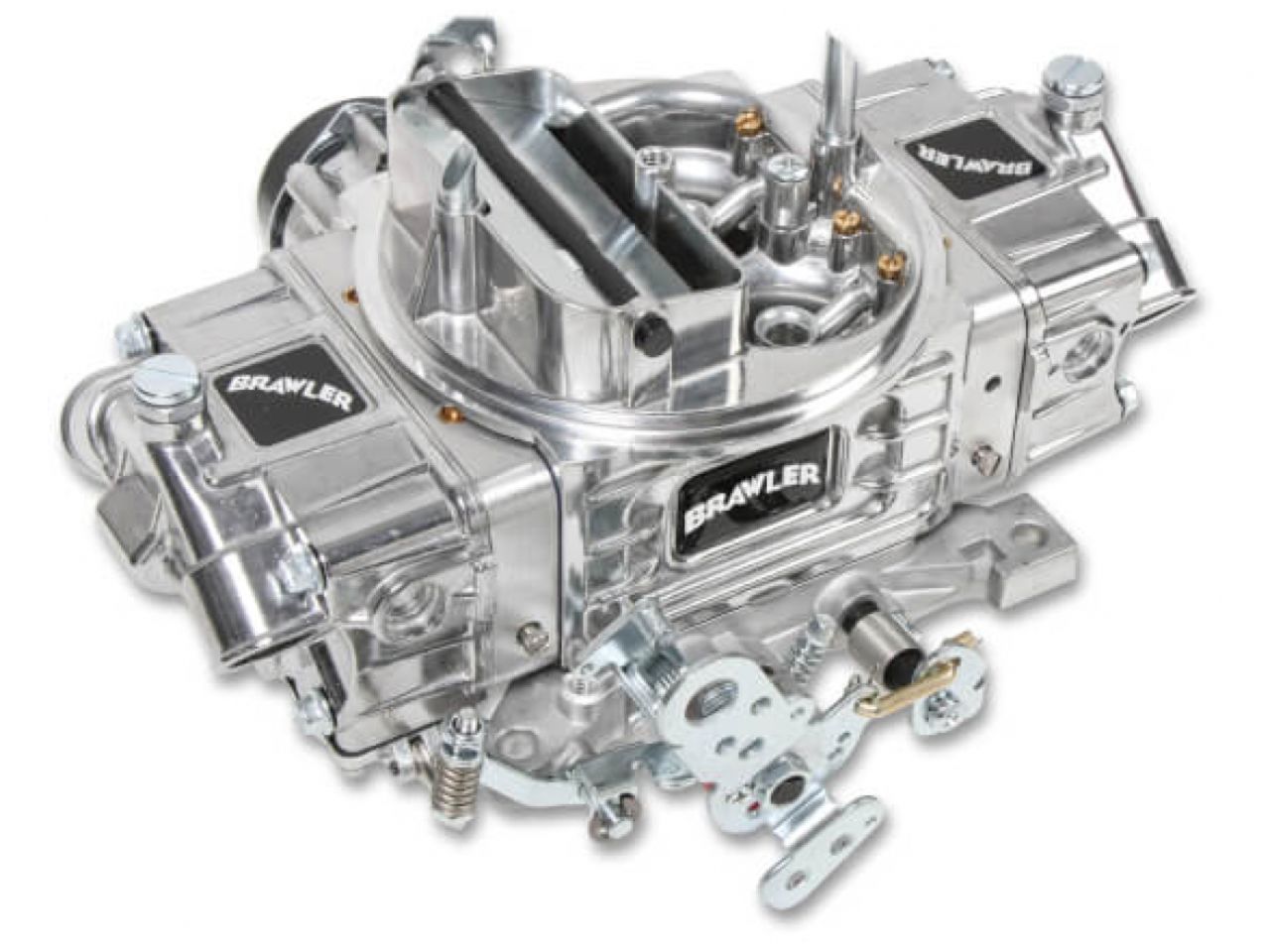

Quick Fuel 850 CFM Brawler Diecast Carburator Mechanical Secondary

Brawler carburetors are precision machined and hand assembled by craftsman right here in the USA. The Brawler family of carburetors include models for your daily driver to your race car. These carburetors work hard just as their name implies- just raw bare knuckled performance that you can rely on. Don't let the budget-friendly price fool you, the Brawler development focused on the performance you want and not the pretty box that it comes in. Brawlers come with the latest technology in air/fuel calibrations for today's street or race engine demands.


Features:

The latest technology in air/fuel calibrations for street or race engine demands
Available in both vacuum and mechanical secondary versions to meet your needs
All models have dual inlet fuel bowls with sight glass windows for safe and easy float adjustments
Changeable idle and high speed air bleeds for easy tuning along with four-corner idle adjustment on mechanical secondary models
Performance models include billet metering blocks and throttle bodies with precision throttle shafts to ensure long term performance
Now available in a black coated finish for corrosion protection and good looks.

Specification

Barrels: 4
Billet Color: Diecast- No billet
Booster: Straight
CFM: 850
Choke: Electric
Circuit: 2
Emission Code: 3
Finish: Shiny
Fuel: Gasoline
Fuel Inlet: Dual
Fuel System: Carbureted
High Speed Air Bleed: 28
Idle Air Bleed Size: 70
Material: Aluminum
Model: Brawler Diecast
Primary Main Jet: 80
Primary Power Valve: 6.5
Primary Pump Nozzle Size: 35
Primary Venturii Size: 1.570"
Product Type: Carburetor
Secondaries: Mechanical
Secondary Main Jet: 86
Secondary Venturii Size: 1.570"
Supercharged Application: No
Throttle Bore: 1-3/4 inch
