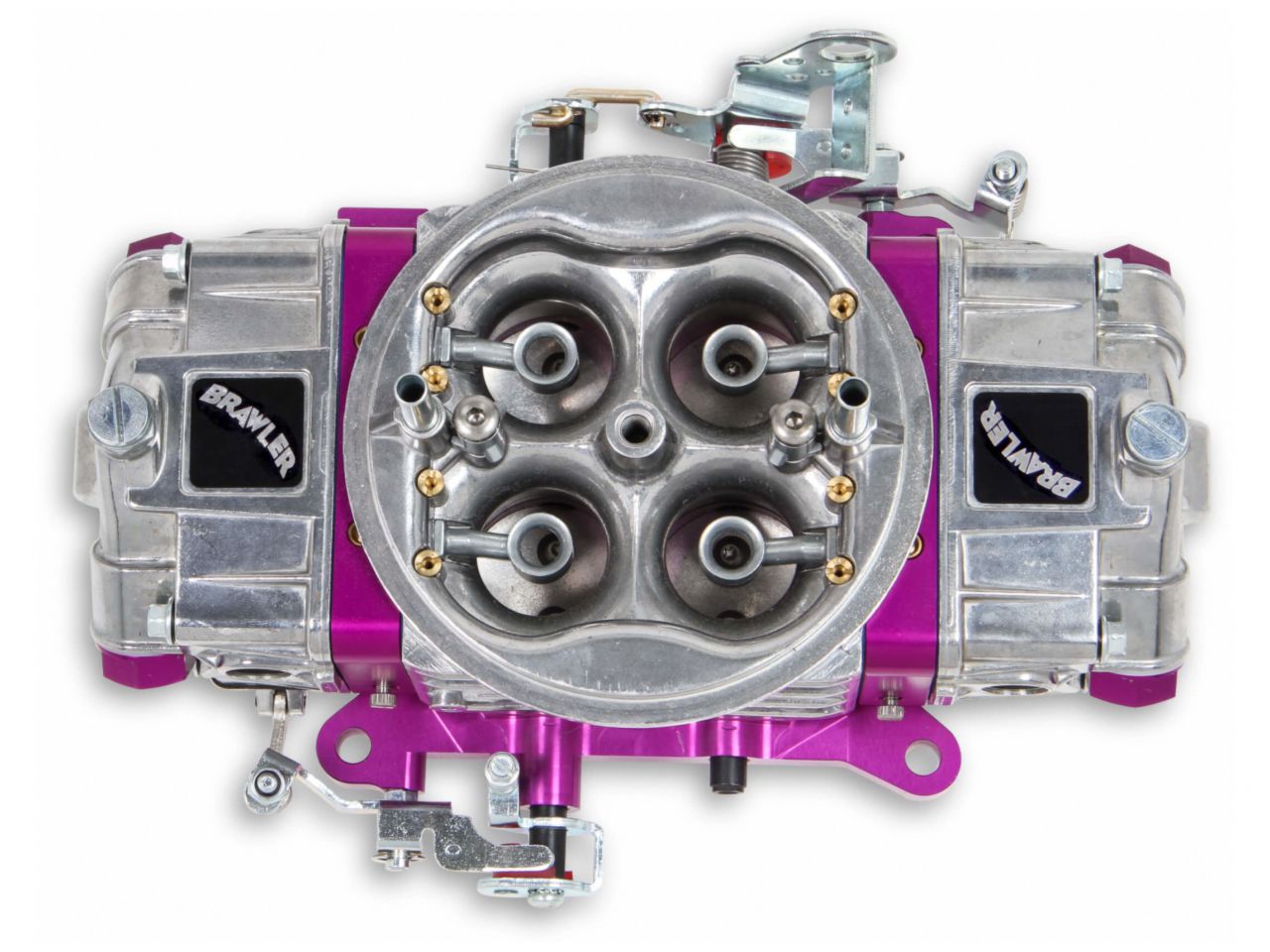

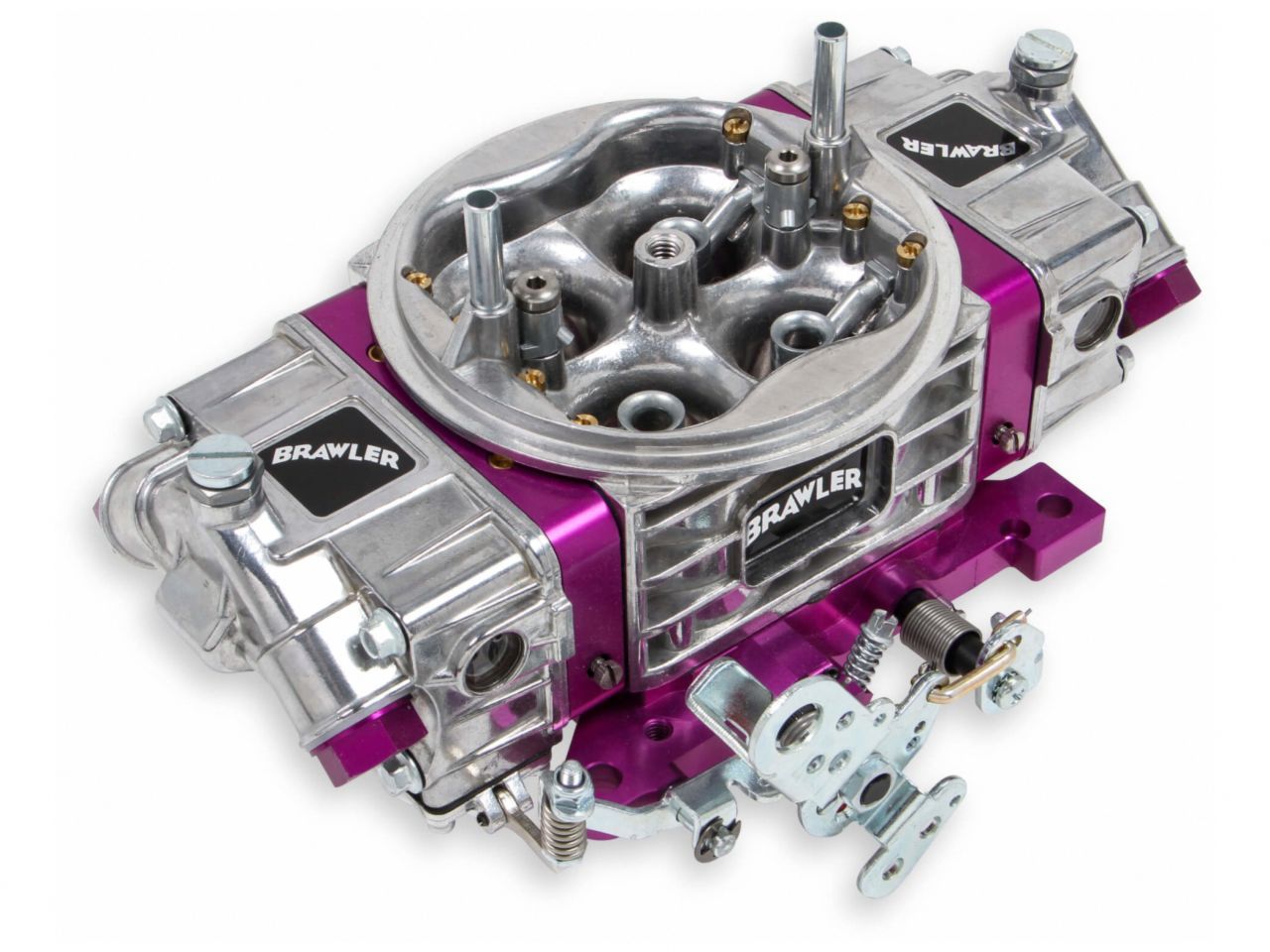

Quick Fuel BRAWLER 850 CFM MECH SEC DRAG GAS
Brawler Race carburetors are machined and assembled by craftsman right here in the USA. These carburetors work hard just as their name implies- just raw bare knuckled performance that you can rely on. Brawler performance development started with a high flowing diecast aluminum main body and added purple billet aluminum metering blocks with the latest technology in air/fuel calibrations for today's race engine demands. They also come with purple billet aluminum throttle bodies for superior durability and throttle shaft stability. Brawler Race models offer all of the options and tunability that you would find from more expensive carburetors in the market, including changeable idle and high speed air bleeds as well as four-corner idle adjustment on all mechanical secondary models.
Features:
- Sizes range from 650-950 CFM mechanical secondary versions to meet your needs
- Changeable idle and high speed air bleeds for easy tuning along with four-corner idle adjustment on all models
- Brawler race models include purple billet metering blocks and throttle bodies with precision throttle shafts to ensure long term performance
Specifications
Barrels: 4
Billet Color: Purple
Booster: Down Leg
Brand: Brawler
CFM: 850
Choke: None
Circuit: 2
Emission Code: 3
Finish: Shiny
Fuel: Gasoline
Fuel System: Carbureted
High Speed Air Bleed: 33;33
Idle Air Bleed Size: 73; 73
Material: Aluminum
Model: Brawler Race
Primary Main Jet: 76
Primary Power Valve: 4.5
Primary Pump Nozzle Size: 33
Primary Venturii Size: 1.570"
Product Type: Carburetor
Secondaries: Mechanical
Secondary Main Jet: 84
Secondary Pump Nozzle Size: 33
Secondary Venturii Size: 1.570"
Supercharged Application: No
Throttle Bore: 1.75 inch
