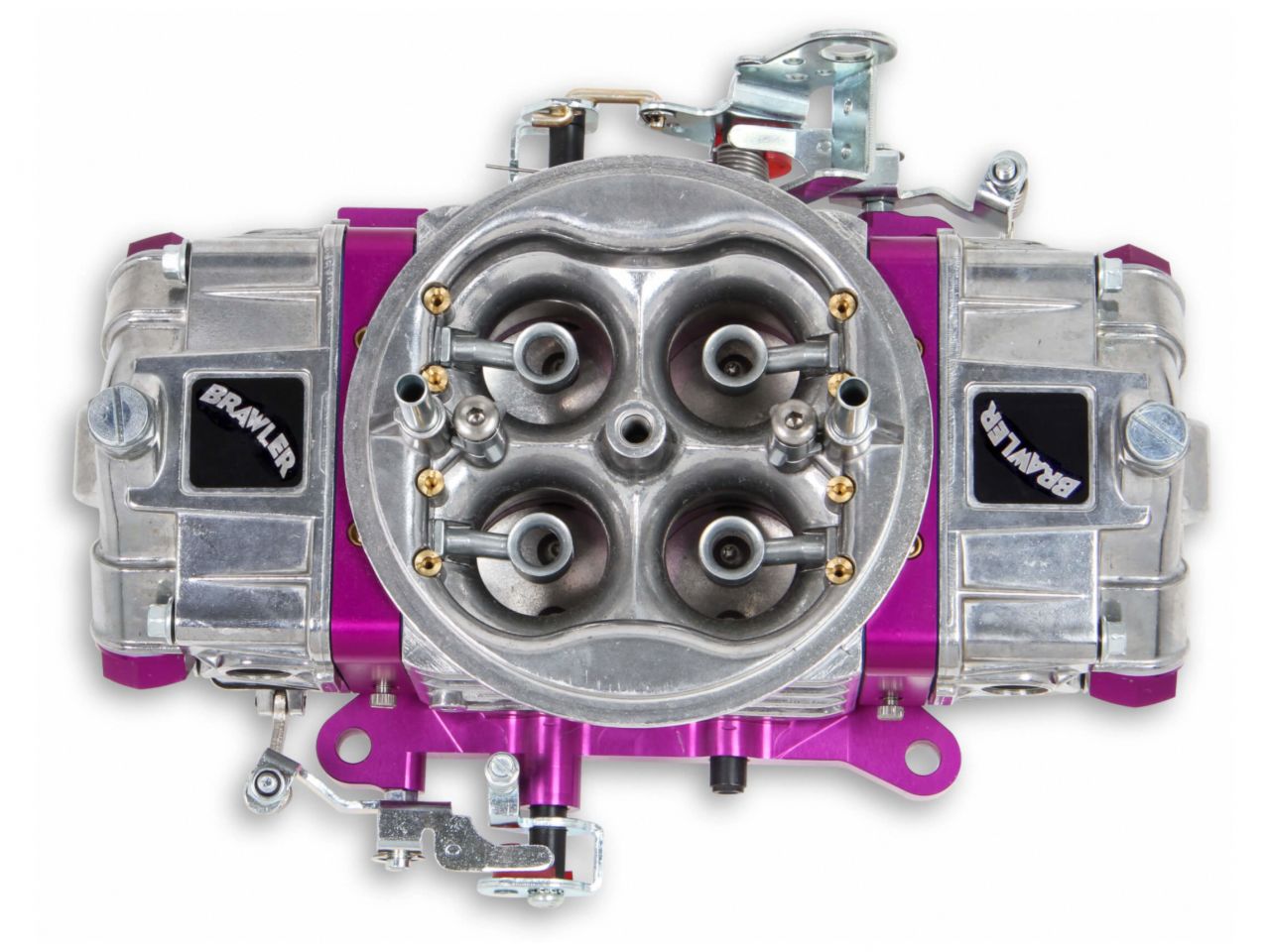

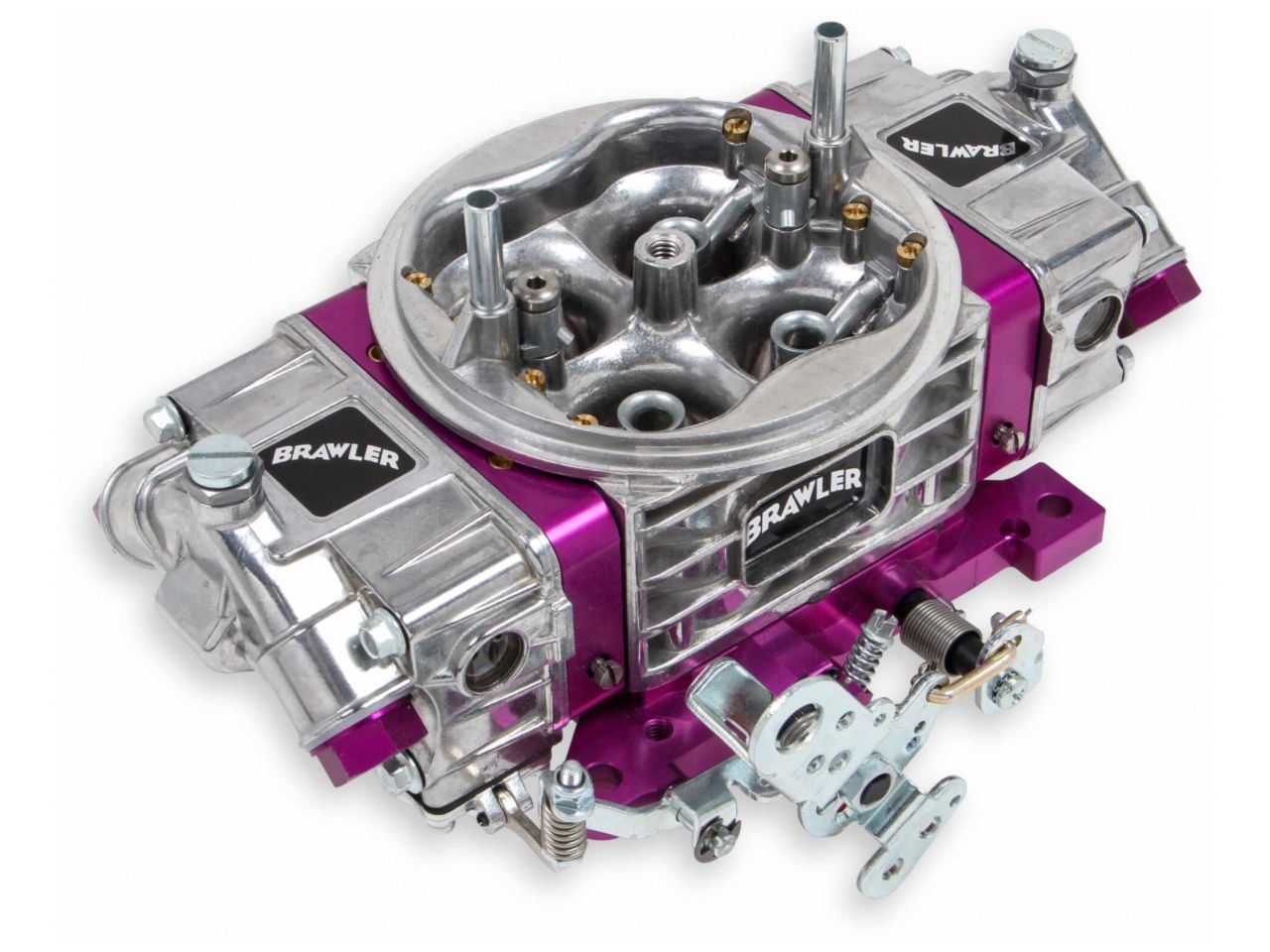

Quick Fuel BRAWLER RACE 650CFM MECH

Brawler Race carburetors are machined and assembled by craftsman right here in the USA. These carburetors work hard just as their name implies- just raw bare knuckled performance that you can rely on. Brawler performance development started with a high flowing diecast aluminum main body and added purple billet aluminum metering blocks with the latest technology in air/fuel calibrations for today's race engine demands. They also come with purple billet aluminum throttle bodies for superior durability and throttle shaft stability. Brawler Race models offer all of the options and tunability that you would find from more expensive carburetors in the market, including changeable idle and high speed air bleeds as well as four-corner idle adjustment on all mechanical secondary models.

Features:

Specifications

Barrels:4

Billet Color: Purple

Booster: Down Leg

Brand: Brawler

CFM: 650

Choke: None

Circuit: 2

Emission Code: 3

Finish: Shiny

Fuel: Gasoline

Fuel Inlet: Dual

Fuel System: Carbureted

High Speed Air Bleed: 31;31

Idle Air Bleed Size: 73; 73

Material: Aluminum

Model: Brawler Race

Primary Main Jet: 68

Primary Power Valve: 4.5

Primary Pump Nozzle Size: 31

Primary Venturii Size: 1.300"

Product Type: Carburetor

Secondaries: Mechanical

Secondary Main Jet: 76

Secondary Pump Nozzle Size: 31

Secondary Venturii Size: 1.300"

Supercharged Application: No

Throttle Bore: 1 11/16"
