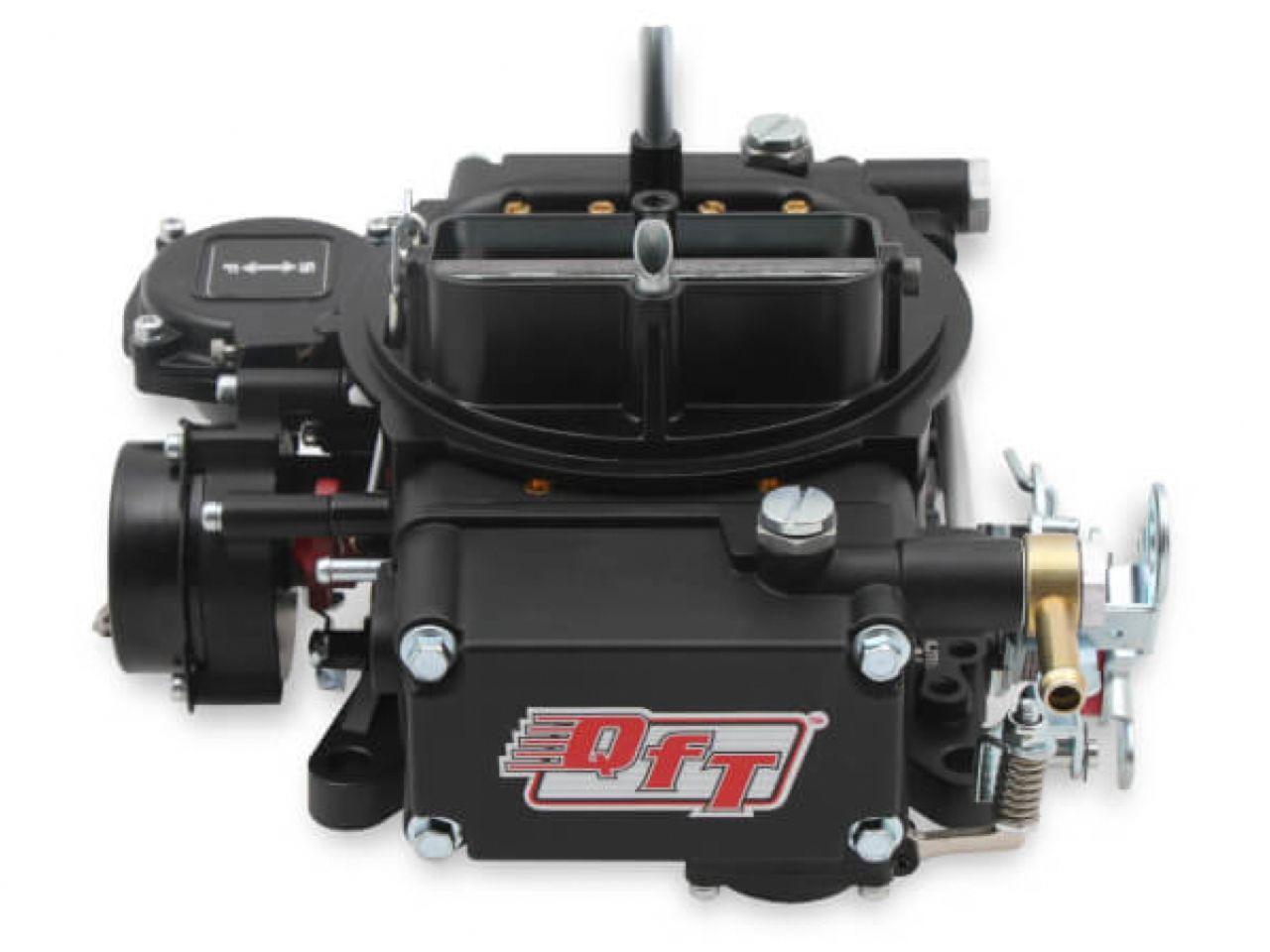

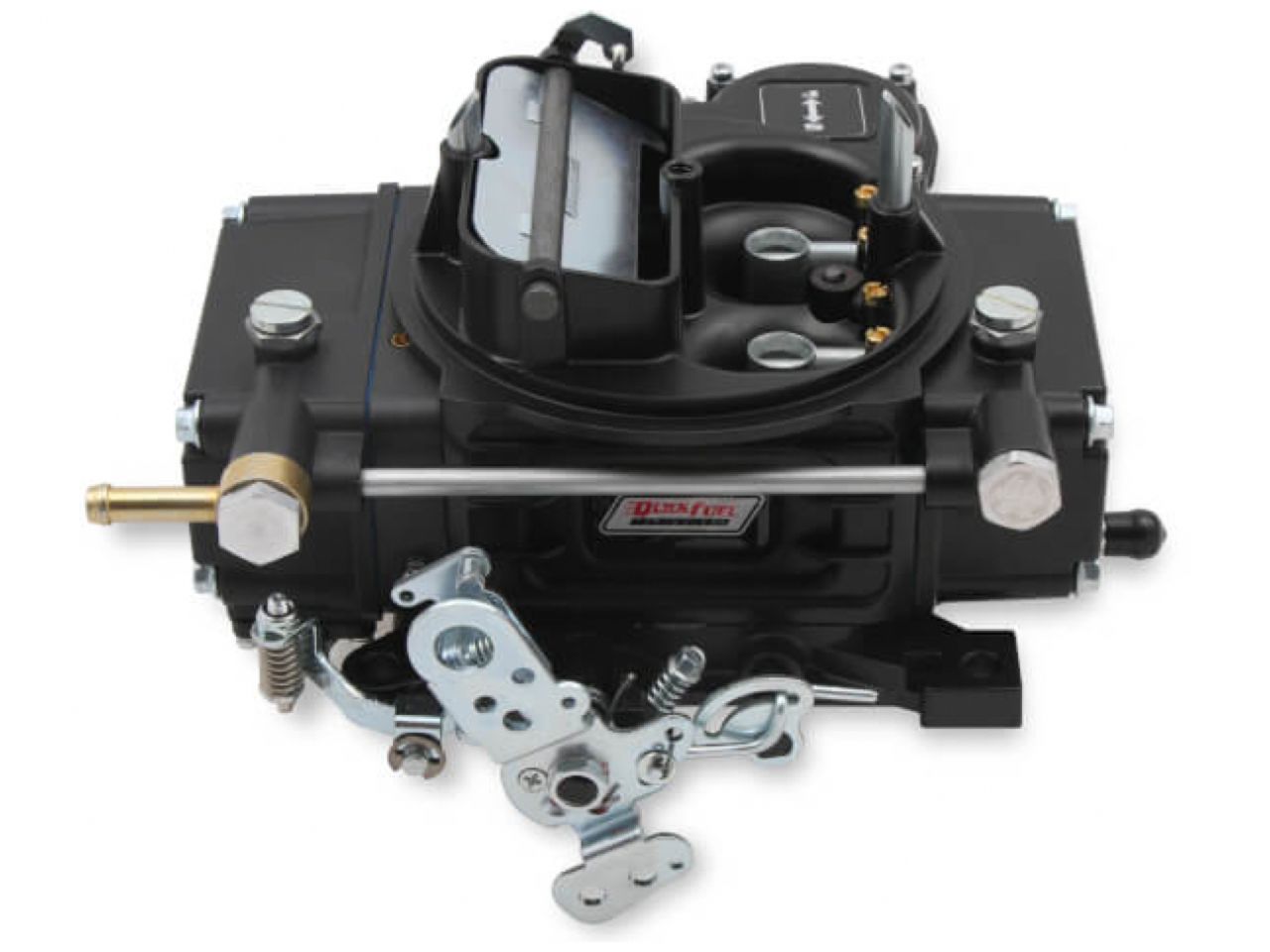

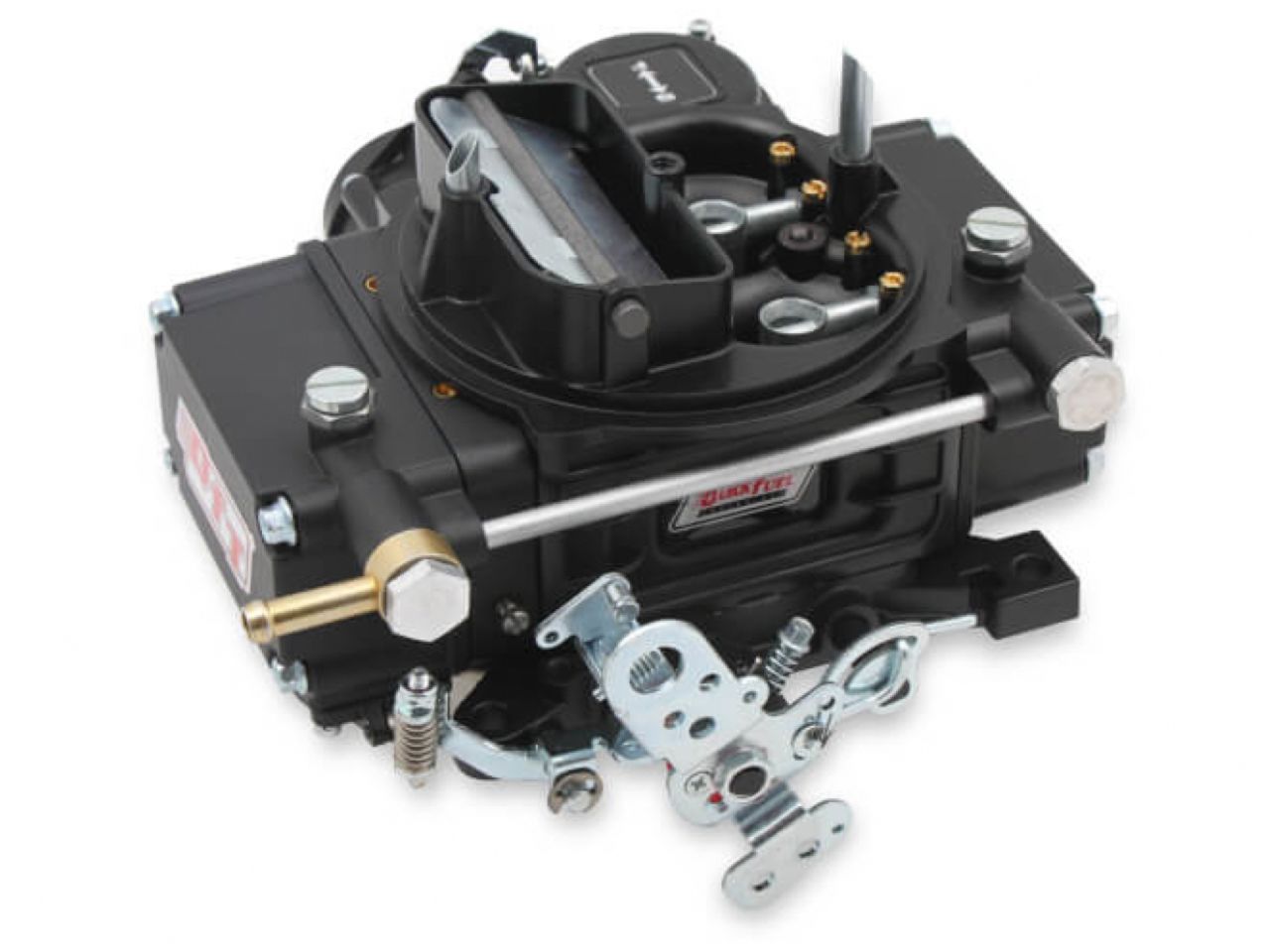

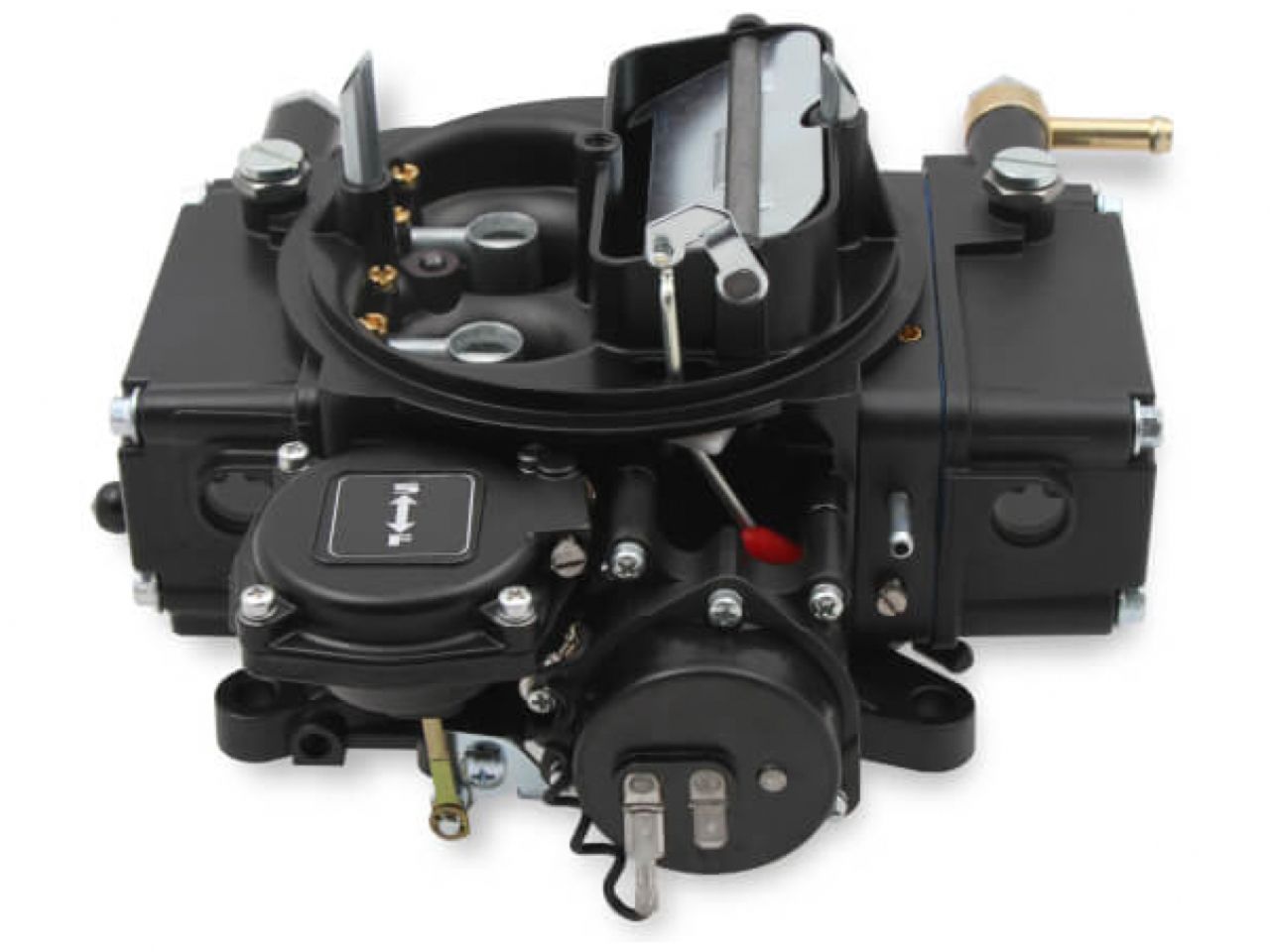

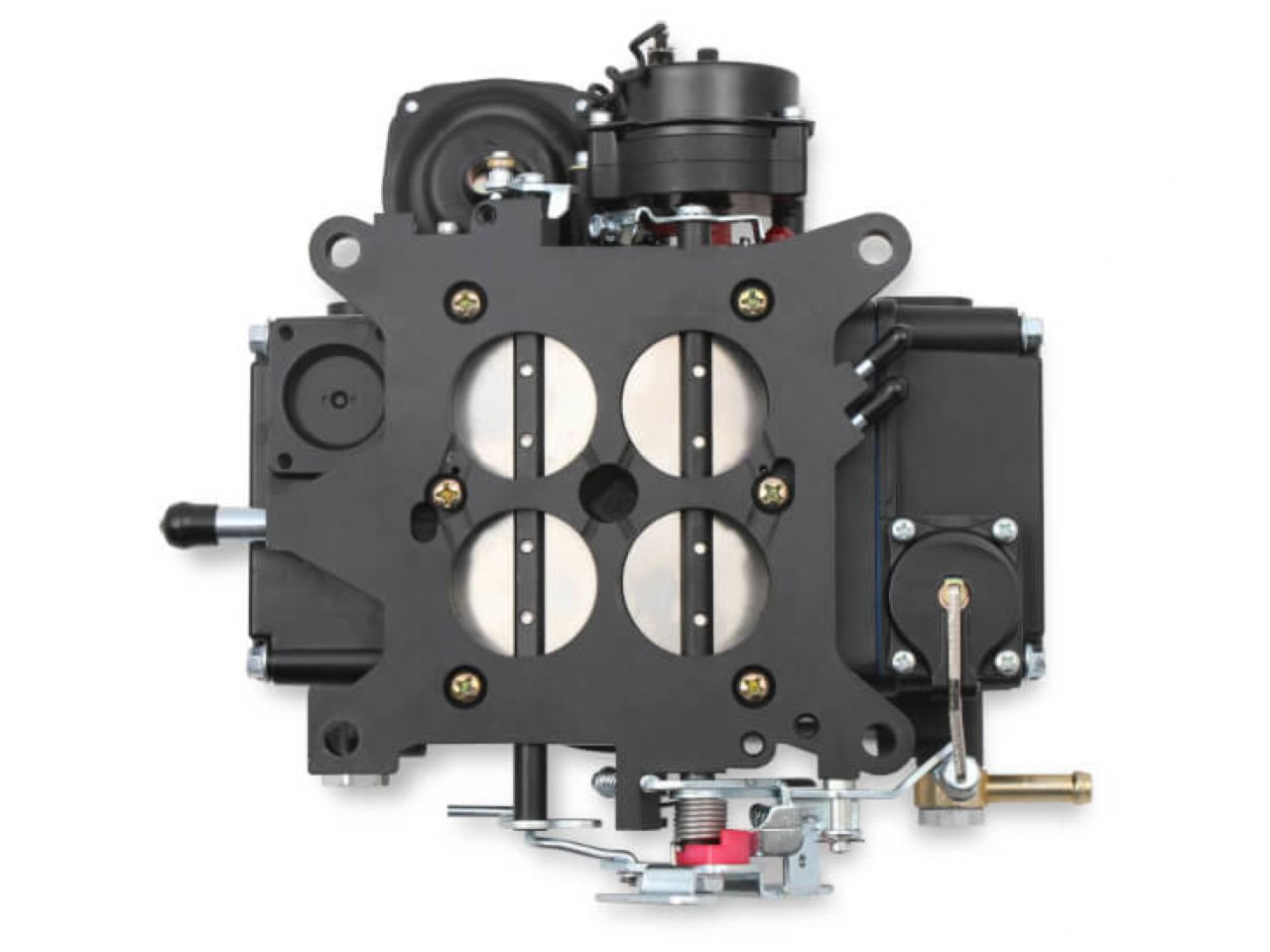

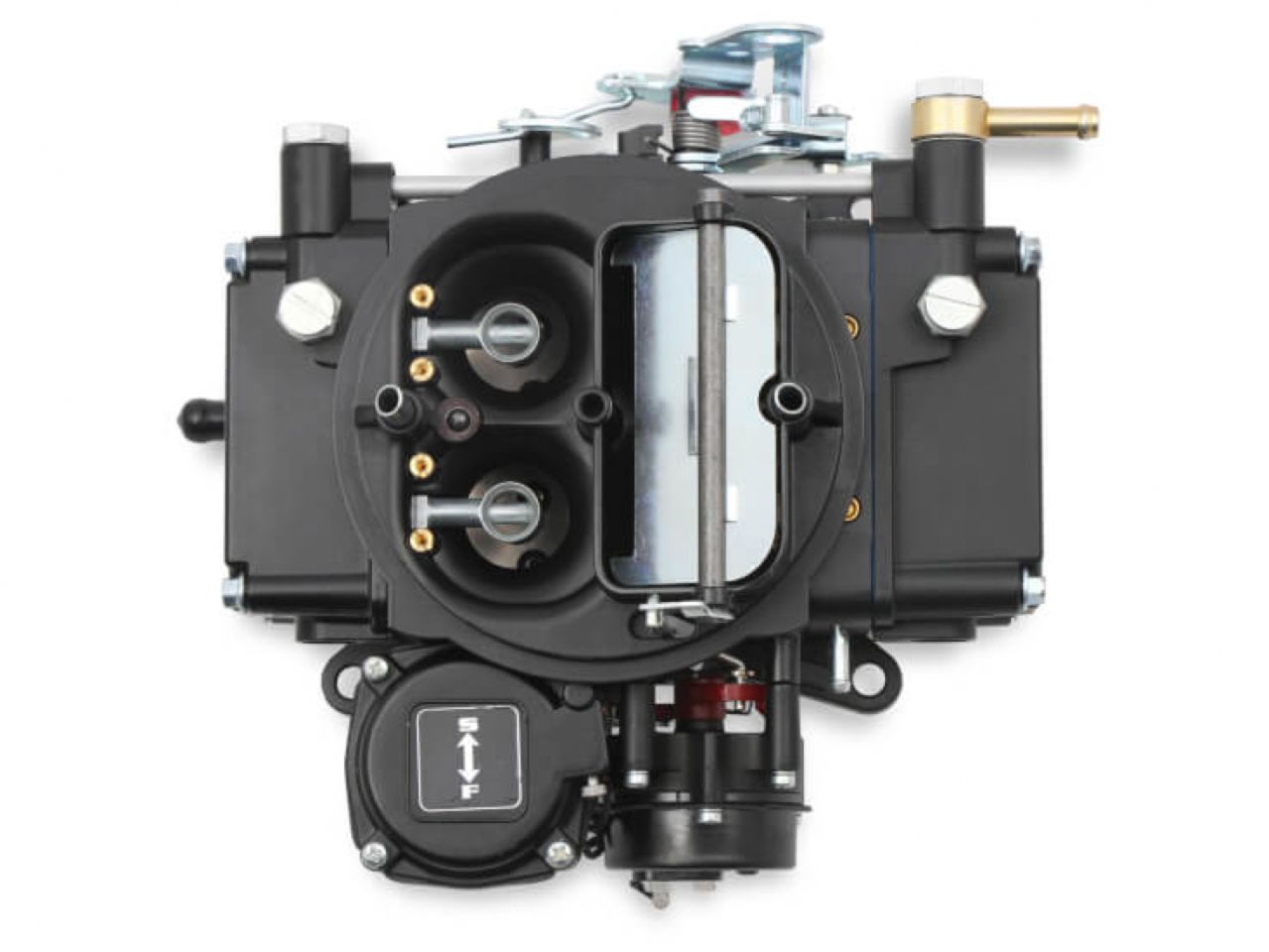

Quick Fuel Slayer Series Carburetor Black Diamond 600 CFM MS
Slayer Series Carburetor Black Diamond 1957, 600CFM

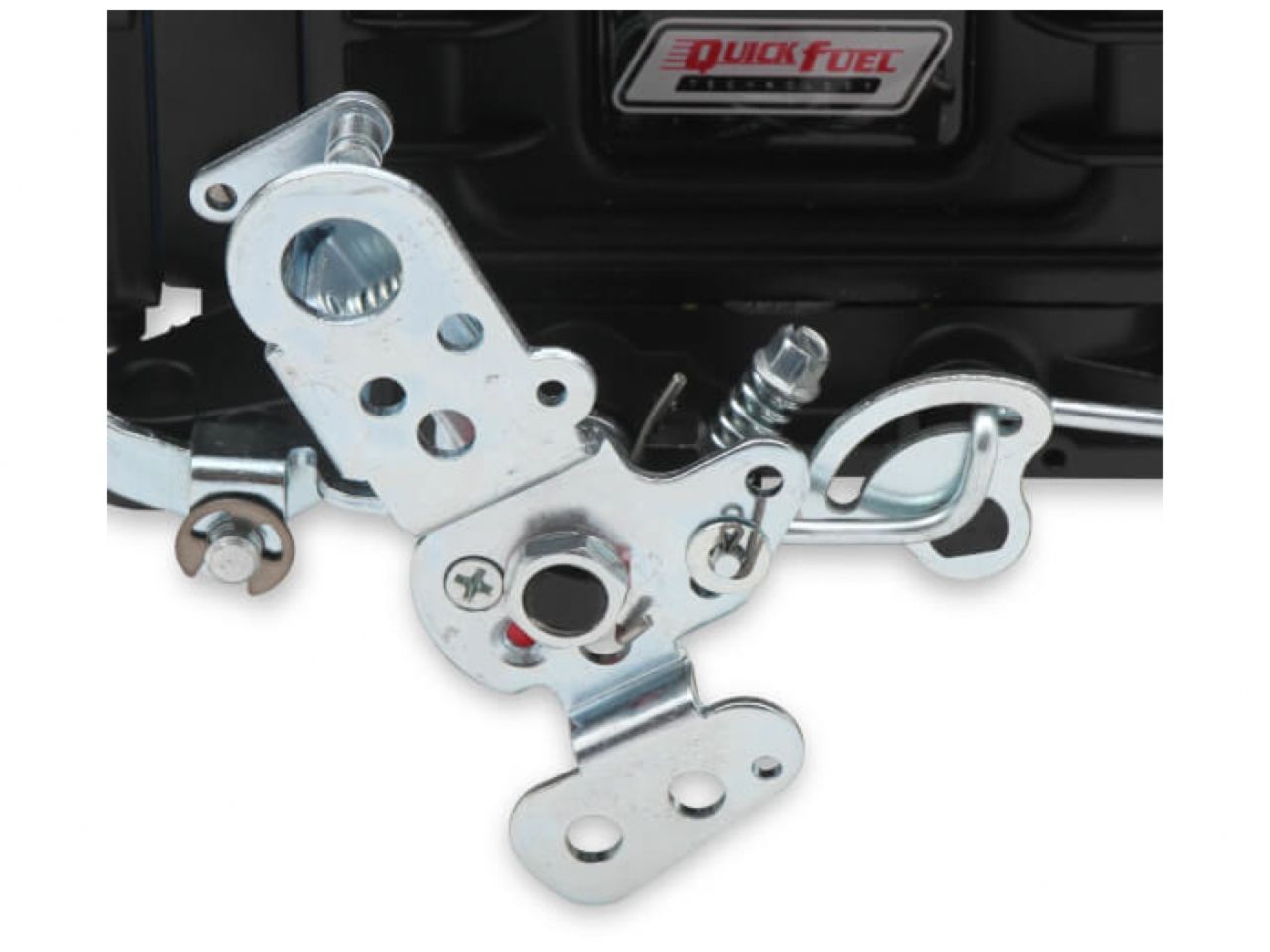

Slayer Series street carburetors are designed with many of the same innovations and features that are built into all QFTT race-winning carburetors, including changeable air bleeds and power valve channel restrictions. It's designed with a secondary metering plate with changeable jets, and features all aluminum components for additional weight savings. All Slayer Series carburetors are equipped with universal throttle levers to accommodate Ford A/T kickdown, GM 700 R4 mounting holes, and ability to mount brackets for Chrysler vehicles. Slayer Series are available in 450, 600, and 750 cfm vacuum secondary models. Even a carburetor that performs great can still be an eyesore, but it doesn't have to be that way. Quick Fuel Technology's proprietary Black Diamond® coating offers excellent corrosion resistance as well as a durable finish that easily stands up to dirt and oil. In addition to great looks, the PTFE coating reduces fuel temperature by six percent for improved performance.
Specs:
| Barrels | 4 |
|---|---|
| Billet Color | Diecast-No Billet |
| Booster | Straight Leg |
| Brand | Quick Fuel |
| CFM | 600 |
| Choke | Electric |
| Circuit | 2 |
| Emission Code | 3 |
| Finish | Black |
| Fuel | Gasoline |
| Fuel System | Carbureted |
| High Speed Air Bleed | 31 |
| Idle Air Bleed Size | 73;33 |
| Material | Aluminum |
| Model | Slayer Series |
| Primary Main Jet | 66 |
| Primary Power Valve | 65 |
| Primary Pump Nozzle Size | 31 |
| Product Type | Carburetor |
| Secondaries | Vacuum |
| Secondary Main Jet | 74 |
| Supercharged Application | No |
| Throttle Bore | 1-9/16 inch |
Emission:
3
This part is legal for use on Uncontrolled (Non-Emissions Controlled) Vehicles or Racing Vehicles.
The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:
- 1965 and older U.S. manufactured California Certified vehicles
- 1967 and older U.S. manufactured Federally Certified vehicles
- 1967 and older Foreign manufactured vehicle
Racing Vehicles are vehicles that are used exclusively for racing or other forms of competition that are not registered and that may never be used on the street.
