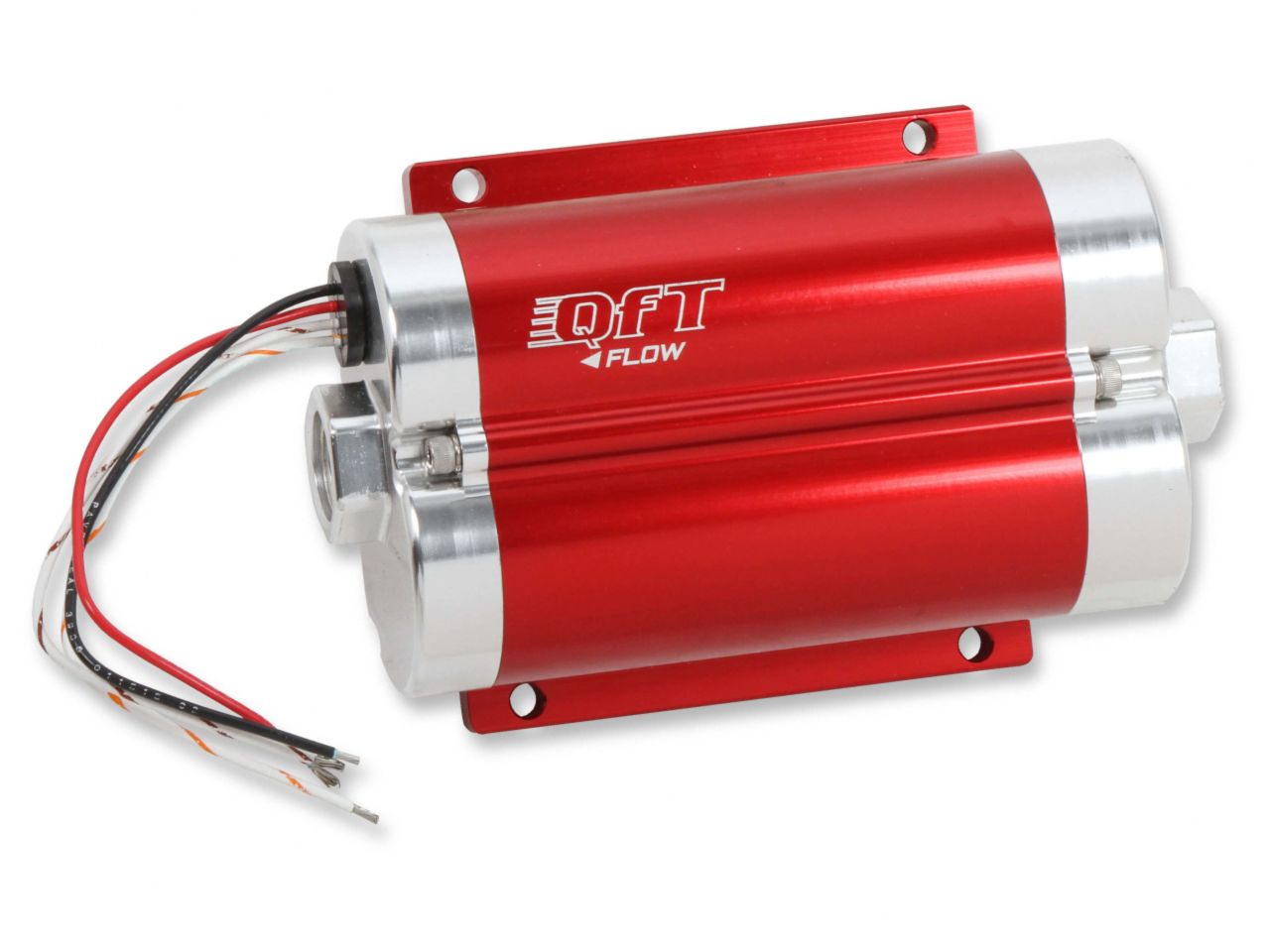

Quick Fuel QFT 160 GPH FUEL PUMP
Need to fuel some serious horsepower? Have a nitrous or forced induction power plant that also sees street duty? Quick Fuel's in-line fuel pump is the answer! The twin pump design allows you to use one pump for cruising and both pumps when you activate the nitrous switch or start building boost! By staging the second pump, you eliminate the unnecessary recirculating and heating of extra fuel which can lead to poor performance and hot fuel issues. As an added benefit for the hard core enthusiasts that run events like Hot Rod Power Tour and the Baja 1000, the extra pump offers the peace of mind that you will always finish what you start! For hard core race vehicles, both pumps can be wired for full time duty to get maximum performance and are proven with 18.5 volt compatibility at pressures up to 80 psi. It was designed to greatly reduce the negative effects of heated fuel now common with many of today's pump gas blends. It is available for use with pump gas or race gas. At only 5.1 lbs., they weigh half a pound less than competitive 1000+ horsepower pumps yet have twice the features!
Street/Strip Carb or EFI Applications Supports up to 1600 EFI or 1800 Carb HP Compatible with Pump Gas and Race Gas
Features
- Improved hot fuel handling
- Billet aluminum construction for durability and good looks
- 10 AN O-ring inlet/outlet for high flow and superior sealing
- Excellent for use with carbureted or EFI applications
- Fully submersible in-tank for custom applications, space savings and less plumbing
- Compatible with 12v to 18.5v systems for street or race use
- Compact (7.66" Long x 5" Wide x 2.5" Tall) for easy installation on frame rails or other tight areas
- Twin pump design allows the use of both pumps simultaneously or independently - second pump can be activated on demand for power adders such as nitrous or boost
- Proven durability beyond 3,000 hours in gasoline
- Weighs only 5.1 lbs.
- Max Current draw is 28 Amps
- Not designed for use on aircraft of any type
Specifications
Application: Universal
Emission Code: 3
Forced Induction HP@43PSI: 1150
Forced Induction HP@60PSI: 1050
Forced Induction HP@8PSI: 1430
Free Flow GPH 160:
Fuel System: Carbureted
EFI
Fuel Type: Gasoline
GPH@43PSI: 127
GPH@60PSI: 113
GPH@8PSI: 155
Inlet Size: 10 AN O-Ring - 7/8-14 SAE
LPH@43PSI: 480
LPH@60PSI: 427
LPH@8PSI: 587
Material: Aluminum
Naturally Aspirated HP@43PSI: 1600
Naturally Aspirated HP@60PSI: 1330
Naturally Aspirated HP@8PSI: 1800
Outlet Size: 10 AN O-Ring - 7/8-14 SAE
Product Type: Fuel Pump
Pump Body Color: Red Anodized
