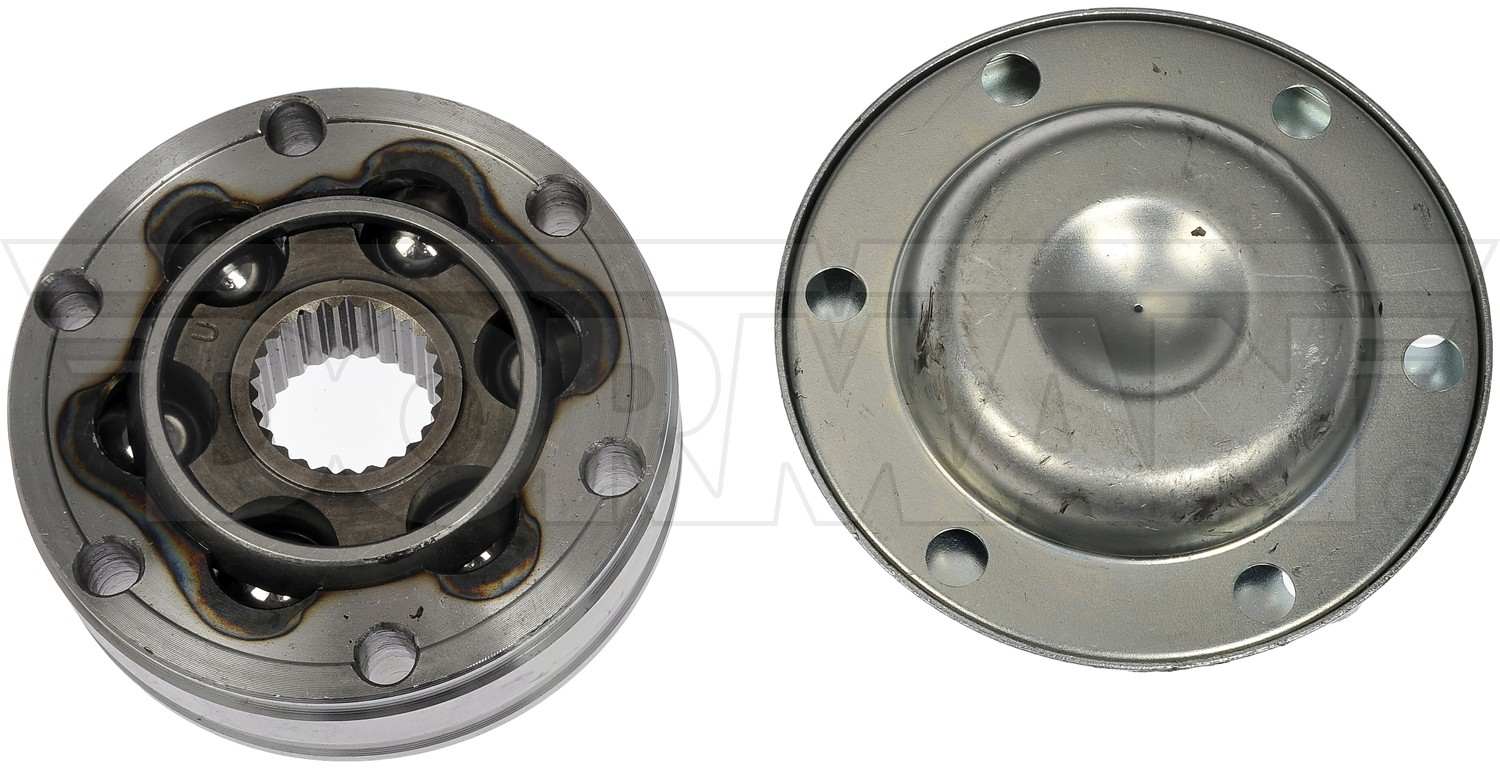

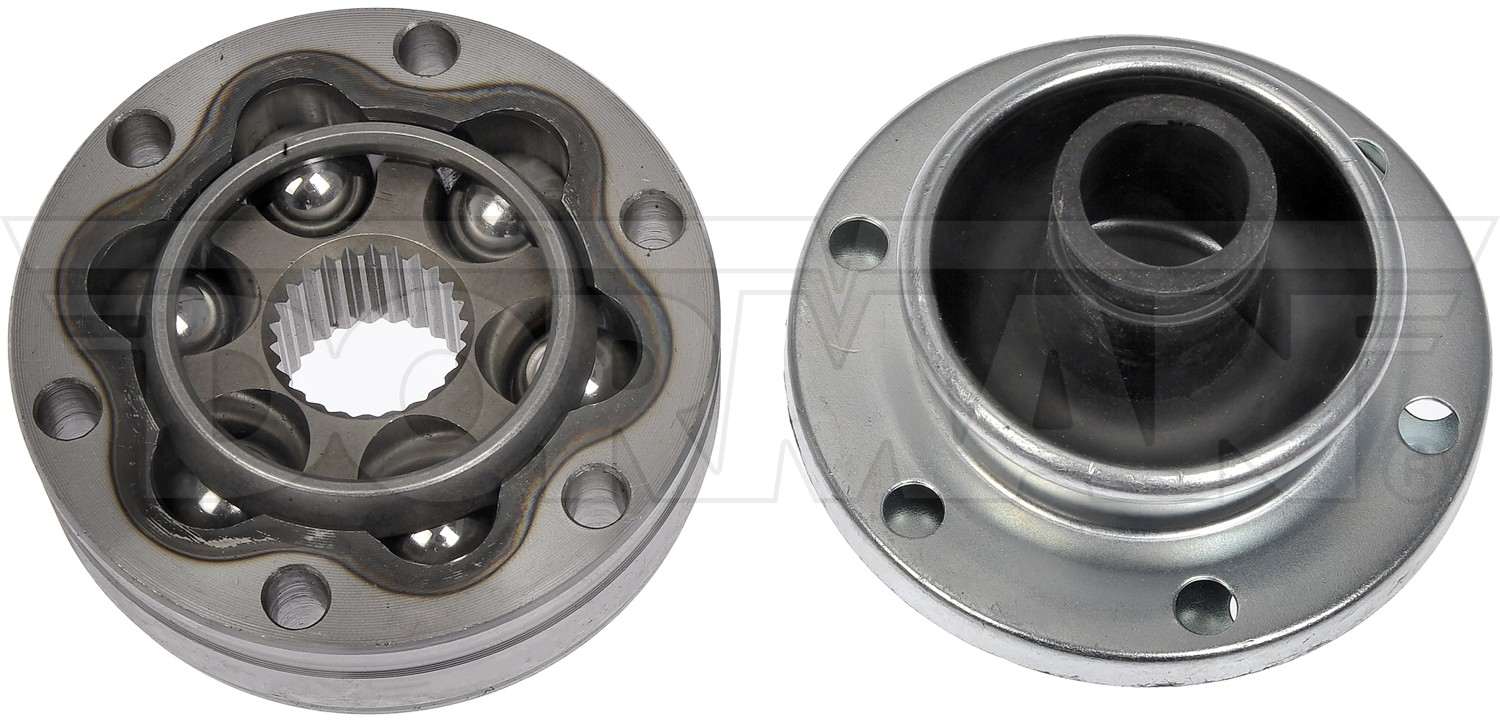

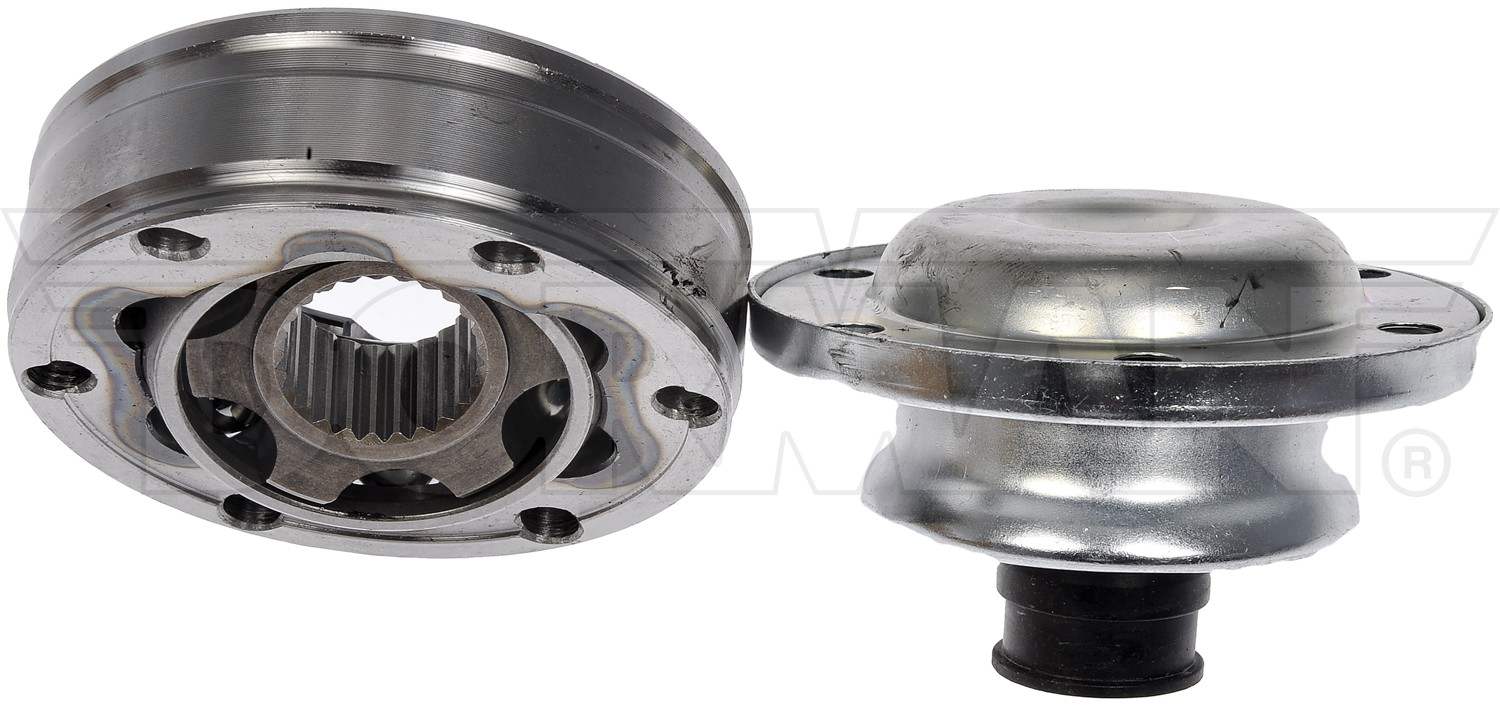

Dorman Propeller Shaft Cv Joint Kit

Easily and affordably restore the driveshaft to proper functioning with Dorman's Driveshaft CV Joint Repair Kit. Now you can replace only the failed joint - instead of the entire assembly. Since this part is direct replacement, the exact fit adds another layer of convenience.

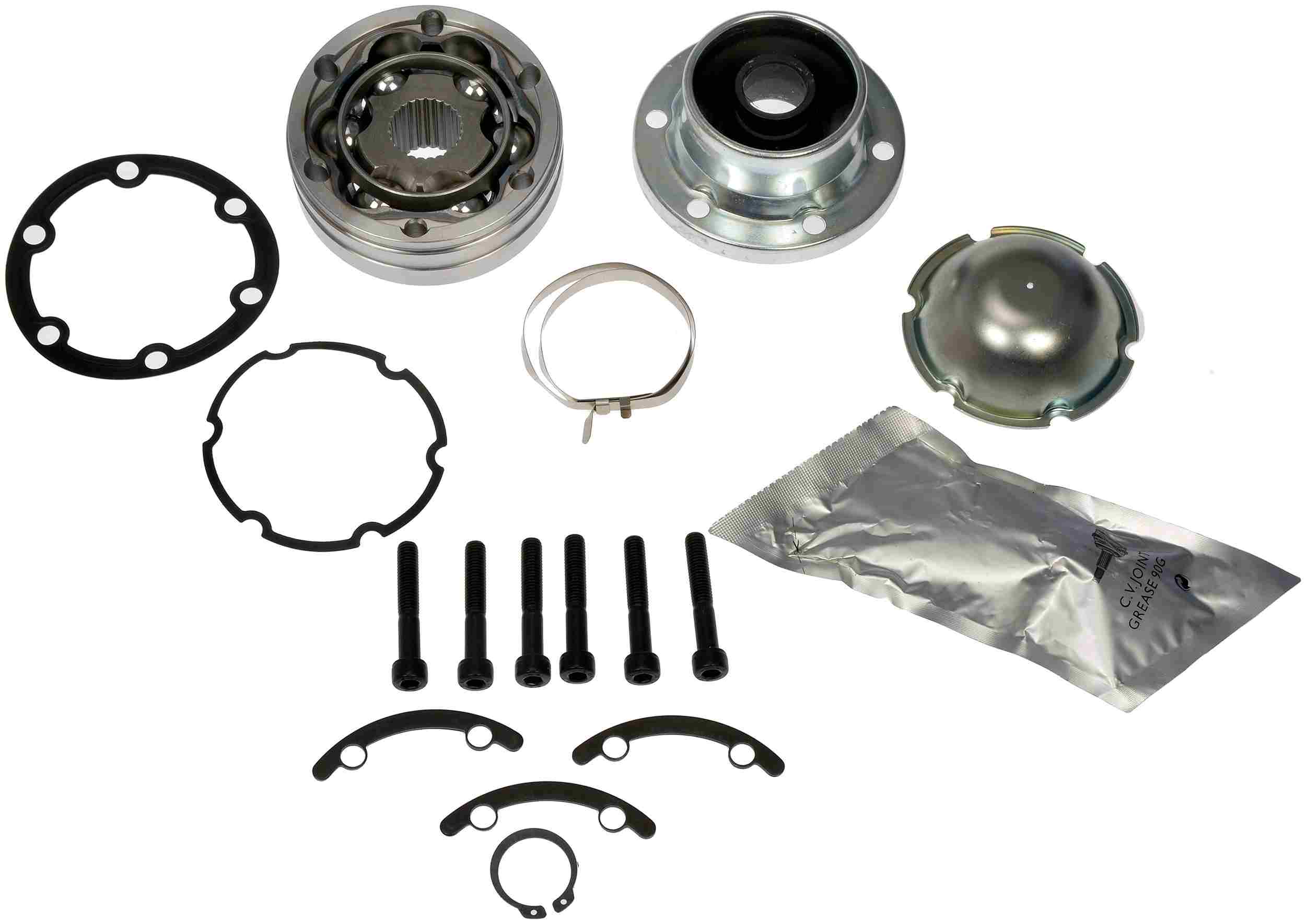

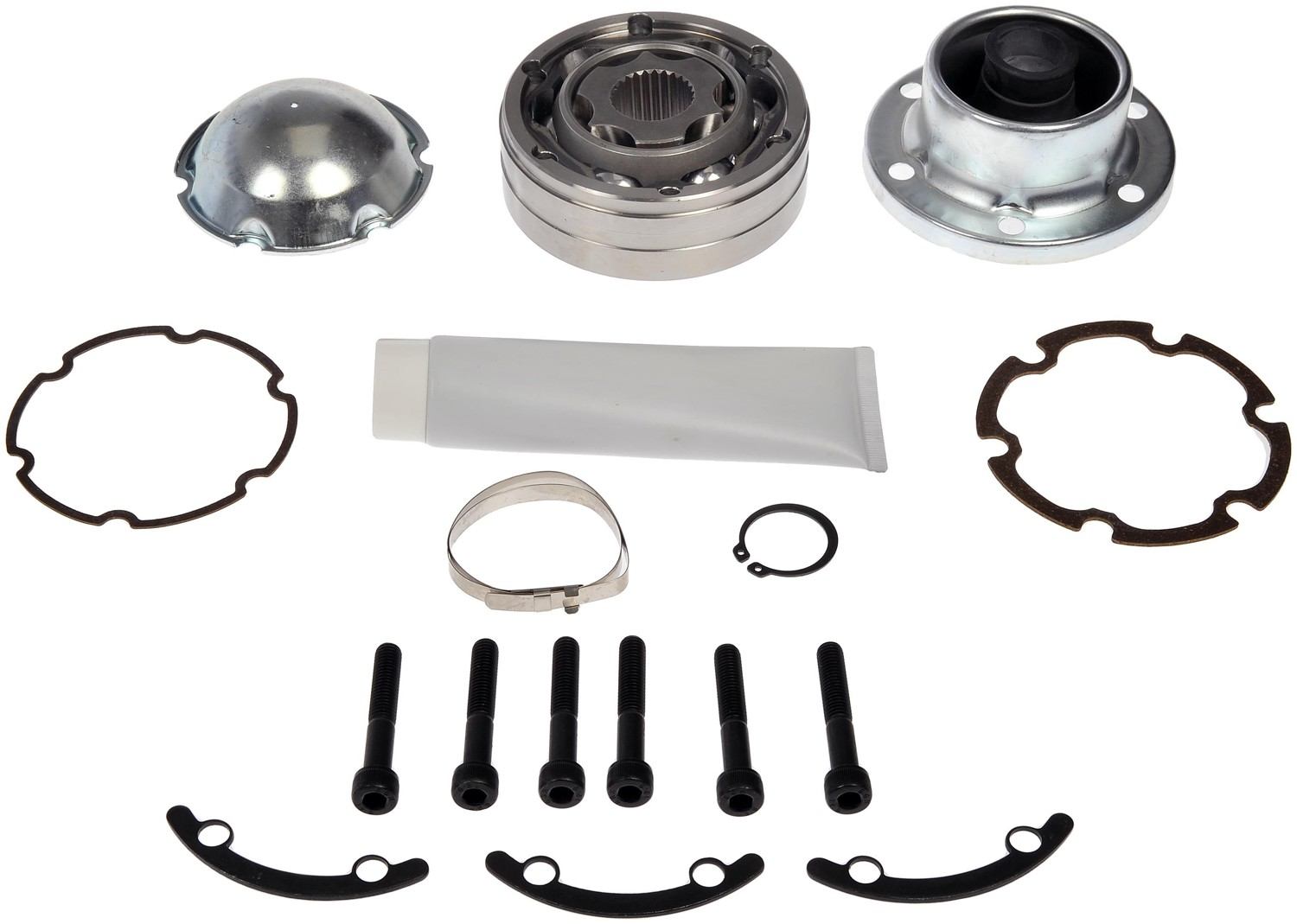

• Comes with joint, boot, clamps & grease for a complete repair (where applicable)
• Replacement stops clicking sounds and/or vibrations from the CV Joint
• Durable design resists tearing, damage from debris, and water intrusion
• Precision manufactured for close tolerances

Product Specifications

Bolt Circle Diameter: 3.596 In
Bolt Diameter: 0.347 In
Bolt Hole Quantity: 6
Bolt Thread Sizes: M8 X 1.25
Color/Finish: Natural
Grease Included: Yes
Housing Outside Diameter (in): 4.206 In
Housing Thickness (in): 1.394 In
Installation Hardware Included: Yes
Item Grade: Standard Replacement
Material: Steel
Package Contents: 1 Drive Shaft CV Joint, Boot Clamp, Snap Ring
Package Quantity: 1
Packaging Type: Box
Spline Count: 26
Spline Diameter (In): 1.051 In
Spline Length (In): 1.297 In

Vehicle Fitments:
