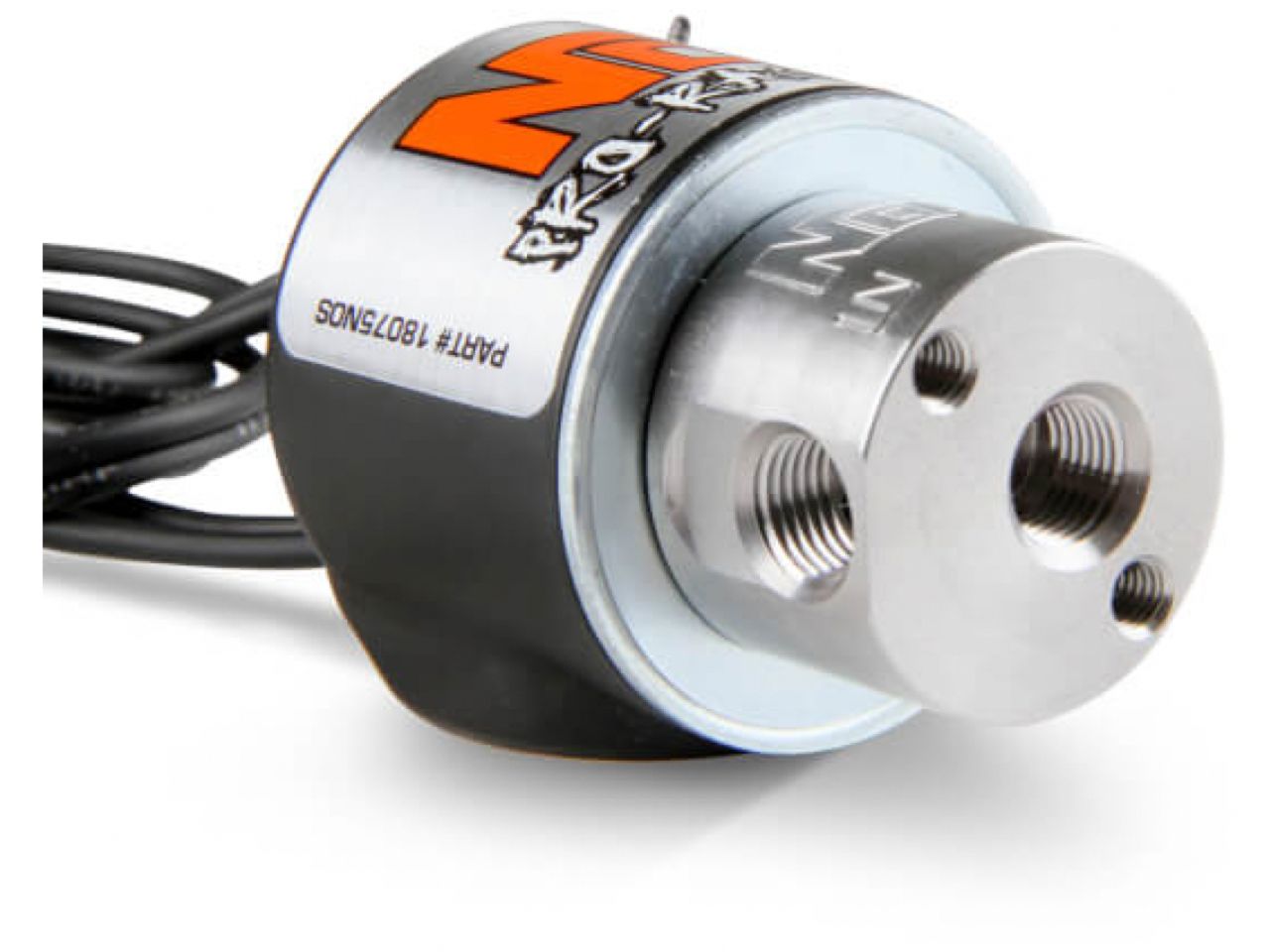

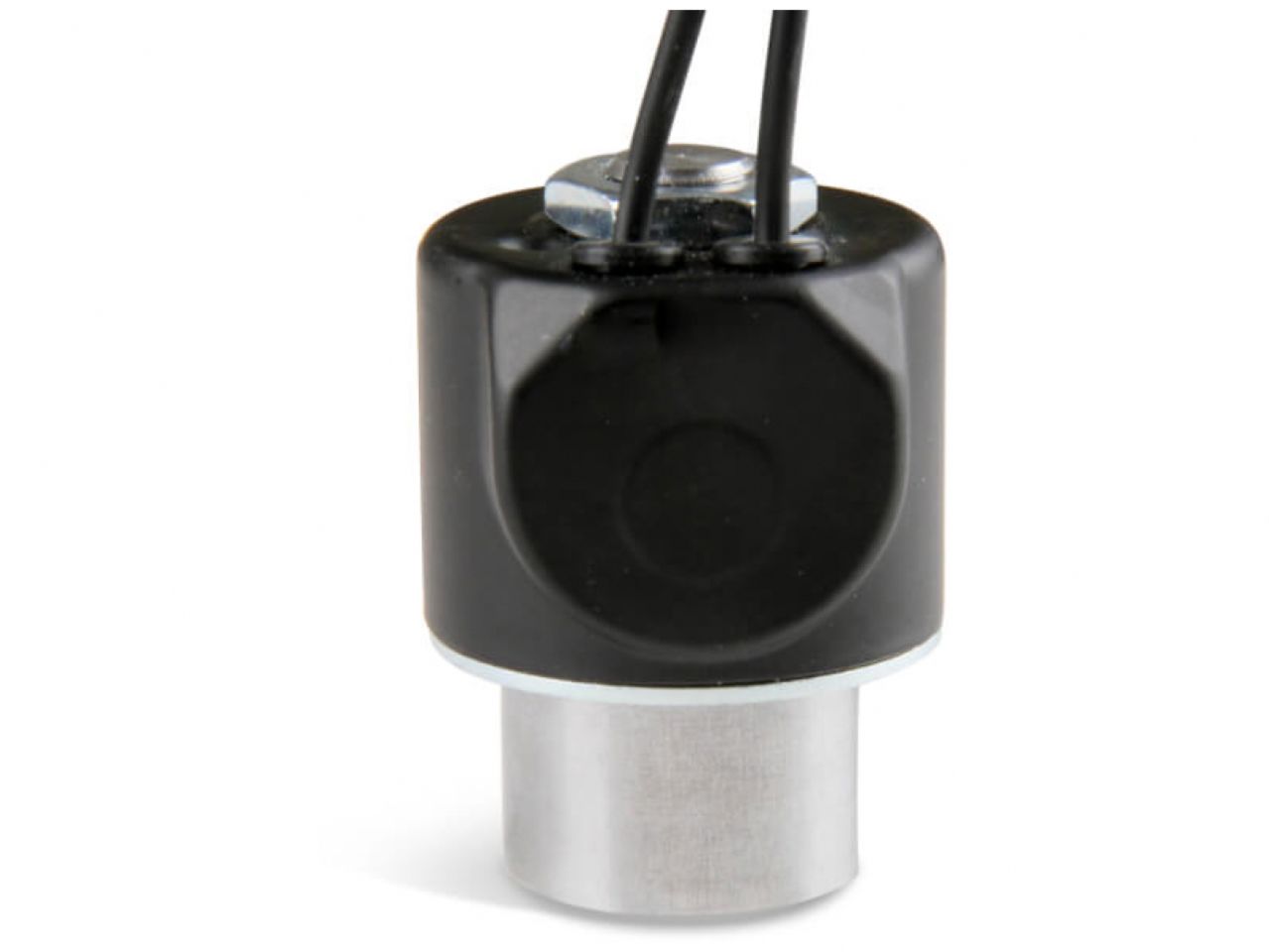

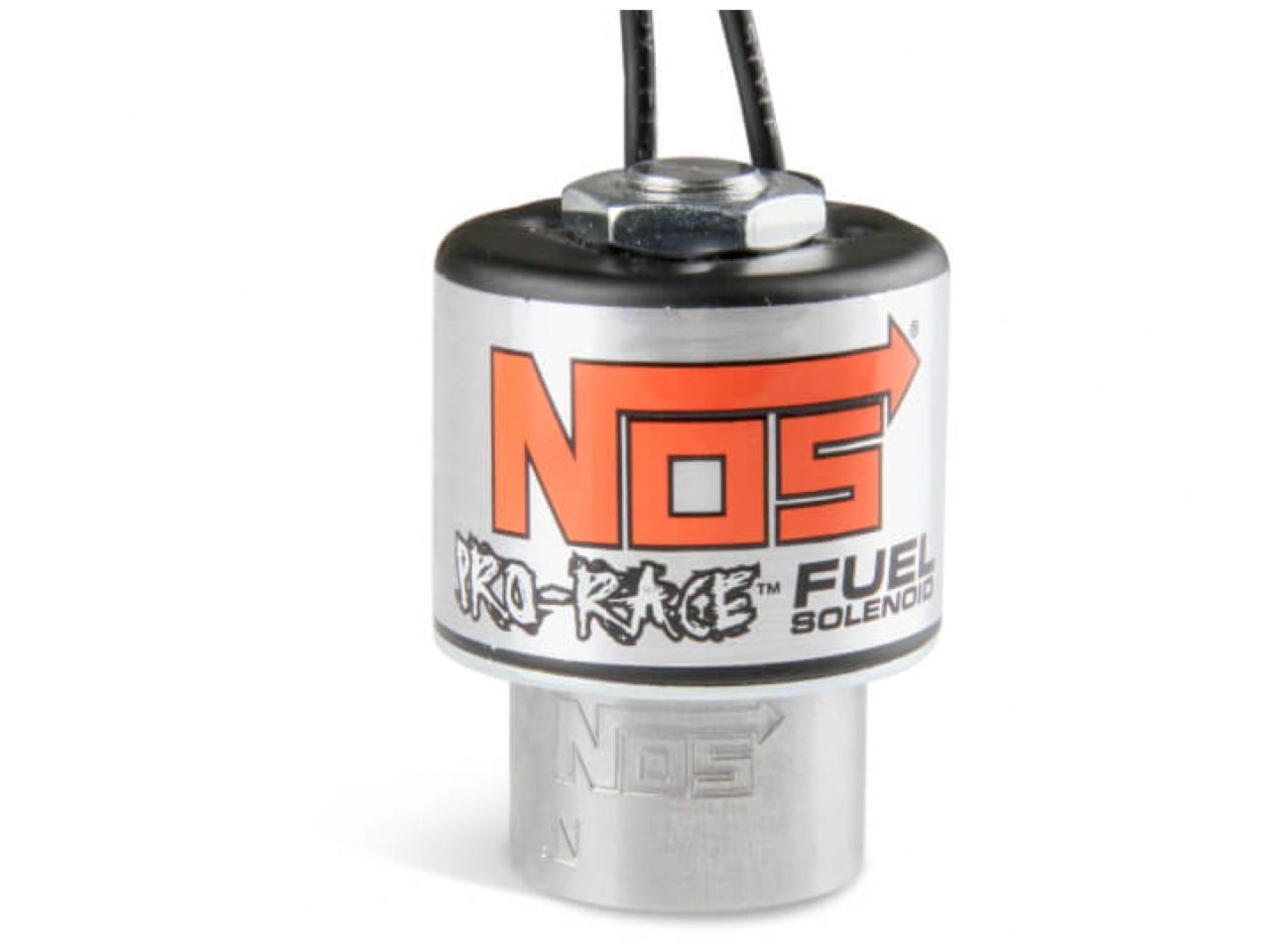

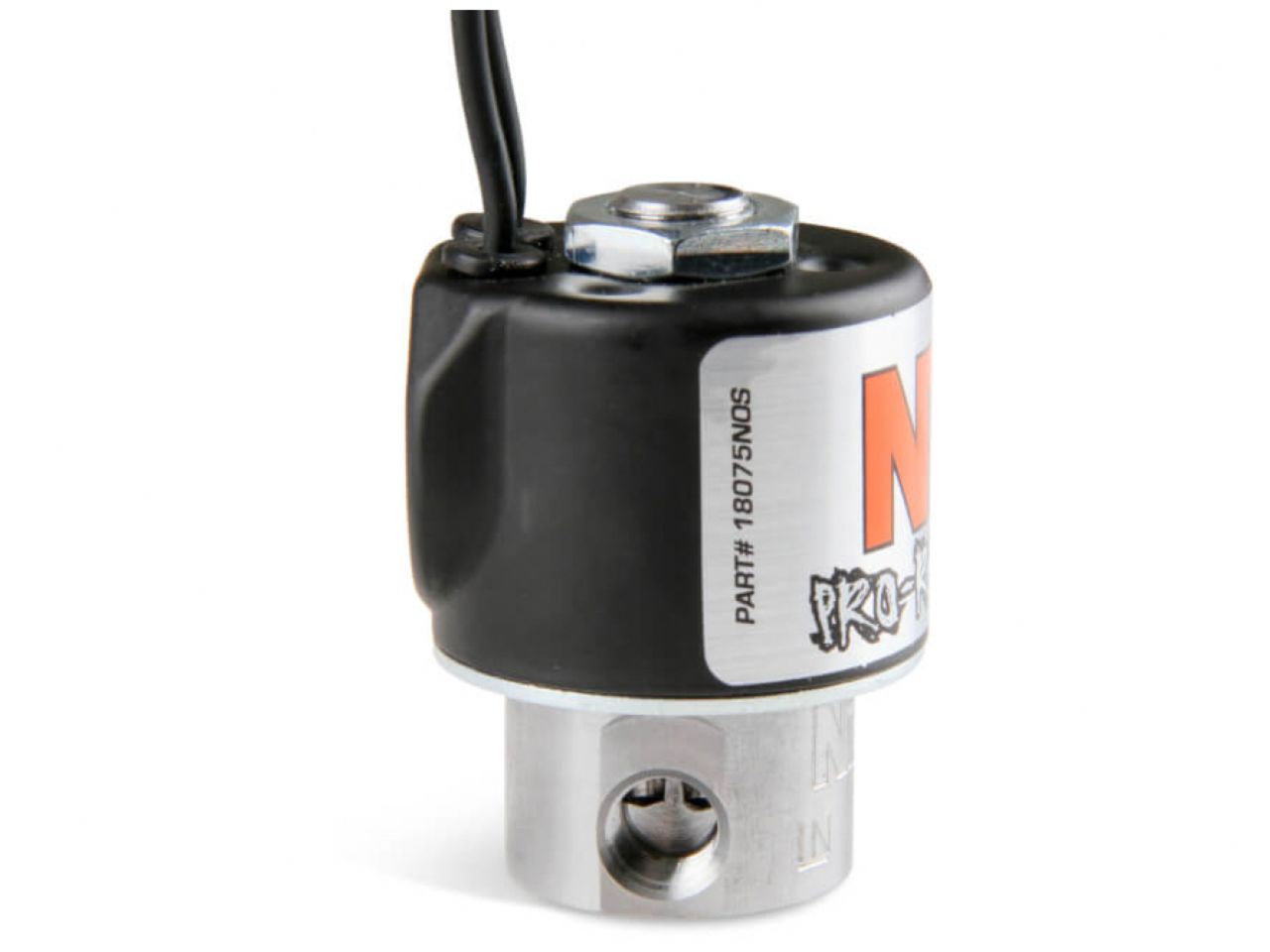

NOS Pro Race Fuel Solenoid w/ Bottom Exit

NOS bottom exit Pro-Race nitrous and fuel solenoids gives you the flexibility for mounting options in various positions. They are available with black or red powder coated top housing. All of our solenoids feature large orifice sizes for great flow. Our nitrous solenoids have a PTFE plunger puck material for durability while our fuel solenoids have FKM rubber plunger pucks for durability and sealing. All NOS solenoids feature stainless steel bases with the NOS logo along with in/out stamped in so you know it is a quality NOS solenoid.

Features:

Inlet Size - 1/8" NPT

Inlet Location - Side

Outlet Size - 1/8" NPT

Outlet Location - Bottom

Orifice - 5/32" (0.156)

Plunger - Fluorocarbon Rubber (FKM)

Current Draw @12VDC – 2.8 amps

Supports up to 400 HP

Red or Black Powder Coated Cover

Specifications:

• Amp Draw: 2.8A
• Bracket(s) Included:No
• Color:Black
• Emission Code: 4
• Finish: Natural
• Fittings Included: No
• Inlet:Side
• Inlet Attachment: Female Threads
• Inlet Size:1/8" NPT
• Inlet Thread:1/8" NPT
• Material:Stainless Steel
• Max Horsepower: 400
• Orifice:5/32" (0.156)
• Outlet:Bottom
• Outlet Attachment:Female Threads
• Outlet Size:1/8" NPT
• Outlet Thread:1/8" NPT
• Plunger Material:Fluorocarbon Rubber (FKM)
• Product Line:Pro Race
• Product Type:Fuel Solenoid
• Purge Port: None
• Solenoid Top Cover Color: Black
