Pro Car Innovations 2013 Scion FRS / 2013 Subaru BRZ Seat Mount Adjustable/Non-Slider / Left

Wondering how to mount that new race seat? Pro Car Innovations Racing Spec Seat Mounts takes the guessing game out of this install. Finding the correct seat brackets can be almost impossible where most end up with a self-fabricated mount.

1/8 steel vs. 3/16 steel

Our mounts are laser cut and CNC formed completely from one piece for strength, stiffness and weight savings. With our design, we can achieve the same strength if not more than 3/16 steel by having bends and altering the shape to areas where increased strength and stiffness is required. So dont be fooled by thicker heavier steel is better. 3/16 steel is more widely used for the simplicity of design and manufacturing. Our mounts will exceed the strength of the seat and floor theyre bolted to. Some applications depending on the design will call for 3/16

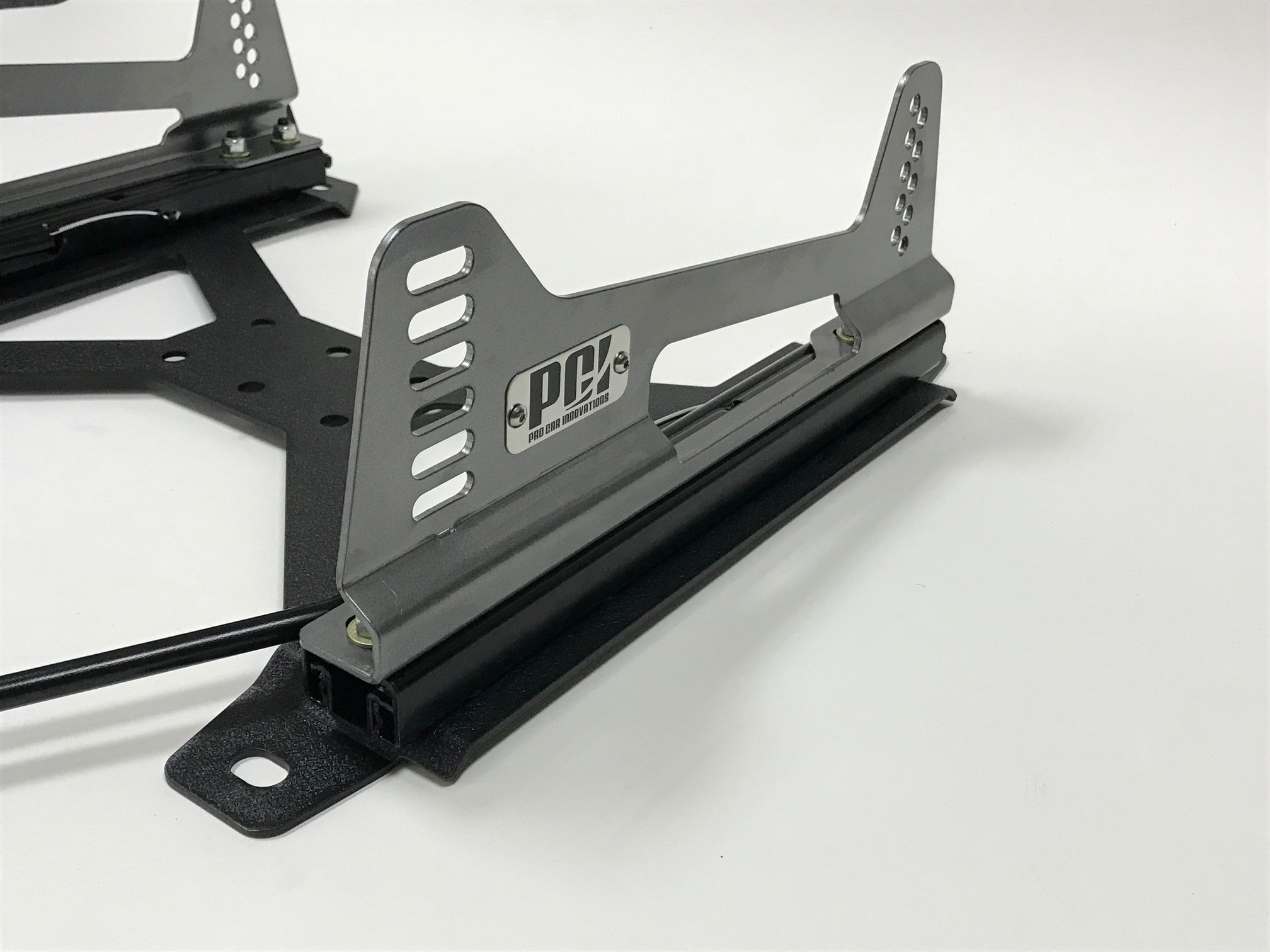

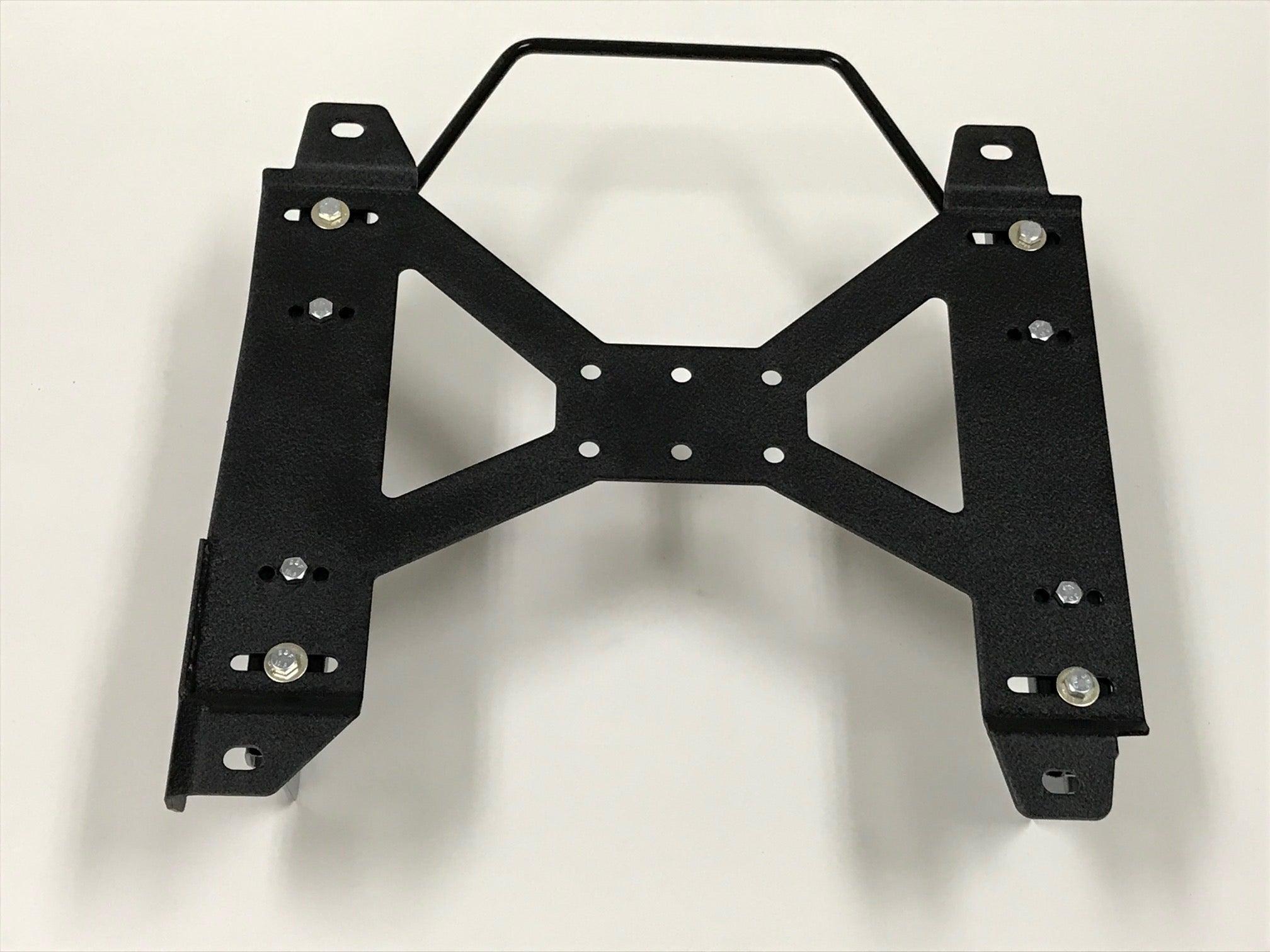

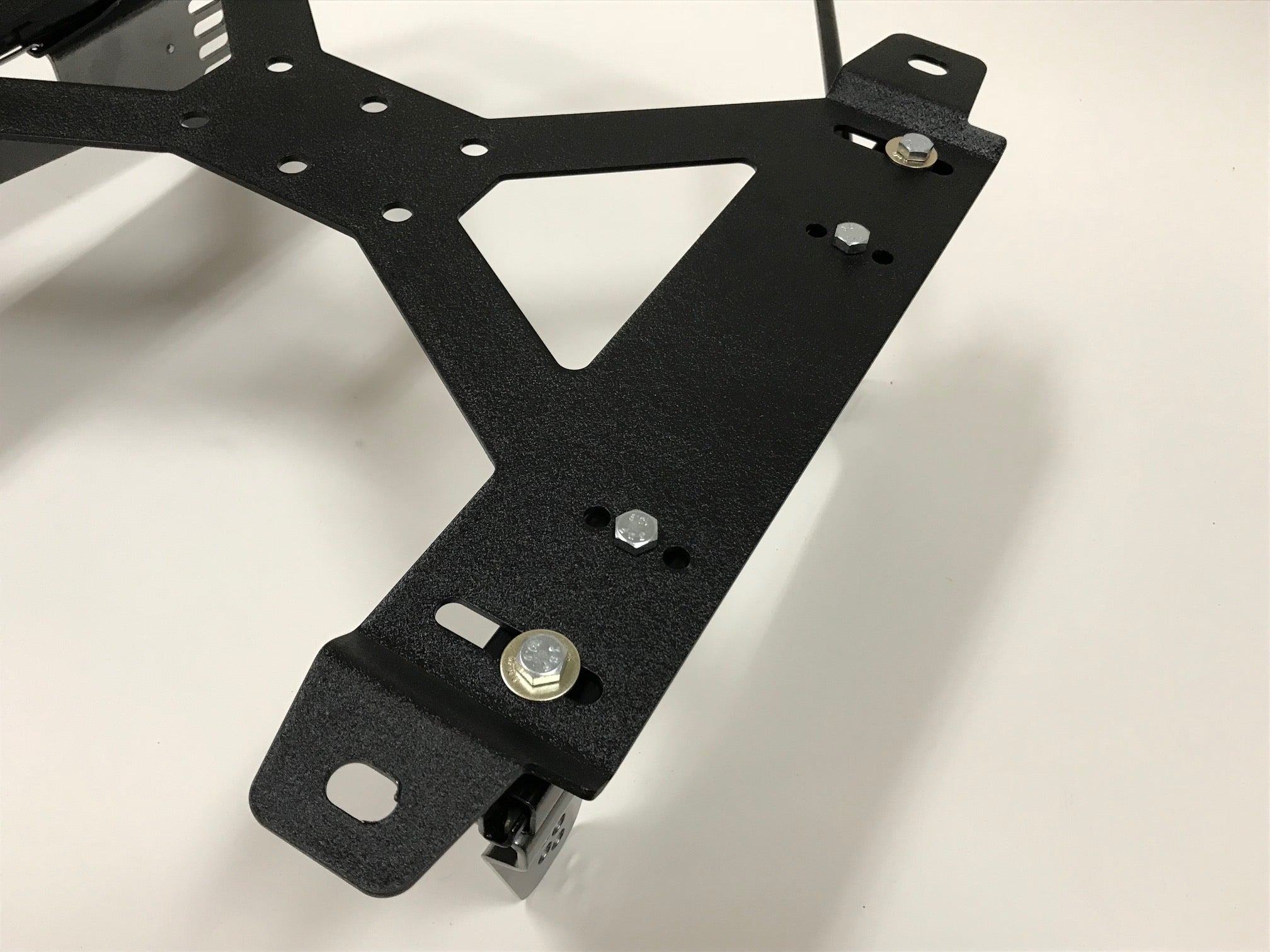

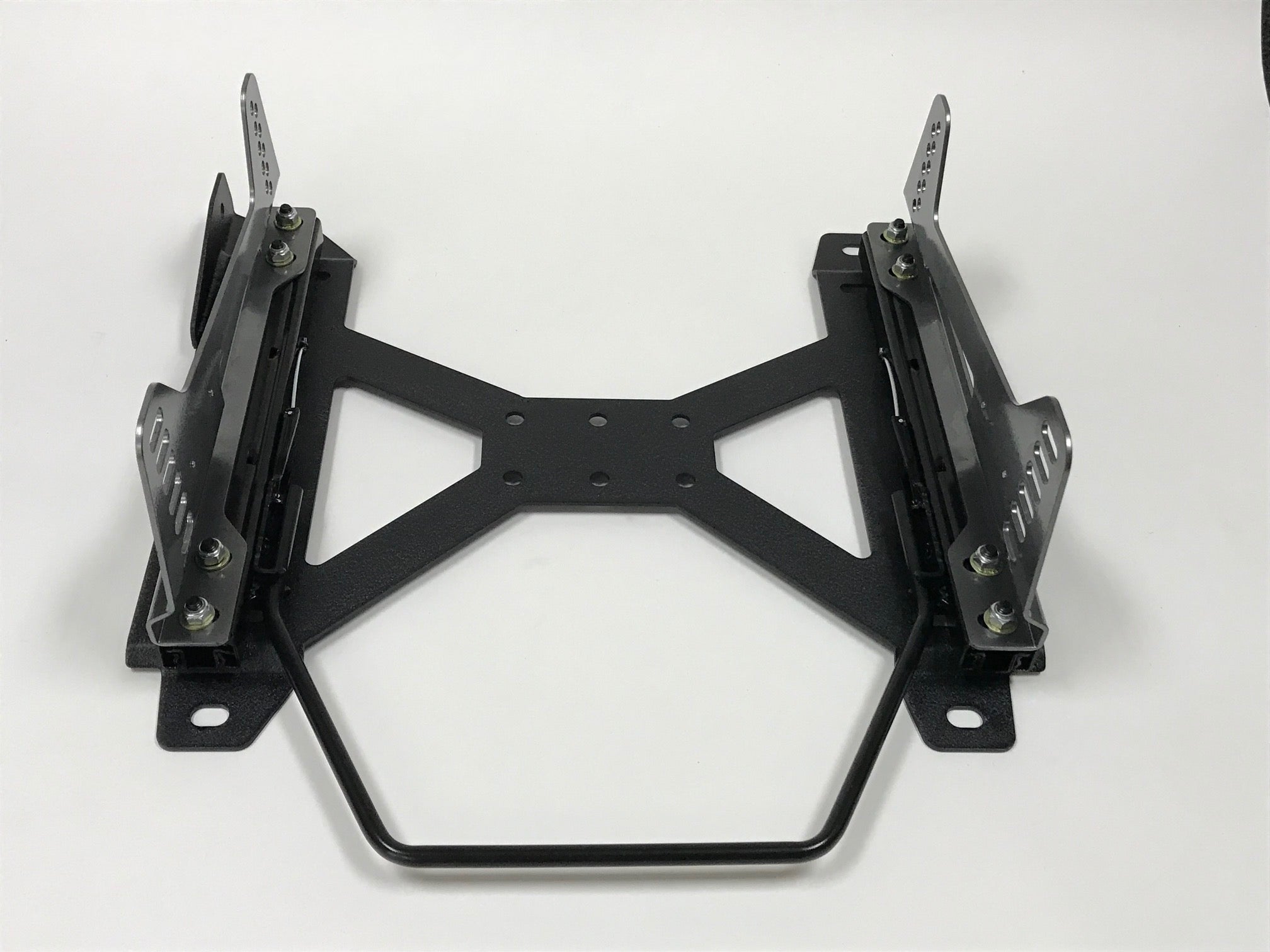

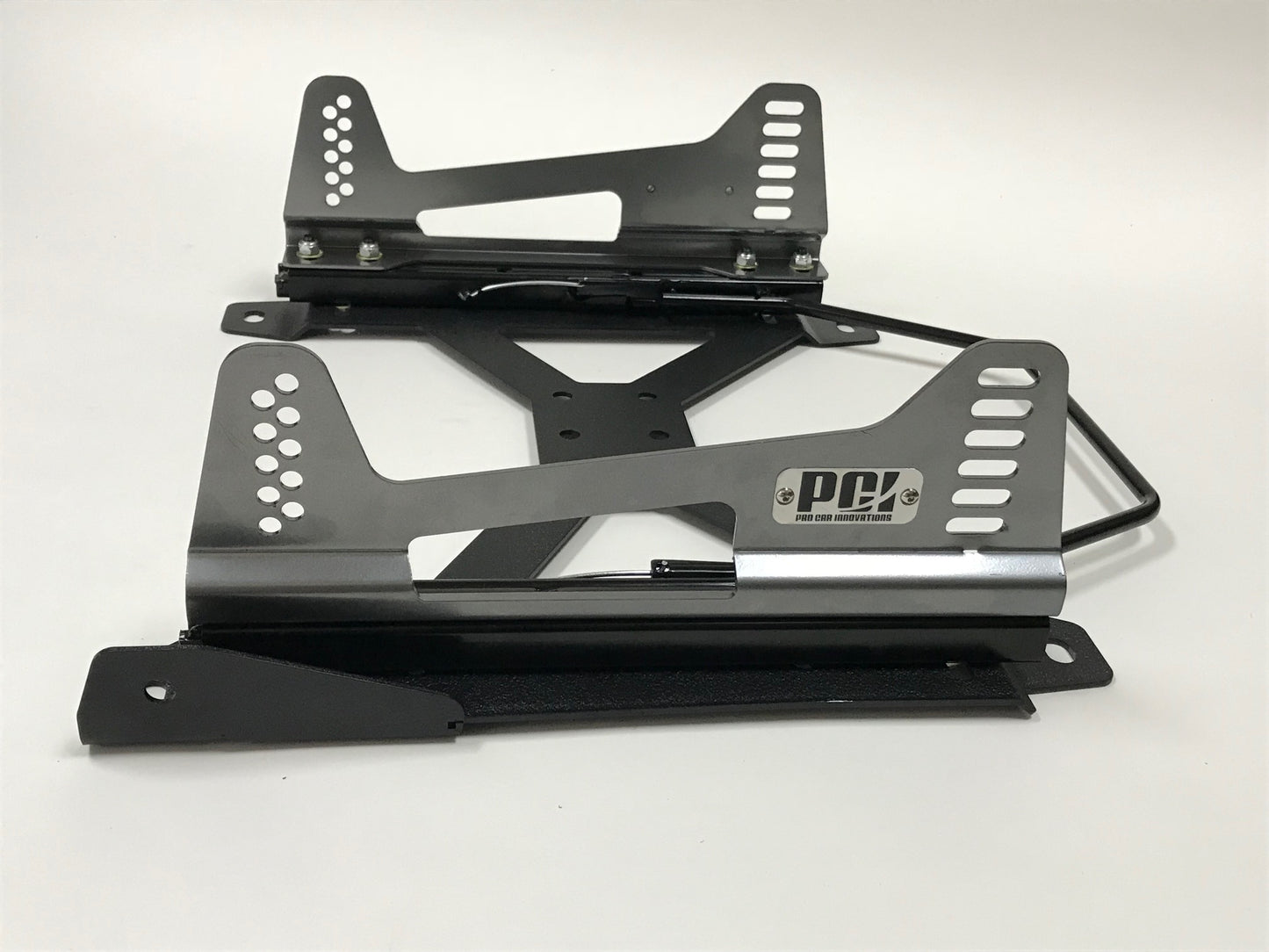

PCI SLIDER SEAT MOUNTS

ALL SIDE MOUNTS ARE NOW METALLIC GLOSS BLACK

The PCI S1 sliders are one of the strongest sliders available. Each slider bolts to the base with 4 bolts making them twice as strong as 2 bolt mounting. PCI has invested the research in order to create an ingeniously crafted safe design thats easily adjustable to accommodate multiple applications. Our Slider Seat Mounts are designed to bolt directly to the factory seat mount locations and simplify that new race seat install.

Features

• Precision CNC laser cut and bent from one piece of 1/8 3mm carbon steel

• Multi way adjustability

• PCI S1 high strength sliders, mounts to base with 4 bolts per slider

• 5 and 6 point sub belt mounting locations

• Single tool adjustments with bottom locking hardware

• grade 10.9 8mm hardware

• Powder coated base and side mounts

• ¼ black nylon side mount spacers

• Stainless steel laser etched logo plates

Benefits

• CNC bent one piece design allows for use of lighter 1/8 steel vs. heavy 3/16

• No modifications to any PCI seat mount components are required for installation

• Uniquely designed for each car for the best possible fitment

• Mounts to factory bolt locations with precise factory fitment

• 5 and 6 point sub belt mounting

Specs

• 3mm carbon steel base and side mounts

• CNC laser cut, CNC bent

• Powder coated base and side mounts

• Gloss black metallic side mounts

• Zinc plated grade 8 hardware

• 14-3/4­(375mm) to 17-1/2(445mm) width adjustments (standard side mounts) **MINUS 1" FOR ALL MX5 SEAT MOUNTS **

• 16­(406mm) to 18-3/4(476mm) width adjustments (wide side mounts) **MINUS 1" FOR ALL MX5 SEAT MOUNTS USE S2 SIDE MOUNT**

• 9 5/8­(245mm) range front to back adjustments

All slider seat mounts will come standard with side mount SM-SIDE-S1 To order with a different side mount visit the side mount category to pick a different side mount. Upon check out add a message with the part number of the side mount you want with your kit.

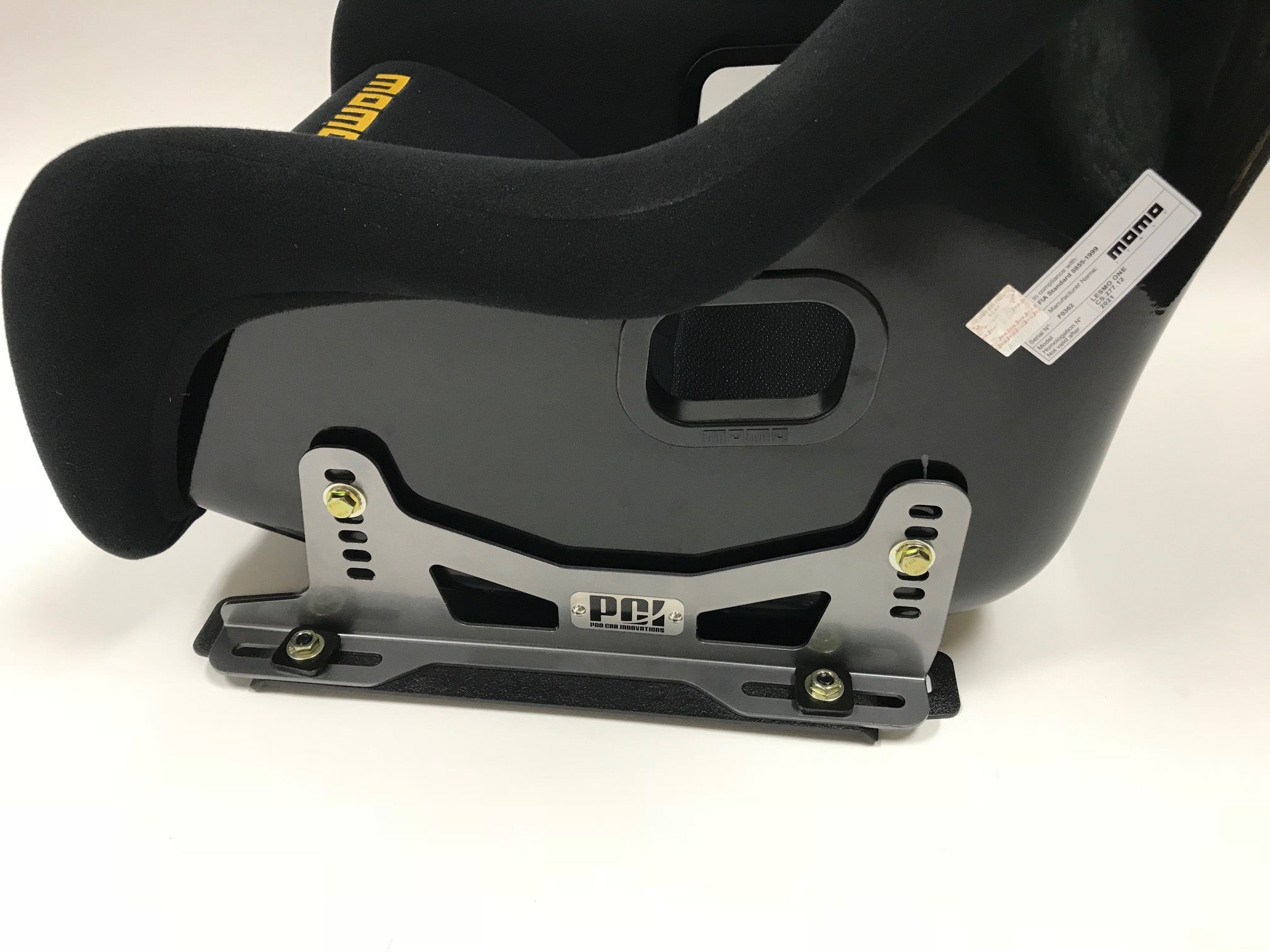

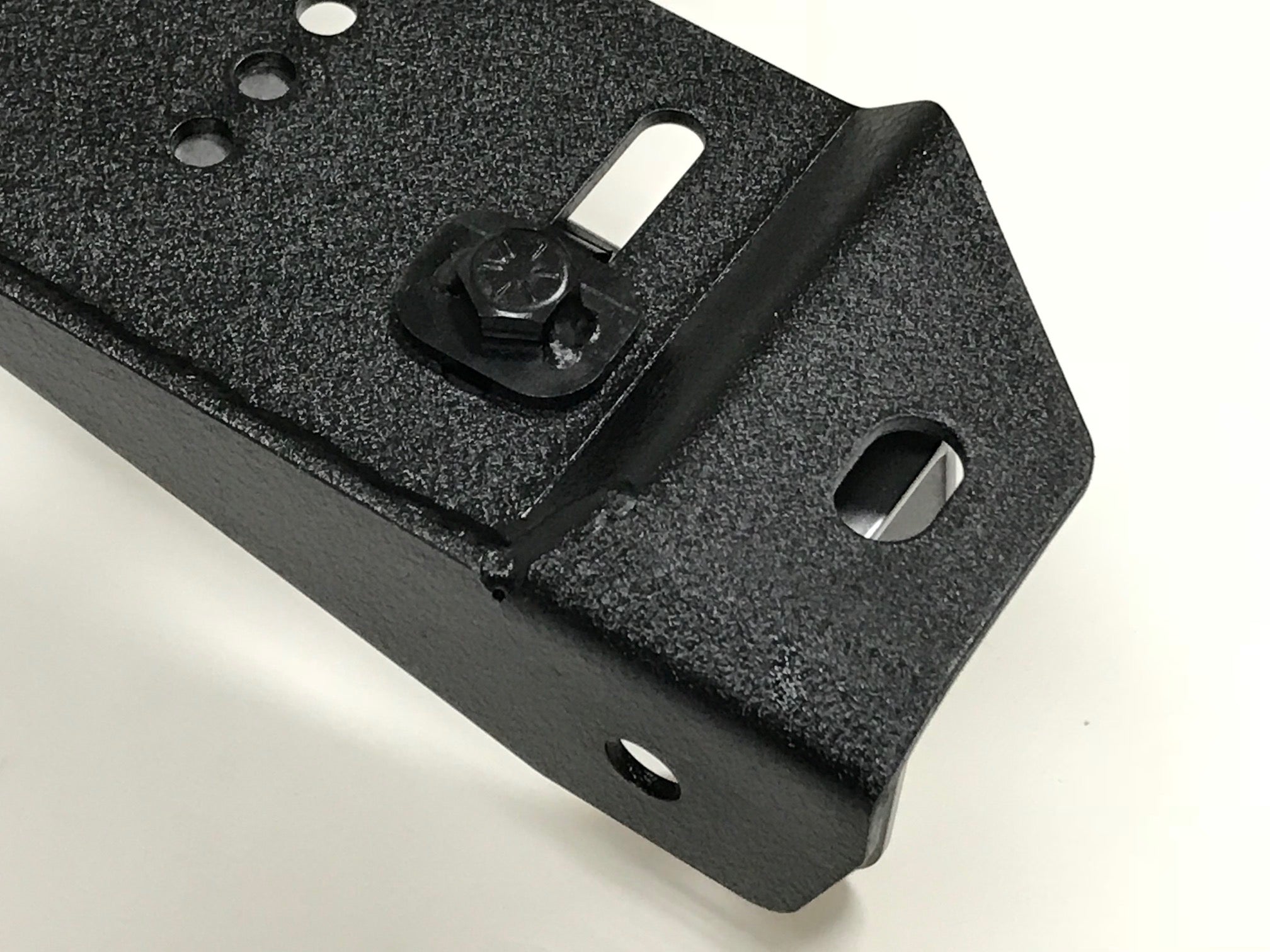

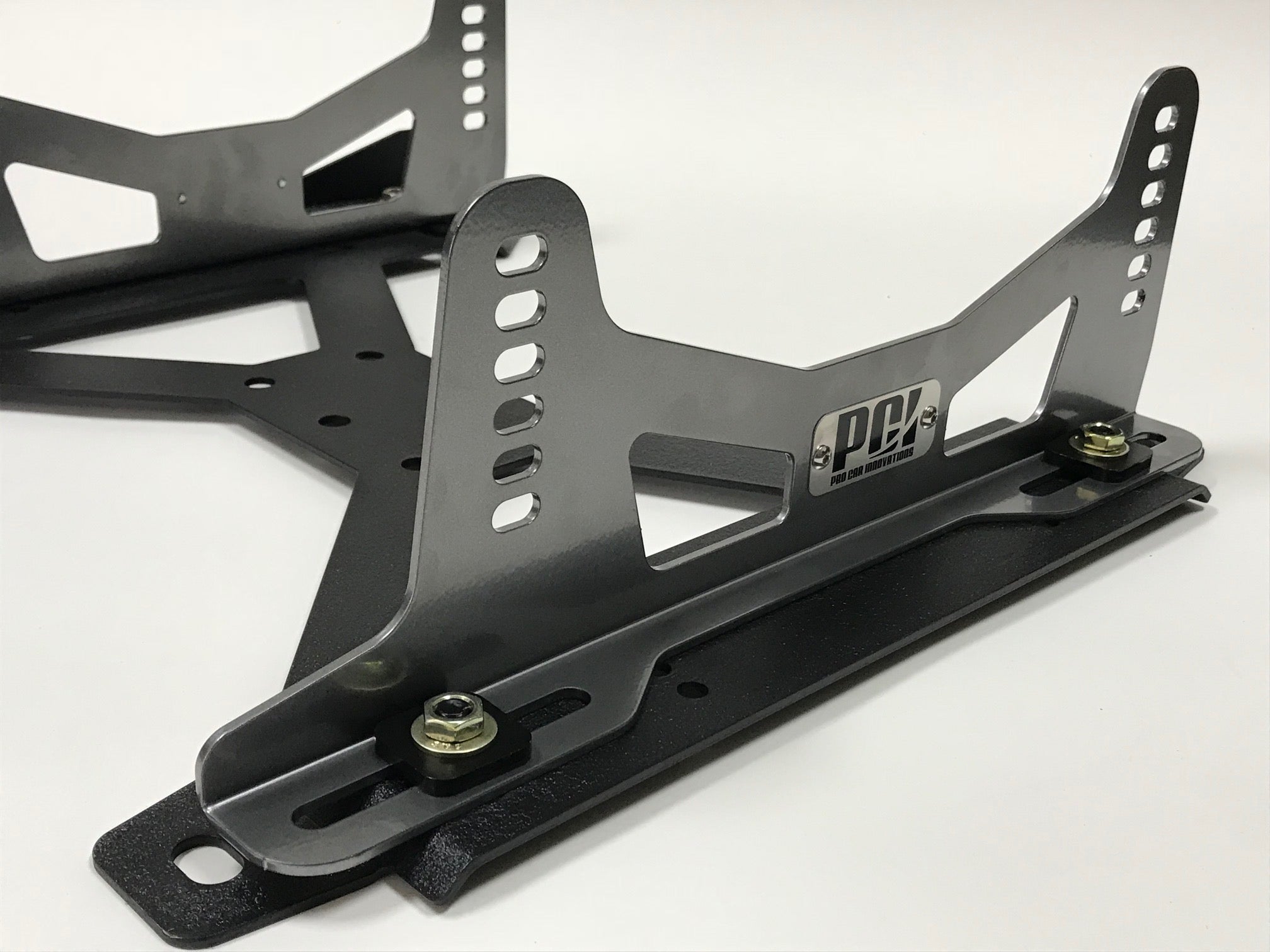

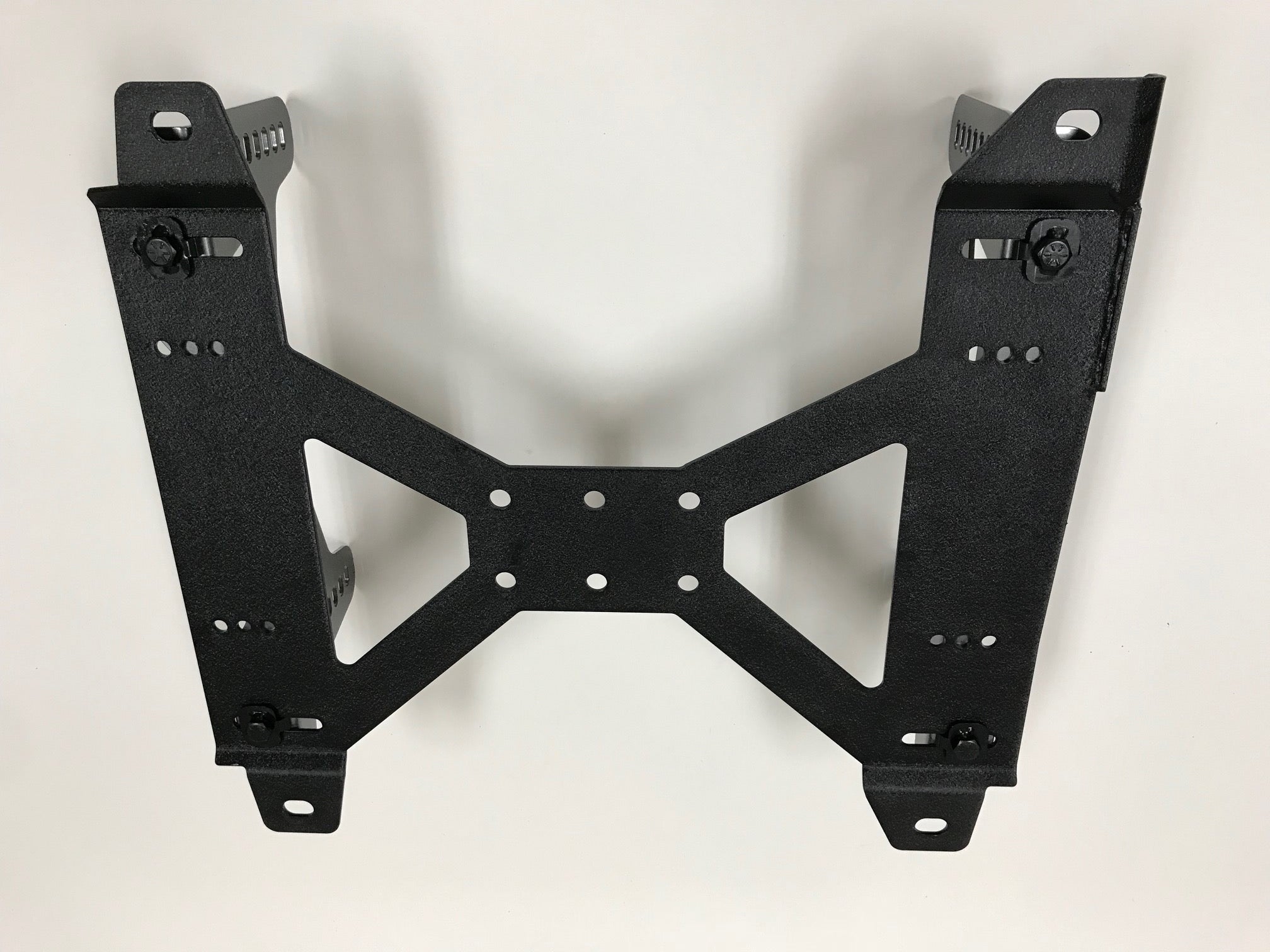

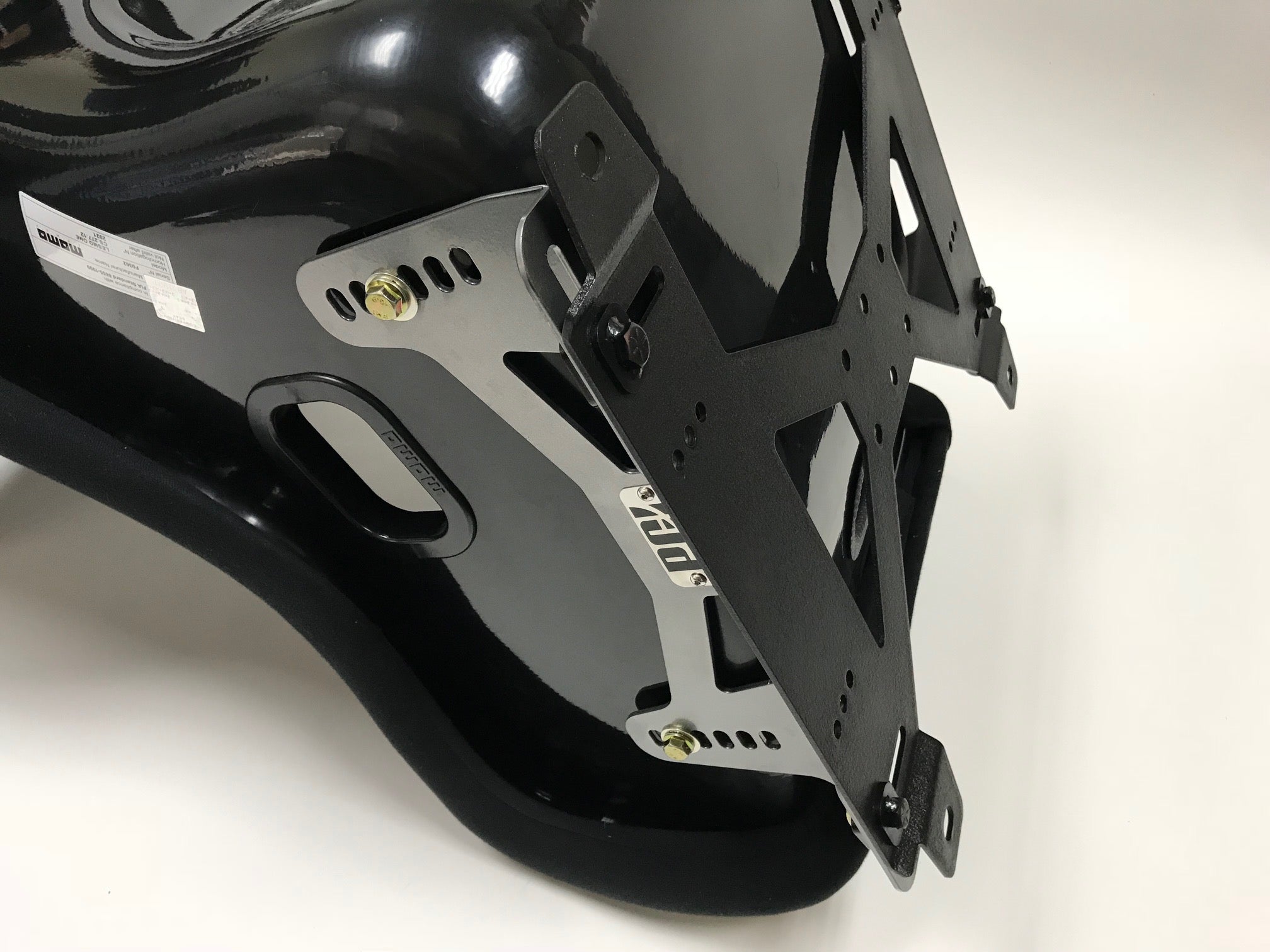

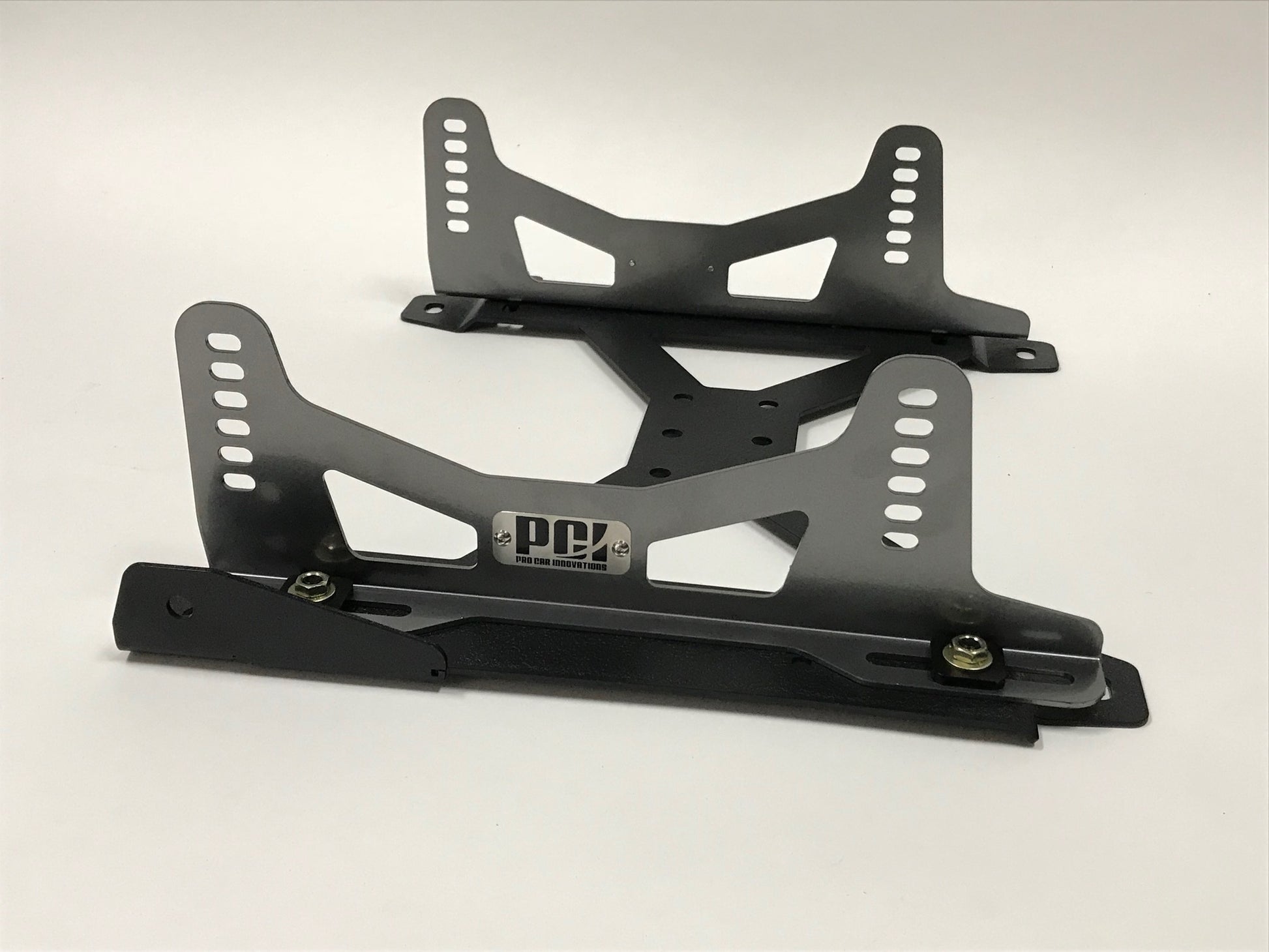

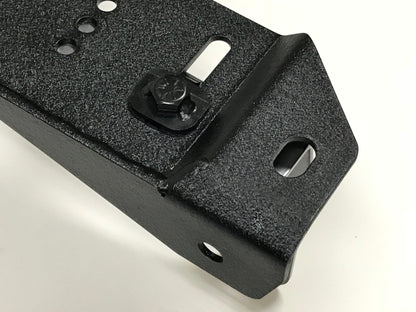

PCI ADJUSTABLE SEAT MOUNTS

PCI has invested the research in order to create an ingeniously crafted safe design thats easily adjustable to accommodate multiple applications. The PCI Racing Spec Seat Mount Has the largest range of adjustment and lowest possible seat fitment of our seat mount line.

Features

• Precision CNC laser cut and bent from one piece of 1/8 3mm carbon steel

• One piece mounting base design

• Multi direction adjustability

• 5 and 6 point sub belt mounting locations

• Single tool adjustments with bottom locking hardware

• Zinc plated grade 8 hardware

• Powder coated mounting base and side mounts

• Stainless steel laser etched bolt on logo plates

• 1/4" x1.25" round black nylon side mount spacers included in kit

Benefits

• CNC bent one piece design allows for use of lighter 1/8 steel vs. heavy 3/16

• Uniquely designed for each vehicle for the best possible fitment

• Mounts to factory bolt locations with precise factory fitment

• 5 and 6 point sub belt mounting

• Hassle free easy installation

• Custom side mount options available

Specs

• 3mm carbon steel

• CNC laser cut, CNC bent

• Gloss black metallic powder coat

• Zinc plated grade 8 hardware

• 12 5/8­ (320mm) to 19 1/2 (495mm) width adjustments for most applications. **All MX5 mounts are 1" narrower**

• 6­ (152mm) range front to back adjustment

All adjustable seat mounts will come standard with side mount SM-SIDE-A1 To order with a different side mount visit the side mount category to pick a different side mount. Upon check out add a message with the part number of the side mount you want with your kit.

ALL SIDE MOUNTS ARE NOW GLOSS BLACK METALLIC AS OF 7-1-21. YOU CAN REQUEST A PICTURE OR VISIT OUR INSTAGRAM PAGE TO SEE THE COLOR.

PCI BOTTOM MOUNT RECARO SR3

The PCI S1 sliders are one of the strongest sliders available. Each slider bolts to the base with 4 bolts making them twice as strong as 2 bolt mounting. PCI has invested the research in order to create an ingeniously crafted safe design thats easily adjustable to accommodate multiple applications. Our Slider Seat Mounts are designed to bolt directly to the factory seat mount locations and simplify that new race seat install.

Features

• Precision CNC laser cut and bent from one piece of 1/8 3mm carbon steel

• Multi way adjustability

• PCI S1 high strength sliders, mounts to base with 4 bolts per slider

• 5 and 6 point sub belt mounting locations

• grade 10.9 8mm hardware

Benefits

• CNC bent one piece design allows for use of lighter 1/8 steel vs. heavy 3/16

• No modifications to any PCI seat mount components are required for installation

• Uniquely designed for each car for the best possible fitment

• Mounts to factory bolt locations with precise factory fitment

• 5 and 6 point sub belt mounting

Specs

• CNC laser cut, CNC bent

• Powder coated base

• Zinc plated grade 8 hardware

Vehicle Fitments:
