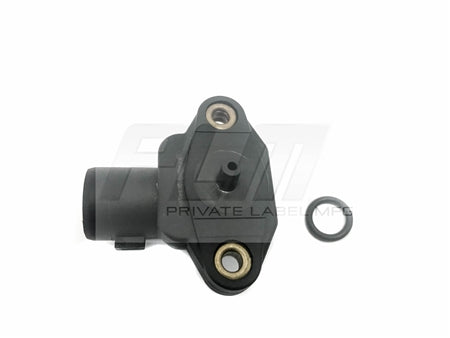

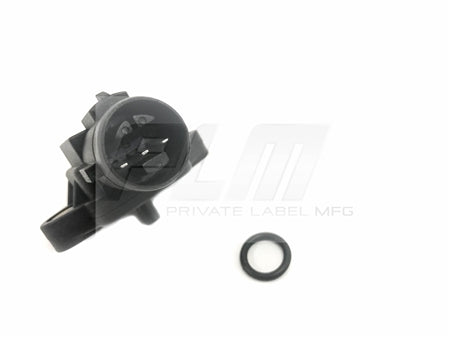

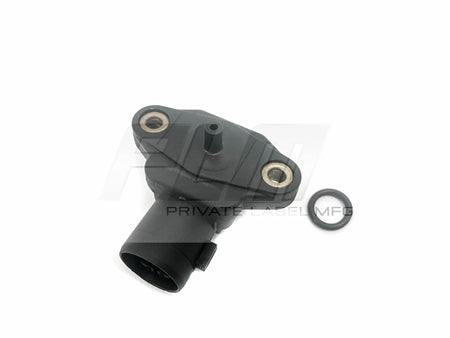

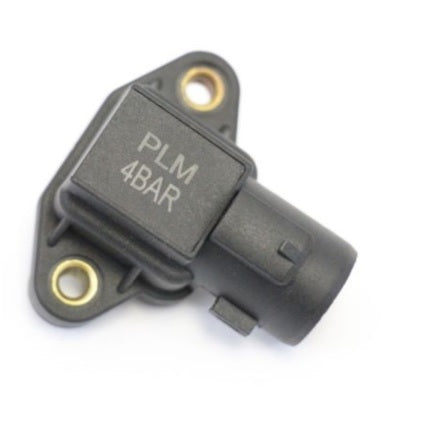

Power Driven 4 BAR MAP Sensor B / D / H / F-Series
PLM Private Label Mfg. 4 BAR MAP sensors for the Honda B / D / H / F-Series are designed to accurately read the increased manifold pressures on turbo or supercharger setups and will reliably support up to 43 psi of boost pressure.
The sensors feature direct plug and play fitment for several Honda / Acura applications and are easy to install. The sensor provides the fastest response time available of 0.001 seconds and an accuracy over 99%. We offer a 1 year warranty with all MAP Sensors.
Fitment Applications:
- 88-00 Civic/CRX
- 90-01 Integra
- 93-97 Del-Sol
- 92-01 Prelude
- 00-05 S2000
- 97-01 CRV
- 94-02 Accord
- B-Series D-Series H-Series and F-Series
Note: Requires engine management to use (such as Flashpro / K-Pro / S300 / AEM)
What is BAR?
BAR is a unit of measure. 1 BAR = 14.5psi. When calibrating in your ECU, 4 BAR will be a standard that can be easily selected or calibrated. You will simply select the appropriate sensor from the MAP tab of your preferred tuning software and you are all set. Select your application carefully as there a 3 different style sensors currently available. Scalar 838 Offset 31
