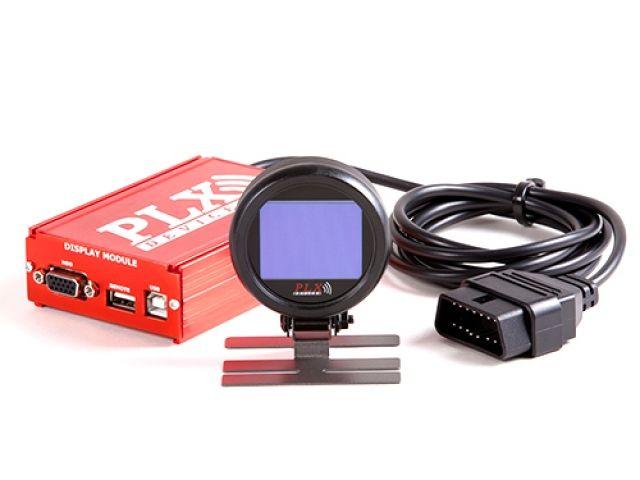

PLX Devices DM-100 OBD Touch , 2 1/16" (52mm) Color OLED Universal OBD Gauge w/ C
PLX Devices DM-100 OBD Touch Gauge (New)
The DM-100 OBDII Touch Multi Gauge is a powerful scan tool, code reader, and performance gauge all in one. It is compatible with 1996 and later vehicles and connection is made through the onboard diagnostic port (OBDII / CAN). The DM-100 Touch Multi Gauge is designed to fit into most aftermarket 2 1/16" (52 mm) cups, and can be mounted for seamless integration into your vehicle. The 4 button multi-touch interface is built right into the gauge, located on the top, bottom, right, and left sides of the visual display. This makes navigating between the 26 OBDII sensors and 15 gauge views ultra-easy. Custom gauges, peak/hold, customizable colors and multiple gauge views are just some of its many features. The DM-100 Touch is patent pending.
The DM-100 Touch Multi Gauge incorporates a programmable 4 sensor output. This means that there are 4 equivalent programmable sensor modules built-in that allow you to stream OBDII data through the digital iMFD port for additional interface with more Multi Gauges and data logging applications. Powerful data logging features are available with the ScanXL PC software and the iMFD to PC Link USB cable. This feature enables you to data log both iMFD aftermarket sensors as well as select 4 of the available 26 OBD PIDs or parameters available. The DM-100 Touch also has an OBDII diagnostic mode which turns the built-in USB port into an ELM327 USB interface. The PC sees this as a standard COM port thus turning this gauge into a powerful scan tool where most ELM327 diagnostic software is compatible.
The PLX DM-100 OBDII Touch Multi Gauge has taken the automotive display to a whole new level with its SEMA award-winning design and brilliant color organic LED display. It's truly the world's most versatile gauge.
Features
The DM-100 OBDII Touch Multi Gauge is a powerful scan tool, code reader, and performance gauge all in one. It is compatible with 1996 and later vehicles and connection is made through the onboard diagnostic port (OBDII / CAN). The DM-100 Touch Multi Gauge is designed to fit into most aftermarket 2 1/16" (52 mm) cups, and can be mounted for seamless integration into your vehicle. The 4 button multi-touch interface is built right into the gauge, located on the top, bottom, right, and left sides of the visual display. This makes navigating between the 26 OBDII sensors and 15 gauge views ultra-easy. Custom gauges, peak/hold, customizable colors and multiple gauge views are just some of its many features. The DM-100 Touch is patent pending.
The DM-100 Touch Multi Gauge incorporates a programmable 4 sensor output. This means that there are 4 equivalent programmable sensor modules built-in that allow you to stream OBDII data through the digital iMFD port for additional interface with more Multi Gauges and data logging applications. Powerful data logging features are available with the ScanXL PC software and the iMFD to PC Link USB cable. This feature enables you to data log both iMFD aftermarket sensors as well as select 4 of the available 26 OBD PIDs or parameters available. The DM-100 Touch also has an OBDII diagnostic mode which turns the built-in USB port into an ELM327 USB interface. The PC sees this as a standard COM port thus turning this gauge into a powerful scan tool where most ELM327 diagnostic software is compatible.
The PLX DM-100 OBDII Touch Multi Gauge has taken the automotive display to a whole new level with its SEMA award-winning design and brilliant color organic LED display. It's truly the world's most versatile gauge.
Features
- New operating system
- New screen: Dual Parameter View
- New Screen: Max / Min View
- Installs in seconds
- Plug and play OBDII interface
- Compatible with 1996 and later vehicles
- 26 OBDII Parameters
- OLED Color Display
- Read and Reset Check Engine Lights and codes
- Customizable gauge styles
- Analog, Digital, Graph, 4 Parameter view
- Intelligent Warning
- Daisy chain up to 16 PLX Sensor Modules
- 4 Button Multi-Touch Screen Interface
- US and Metric Units
- USB interface to PC
PLX Devices DM-100 OBD Touch , 2 1/16" (52mm) Color OLED Universal OBD Gauge w/ C
Sale price$246.39 USD
