Planted Technology Recaro Sport C Seat Adapter
Planted Technology Recaro Sport C Seat Adapter
Out of stock
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyReturns
Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.
Read the full return policyReturn details & how to start
Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.
Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.
Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.
Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.
After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.
Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.
For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.
Specifications
Product details shared across all variants.
- Product type
- Seat Mounting Bracket
- Category
- Motor Vehicle Seating
- Item condition
- New
- Shipping dimensions (L × W × H)
- Shipping weight
- 4.0 lb
Billable shipping weight; may include dimensional weight.
This adapter is made specifically for adapting the Recaro Sport C seat to a Planted Seat Bracket with the Standard bolt pattern, simplifying the installation process while adding only 3/16 of an inch in height.

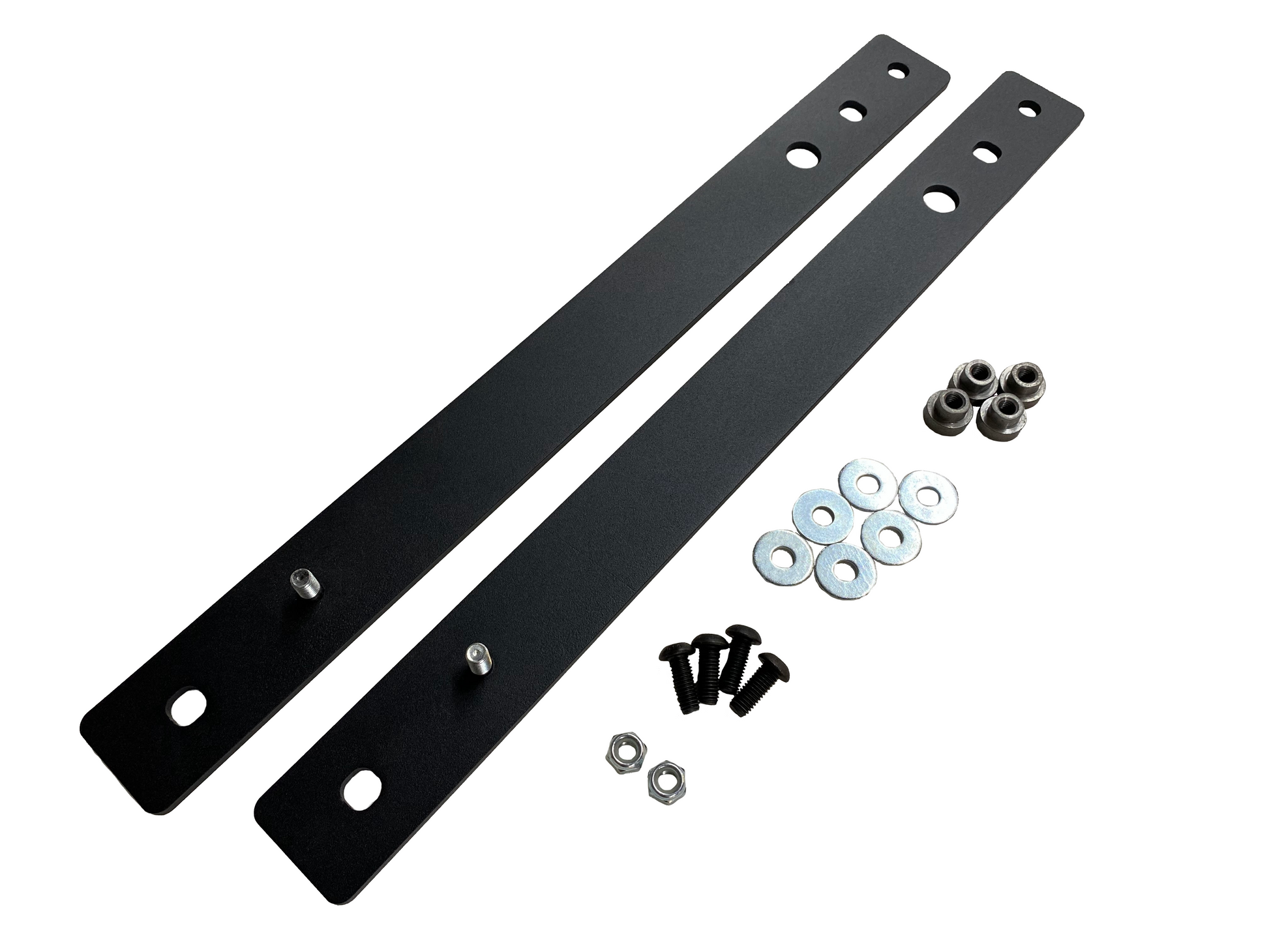

Each Planted Recaro Sport C Adapter includes the parts necessary to install one Recaro Sport C seat to a Planted Seat Bracket. These parts include two 3/16 inch thick steel spacers with one pressed-in stud each, four machined nut inserts, four button head cap screws, six washers, and two nyloc nuts.
Installation Instructions:

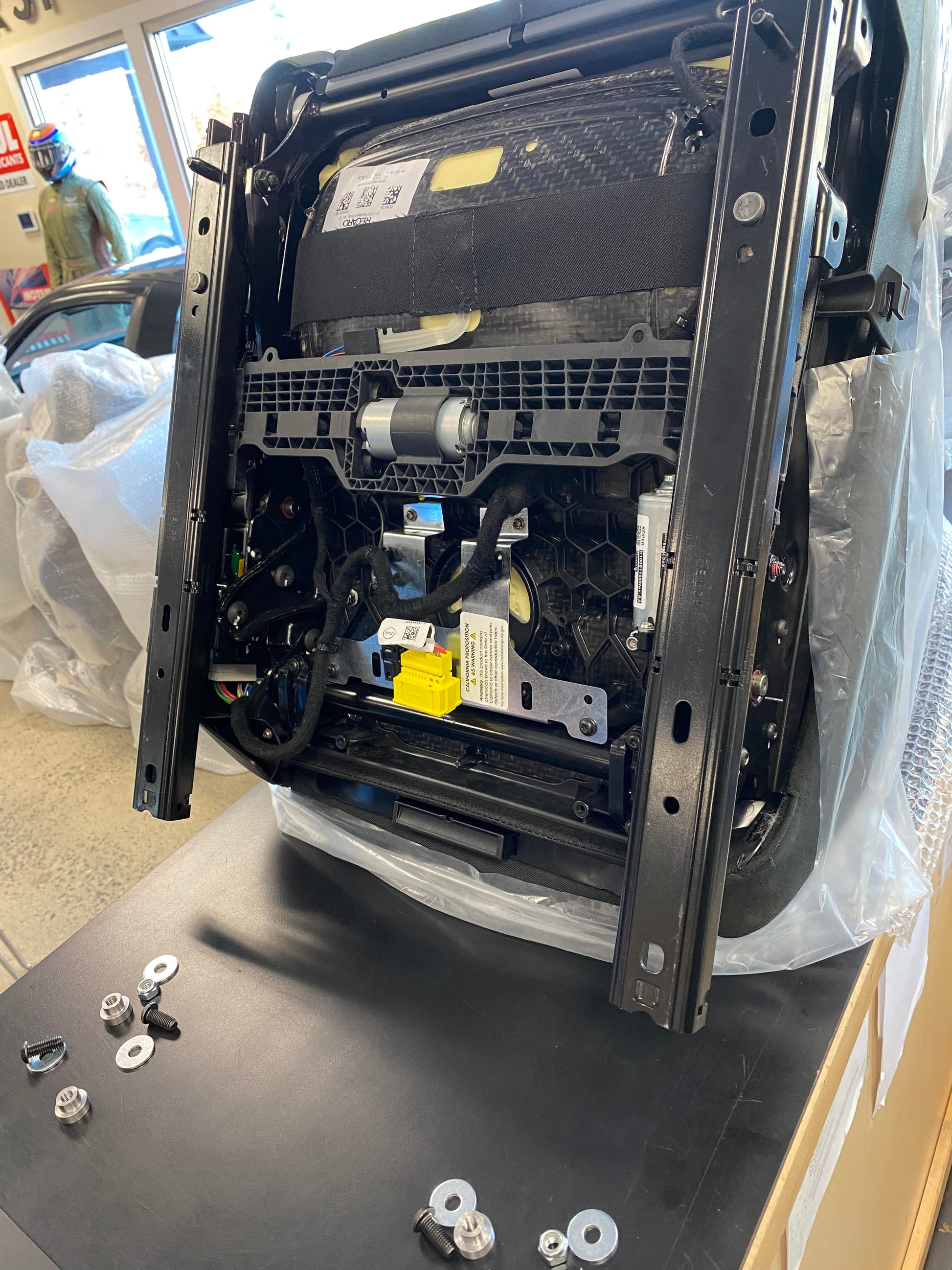

1) With the Sport C seat turned on it's side or upside down, place the spacers onto the Sport C sliders with the studs toward the front of the seat (see image below).
2) Secure each spacer to the Sport C slider through the front most hole on each spacer, using one button head cap screw, one washer and one machined nut insert on each side of the seat. The button head cap screw and washer should be installed inside the sliders with the machined nut insert on the bottom of the spacer with the small machined end inserted into the spacer to prevent it from spinning.

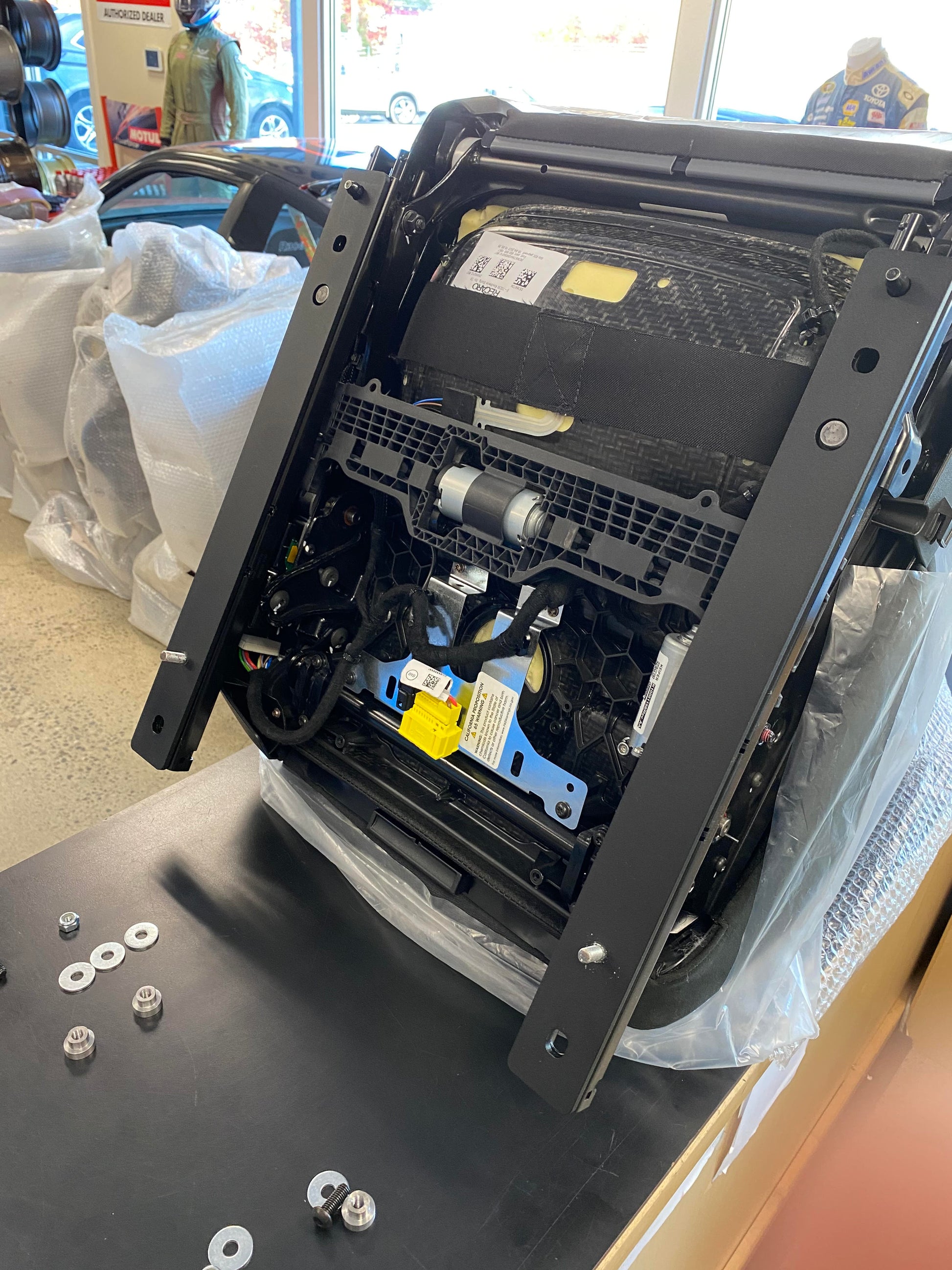

3) Place the Planted Seat Bracket on the spacers, inserting the studs through the holes closest to the front corners of the seat bracket.
4) Ensure the Planted Seat Bracket sits flush against the spacer.
IMPORTANT: With some seat bracket applications, the set pin on the rear of each Sport C slider may contact the Planted Seat Bracket's rear "legs." Filing down or removing the set pin will be required in these cases.
5) Secure the front of the seat bracket to the spacer by installing one washer and one nyloc nut onto each of the front studs.

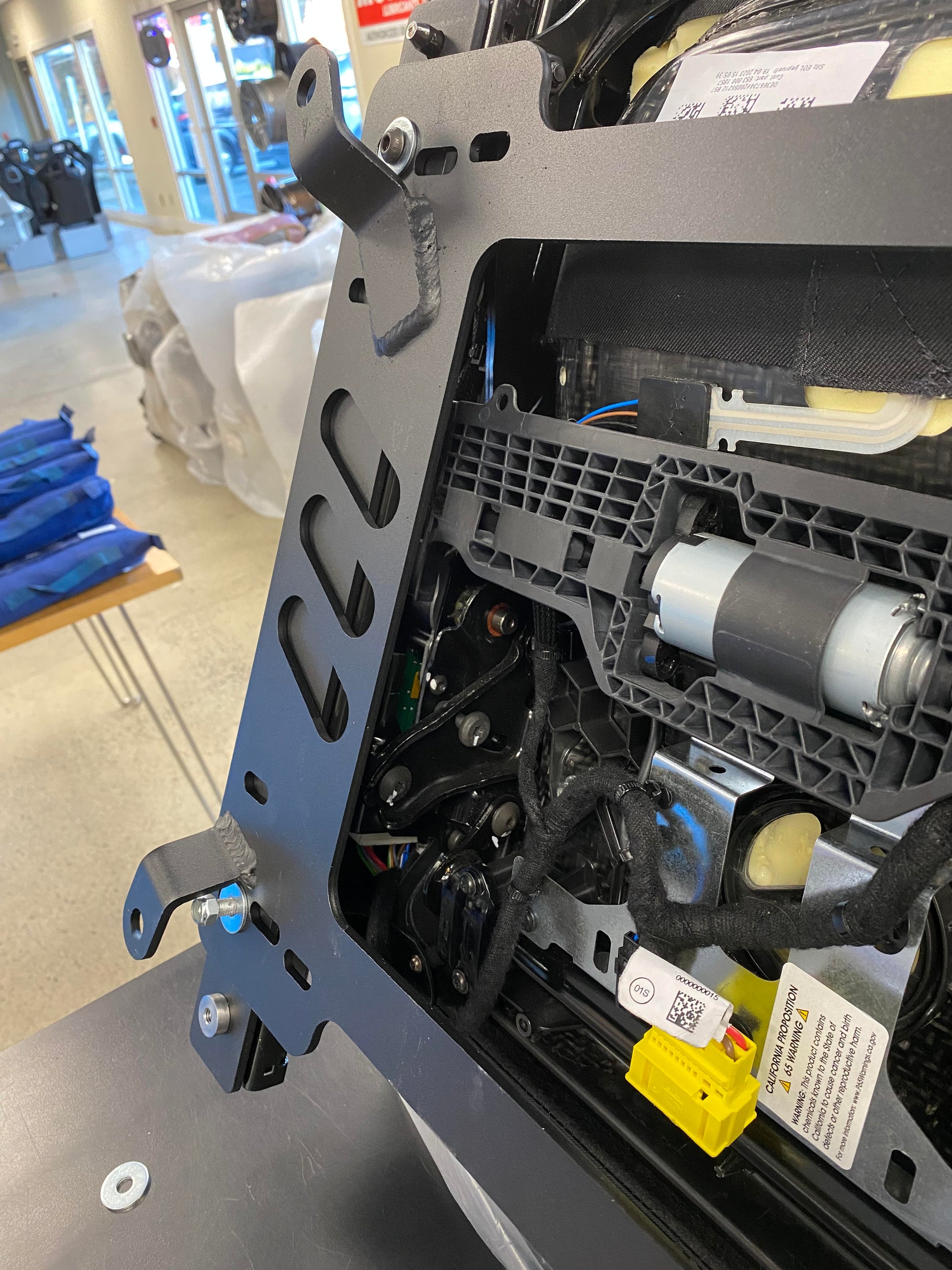

6) Secure the rear of the seat bracket to the spacer and Sport C slider using one machined nut insert, one washer and one button head cap screw on each side of the seat. The machined nut insert should be installed inside the Sport C slider with the small end inserted into the hole on the slider and spacer, preventing the machined nut insert from spinning. The button head cap screw and washer should be installed through the bottom of the seat bracket into the machined nut insert (see image below).
