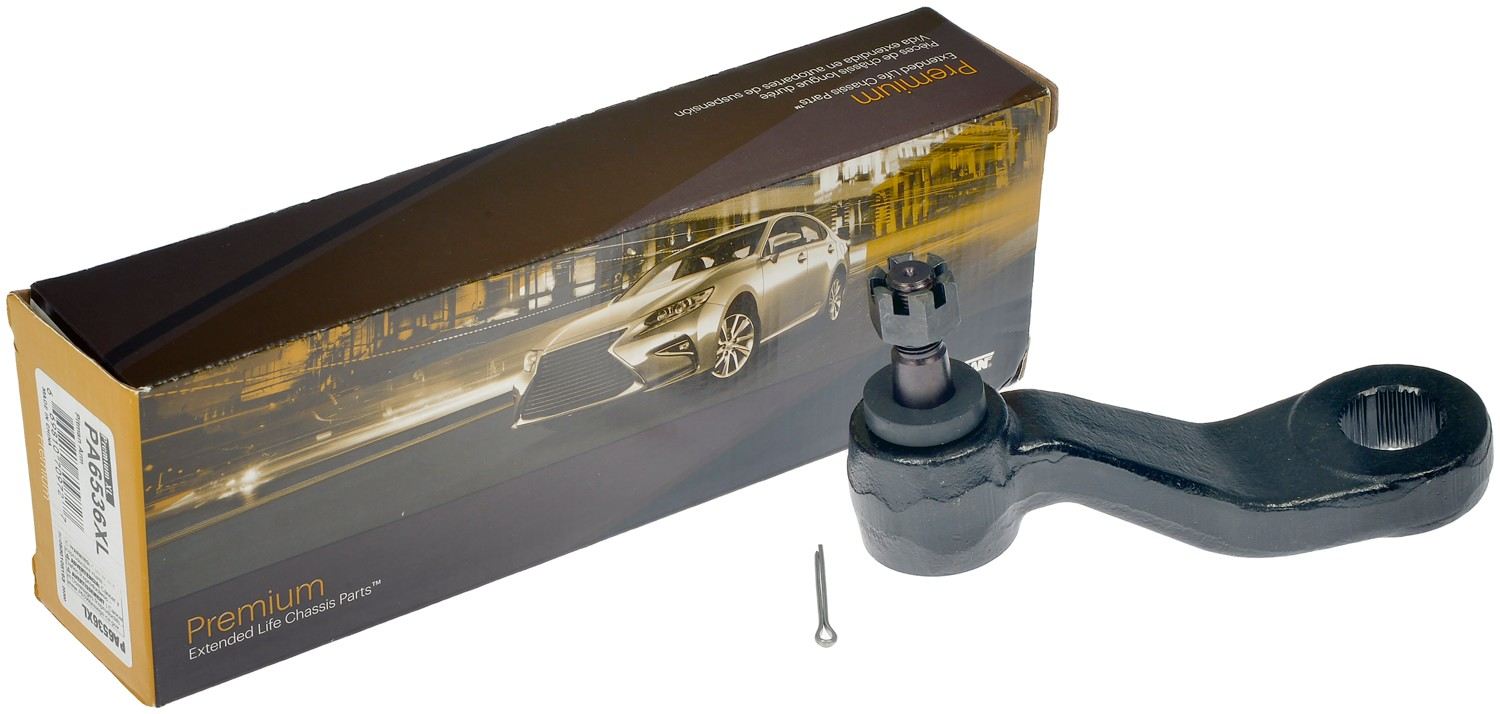

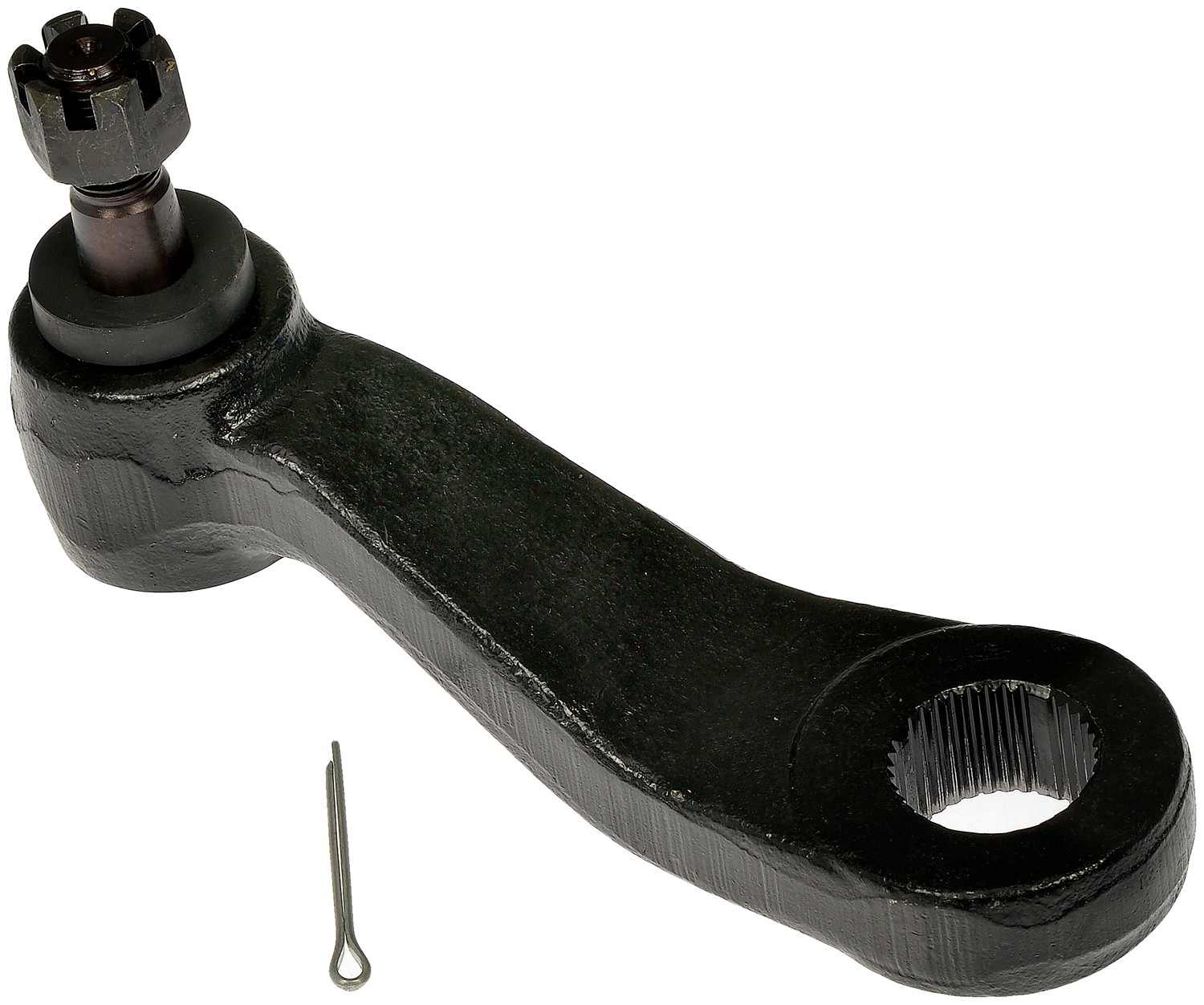

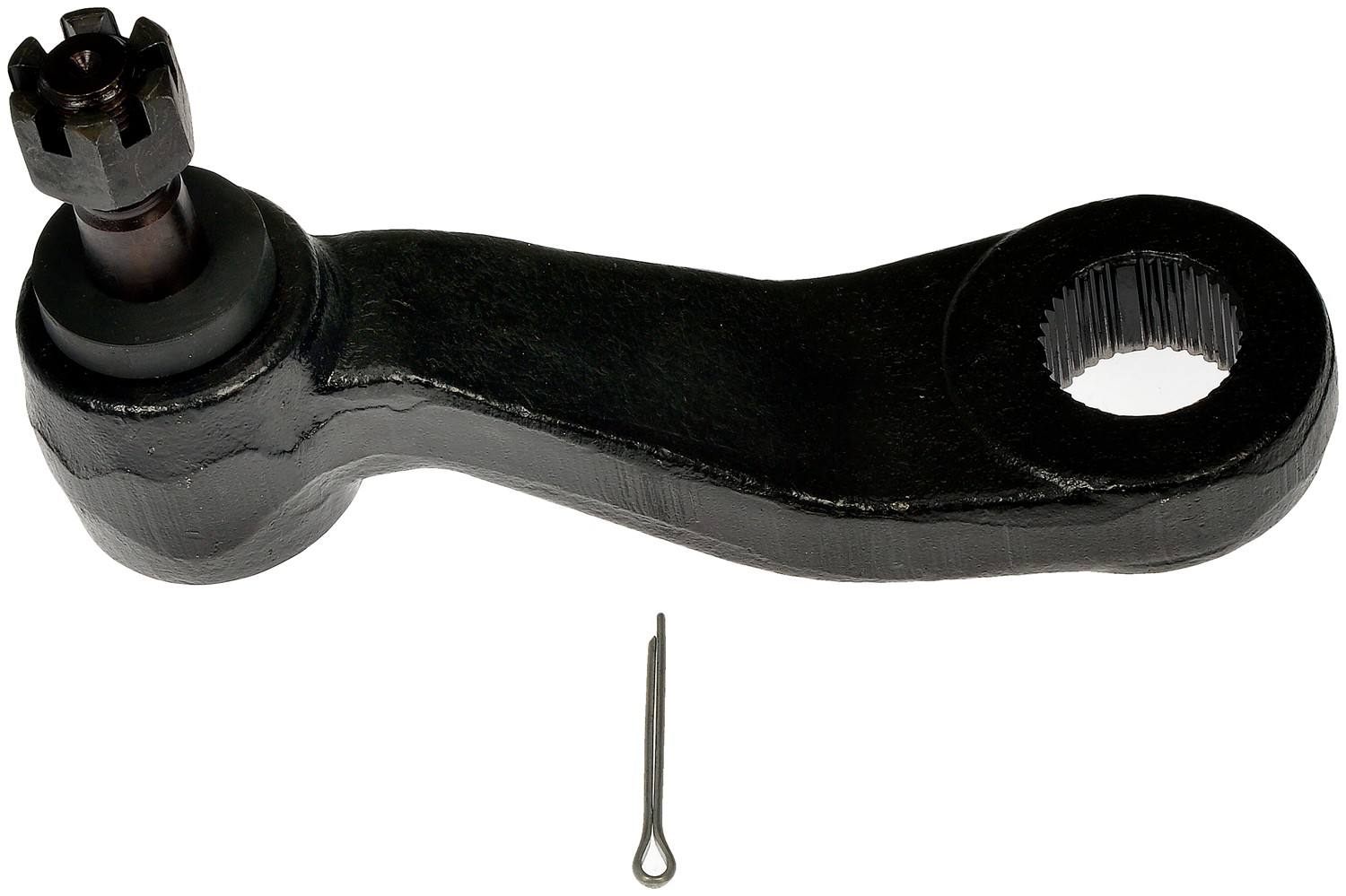

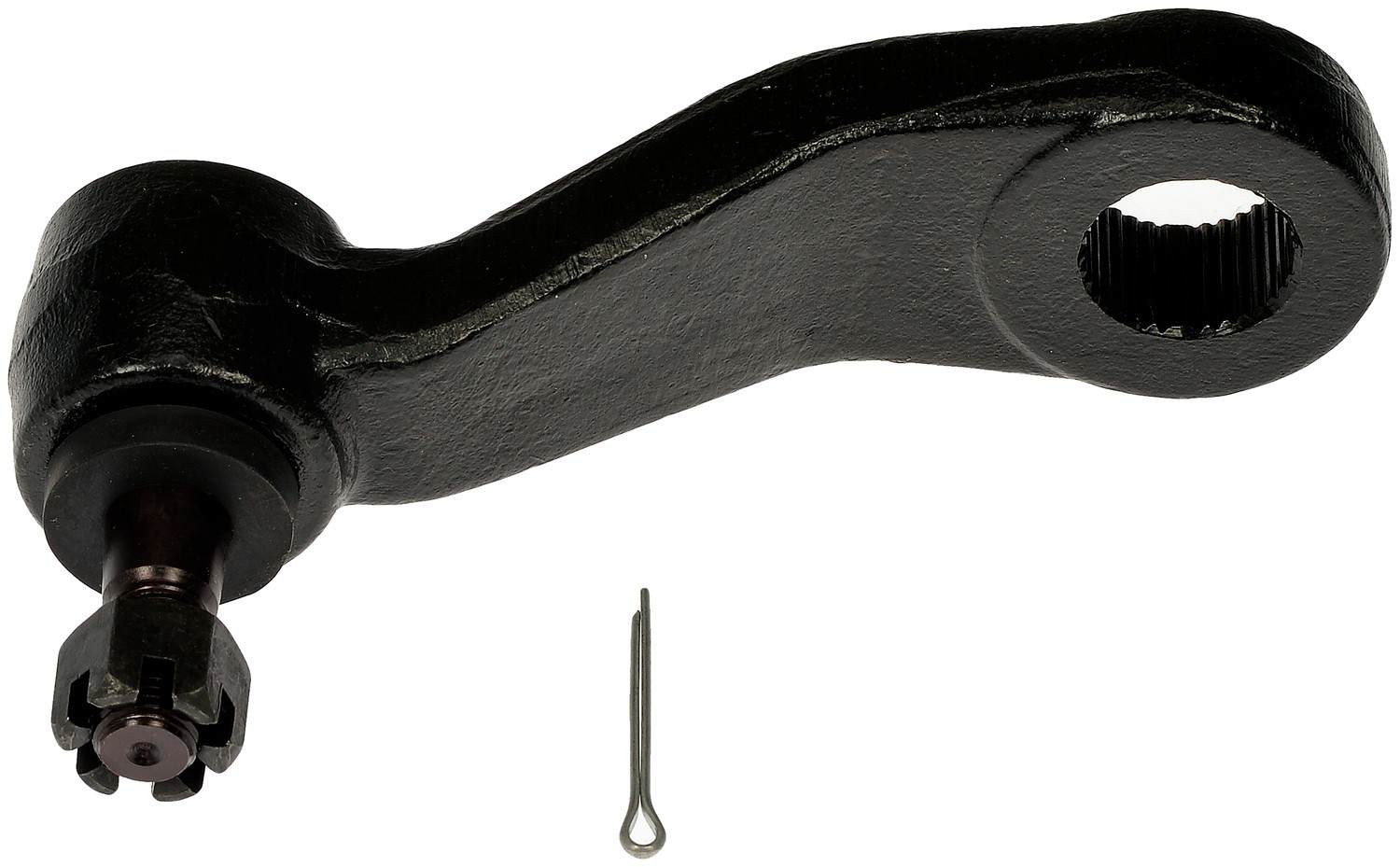

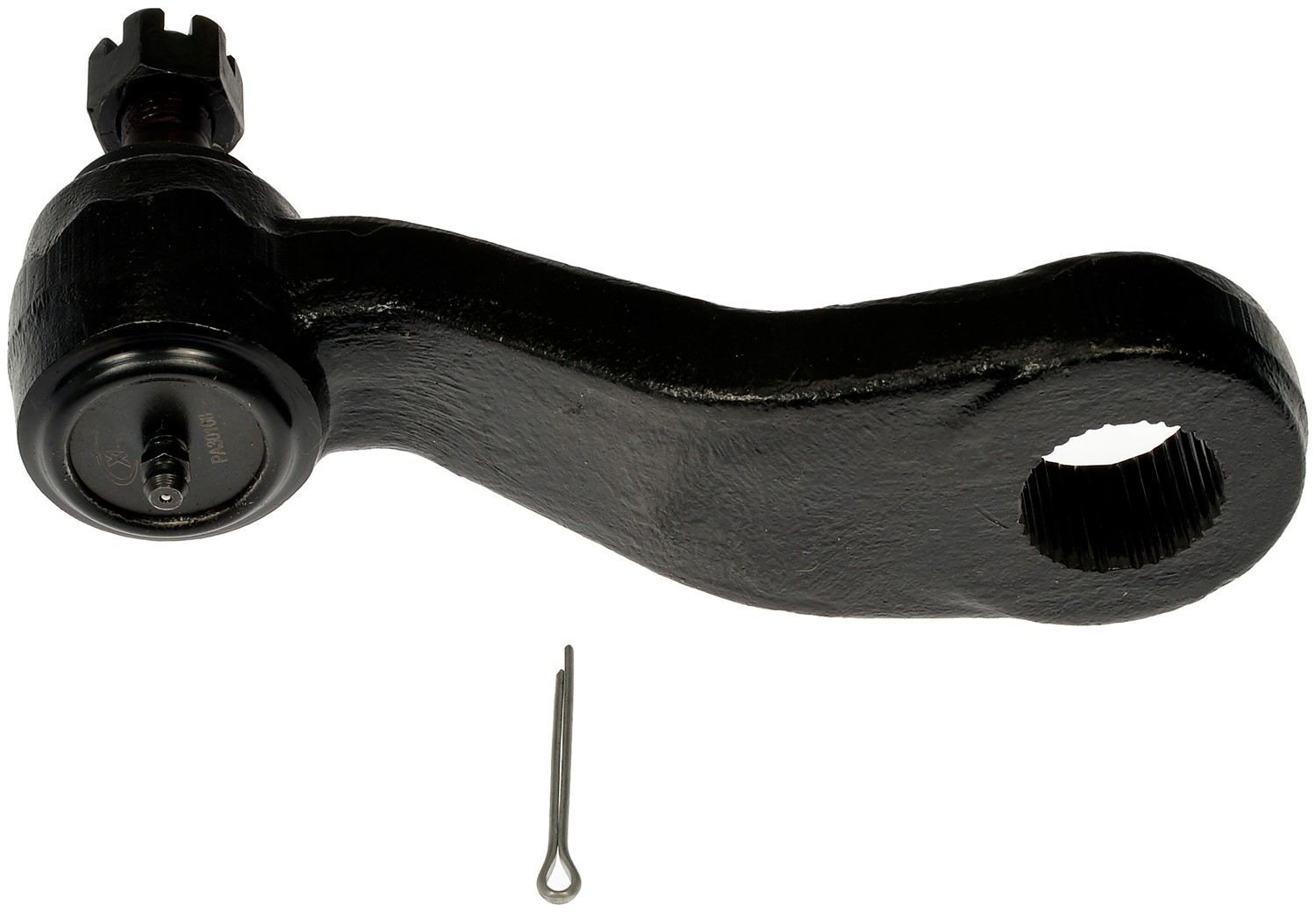

Dorman Pitman Arm
This extended life steering pitman arm is built for smooth performance and superior durability. Featuring a hardened stud, highly polished ball, a maintenance-free polymer bearing, I.C.E. synthetic grease and premium corrosion resistance.
- Extended-life construction - this pitman arm is built with features to deliver smooth performance and extended durability for demanding drivers
- Superior ball stud - hardened ArmourGrade stud with highly polished EverSmooth ball
- Low-friction bearing - UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing
- Premium corrosion resistance - WeatherShield external coating to resist corrosion
Application Summary: Cadillac 2006-02, Chevrolet 2008-99, GMC 2008-99
Product Specifications
- Castle Nut Included: Yes
- Center Link End Attachment Diameter: 14 mm
- Center Link End Attachment Pitch: 1.5
- Color: Black
- End 1 Attachment Type: Taper
- End 2 Attachment Type: Spline
- Finish: Coated
- Grease Fitting Included: Yes
- Length: 130 mm
- Material: Steel
- Mounting Hardware Included: Yes
- Package Contents: 1 Pitman Arm; 1 Castle Nut; 1 Cotter Pin; 1 Zerk Fitting
- Spline Quantity: 36
- Steering Shaft Diameter: 29 mm
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2002 - 2006 | Cadillac | Escalade | Base |
| 2003 - 2006 | Cadillac | Escalade ESV | Base |
| 2002 - 2006 | Cadillac | Escalade EXT | Base |
| 2002 - 2006 | Chevrolet | Avalanche 1500 | LS, LT, Base, Z71 |
| 2002 - 2003 | Chevrolet | Avalanche 1500 | North Face, On Road Edition |
| 2003 | Chevrolet | Avalanche 1500 | WBH |
| 2004 - 2006 | Chevrolet | Avalanche 1500 | Z66 |
| 2002 - 2004 | Chevrolet | Avalanche 2500 | Base |
| 2005 - 2006 | Chevrolet | Avalanche 2500 | LT, LS |
| 2003 - 2008 | Chevrolet | Express 2500 | Base, LS |
| 2006 - 2008 | Chevrolet | Express 2500 | LT |
| 2003 - 2008 | Chevrolet | Express 3500 | Base, LS |
| 2006 - 2008 | Chevrolet | Express 3500 | LT |
| 2002 | Chevrolet | Silverado 1500 | Custom |
| 2004 - 2006 | Chevrolet | Silverado 1500 | Hybrid |
| 1999 - 2006 | Chevrolet | Silverado 1500 | LT, Base, LS |
| 2003 - 2006 | Chevrolet | Silverado 1500 | SS |
| 2002 - 2006 | Chevrolet | Silverado 1500 | WT |
| 2004 | Chevrolet | Silverado 1500 | Z71 |
| 2007 | Chevrolet | Silverado 1500 Classic | LT, LS, SS, WT, Hybrid |
| 2005 | Chevrolet | Silverado 1500 HD | Base |
| 2001 - 2005 | Chevrolet | Silverado 1500 HD | LS |
| 2001 - 2006 | Chevrolet | Silverado 1500 HD | LT |
| 2007 | Chevrolet | Silverado 1500 HD Classic | LT |
| 2003 - 2005 | Chevrolet | Silverado 2500 | 400 SS |
| 1999 - 2006 | Chevrolet | Silverado 2500 | Base |
| 2001 - 2002 | Chevrolet | Silverado 2500 | Cheyenne, Custom |
| 1999 - 2004 | Chevrolet | Silverado 2500 | LT, LS |
| 2004 | Chevrolet | Silverado 2500 | WT |
| 2001 - 2005 | Chevrolet | Silverado 2500 HD | Base |
| 2001 - 2006 | Chevrolet | Silverado 2500 HD | LS, LT |
| 2003 - 2006 | Chevrolet | Silverado 2500 HD | WT |
| 2007 | Chevrolet | Silverado 2500 HD Classic | LT, LS, WT |
| 2006 | Chevrolet | Silverado 3500 | HD |
| 2001 - 2006 | Chevrolet | Silverado 3500 | LS, Base, LT |
| 2004 - 2006 | Chevrolet | Silverado 3500 | WT |
| 2007 | Chevrolet | Silverado 3500 Classic | WT, LT, LS |
| 2003 - 2006 | Chevrolet | Sonora | Base |
| 2000 - 2006 | Chevrolet | Suburban 1500 | LT, Base, LS |
| 2006 | Chevrolet | Suburban 1500 | LTZ |
| 2004 - 2006 | Chevrolet | Suburban 1500 | Z71 |
| 2000 - 2001 | Chevrolet | Suburban 2500 | Base |
| 2000 - 2006 | Chevrolet | Suburban 2500 | LS, LT |
| 2000 | Chevrolet | Tahoe | Limited |
| 2000 - 2006 | Chevrolet | Tahoe | LS, Z71, Base, LT |
| 2003 - 2008 | GMC | Savana 2500 | Base |
| 2007 - 2008 | GMC | Savana 2500 | LS, LT |
| 2003 - 2005 | GMC | Savana 2500 | SLE |
| 2003 - 2008 | GMC | Savana 3500 | Base |
| 2006 - 2008 | GMC | Savana 3500 | LS, LT |
| 2003 - 2005 | GMC | Savana 3500 | SLE |
| 2002 - 2005 | GMC | Sierra 1500 | Base |
| 2001 | GMC | Sierra 1500 | C3 |
| 2002 - 2006 | GMC | Sierra 1500 | Denali, WT |
| 2002 | GMC | Sierra 1500 | HT |
| 2005 - 2006 | GMC | Sierra 1500 | Hybrid |
| 1999 - 2006 | GMC | Sierra 1500 | SL, SLT, SLE |
| 2007 | GMC | Sierra 1500 Classic | SLE, Denali, Hybrid, SLT, SL, WT |
| 2001 - 2006 | GMC | Sierra 1500 HD | SLT, SLE |
| 2007 | GMC | Sierra 1500 HD Classic | SLT, SLE |
| 2002 - 2004 | GMC | Sierra 2500 | Base |
| 1999 - 2002 | GMC | Sierra 2500 | SL |
| 1999 - 2004 | GMC | Sierra 2500 | SLE, SLT |
| 2003 - 2004 | GMC | Sierra 2500 | WT |
| 2002 - 2005 | GMC | Sierra 2500 HD | Base |
| 2001 - 2006 | GMC | Sierra 2500 HD | SL, SLE, SLT |
| 2003 - 2006 | GMC | Sierra 2500 HD | WT |
| 2007 | GMC | Sierra 2500 HD Classic | SLT, WT, SL, SLE |
| 2002 - 2005 | GMC | Sierra 3500 | Base |
| 2001 - 2006 | GMC | Sierra 3500 | SLE, SLT, SL |
| 2004 - 2006 | GMC | Sierra 3500 | WT |
| 2007 | GMC | Sierra 3500 Classic | SL, WT, SLT, SLE |
| 2006 | GMC | Yukon | SL |
| 2000 - 2006 | GMC | Yukon | SLT, Denali, SLE |
| 2001 - 2006 | GMC | Yukon XL 1500 | Denali |
| 2006 | GMC | Yukon XL 1500 | SL |
| 2000 - 2006 | GMC | Yukon XL 1500 | SLT, SLE |
| 2000 - 2006 | GMC | Yukon XL 2500 | SLT, SLE |
Dorman Pitman Arm
Sale price$72.20 USD
