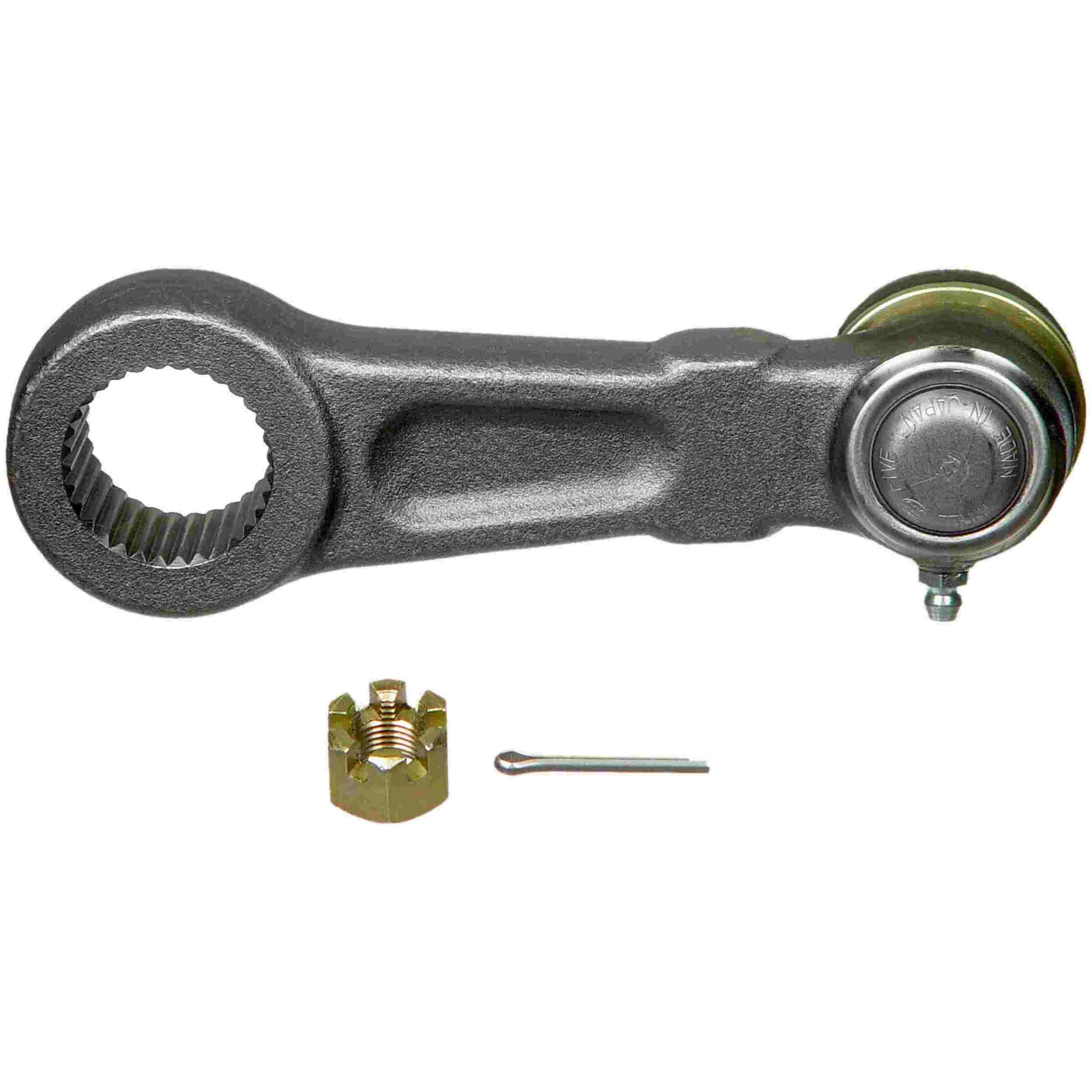

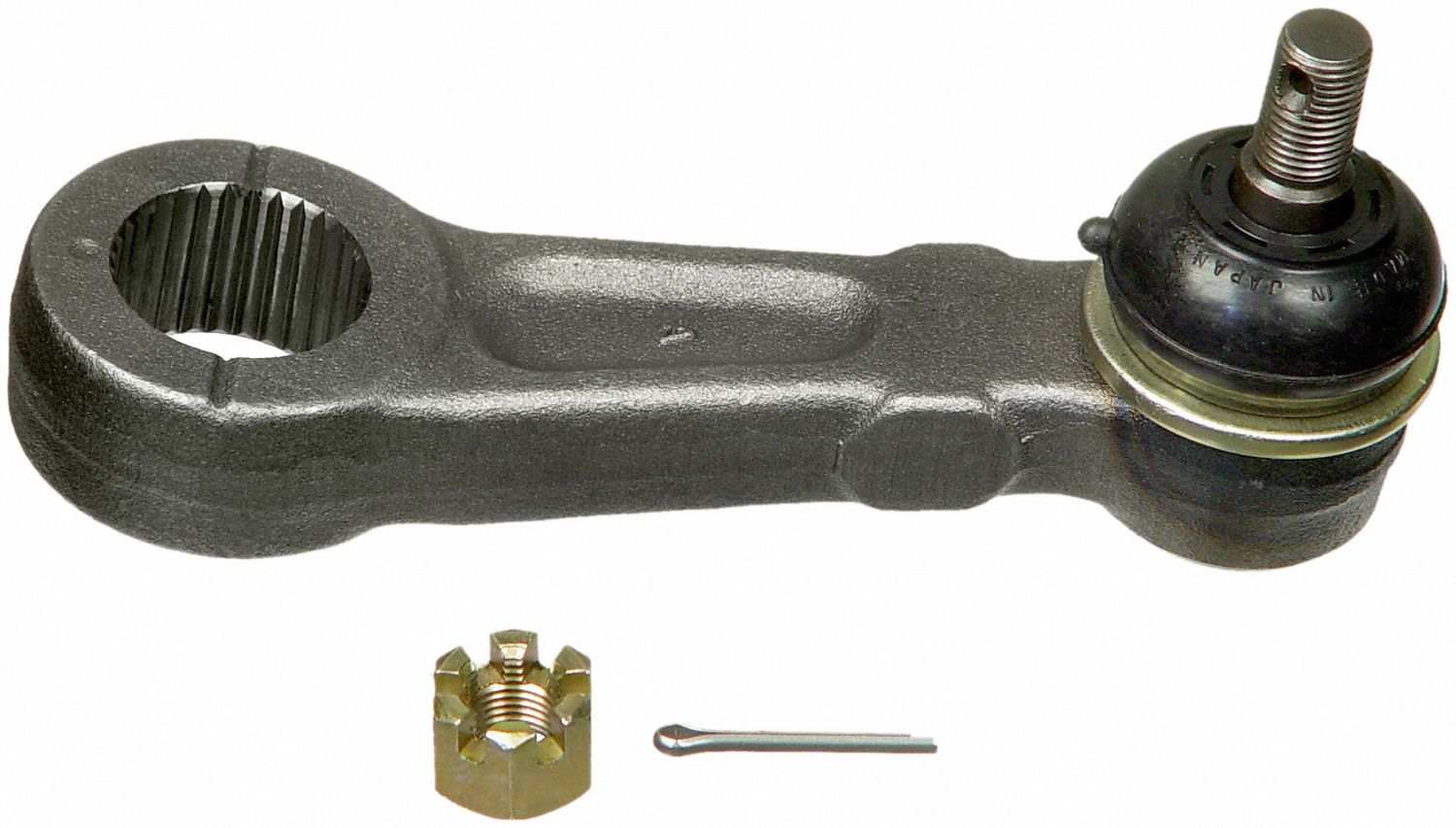

Moog Pitman Arm

MOOG® Problem Solver® products incorporate proven design and engineering features for like new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.

• Heavy duty design

• Engineered steel composition results in a stronger component

• Loose or worn chassis parts can lead to premature tire wear

• Exclusive cover plate protects against contaminants leaking into the bearing surface

• Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part

• Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength

Specifications

Length Center to Center (Inch): 4.842

Quantity of Splines: 32

Mounting Hardware Included: Yes

Greasable: Yes

Stud Thread: M12 x1.25

Spline Diameter (Inch): 1.250

Stud Taper Small Diameter (In): 0.530

Thickness (Inch): 0.980
