Dorman Steering Pitman Arm

Steering Pitman Arm

Application Summary: Chevrolet 1996-83, GMC 1996-83

This steering pitman arm is precision-engineered and rigorously tested to provide reliable replacement components for the original part on specific vehicles.

• Direct replacement - this steering pitman arm has been reverse-engineered to match the fit and function of the stock part on specific vehicles
• Reliable fit - precision-engineered to match the design and dimensions of the original part
• Durable construction - manufactured to strict standards using sturdy, safe materials
• Rigorously tested - thorough quality control measures ensure longevity

Product Specifications

• Castle Nut Included: Yes
• Center Link End Attachment Diameter: 5/8 In.
• Center Link End Attachment Pitch: M18
• Color: Black
• End 1 Attachment Type: Spline
• End 2 Attachment Type: Male Taper
• Finish: Coated
• Grease Fitting Included: Yes
• Length: 150 mm
• Material: Steel
• Mounting Hardware Included: Yes

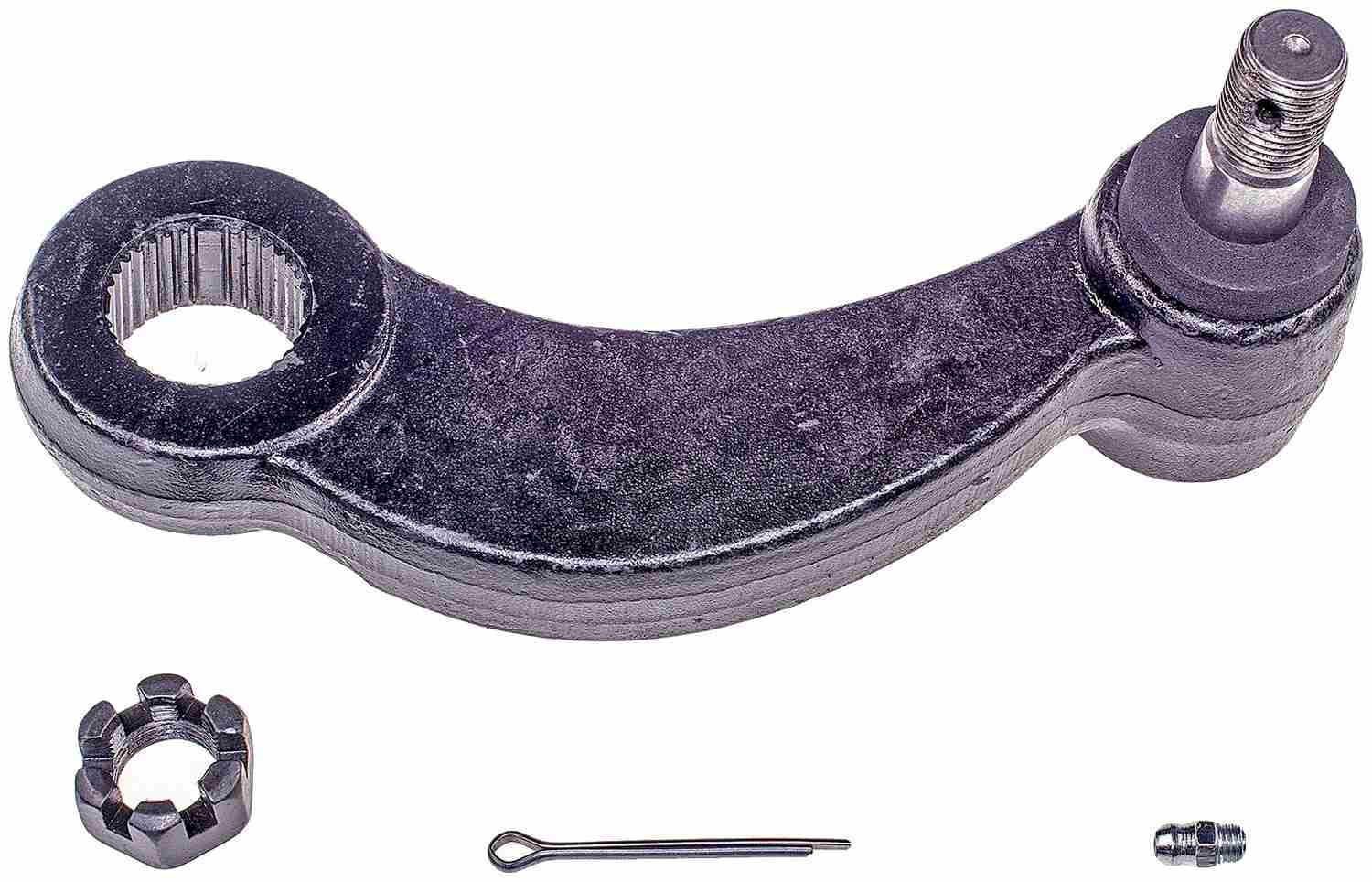

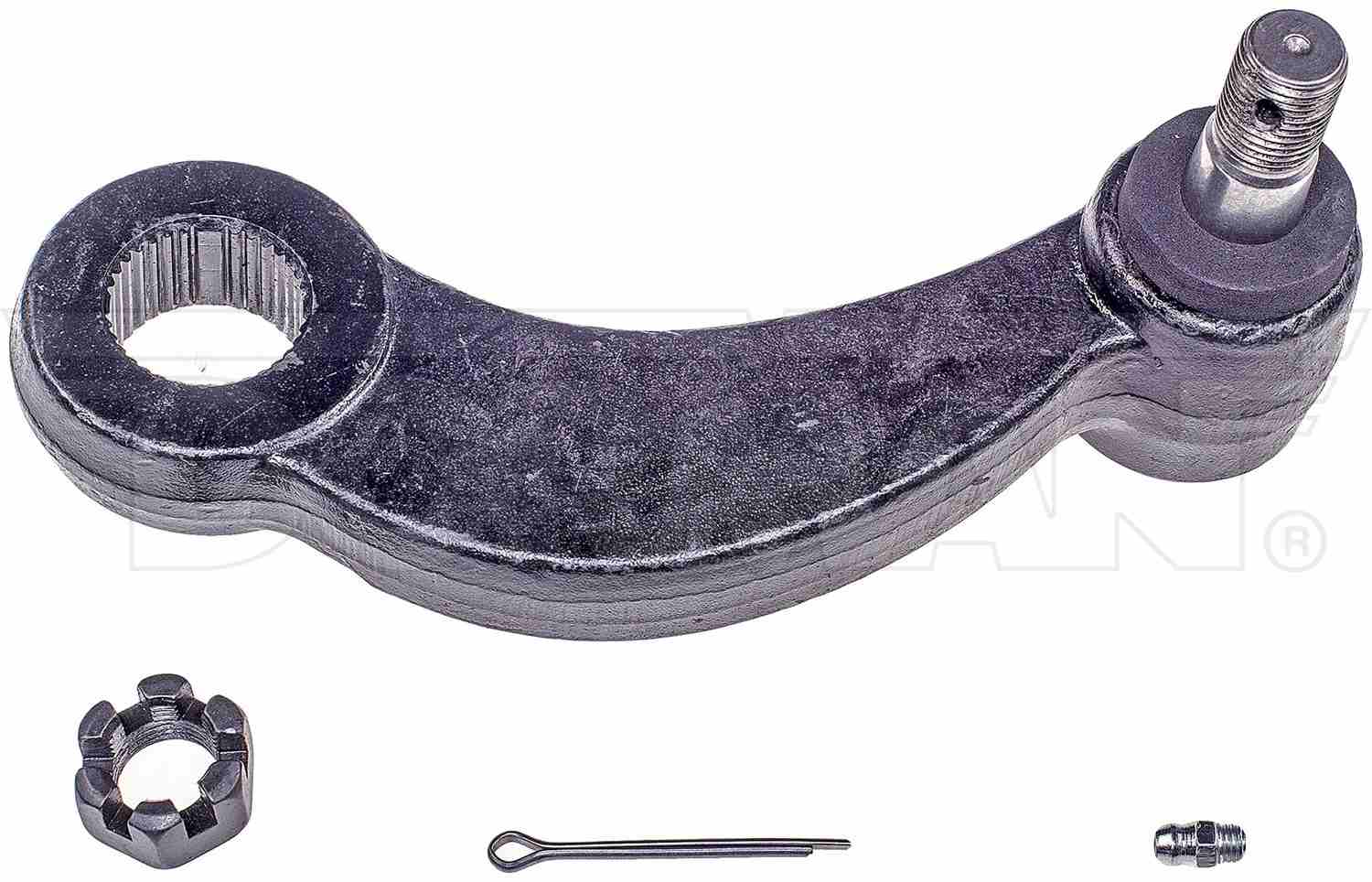

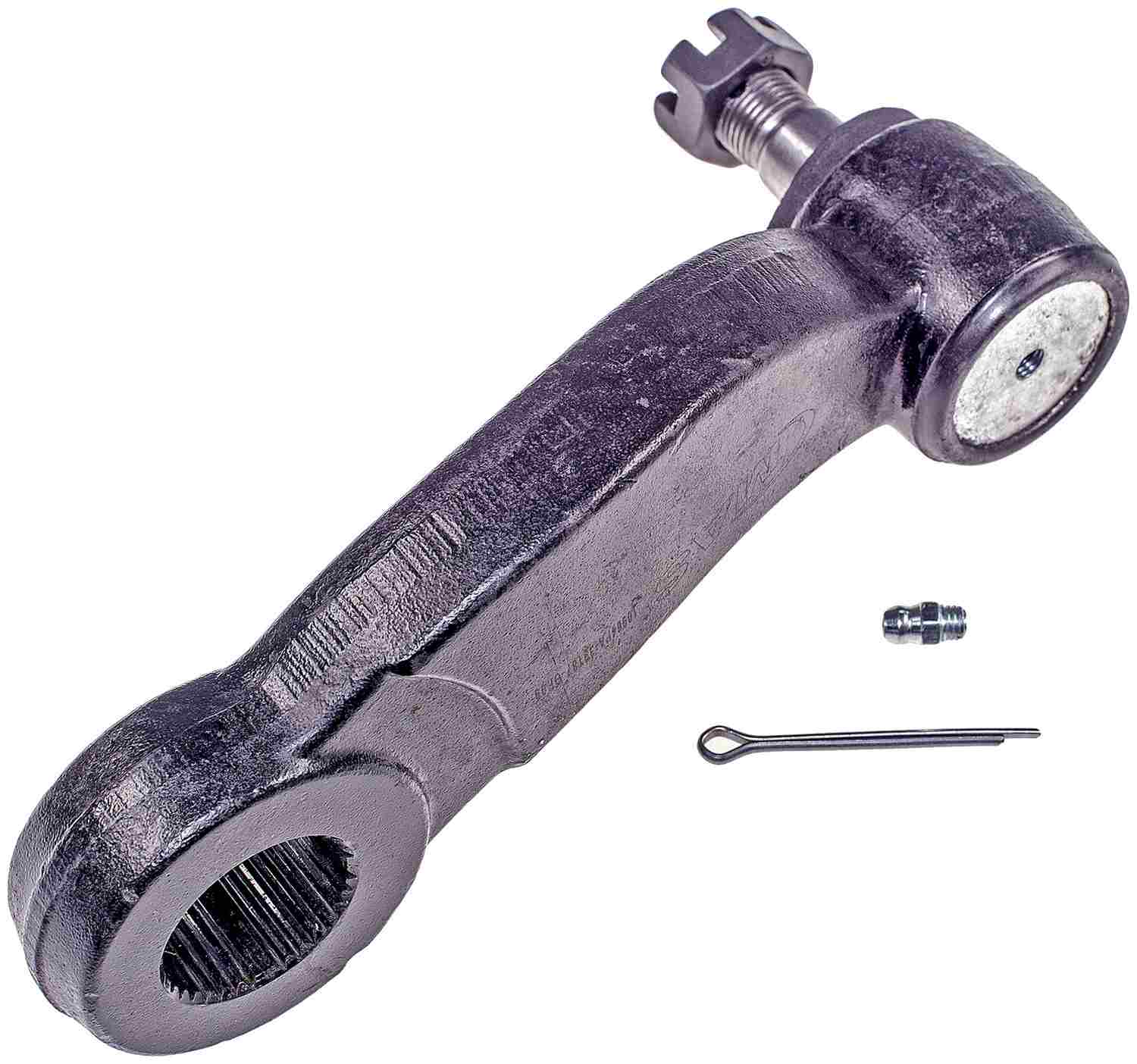

• Package Contents: 1 Pitman Arm; 1 Ball Joint; 1 Castle Nut; 1 Cotter Pin; 1 Zerk Fitting
• Spline Quantity: 32
• Steering Shaft Diameter: 30.3 mm

Vehicle Fitments:
