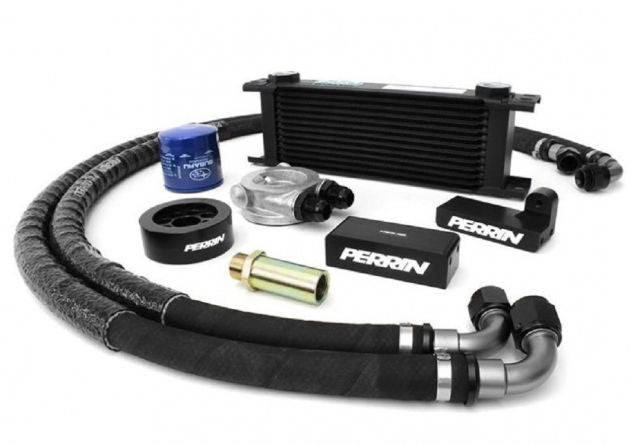

Perrin Performance Oil Cooler for 02-05 WRX & 04-17 STI

OVERVIEW

Reduce engine oil temperatures, extend engine life, and keep your horsepower consistent with a PERRIN Oil Cooler.

WHY YOU WANT THIS

In racing conditions engine oil temparature skyrockets. This causs decreased engine performance and reduces the oil's ability to properly lubricate. A well designed engine il cooling system like the PERRIN Oil Cooler Kit will help keep temperatures within the desired temperature range, thus maintaining performance and prolonging engine life.

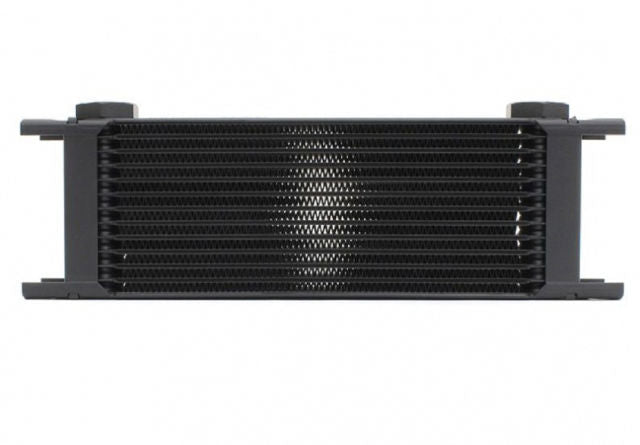

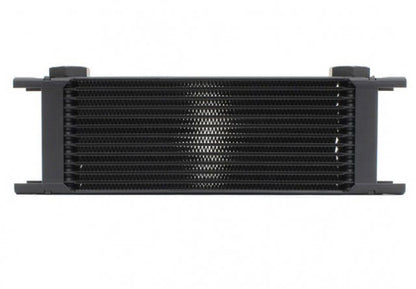

HEAT EXCHANGER

Each PERRIN oil cooler uses Setrab core which maximizes heat dissipation without pressure build-up. Oil-ways are interspaced with airway corrugations providing optimum geat transfer, while the oil passages use "turbulators" to break down boundary layer effects in the oil flow.

Setrab Oil Coolers employ an in-line turbulator to gently stir the fluid being cooled, thereby ensuring that the fluid has exposure to the entire internal surface area of the oil cooler with the least pressure lost. The turbulators are fully brazed to the entire internal lenght of the tube resulting in zero heat transfer barrier and high strenght.

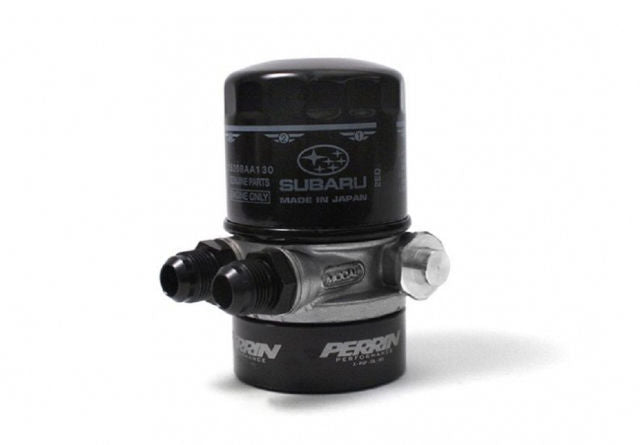

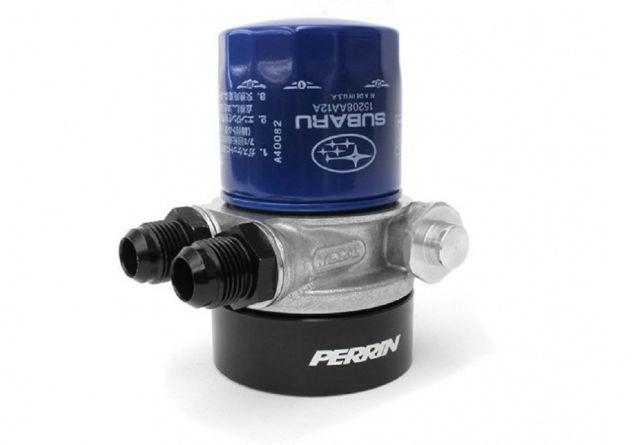

INTEGRATED THERMOSTAT

The PERRIN Filter adapter features an integrated 85 degree Celcius (185 degree faren height) thermostat. This means oil will not start flowing through the oil cooler until oil temps reach an optimum temperature of 85 degree celcius.

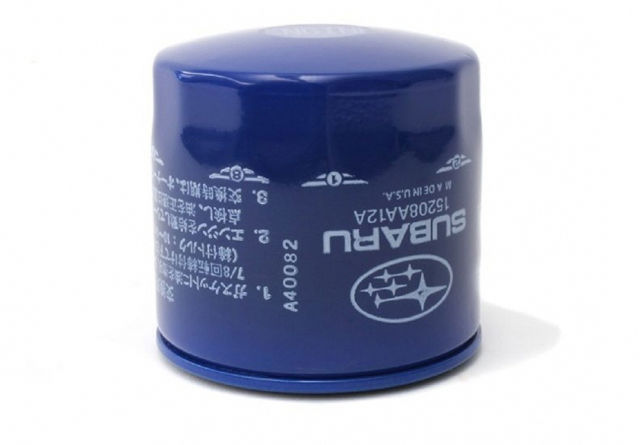

In addition to the OEM oil filter from subaru,we include a PERRIN spacer whic allows for easier installation of the thermostat-filter assembly.

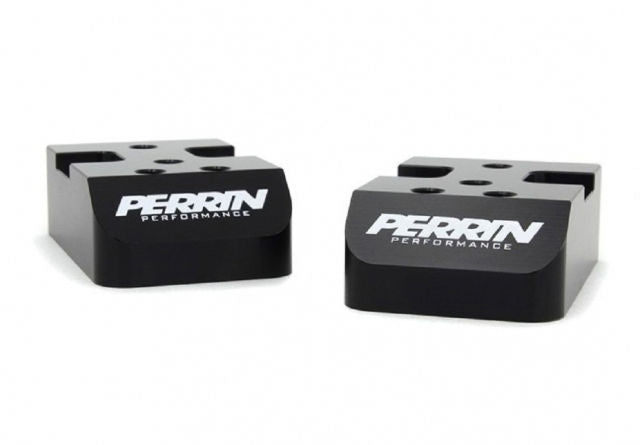

MONTING BRAKETS

The PERRIN Oil Cooler comes with custom brackets that allow the oil cooler core to mount directly to existing holes in the OEM core support of your vehicle. Made from CNC machined 6061 T6 aluminum, the brackets look sleek and stylish while blending seamlessly behind your bumper.

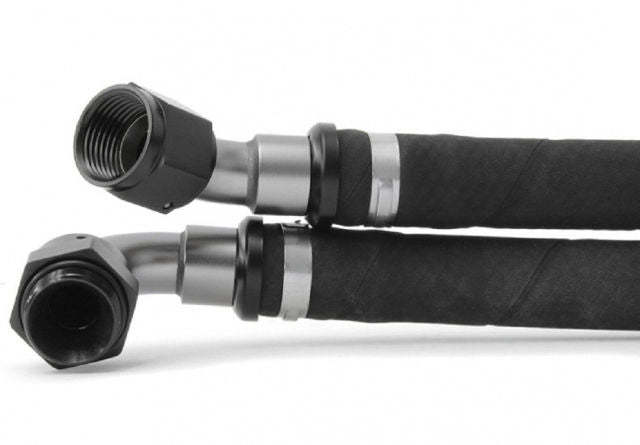

PREASSEMBLED HOSES

The PERRIN Oil Cooler kit uses lighweight Aeroquip brand -10 hose that is rated for 250psi and 300'F continuous temperature. Each hose consists of anodized -10 push-lock type aluminum hose ends. These fittings are designed to fit without the needfor clamps, but we take the extra step and add a clamp unsuring they will never come apart. Unlike other kits that make you assemble your hoses. PERRIN preassembles them for you!

PERRIN's hoses are made using Industrial grade Pyrojacket. Pyrojacket withstand continuous exposure to 500'F (260'C); up to 2000'F (1090'C) for 15-20 minutes; and up to 3000'F (1650'C) for 15-30 seconds. When exposed t flame, the silicone rubber transform into a crust,creating a protective Si02 refractory layer.

CORE SPECS
