Wiring Specialties SR20DET Harness Kit Swap HW-PDM15
Wiring Specialties SR20DET Harness Kit Swap HW-PDM15
Shipping calculated at checkout.
To United StatesChange
Final options and totals are confirmed at checkout.
Low stock: 10 left
Configure your harness
Select the options for your vehicle and equipment.
Add the specifications requested by your selected options, such as throttle body, pedal, or sensor details.
Your build summary
Contact us to order this configuration. We will confirm the options, availability, and final price.
Email this configurationShipping & returns
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyReturns
Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.
Read the full return policyReturn details & how to start
Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.
Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.
Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.
Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.
After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.
Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.
For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.
Specifications
Product details shared across all variants.
- Product type
- Wiring Harness
- Category
- Wiring Harnesses
- Item condition
- New
- Manufacturer type
- Aftermarket
- Shipping dimensions (L × W × H)
- Shipping weight
- 5.5 lb
Billable shipping weight; may include dimensional weight.

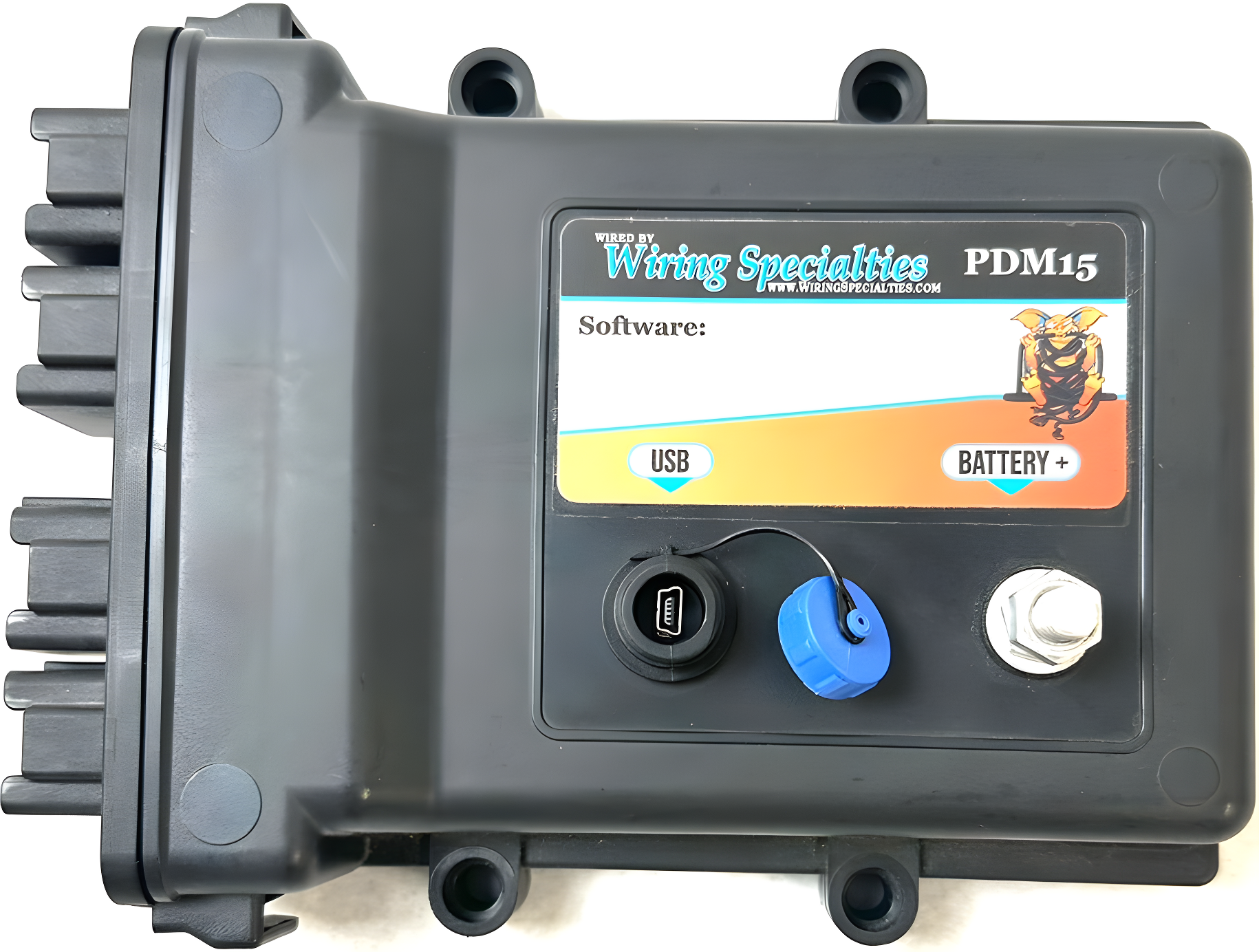

PDM 15 A PDM (Power Distribution Module) is a device used to replace conventional relays and fuses in a vehicle electrical system. The PDM takes inputs from physical switches, analogue voltages, or the CAN bus, and provides power to different electronic devices such as radiator fans, fuel pumps and head lights. The current being drawn from each connected device is continuously monitored. If the measured current is too high due to a fault, the PDM switches off the respective output to prevent further damage to the wiring loom or the connected device. The PDM can then retry the output to see if the fault has cleared. Product Details Included
- PDM15 Main Unit Technical Specification Advantages Over Fuses and Relays
- Greatly simplifies system wiring and reduces system component count.
- Reduces the weight of the electrical system.
- Provides increased reliability over traditional systems using mechanical relays.
- Solid state technology removes the problem of relay contact corrosion and relay bouncing in vibration heavy applications.
- Smart features such as indicator and wiper motor modes remove the need for extra control units.
- Current draw can be monitored and logged to pre-emptively detect faults. General Features
- Size: 200x160x54mm
- Weight: 615g
- Operating Temperature: -55°C to 90°C (-67°F to 194°F)
- Construction: Glass Fibre Reinforced Plastic
- IP Rating: IP67

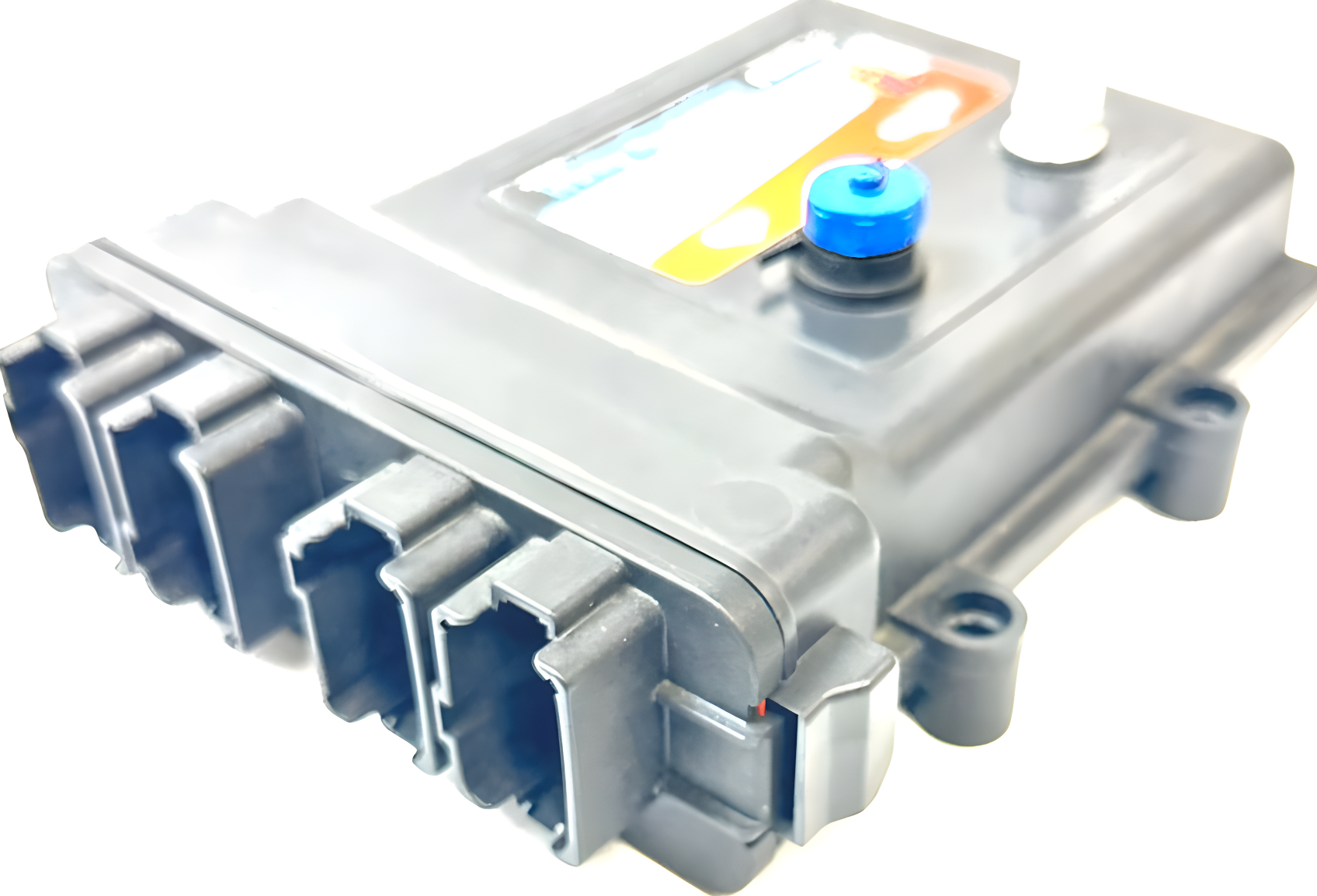

- Connectors: Deutsch DT 12-Pin
- Update Rate: Up to 800Hz Inputs
- Type: 16 Analogue inputs, which can also serve as digital inputs
- Measurement Range: Each input can measure between 0V-6V
- Measurement Resolution: 10-Bit, or 0.01V
- Protection: Fully protected for input voltages from -24V to 40V
- Added Features: Current sourcing for ground switch detection. Configure as active high or low. Configurable Hysteresis voltage. Latching or momentary operation. Outputs
- Type: 15 High side outputs 80A peak, 20A continuous.
- Combined: 180A combined output maximum current
- Output Current Control Steps: 100mA (0.1A)
- Protection: Each output is overcurrent, overtemperature, load dump and reverse polarity protected.
- 5V: One 5V, 500mA output for supplying external sensors/Hardwire Electronics CAN Keypad
- Added Features: Outputs can be configured to stay on for a specified time after the input is removed, useful for thermo-fans. Outputs can be retried multiple times after an over-current event is detected. Data Logging
- Storage: 128Mb of onboard flash storage for logging PDM data
- Speed: 0.1Hz to 50Hz
- Viewing: Data can be downloaded and graphed via the Hardwire Electronics PDM configurator software Functions
- Output Functions: Each Output can be switched with a user defined function
- Logical Operators: AND, OR, NOR, XOR, NAND, NOR, >, >=, <, <=, Equal, Not Equal USB
- Type: USB 2.0 Compliant Mini-B
- Driver: Integrated driver for Windows 10 CAN Bus
- Interface: 1x CAN2.0A/B
- Bus Speed: 50kbps, 100kbps, 125kbps, 250kbps, 500kbps, 1000kbps
- Input Stream: 40 Inputs, fully customizable variable parsing with bit masking and math functions. A range of CAN config files are available to communicate with common ECUs.
- Output Stream: 15 Outputs, fully customizable CAN frame construction with math functions
