Painless 1999-2006 GM Gen III 4.8/5.3/6.0L Integrated EFI & Chassis Harness
1999-2006 GM Gen III 4.8/5.3/6.0L Integrated EFI & Chassis Harness - Mech. TB

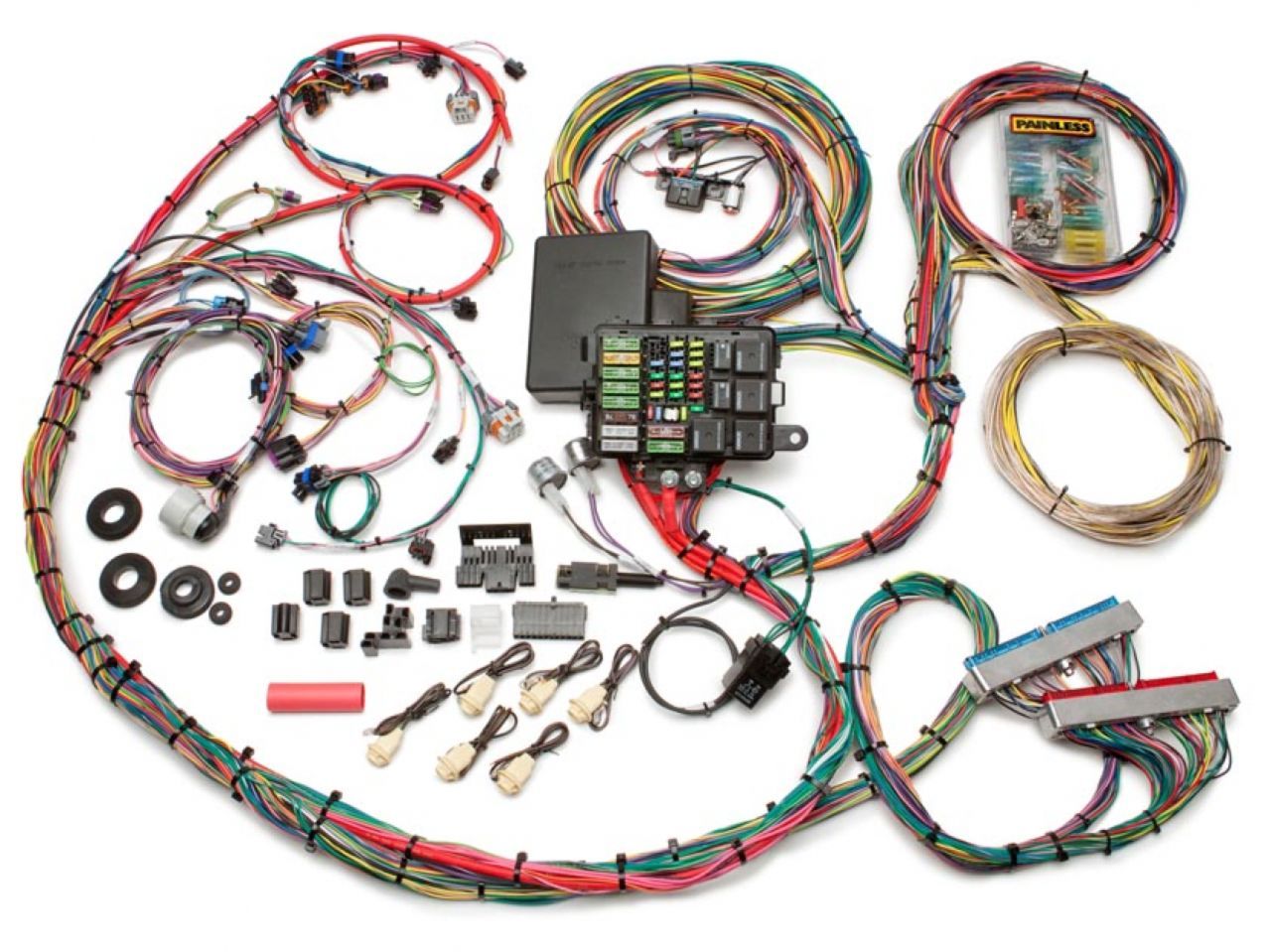

Our integrated EFI/Chassis harnesses are the perfect solution for anyone doing a complete rewire of a vehicle as well as transplanting a GM Gen III fuel injected engine. This kit is designed for use on 1999-2006 4.8L, 5.3L, & 6.0L Vortec truck engines with a 4L60E transmission. The chassis wiring and fuel injection wiring are fully integrated into a single 26 circuit/7 relay fuse block, eliminating the need to have separate fuses and relays for the fuel injection. The chassis harness connections are the same GM color coded connections as our 10201 kit. The fuel injection connections include the same labels connections as our 60217 harnesses. These harnesses do not support flex fuel engines and require the use of a mechanical throttle body. Included in this kit you will also find all the required terminals & connectors for easy installation.
Specifications
Number of Circuits: 26 Fuse with 7 Relays
Fuse Type: Mini Blade & Maxi Fuse
Firewall Passthrough: Multiple Grommet
Color Code Based: Fuel Injection 2000 Camaro / Chassis Universal GM
Circuit Designations: Printed Wire Tags on all Connectors and Printed on Wire for Open Ended Wires
This harness has the following chassis connections:
- A/C & Heat
- Accessory / Cigarette Lighter
- Backup Lights
- Brake Lights
- Charging
- Cruise Control
- Courtest & Dome Light
- Electric Fuel Pump
- Emergency Flashers
- Cooling Fan Relay #1
- Cooling Fan Relay #2
- Fused Power Source
- Headlights
- Horn Relay
- Ignition Coil
- Instrument Panel Lighting and Gauges
- Park Lights
- Power Antenna
- Power Door Locks
- Power Windows
- Radio/Clock (Constant and Switched)
- Starting
- Tail Lights
- Third Brake Light
- Turn Signals
- Wipers
The fuel injection harness includes connections for the following components:
- A/C Compressor
- Alternator
- Cam Position Sensor
- Coolant Temperature Gauge
- Crank Position Sensor
- Data Link Connector
- Driver/Pass Front O2 Sensors
- Engine Coolant Temperature
- Fuel Pump Relay
- Grounds
- Idle Air Control
- Ignition Coils
- Ignition Switch Signal
- Injectors
- Knock Sensors
- Malfunction Indicator Lamp
- MAP Sensor
- Mass Airflow Sensor / Intake Air Temperature Sensor
- Oil Pressure Gauge
- ECM
- PRNDL Switch
- Starter
- Tachometer
- Throttle Position Sensor
- Transmission
- Vehicle Speed Sensor
- VSS Output for Speedometer
