Painless Wiring

Painless 1997-2004 GM LS1/LS6 Integrated EFI & Chassis Harness -Mechanical TB

Painless 1997-2004 GM LS1/LS6 Integrated EFI & Chassis Harness -Mechanical TB

$2,032.20
$2,673.95 $2,032.20
Sale Sold out

Shipping calculated at checkout.

Low stock: 8 left

Shipping & returns

Shipping details

In-stock orders are processed within 48 hours; transit time is additional.

International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

Read the shipping policy

Returns

Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.

Read the full return policy
Return details & how to start

Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.

Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.

Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.

Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.

After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.

Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.

For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.

Specifications

Shipping weight
23.8 lb
Barcode
749823606081

Billable shipping weight; may include dimensional weight.

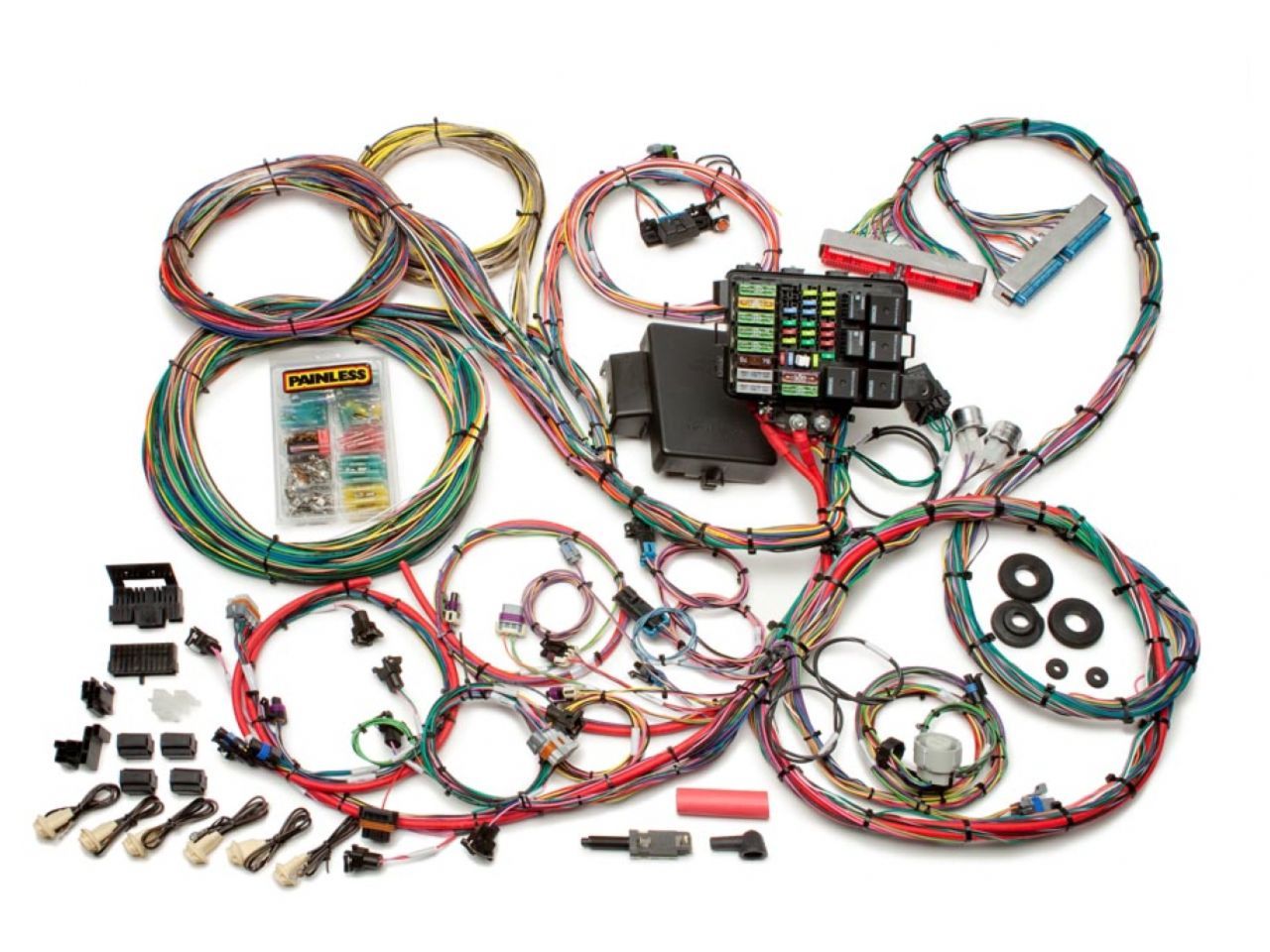

Our integrated EFI/Chassis harnesses are the perfect solution for anyone doing a complete rewire of a vehicle as well as transplanting a GM Gen III fuel injected engine. This kit is designed for use on 1997-2004 LS1 engines with a 4L60E transmission. The chassis wiring and fuel injection wiring are fully integrated into a single 26 circuit/7 relay fuse block, eliminating the need to have separate fuses and relays for the fuel injection. The chassis harness connections are the same GM color coded connections as our 10201 kit. The fuel injection connections include the same labels connections as our 60508 harnesses. These harnesses do not support flex fuel engines and require the use of a mechanical throttle body. Included in this kit you will also find all the required terminals & connectors for easy installation.   This harness also requires the following mating parts; ECM #12200411 (Painless # 60700).We recommend checking the online manual for the full list of required mating parts prior to ordering.

Specifications

Number of Circuits: 26 Fuse with 7 Relays

Fuse Type: Mini Blade & Maxi Fuse

Firewall Passthrough: Multiple Grommet

Color Code Based: 2000 Camaro

Circuit Designations:  Printed Wire Tags on all Connectors and Printed on Wire for Open Ended Wires.
