Painless 2007+ Gen IV LS3 EFI Harness - Throttle By Wire

Painless 2007+ Gen IV LS3 EFI Harness - Throttle By Wire

Regular price $1,330.72
Regular price $1,750.95 Sale price $1,330.72
Sale Sold out

Shipping calculated at checkout.

Low stock: 1 left

Quantity

Shipping & returns

Shipping details

In-stock orders are processed within 48 hours; transit time is additional.

International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

Read the shipping policy

Returns

Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.

Read the full return policy
Return details & how to start

Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.

Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.

Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.

Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.

After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.

Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.

For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.

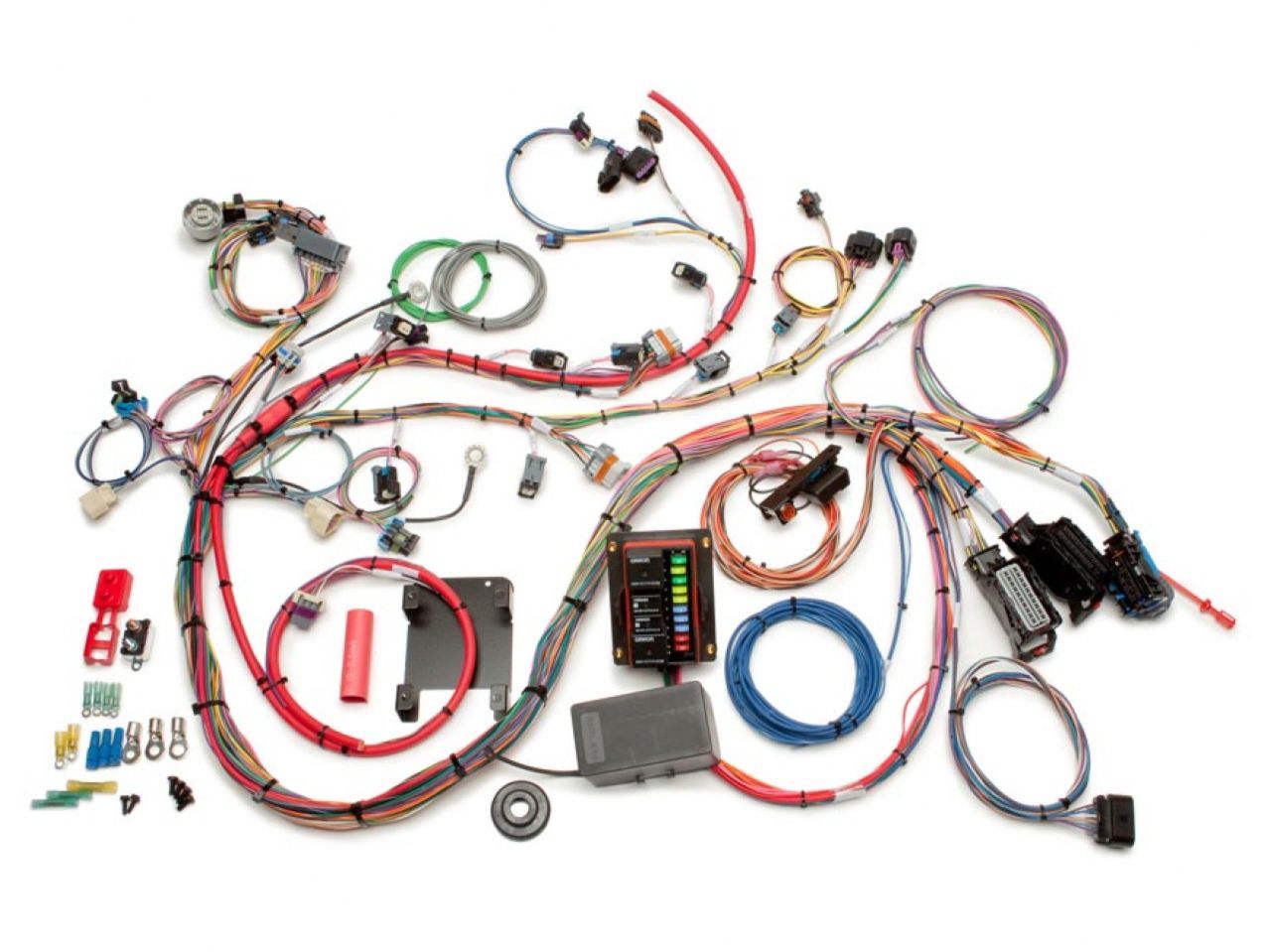

This harness is designed for use on any 2007 and up LS3 with throttle by wire. It uses the factory ECM & TCM and will operate engines with or without variable valve timing (VVT) and active fuel management (displacement on demand or DOD). This harness does not support flex fuel operation and will not work on GTO's. Included with this harness is a 10 circuit weatherproof fuse block & mounting bracket, GM color coded wires with labels, and all the required terminals and connectors for easy installation.

This standard length harness allows four feet from the back of the intake manifold to where the fuseblock and ECM mount. Perfect for those that plan to mount these components under the dash or in the glove box.

This harness also requires the following mating parts; ECM #12597121 (Painless # 60701) or #12612384 (Painless # 60702); TCM #24234503(Painless # 60710); Accelerator pedal #25832864 or #25835421.

Specification

Number of Circuits: 10 Fuses with 2 Ignition, 1 Cooling Fan & 1 Fuel Pump Relay
Harness Length: 4 Feet Between Engine and ECM
Fuse Type: Mini Blade
Firewall Passthrough: Grommet
Circuit Designations: Printed Wire Tags on all Connectors and Open Ended Wires

The Fuse Block Protects The Following Circuits:

  • ECM and Data Link Connector B+
  • ECM and Malfunction Indicator Lamp
  • Fuel Pump
  • Heated O2 Sensors
  • Ignition Coils
  • Injectors
  • Mass Airflow and Valve Lifter Oil Manifold (DOD)
  • TCM
  • TCM B+
  • Transmission
  • 40 Amp Cooling fan Relay and Circuit Breaker (ECM Activated)
  • 20 Amp Fuel Pump Relay
  • 40 Amp & 20 Amp Ignition Relays

This harness includes connections for the following components:

  • Accelerator Pedal Position Sensor
  • Alternator (Including a 4 gauge power wire)
  • Brake Switch
  • Cam Position/Cam Phazer Sensor
  • Cooling Fan
  • Crank Position Sensor
  • Data Link Connector
  • Driver/Pass Front O2 Sensors
  • Driver/Pass Knock Sensors
  • ECM
  • Engine Coolant Temperature
  • Fuel Pump
  • Grounds
  • Ignition Coils
  • Ignition Switch Signal
  • Injectors
  • Input Speed Sensor 4L80E/4L85E
  • Malfunction Indicator Lamp
  • MAP Sensor
  • Mass Airflow / Intake Air Temperature Sensor
  • Oil Pressure Sensor
  • PRNDL Switch
  • Reverse Lights
  • Starter
  • TCM
  • Throttle Body
  • Transmission
  • Valve Lifter Oil Manifold (DOD)
  • Vehicle Speed Sensor
  • VSS Output for Speedometer

Application

Year: 2007+
Make: General Motors
Engine: LS3
Trans.: 4L65E
