Painless 1997-2004 GM LS1 EFI Harness - Throttle by Wire

Painless 1997-2004 GM LS1 EFI Harness - Throttle by Wire

Regular price $886.88
Regular price $1,166.95 Sale price $886.88
Sale Sold out

Shipping calculated at checkout.

Low stock: 3 left

Quantity

Shipping & returns

Shipping details

In-stock orders are processed within 48 hours; transit time is additional.

International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

Read the shipping policy

Returns

Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.

Read the full return policy
Return details & how to start

Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.

Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.

Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.

Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.

After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.

Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.

For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.

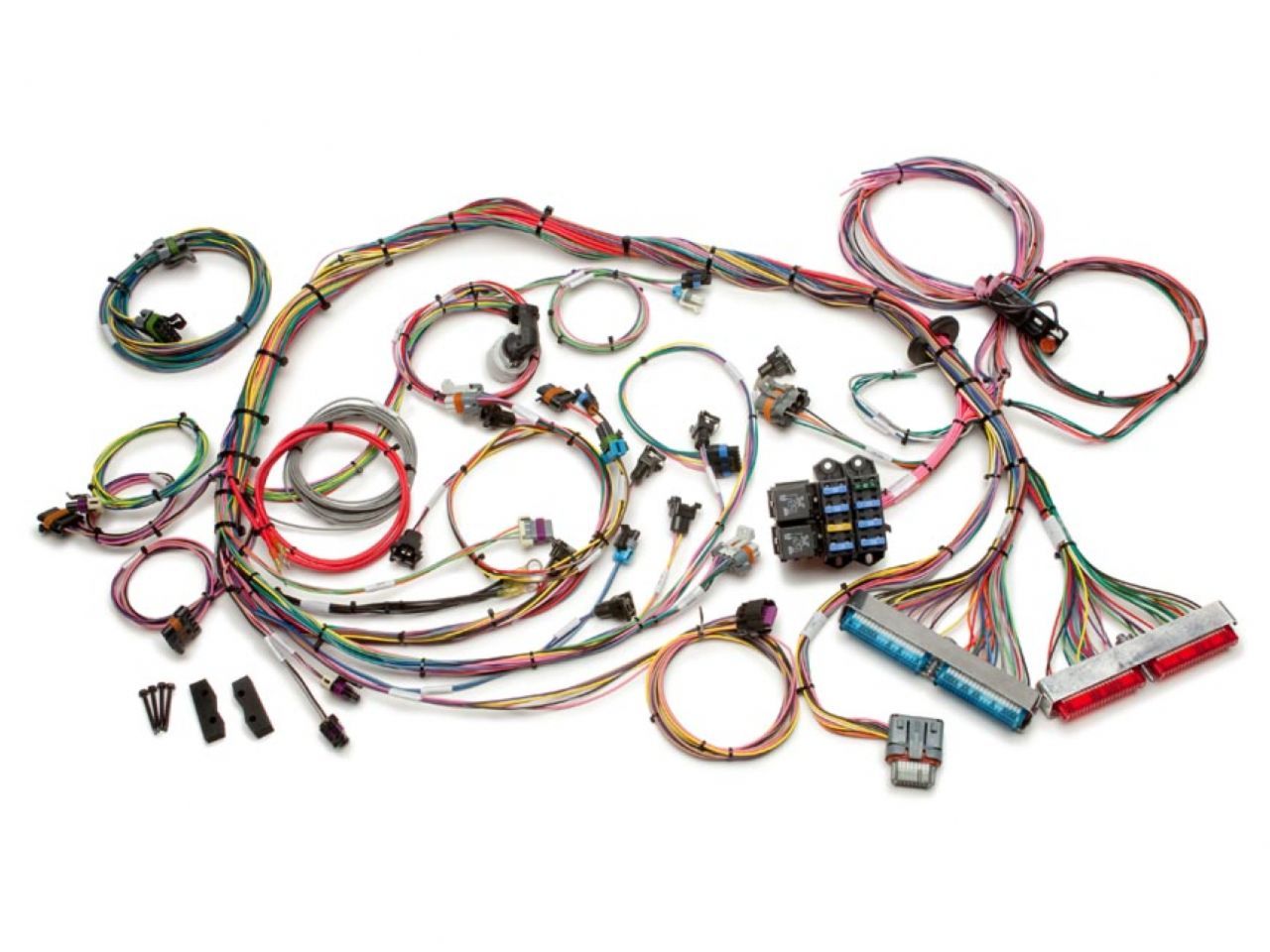

This harness is designed for the 1997-2004 throttle by wire LS1/LS6 engines with a 4L60E/4L65E automatic or T56 manual transmission. These engines were factory equipped in 1997-2004 Corvette. Harnesses do not include any emissions related connections. Included with this harness is an 8 circuit modular fuse block and GM color coded wires with labels for easy installation.

This standard length harness allows four feet from the back of the intake manifold to where the fuseblock and ECM mount. Perfect for those that plan to mount these components under the dash or in the glove box.

This kit includes:

  • All new fuel injection harness with OEM fitment connectors and harness breakouts
  • OBDII connector, mounting bracket and check engine light
  • Rubber grommet
  • Mounting hardware

Specification

Number of Circuits: 8 Fuses with 2 Ignition & 1 Fuel Pump Relay
Harness Length: 4 Feet Between Engine and ECM
Fuse Type: Blade
Firewall Passthrough: Grommet
Color Code Based: 2002 Corvette
Circuit Designations: Printed Wire Tags on all Connectors and Open Ended Wires

The Fuse Block Protects The Following Circuits:

  • DLC B+
  • Driver Side Injectors and Coils
  • Dual 40 amp Ignition Relays
  • Fuel Pump
  • Heated O2 Sensors, Mass Airflow Sensor, & Brake Switch
  • Pass Side Injectors and Coils
  • ECM and Malfunction Indicator Lamp
  • ECM B+
  • Transmission and TAC Module

This harness includes connections for the following components:

  • Accelerator Pedal Position Sensor
  • Alternator
  • Brake Switch
  • Cam Position Sensor
  • Clutch Pedal Position
  • Crank Position Sensor
  • Cruise Control
  • Data Link Connector
  • Driver/Pass Front O2 Sensors
  • Driver/Pass Knock Sensors
  • ECM
  • Engine Coolant Temperature
  • Fan #1 Relay Ground ECM Activation
  • Fan #2 Relay Ground ECM Activation
  • Fuel Pump
  • Fuel Pump Relay
  • Fuel Pump Test
  • Gear Indicator Switch
  • Grounds
  • Ignition Coils
  • Ignition Switch Signal
  • Injectors
  • Malfunction Indicator Lamp
  • MAP Sensor
  • Mass Airflow / Intake Air Temperature Sensor
  • Oil Pressure Sensor
  • Reverse Lockout Solenoid
  • Skip Shift Light
  • Skip Shift Solenoid
  • Starter
  • Tachometer
  • Throttle Actuator Control Module
  • Throttle Actuator Control Module to Accelerator Pedal Pigtail
  • Throttle Actuator Control Motor
  • Throttle Position Sensor
  • Transmission
  • Vehicle Speed Sensor
  • VSS Output for Speedometer

Application

Year: 1997 - 2004
Make: General Motors
Model: Corvette, Crate Engine
Engine: 5.7L LS1 / LS6 w/ Throttle by Wire
Trans.: 4L60E, T-56
