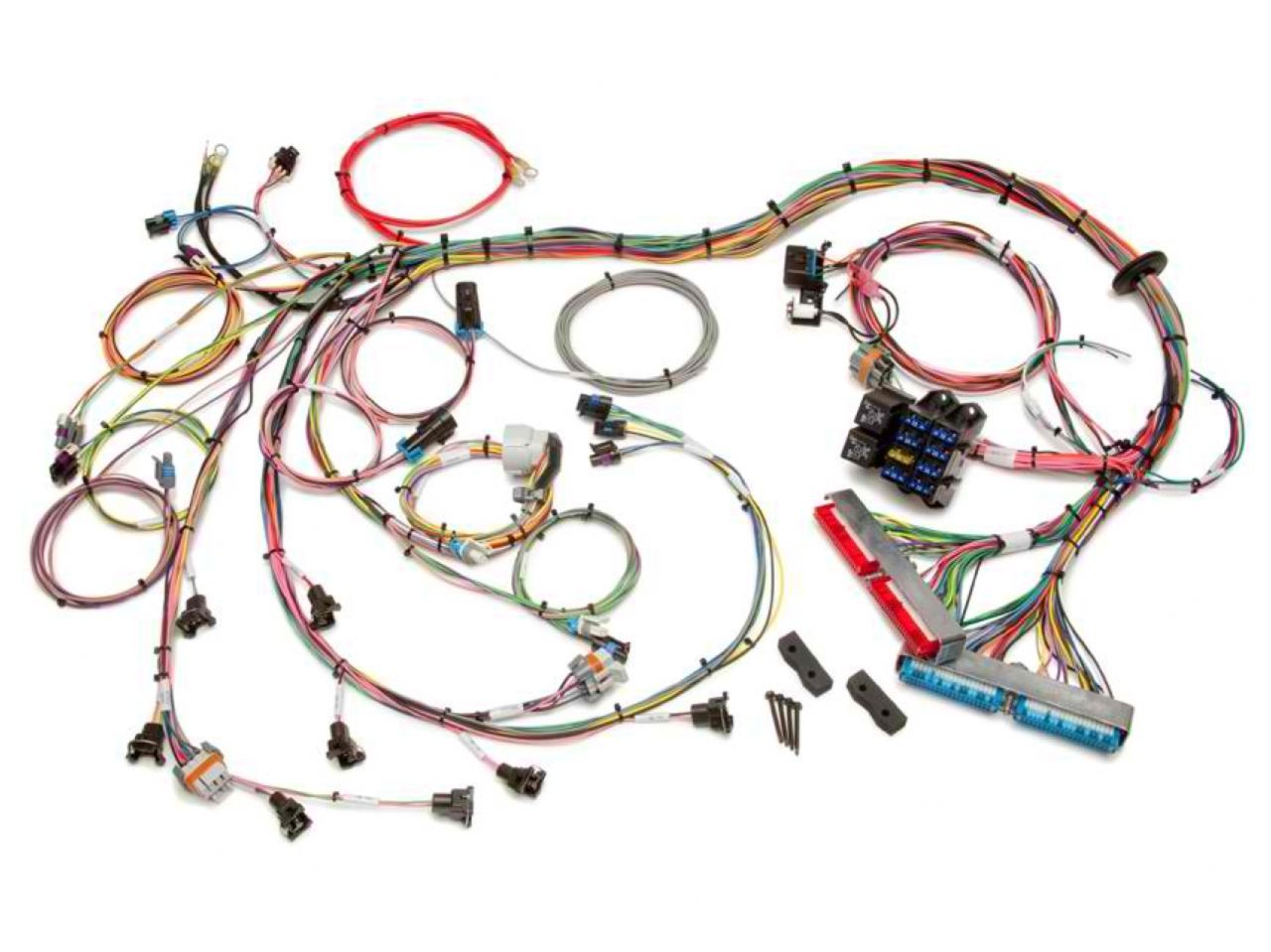

Painless 1998-2002 GM LS-1 Harness Std. Length

Year: 1998 - 2004
Make: General Motors
Model: Camaro, Firebird, Corvette
Engine: 5.7L LS1 / LS6 w/ Cable Throttle Body
Trans.: 4L60E, T-56



This harness is designed for the 1998-2002 LS1 mechanical throttle body engines using a 1999+ LS1 / LS6 ECM with a 4L60E/4L65E automatic or T56 manual transmission. These engines were found in 1998-2002 Camaro/Firebird. This harness will also work on 1997-2004 Throttle By Wire (TBW) LS1/LS6 engines which has been changed to mechanical throttle body or any 1999-2006 (4.8, 5.3, & 6.2) Vortec truck engine which has been changed to a factory of aftermarket LS1 intake manifold, mechanical throttle body, and injectors. Harnesses do not include any emissions related connections but are available separate. Included with this harness is an 8 circuit modular fuse block and GM color coded wires with labels for easy installation.



This standard length harness allows four feet from the back of the intake manifold to where the fuseblock and ECM mount. Perfect for those that plan to mount these components under the dash or in the glove box.



- All new fuel injection harness with OEM fitment connectors and harness breakouts

- OBDII connector, mounting bracket and check engine light

- Rubber grommet

- Mounting Hardware



We recommend checking the online manual for the full list of required mating parts prior to ordering.



Number of Circuits: 8 Fuses with 2 Ignition & 1 Fuel Pump Relay
Harness Length: 4 Feet Between Engine and ECM
Fuse Type: Blade
Firewall Passthrough: Grommet
Color Code Based: 2000 Camaro
Circuit Designations: Printed Wire Tags on all Connectors and Open Ended Wires
