Painless 1999-2006 GM Gen III 4.8, 5.3 & 6.0L Harness Std. Length
Features:
- Year: 1999 - 2006 Make: General Motors Model: C & K Truck Engine: 4.8L, 5.3L, 6.0L w/ Mechanical Throttle Body Trans.: 4L60E, 4L65E, 4L70E, 4L80E, 4L85E, or manual American Made This harness is designed for the 1999-2006 4.8L, 5.3L, 6.0L mechanical throttle body engines using an LS1 / LS6 PCM with a 4L60E, 4L65E, 4L70E, 4L80E, 4L85E, or manual transmission. 2003-2006 Engines will require a mechanical throttle body to be installed. 2003-2006 engines which were originally flex fuel will also require Delphi Multec 2 (factory truck style) injectors to be installed. Harnesses do not include connections for the rear O2 sensors or fuel tank pressure sensor but are available separate. Included with this harness is a 10 circuit weatherproof fuse block and GM color coded wires with labels for easy installation.
- This standard length harness allows four feet from the back of the intake manifold to where the fuseblock and ECM mount. Perfect for those that plan to mount these components under the dash or in the glove box.

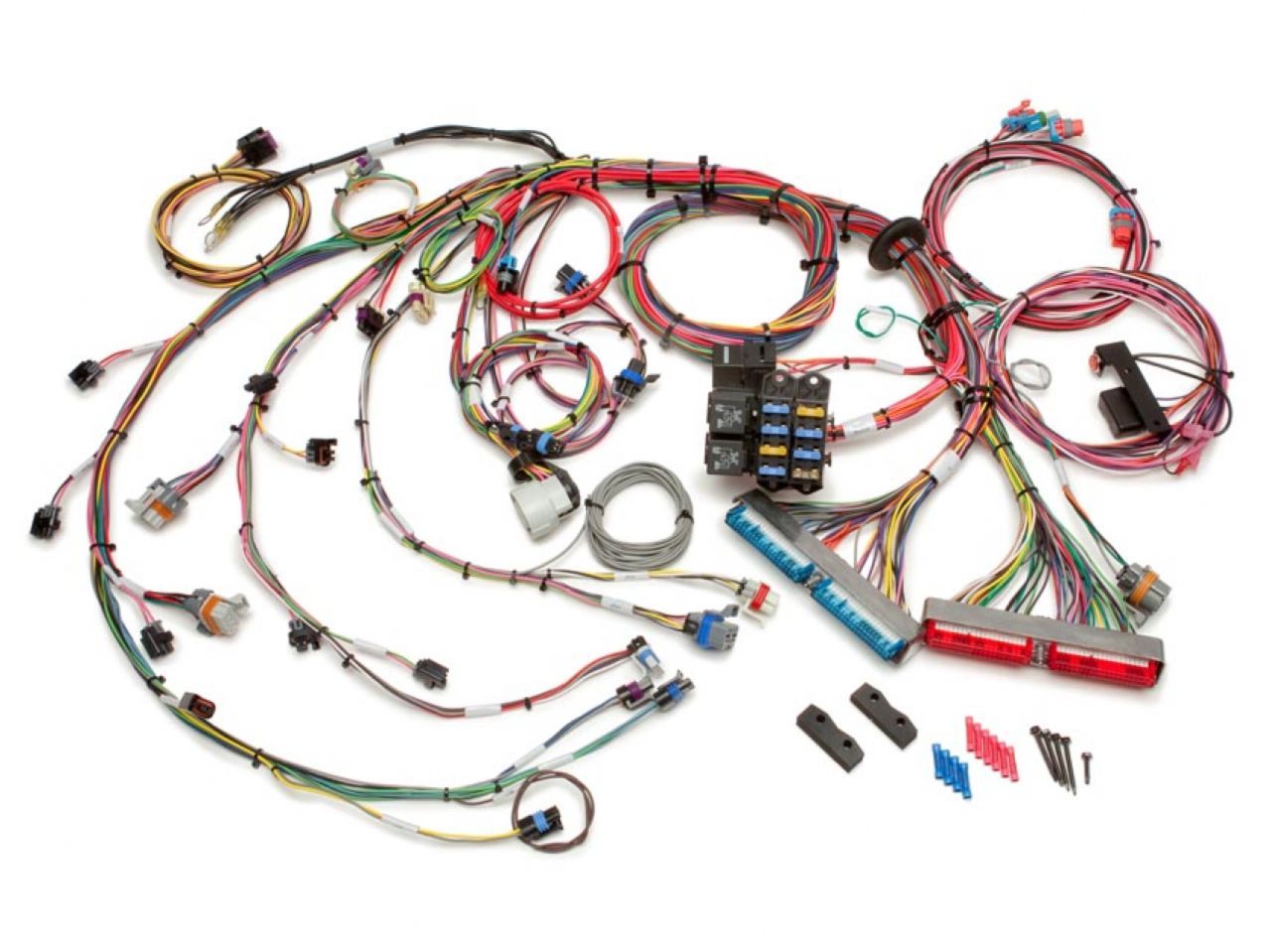

- This kit includes:
- All new fuel injection harness with OEM fitment connectors and harness breakouts
- OBDII connector, mounting bracket and check engine light
- Rubber grommet
- Mounting hardware
Painless 1999-2006 GM Gen III 4.8, 5.3 & 6.0L Harness Std. Length
Sale price$661.24 USD
Regular price$661.24 USD (/)
