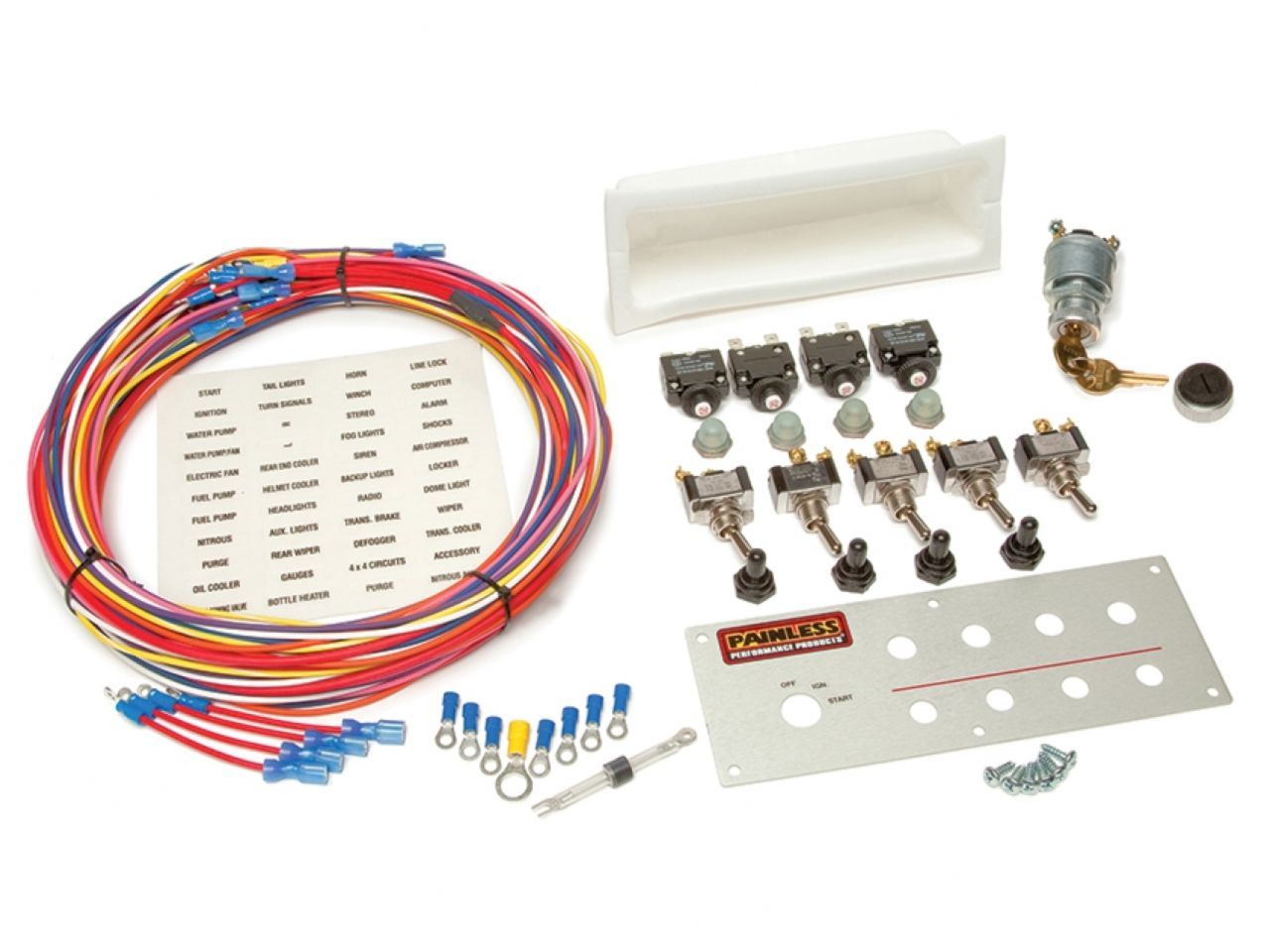

Painless Off-Road 4 Toggle/Ignition Switch/Dash Mount

The Offroad 4 and 6 Toggle Switch Panels are designed to handle some of the harshest conditions an Offroad Vehicle can be exposed to. These Switch Panels feature a formed polyethylene liner to seal off all of the rear connections on the individual toggle switches and the Ignition or Push Button Starter Switches. This same polyethylene liner also acts like a gasket between the switch panel face plate to the dash or to the switch panel box; creating a highly water-resistant seal. The panels with the Keyed Ignition Switches include a robust rubber sealed outer nut to protect the lock cylinder from the elements both with and without the key inserted.All Circuit Breakers and 20 Amp toggle switches are protected by the included weather-resistant boots on the outside and all circuits are protected with push-button, resettable circuit breakers. Each Output Wire is 18 feet of TXL wire and machine terminated with vibration resistant, fully insulated terminals.Peel and Stick Labels are included to help you identify what each output is connected to and cover most applications.

Specifications

Number of Circuits: 7 Circuits

Harness Length: 18 Ft Long 14 Gauge TXL Wires

Fuse Type: (3) 20 AMP Push-Button Reset Circuit Breakers, (1) 15 AMP Push-Button Reset Circuit Breaker

Firewall Passthrough: Varies on routing through vehicle

Color Code Based: Painless Specific

Circuit Designations: 7 Circuit System
