Painless Waterproof Fan Relay (on 195, off 185)
This weatherproof Fan-Thom II kit comes with a threaded thermostat that screws into the engine block or intake manifold for a professional looking installation. This is inexpensive protection for an electric fan and a vehicle's wire harness. Provides constant voltage, protects from voltage and amperage spikes and prevents the fan from back feeding voltage through the vehicle's wire harness.

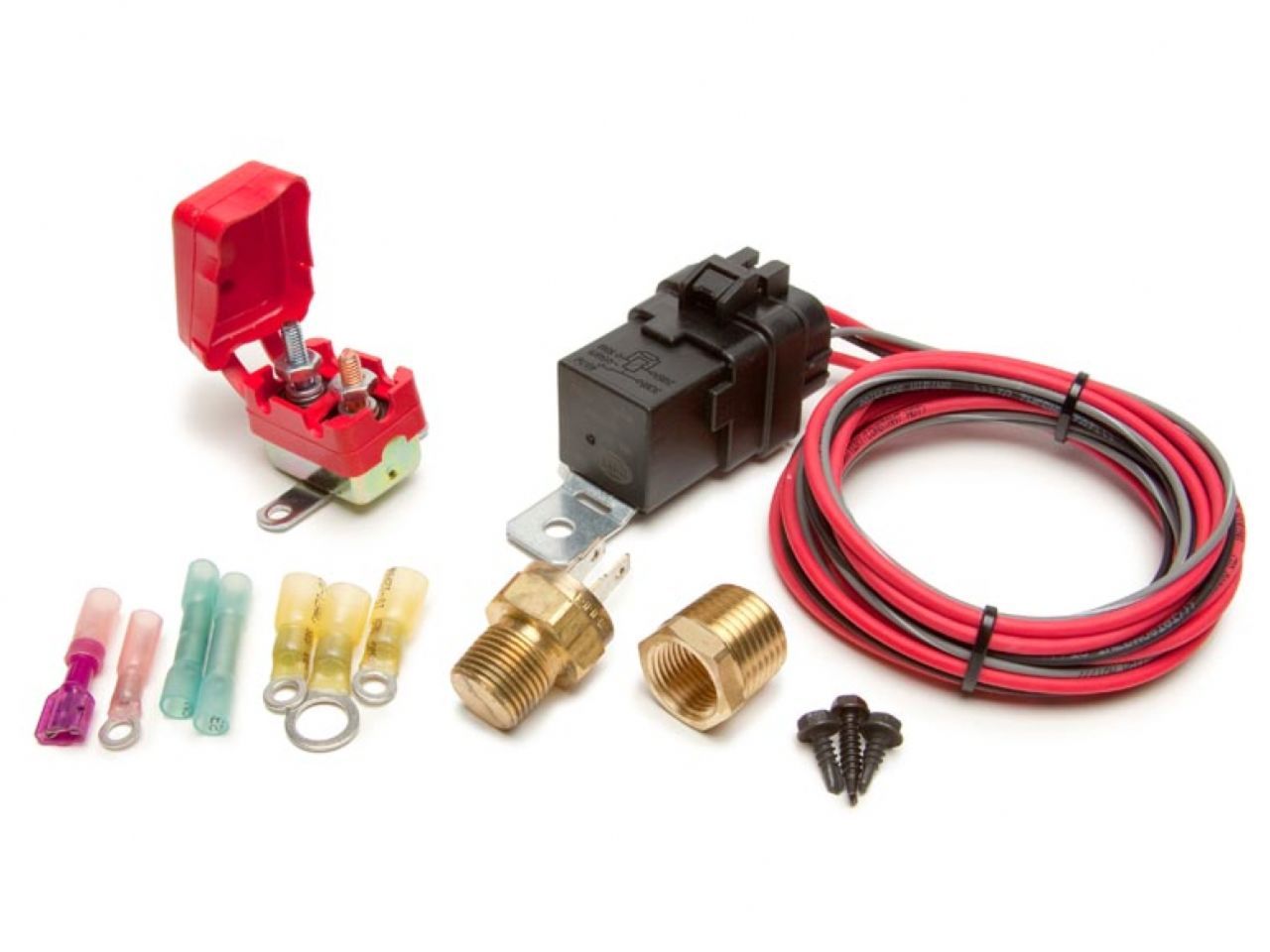

This kit includes:
- Weatherproof SPST 35 Amp relay
- Weatherproof 30 Amp circuit breaker
- Thermostatic switch 195°F On/185°F Off (thread size: 3/8"-18NPT)
- 1/2"NPT to 3/8"NPT adapter
- Weatherproof relay base with harness
- Weatherproof heat-shrinkable crimp-on terminals
- Mounting hardware
Specification:
Other electric fan relay kits and accessories available from Painless Performance
30100- 70 Amp fan relay kit (no thermostat)
30101- Universal fan relay kit (no thermostat)
30102- Single activation fan relay kit (195°F On/185°F)
30103- Single activation fan relay kit (185°F On/175°F)
30104- Universal (adjustable thermostat)
30106- Gen III fan relay kit (205°F On/190°F)
30109- PCM controlled fan relay kit (no thermostat)
30110- Replacement thermostat (195°F On/185°F)
30111- Replacement thermostat (185°F On/175°F)
30112- Adjustable thermostat only
30113- Replacement Gen III thermostat (205°F On/190°F)
30114- Dual activation fan relay kit (195°F On/185°F)
30115- Dual activation fan relay kit (185°F On/175°F)
30127- Weatherproof Gen III fan relay kit (205°F On/190°F)
30129- Weatherproof single activation fan relay kit (185°F On/175°F)
30130- Weatherproof universal fan relay kit (no thermostat)
30133- Weatherproof PCM controlled fan relay kit (no thermostat)
