Painless Direct Fit Harness 1969 Chevelle Malibu 26 Circuits

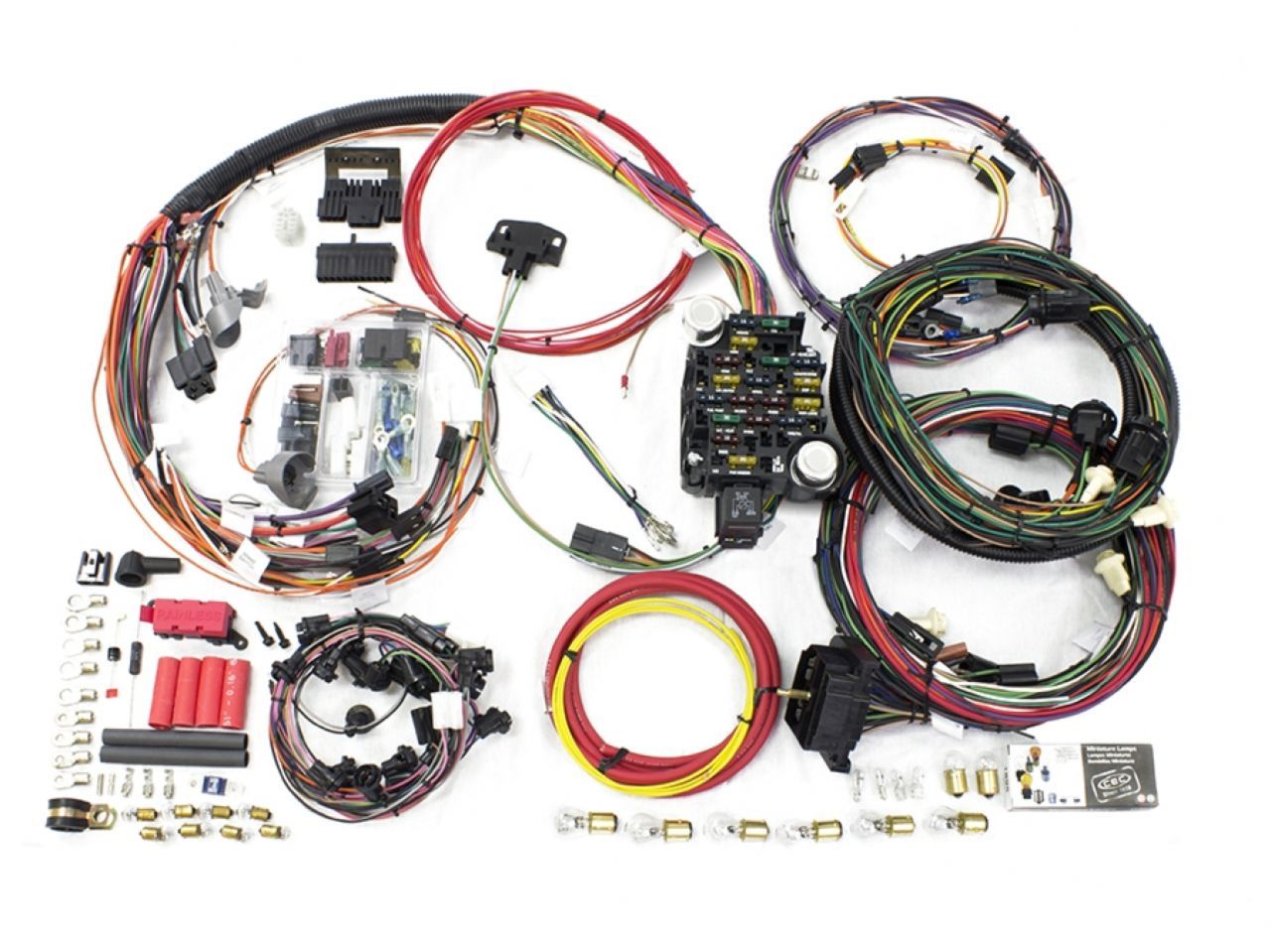

This direct fit wiring harness gives you everything you need, plus more to wire your 1969 Chevelle! Not only are there provisions for connecting standard factory components, we also provide what you will need for aftermarket components. Including options like a console sub-harness, two gauge cluster pigtails, and even a fully integrated ground circuit. This harness follows all of the same wire routing found on the factory harness which allows you to utilize the factory harness attachment points. Extra length has even been added to the headlight section to be routed behind the driver side inner fender for a cleaner look. Also available is a 120+ page manual full of color schematics, photos, and step-by-step instructions!
- Numerous components have the connectors and terminals pre-installed to make connections plug-n-play
- All exterior lights have the correct sockets and bulbs pre-installed
- 6 gauge charge wire and 150 amp MIDI fuse
- Fully integrated ground circuit
- 120+ page manual full of color schematics, photos, and step-by-step instructions
Here are some of the great features included with this kit.

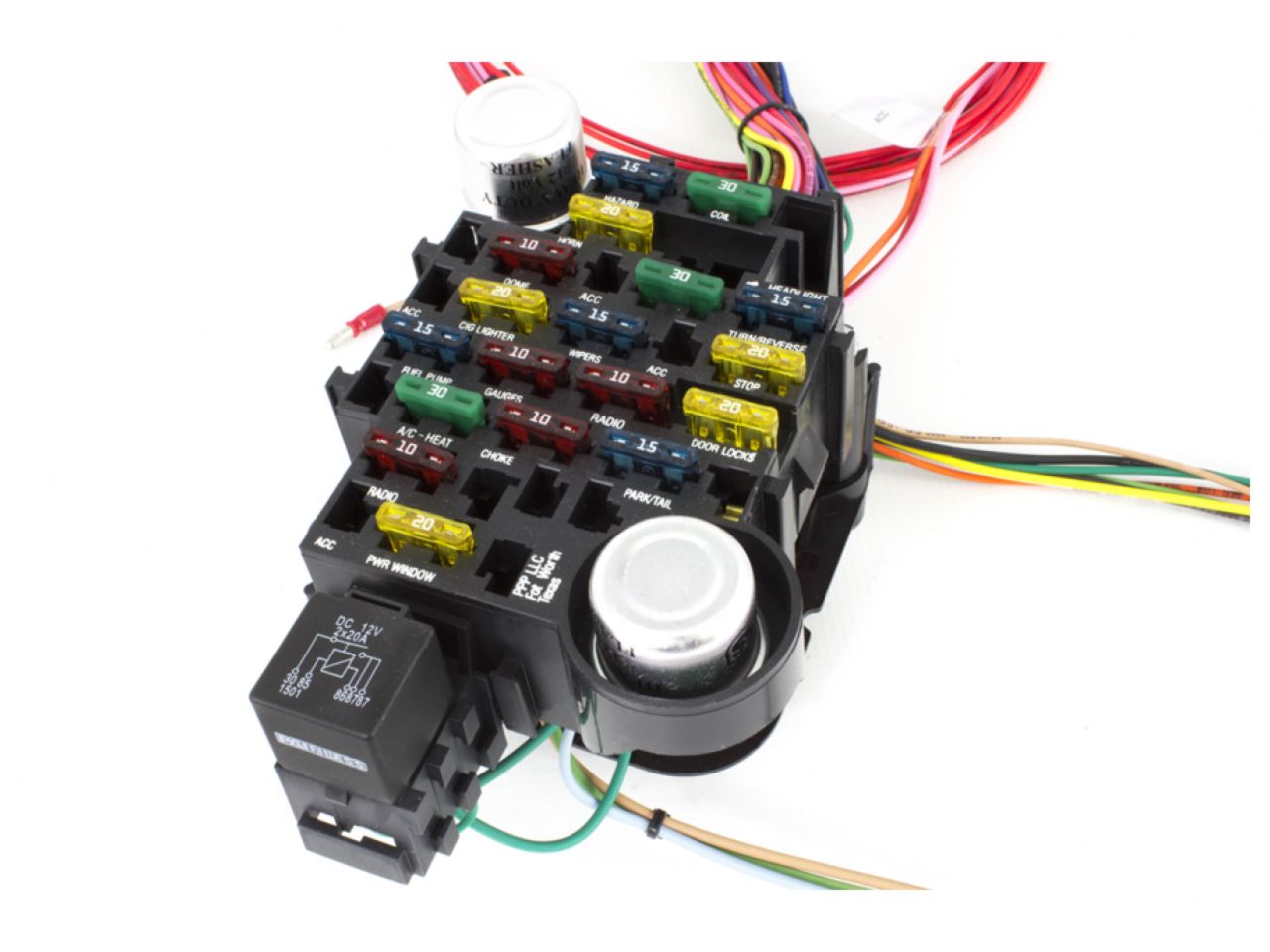

The heart of your new Chevelle wiring harness is centered around this factory style precision molded fuse block. Updated ATC style fuses ensure that the 26 circuits stay protected and safe.

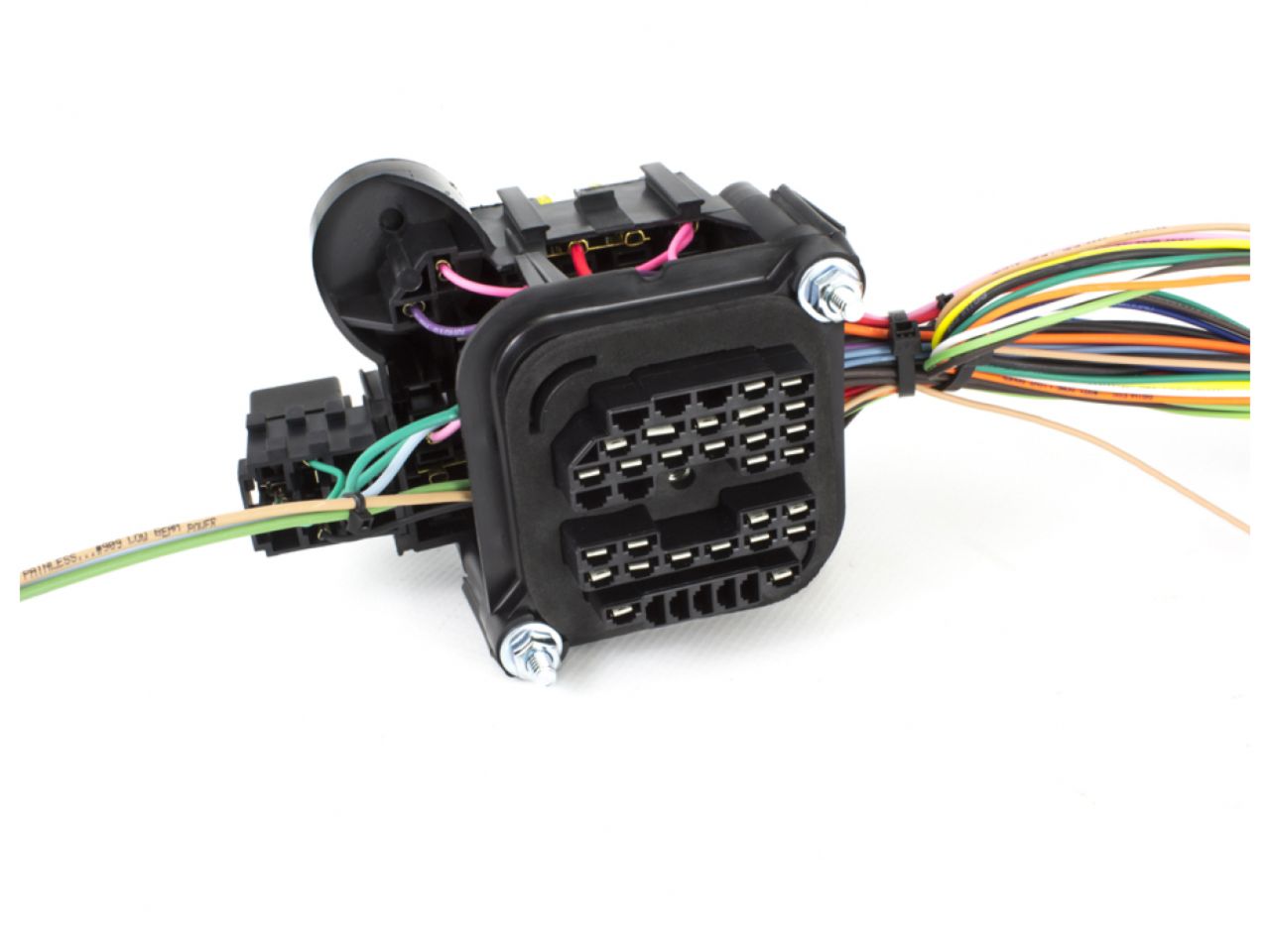

The backside of the fuse block utilizes a factory style bulkhead connector to ensure there is no trimming or cutting to your firewall. This allows you to easily install the fuse block in the factory location.

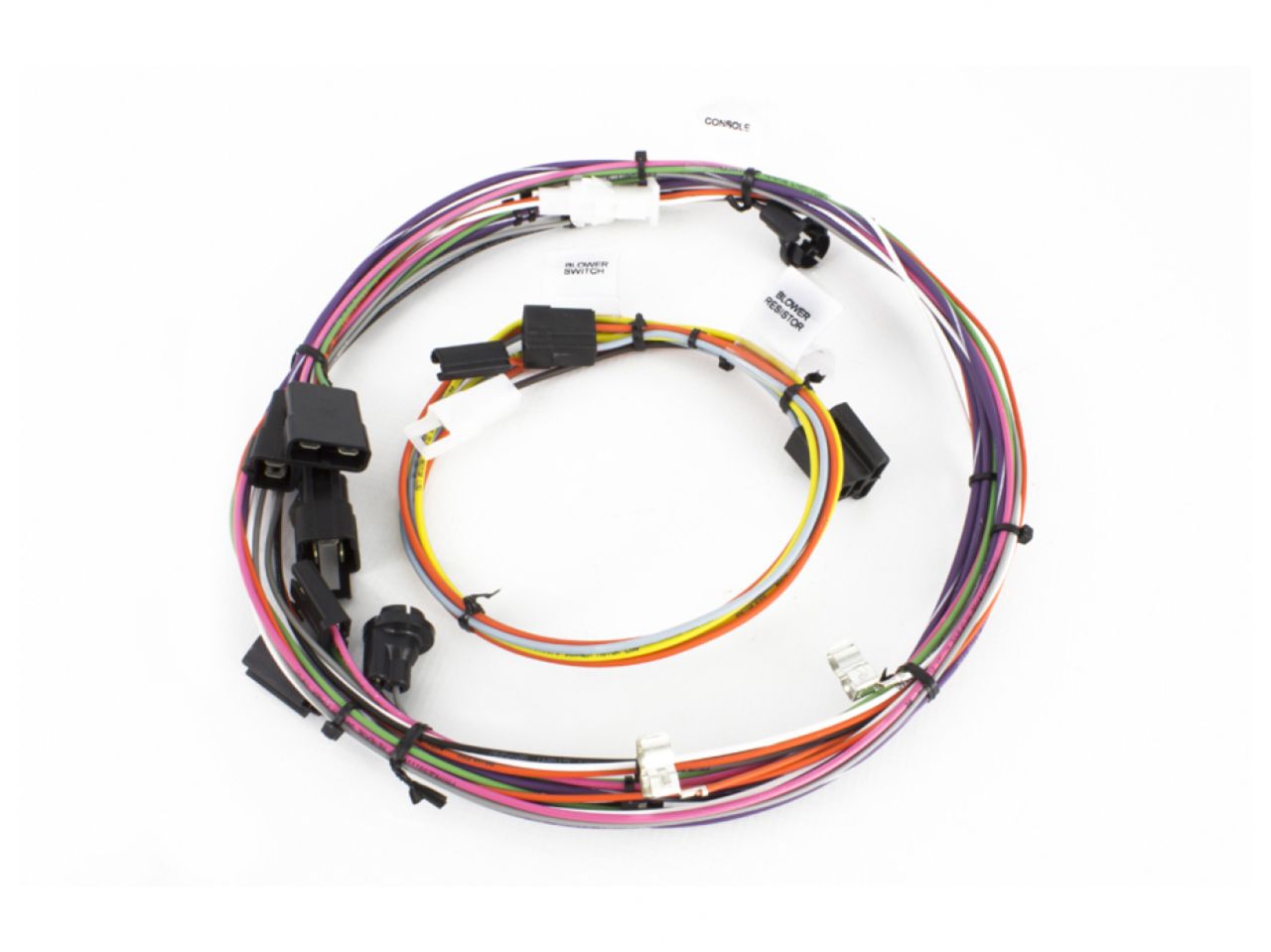

Plug and play design makes install easy, no matter your options. Don't have a center console but may add one later? The included console harness can be easily added at any time.

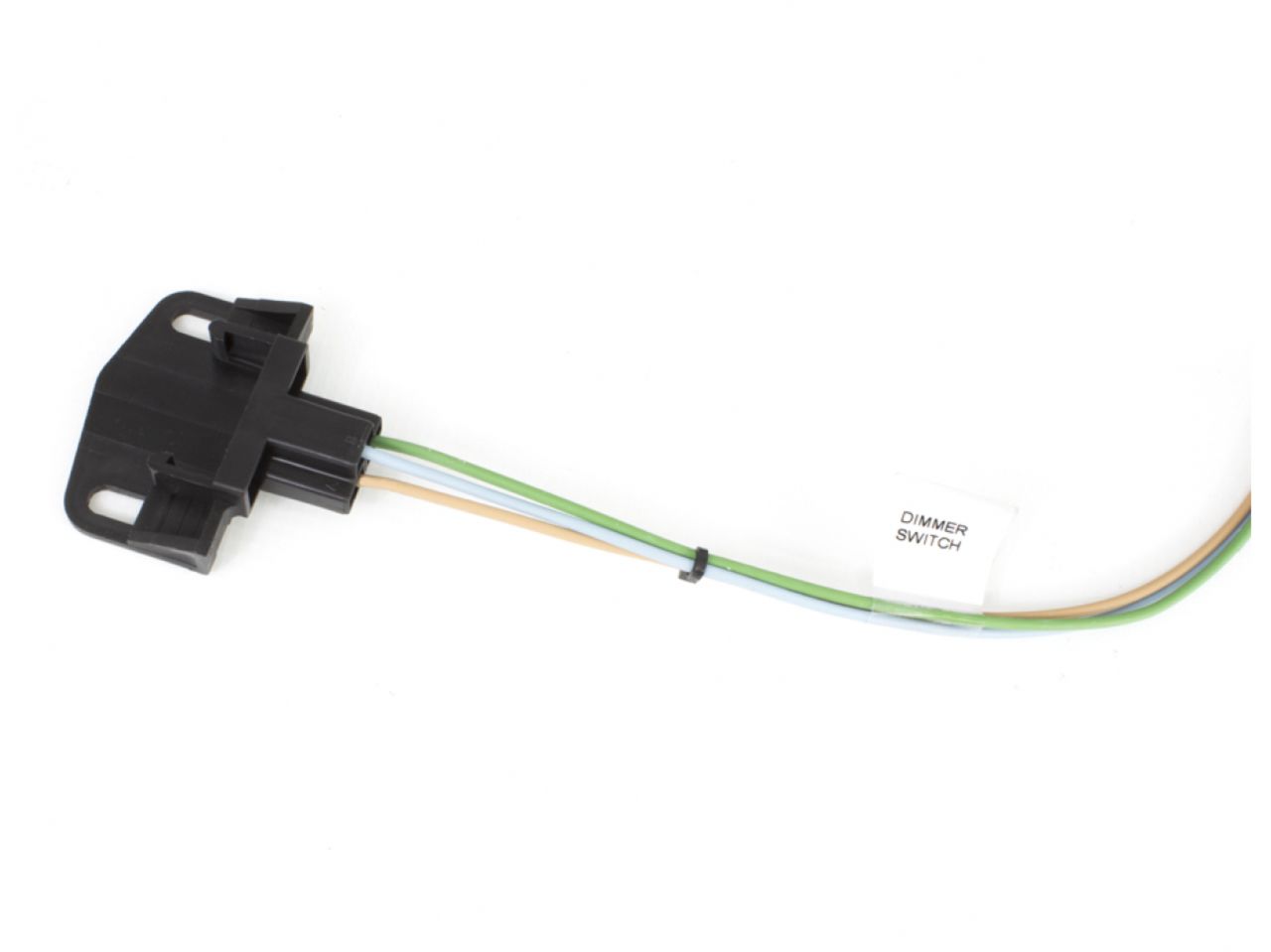

Each pre-terminated connector is tagged for easy routing and installation.

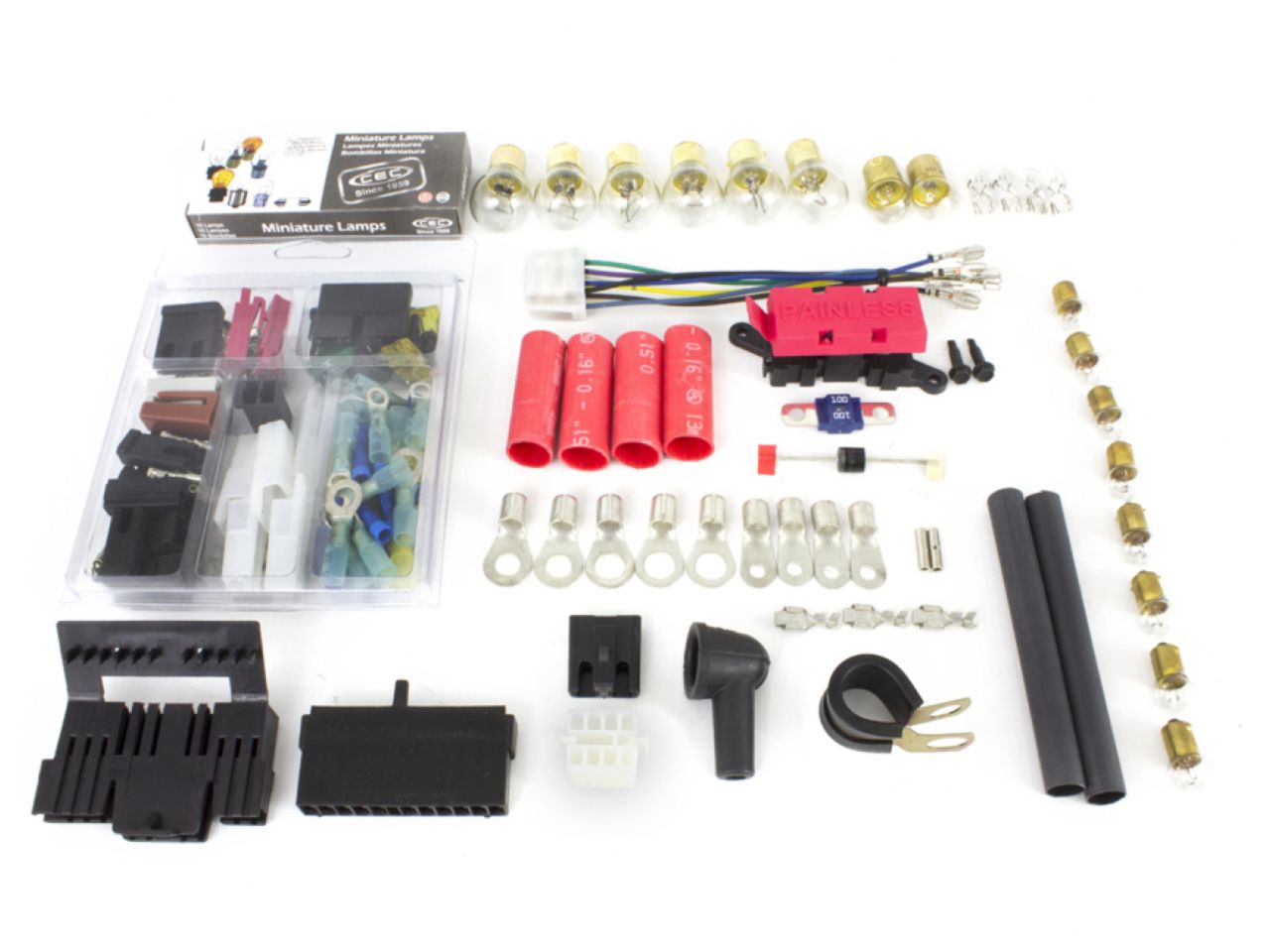

There is no need to make extra trips to the parts store with this kit. Connectors, terminals, extra fuses, light bulbs, etc., all come in the box.
Application
Year: 1969
Make: Chevrolet
Model: Chevelle / Malibu
Engine: Carbureted or Any Stand Alone Fuel Injection
Trans.: Any
