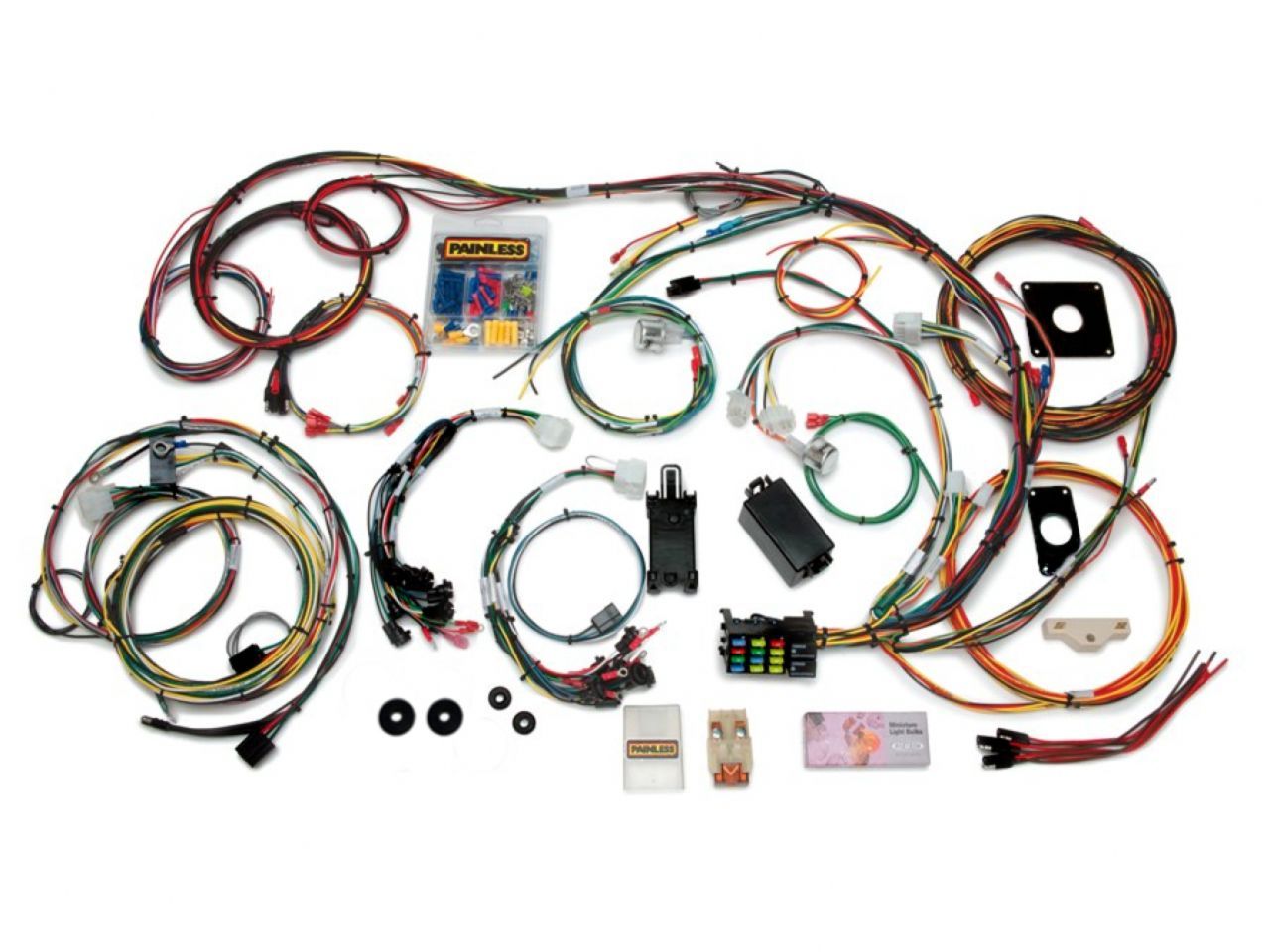

Painless Direct Fit Mustang Chassis Harness (1965-1966) - 22 Circuits

Painless Direct Fit Mustang Chassis Harness (1965-1966) - 22 Circuits

Regular price $1,280.56
Regular price $1,684.95 Sale price $1,280.56
Sale Sold out

Shipping calculated at checkout.

59 in stock

Quantity

Shipping & returns

Shipping details

In-stock orders are processed within 48 hours; transit time is additional.

International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

Read the shipping policy

Returns

Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.

Read the full return policy
Return details & how to start

Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.

Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.

Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.

Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.

After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.

Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.

For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.

This 22 circuit direct fit 1965-1966 Ford Mustang wiring harness has many of the factory connectors already installed on the harness out of the box. This harness uses our unique covered micro-fuse block. Also featured is an auxiliary circuit with 20 amp relay for accessories such as fog lights, or an electric fuel pump. Each wire is custom printed with the circuit identification as well as using Ford color codes for easy installation.

Specs:

Number of Circuits: 22 Circuits - 12 Fuses w/ Horn Relay, Accessory Relay and Maxi Fuse
Harness Length: Factory Fitment
Fuse Type: Mini Blade & Maxi Fuse
Firewall Passthrough: Grommet
Color Code Based: Factory Ford
Circuit Designations: Printed on Wires
Connectors Included: Blower motor, wipers, ignition, headlight switches, voltage regulator, turn signals and flashers, lighter, brake switch, dimmer switch, brake warning light and headlight bulbs

Complete Ford color-coded chassis wiring harness for:

  • 1965 Ford Mustang
  • 1966 Ford Mustang

This harness includes circuits for:

  1. A/C & Heat
  2. Accessory / Cigarette Lighter
  3. Accessory Relay
  4. Backup Lights
  5. Brake Lights
  6. Charging
  7. Courtesy and Dome Lights
  8. Electric Choke
  9. Emergency Flashers
  10. Fan Relay Activation Power
  11. Fused Power Source
  12. Glove Box Light
  13. Headlights
  14. Horn (Relay)
  15. Ignition Coil
  16. Instrument Panel Lighting and Gauges*
  17. Park Lights
  18. Radio/Clock (Constant and Switched)
  19. Starting
  20. Tail Lights and License Plate Light
  21. Turn Signals
  22. Wipers and Washer Pump

* Including Wires For:
Ammeter
Fuel Gauge
Oil Gauge
Tachometer
Temperature Gauge
Voltmeter

Application

Year: 1965 - 1966
Make: Ford
Model: Mustang
Engine: Carbureted or Any Stand Alone Fuel Injection
Trans.: Any
